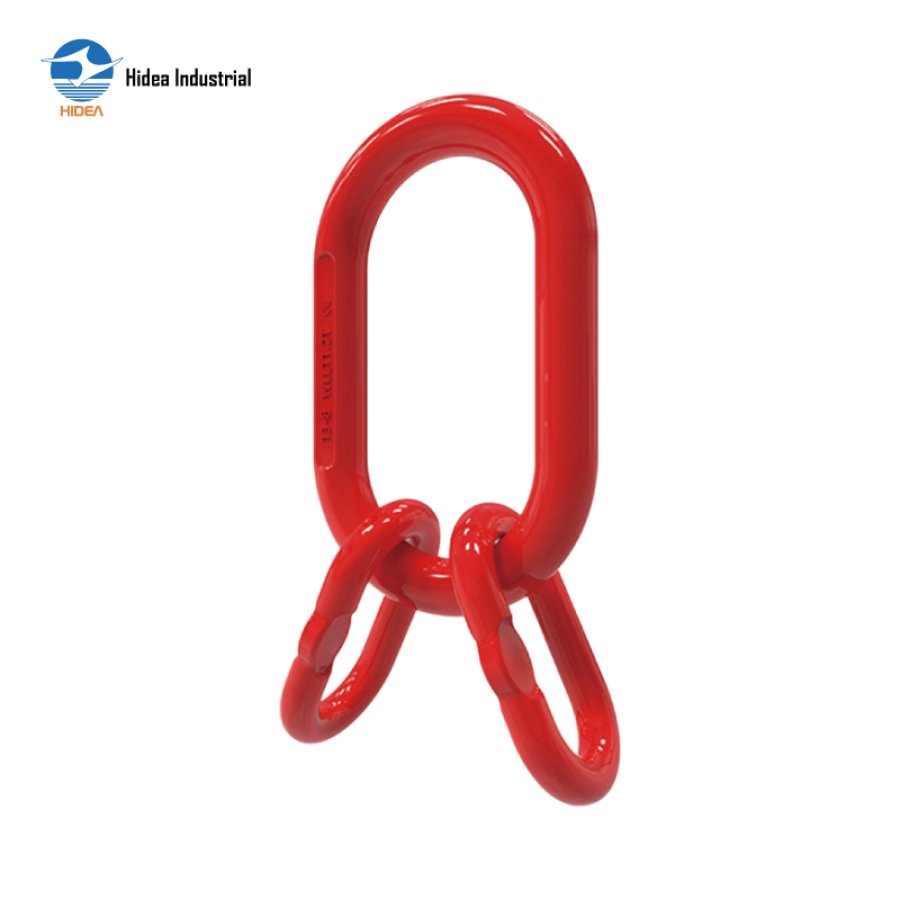

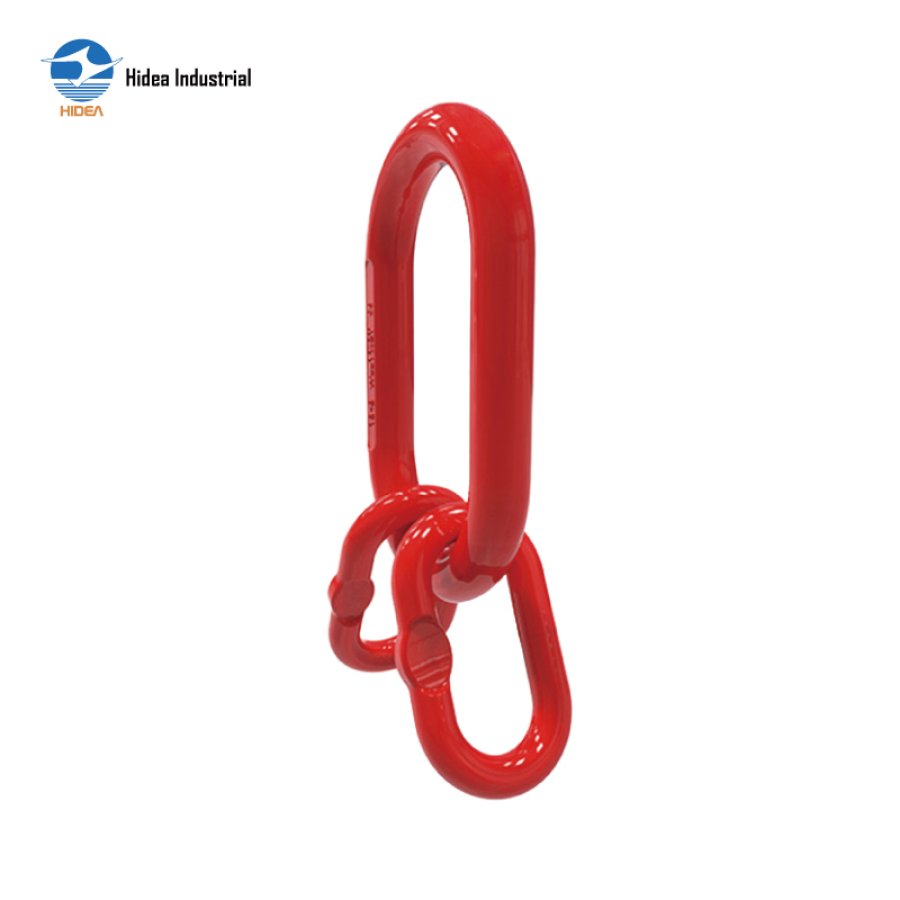

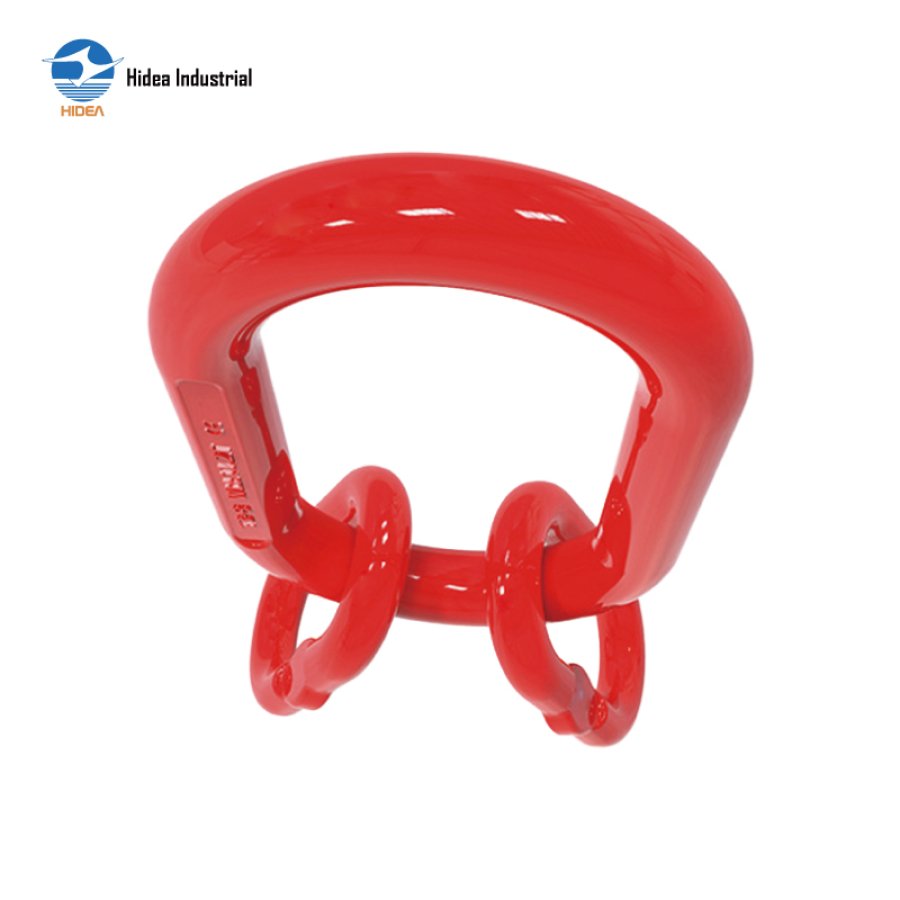

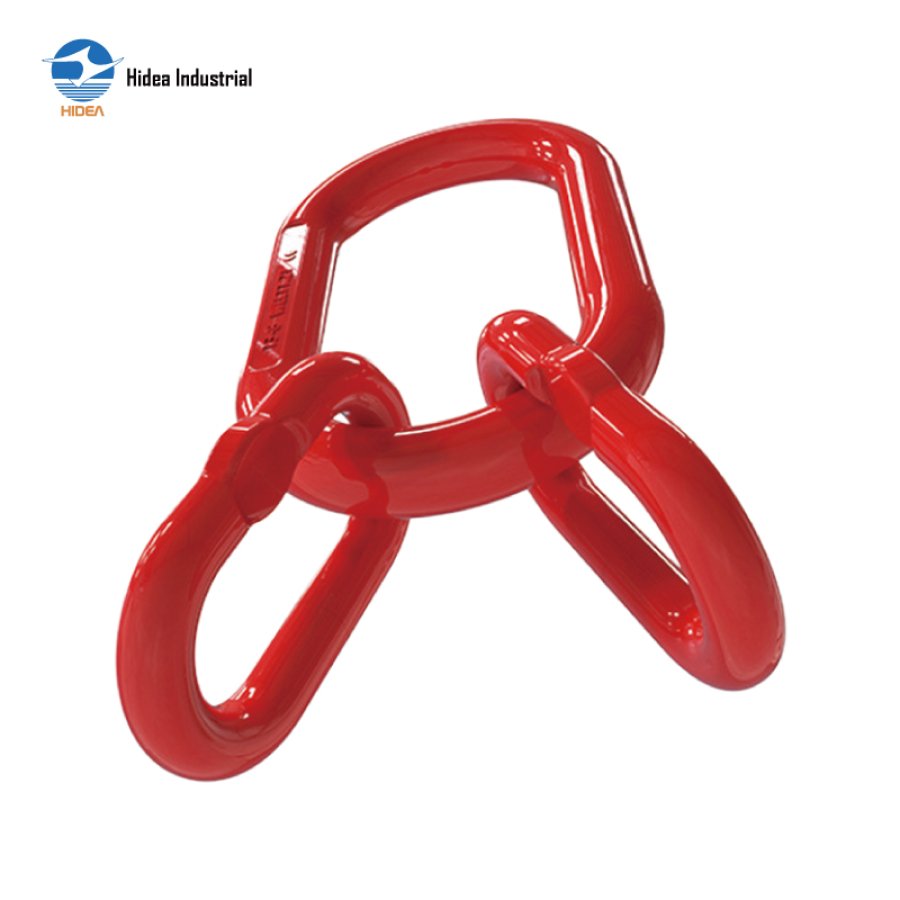

Standard: EN1677-4 (Supersedes DIN5688-3)
Super alloy steel-Quenched and Tempered
Individually proof test at 2.5 times Working Load Limit
Breakage test and fatigue test
100% magnaflux crack detection
Surface finish: powder plastifed
Colour code: Red RAL3020/Yellow RAL1003
Suitable for 3 or 4 legs G80 chain sling as per EN818-4
BLUE AREA: Main link: WELDED Sub links: WELDED
YELLOW AREA: Main link: FORGED Sub links: WELDED

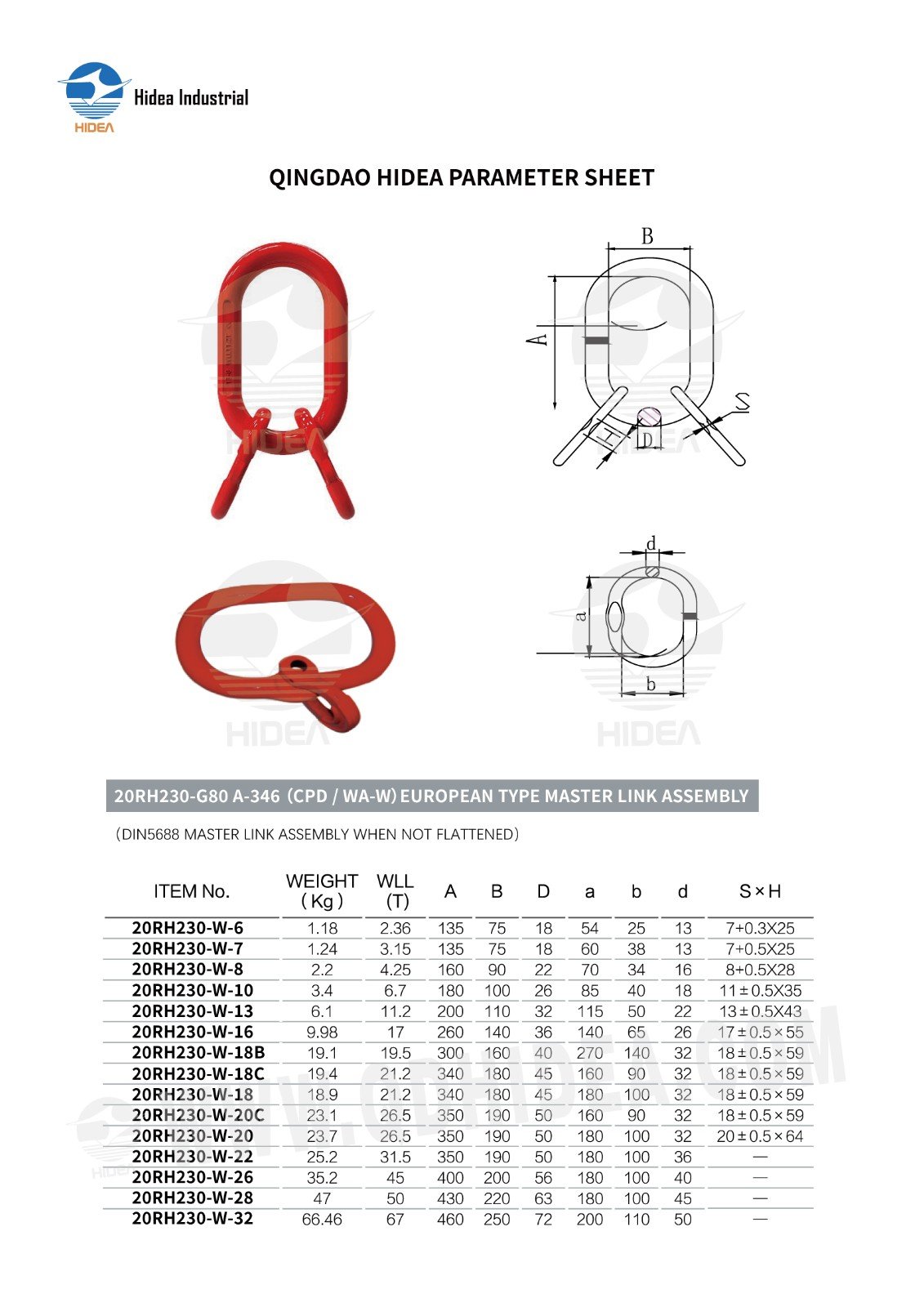

QINGDAO HIDEA PARAMETER SHEET FOR

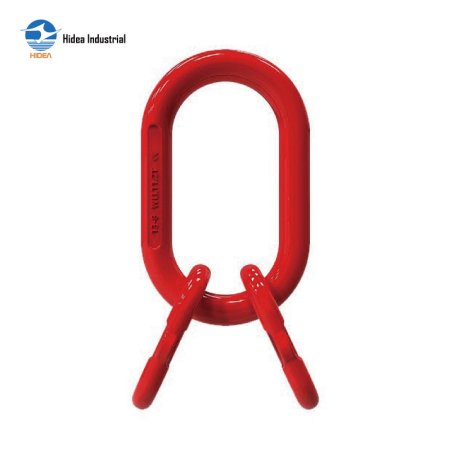

20RH230-G80 A-346(CPD/WA-W)EUROPEAN TYPE MASTER LINK ASSEMBLY
| ITEM No. | WEIGHT (Kg) | WLL (T) | A | B | D | a | b | d | S×H | |
| 20RH230-W-6 | 1.18 | 2.36 | 135 | 75 | 18 | 54 | 25 | 13 | 7+0.3X25 | |
| 20RH230-W-7 | 1.24 | 3.15 | 135 | 75 | 18 | 60 | 38 | 13 | 7+0.5X25 | |
| 20RH230-W-8 | 2.2 | 4.25 | 160 | 90 | 22 | 70 | 34 | 16 | 8+0.5X28 | |
| 20RH230-W-10 | 3.4 | 6.7 | 180 | 100 | 26 | 85 | 40 | 18 | 11±0.5X35 | |
| 20RH230-W-13 | 6.1 | 11.2 | 200 | 110 | 32 | 115 | 50 | 22 | 13±0.5X43 | |
| 20RH230-W-16 | 9.98 | 17 | 260 | 140 | 36 | 140 | 65 | 26 | 17±0.5×55 | |
| 20RH230-W-18B | 19.1 | 19.5 | 300 | 160 | 40 | 270 | 140 | 32 | 18±0.5×59 | |
| 20RH230-W-18C | 19.4 | 21.2 | 340 | 180 | 45 | 160 | 90 | 32 | 18±0.5×59 | |
| 20RH230-W-18 | 18.9 | 21.2 | 340 | 180 | 45 | 180 | 100 | 32 | 18±0.5×59 | |
| 20RH230-W-20C | 23.1 | 26.5 | 350 | 190 | 50 | 160 | 90 | 32 | 18±0.5×59 | |
| 20RH230-W-20 | 23.7 | 26.5 | 350 | 190 | 50 | 180 | 100 | 32 | 20±0.5×64 | |
| 20RH230-W-22 | 25.2 | 31.5 | 350 | 190 | 50 | 180 | 100 | 36 | 一 | |
| 20RH230-W-26 | 35.2 | 45 | 400 | 200 | 56 | 180 | 100 | 40 | 一 | |
| 20RH230-W-28 | 47 | 50 | 430 | 220 | 63 | 180 | 100 | 45 | — | |
| 20RH230-W-32 | 66.46 | 67 | 460 | 250 | 72 | 200 | 110 | 50 | — | |
