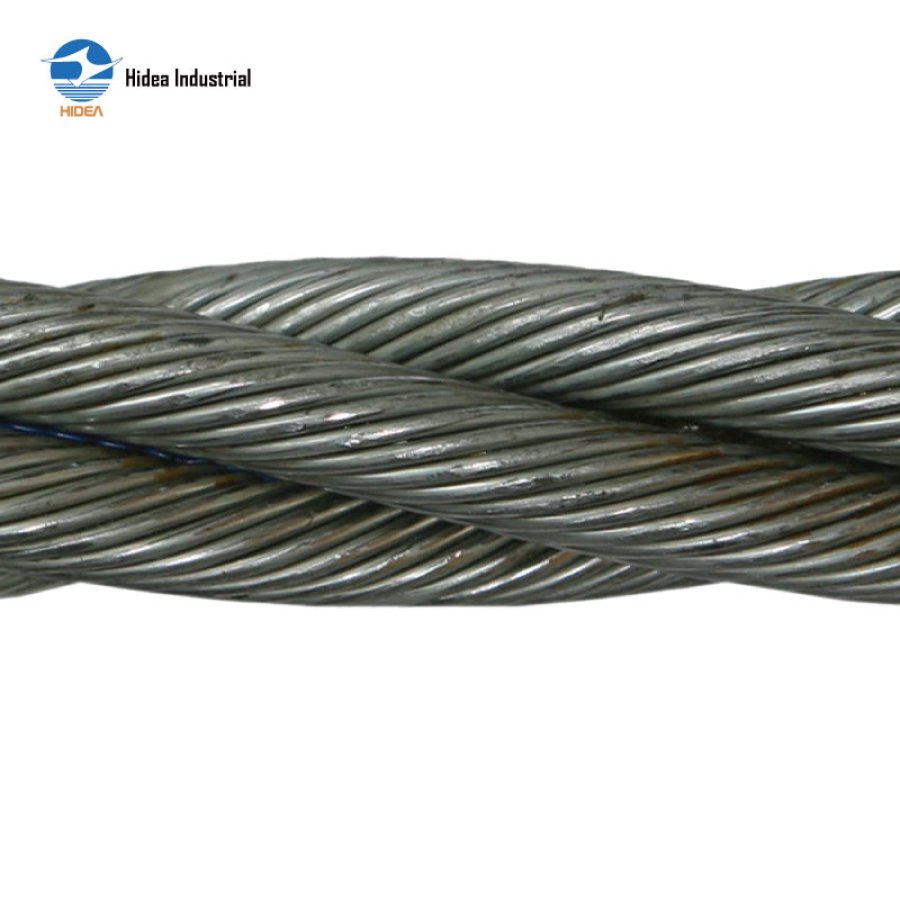

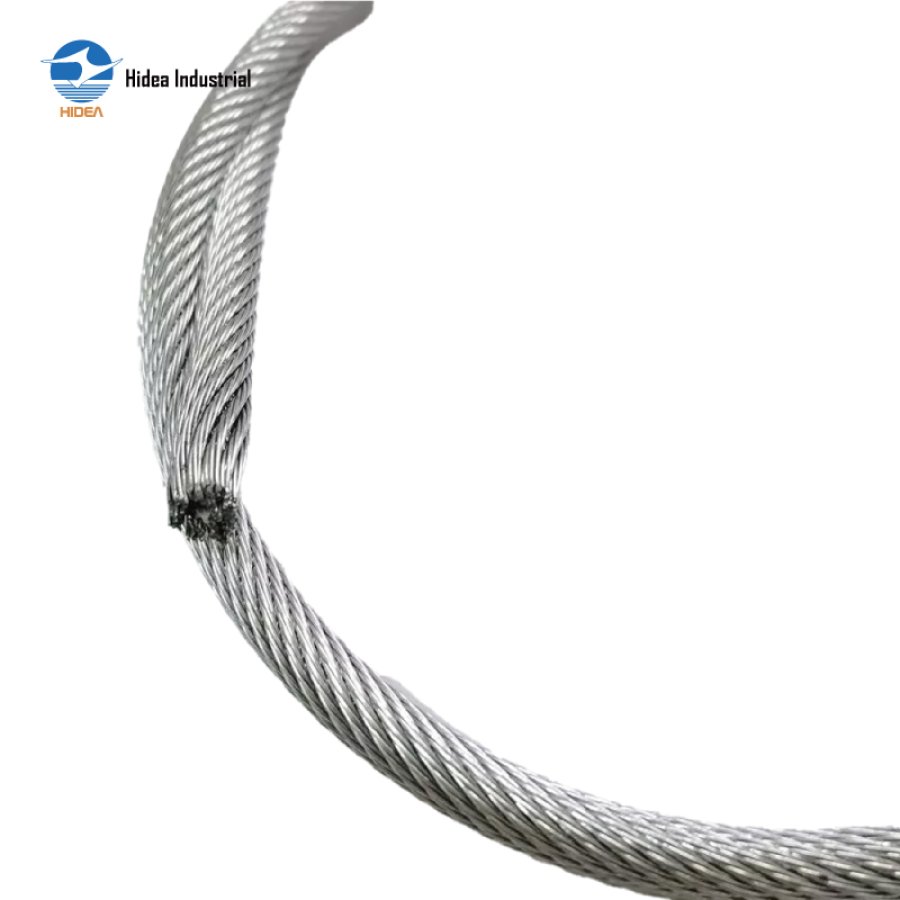

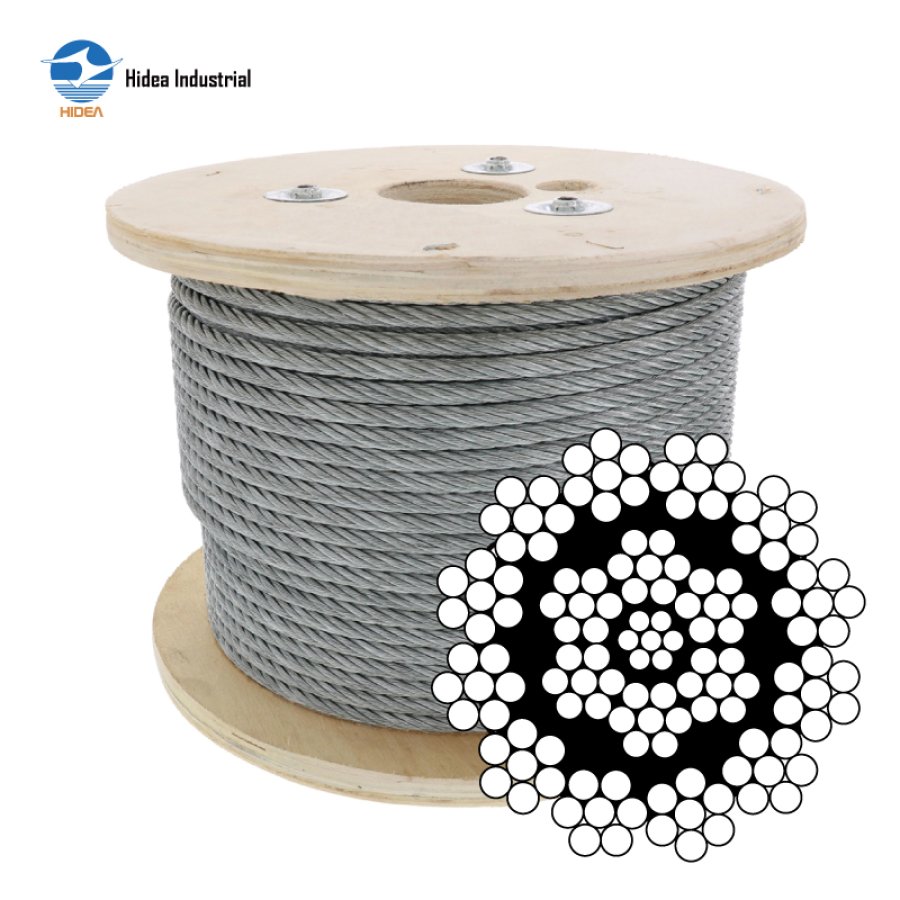

6x36WS / 18x7 Stainless Steel Wire Rope

STAINLESS STEEL WIRE ROPE 6xWS(36)/18x7

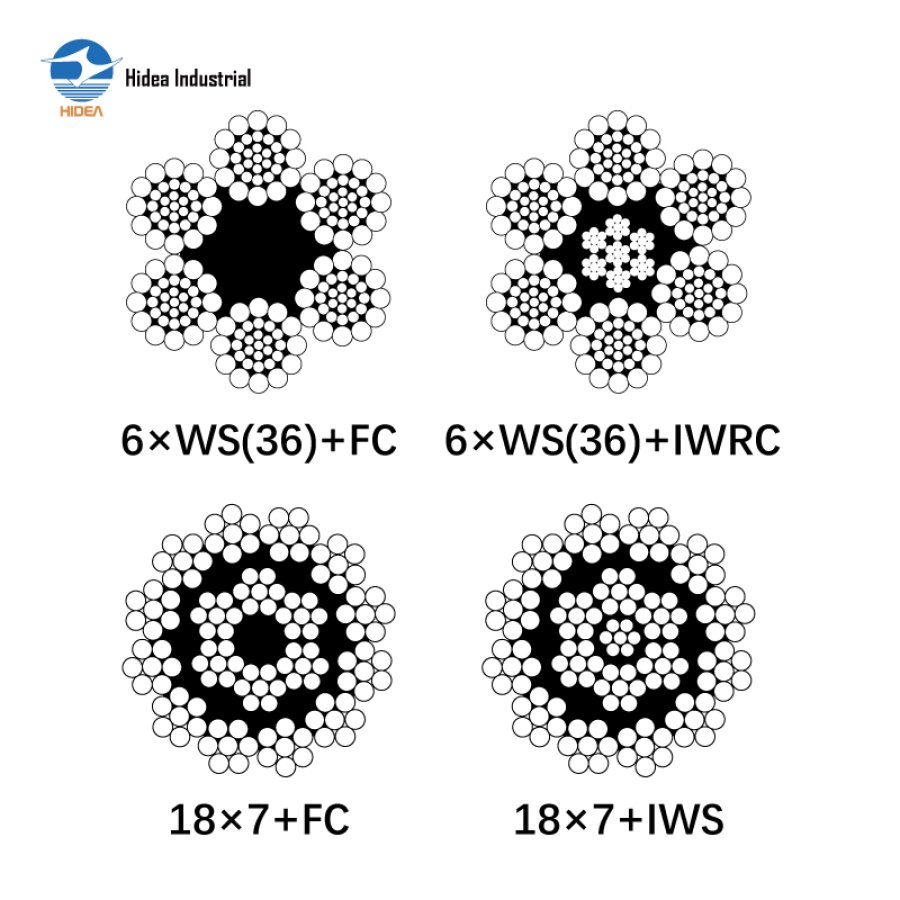

Stainless Steel Wire Rope 6xWS(36)+FC / 6xWS(36)+IWRC / 18x7+FC / 18x7+IWS
Materail AISI 304 / AISI 316 or AISI 316L
Excellent corrosion, heat and cold resistance features in various application cases of chemistry, fishing boat, automobile, aircraft & daily life etc.

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

STAINLESS STEEL WIRE ROPE 6xWS(36)/18x7

Materail AISI 304/AISI 316 or AISI 316L

6×WS(36)+FC 6×WS(36)+IWRC
	Diameter mm	Approx.Weight		Nominal Tensile Strength
		kg/100m		1570N/mm		1770N/mm		1960N/mm
		kg/100m		Minimum Breaking Load(KN)
	MM	FC	WSC	FC	WSC	FC	WSC	FC	WSC
	8	23.49	26.18	33.16	35.77	37.38	40.33	41.40	44.66
	12	52.85	58.90	74.61	80.48	84.11	90.74	93.14	100.48
	10	36.70	40.90	51.81	55.89	58.41	63.01	64.68	69.78
6×WS(36)+FC	14	71.93	80.16	101.55	109.55	114.48	123.50	126.77	136.76
	15	82.58	92.03	116.57	125.76	131.42	141.78	145.53	157.00
	17	106.06	118.20	149.73	161.53	168.80	182.10	186.93	201.65
	19	132.49	147.65	187.03	201.77	210.86	22747	233.49	251.89
	20	146.80	163.60	207.24	223.57	233.64	252.05	258.72	279.10
	22	177.63	197.96	250.76	270.52	282.70	304.98	313.05	337.72
	24	211.39	235.58	298.43	321.94	336.44	362.95	372.56	401.91
	26	248.09	276.48	350.24	377.83	394.85	425.96	437.24	471.69
	28	287.73	320.66	406.19	438.19	457.93	494.01	507.09	547.04
6×WS(36)+IWRC	32	375.81	418.82	530.53	572.33	598.12	645.24	662.32	714.51
	36	475.63	530.06	671.46	724.36	756.99	816.64	838.25	904.30
	40	587.20	654.40	828.96	894.27	934.56	1008.19	1034.88	1116.42
18×7+FC 18×7+IWS
	Diameter mm	Approx.Weight		Nominal Tensile Strength
		kg/100m		1570N/mm		1770N/mm		1960N/mm
		kg/100m		Minimum Breaking Load (KN)
	MM	FC	WSC	FC	WSC	FC	WSC	FC	WSC
	4	6.11	6.43	8.01	8.26	9.03	9.32	—	—
	5	9.55	10.05	12.52	12.91	14.12	14.56		一
18×7+FC	6	13.75	14.47	18.03	18.60	20.33	20.96		一
18×7+FC	7	18.72	19.70	24.54	25.31	27.67	28.53		一
	8	24.45	25.73	32.05	33.06	36.14	37.27
	9	30.94	32.56	40.57	41.84	45.74	47.17	一	—
	10	38.20	40.20	50.08	51.65	56.46	58.23	一	一
	11	46.22	48.64	60.60	62.50	68.32	70.46	一	一
	12	55.01	57.89	72.12	74.38	81.31	83.86		一
	13	64.56	67.94	84.64	87.29	95.42	98.41
	14	74.87	78.79	98.16	101.24	110.67	114.14	一	一
	15	85.95	90.45	112.69	116.22	127.04	131.02	一	一
18×7+IWS	16	97.79	102.91	128.21	132.23	144.55	149.08	一	一
	17	110.40	116.18	144.74	149.28	163.18	168.29	一
	18	123.77	130.25	162.27	167.36	182.94	188.67	—	一
	19	137.90	145.12	180.80	186.47	203.83	210.22		—
	20	152.80	160.80	200.33	206.61	225.85	232.93	一	一
