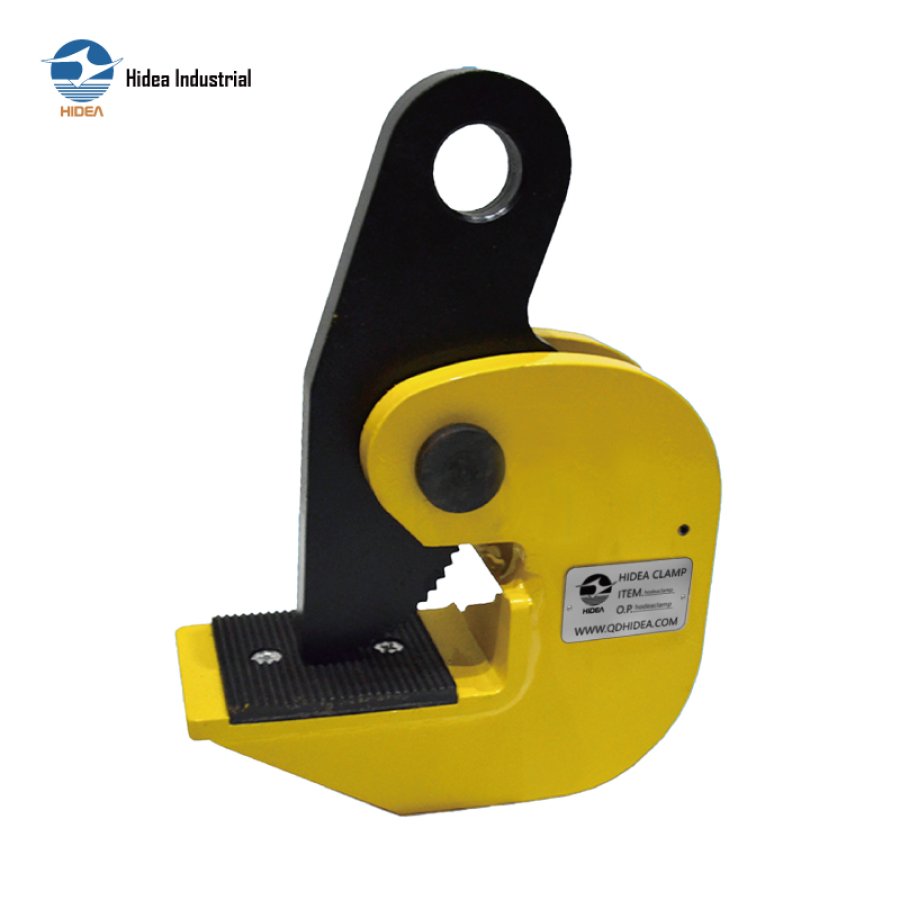

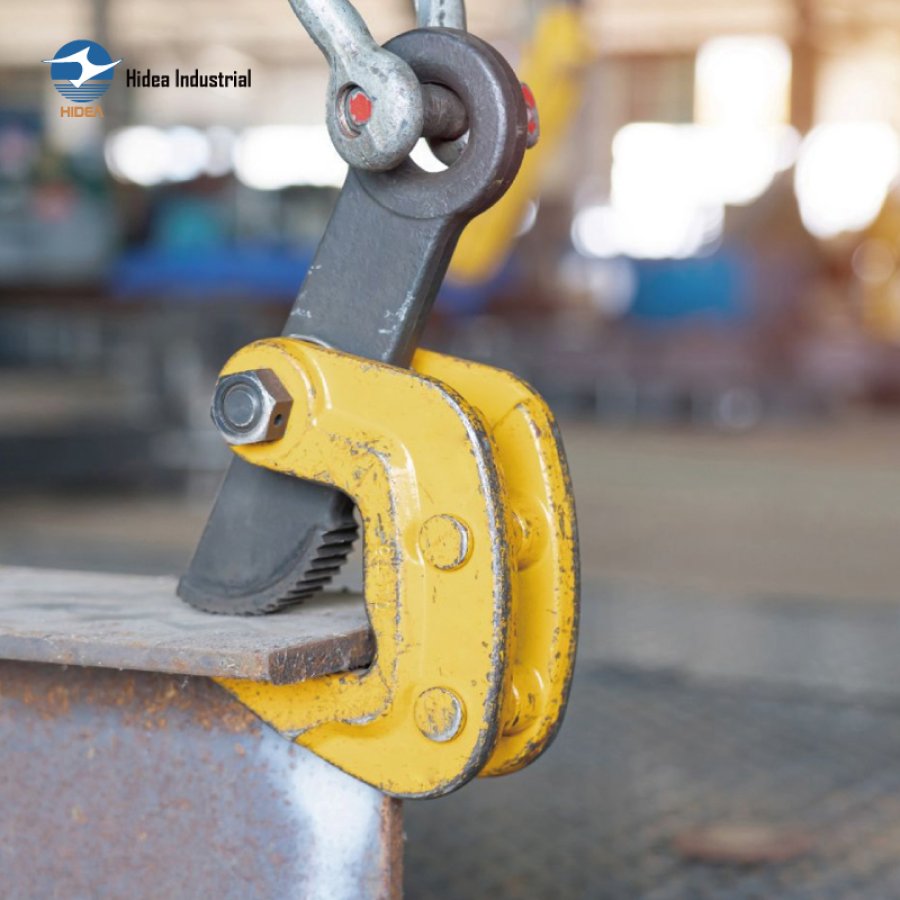

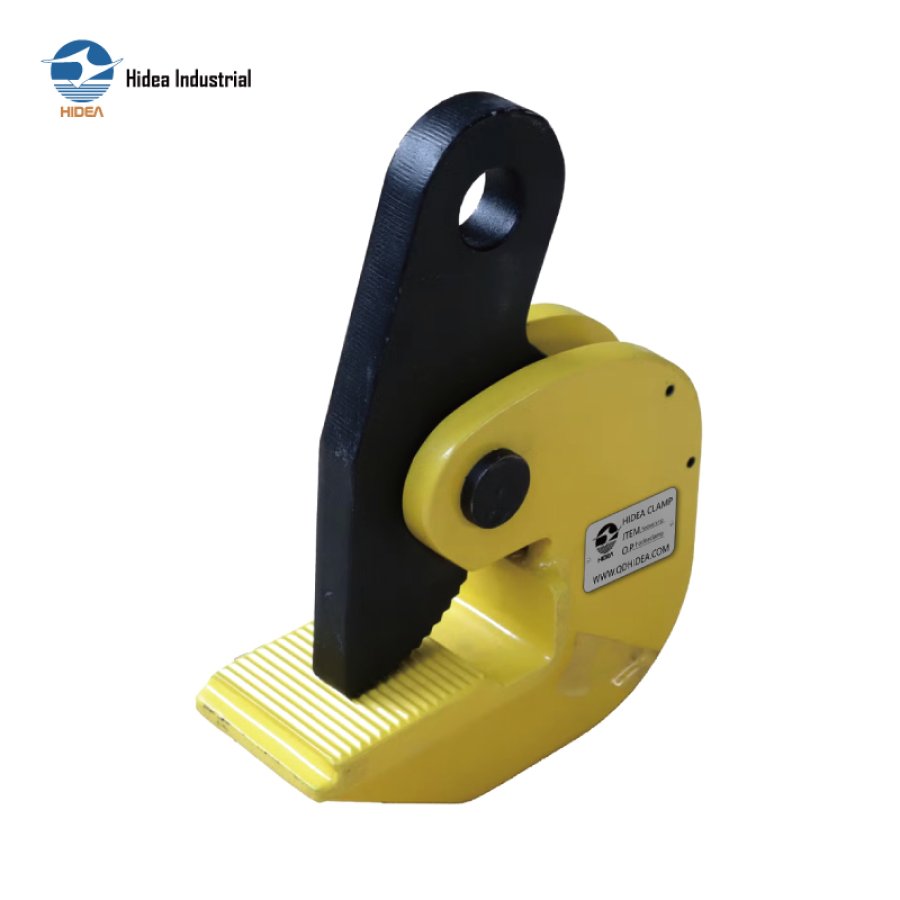

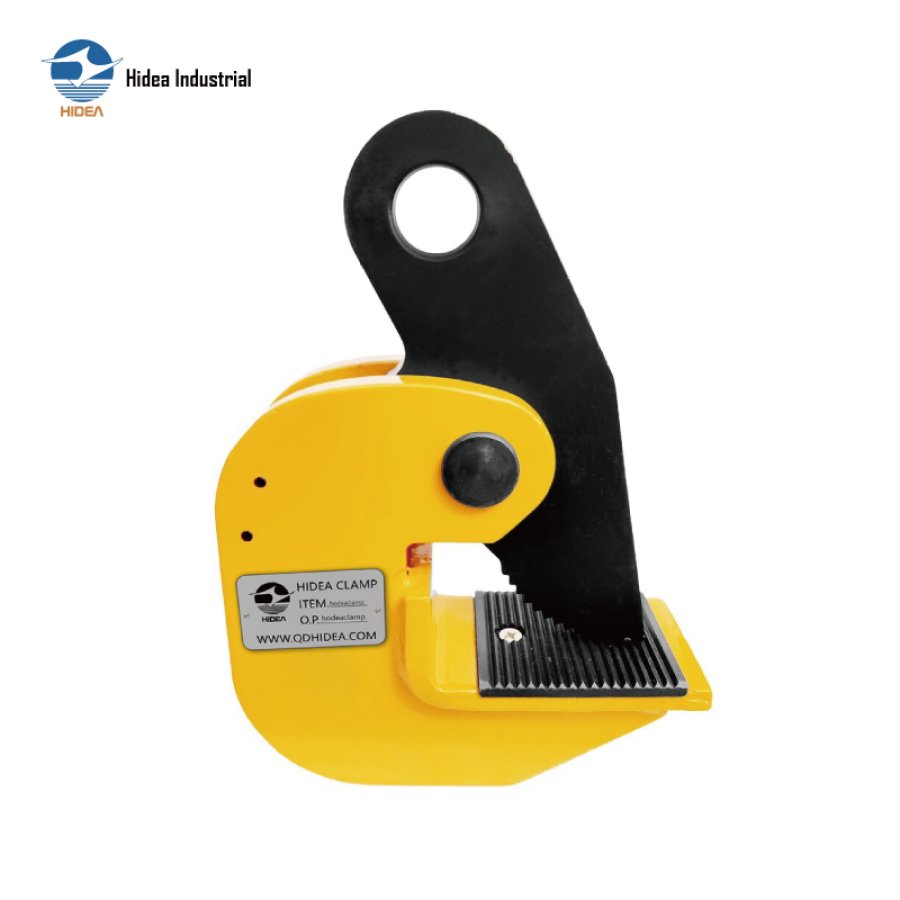

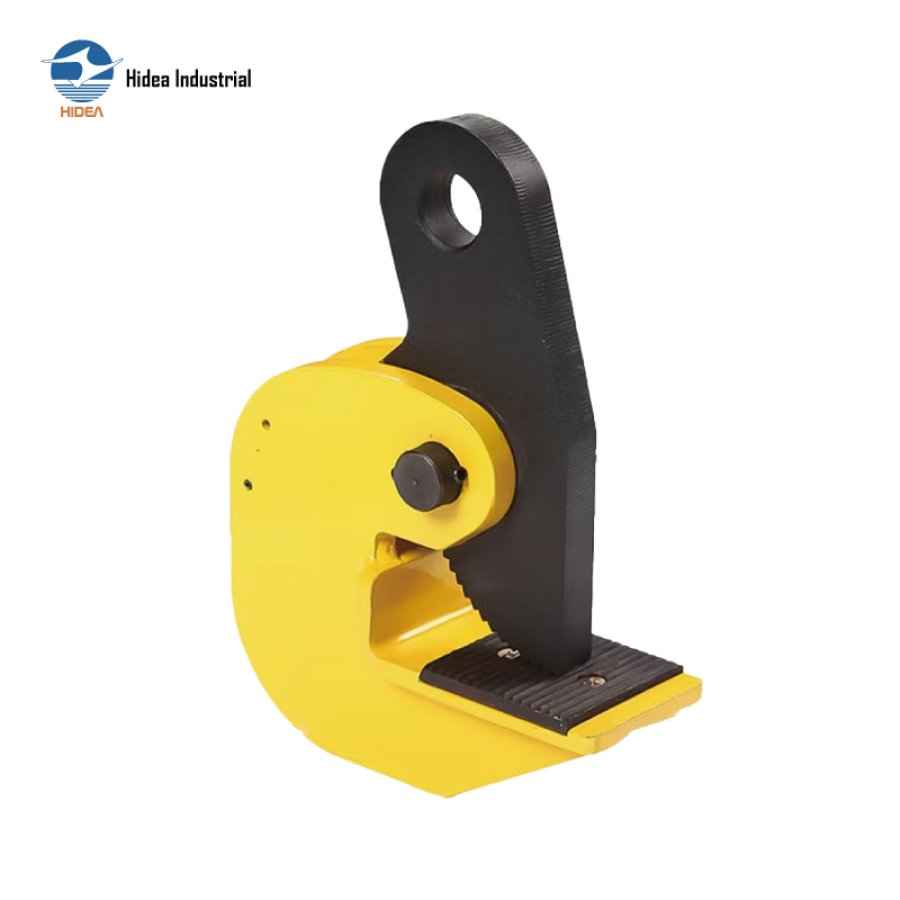

The PDB type horizontal plate lifting clamps are designed more compact and user-friendly, suitable for lifting and transport of steel plates, construction and profiled bar in horizontal position
The PDB Type clamps are manufactured from high quality low carbon alloy steel and main body and crucial parts are made from forged special alloy steels, which are optimally tempered for maximum breaking strength and durability, for heavy duty lifting with working load from 0.8T up to 30T
In lifting operations, the PDB Type clamps can be used in pairs or multiples; And the working load limit means the maximum lifting load is authorized when used in pairs with a lift angle of 60 degrees; the safety mechanism ensures that the jaws remain closed and the plate is held securely throughout the lifting operation and provide a more stable lifting solution, reduce material damage, and decrease the risk of accidents or injuries
The PDB type horizontal plate clamps meeting standards of and in conformity with European Norm (EN) 13155, Machinery Directive 2006/42/EC & ASME B30.20

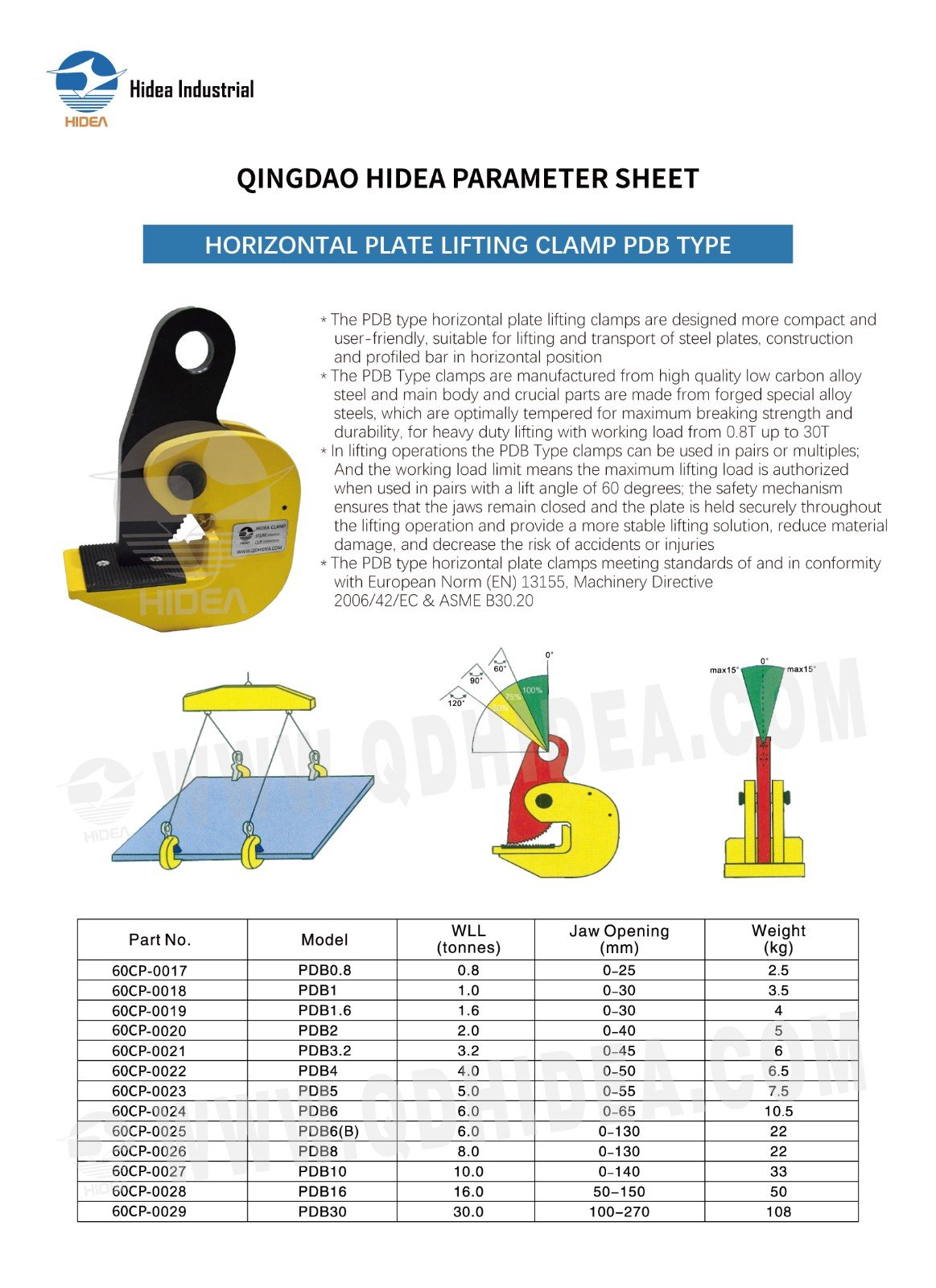

QINGDAO HIDEA PARAMETER SHEET FOR
HORIZONTAL PLATE LIFTING CLAMP PDB TYPE
| Part No. | Model | WLL (tonnes) | Jaw Opening (mm) | Weight (kg) | |||||
| 60CP-0017 | PDB0.8 | 0.8 | 0-25 | 2.5 | |||||
| 60CP-0018 | PDB1 | 1.0 | 0-30 | 3.5 | |||||
| 60CP-0019 | PDB1.6 | 1.6 | 0-30 | 4 | |||||
| 60CP-0020 | PDB2 | 2.0 | 0-40 | 5 | |||||
| 60CP-0021 | PDB3.2 | 3.2 | 0-45 | 6 | |||||
| 60CP-0022 | PDB4 | 4.0 | 0-50 | 6.5 | |||||
| 60CP-0023 | PDB5 | 5.0 | 0-55 | 7.5 | |||||
| 60CP-0024 | PDB6 | 6.0 | 0-65 | 10.5 | |||||
| 60CP-0025 | PDB6(B) | 6.0 | 0-130 | 22 | |||||
| 60CP-0026 | PDB8 | 8.0 | 0-130 | 22 | |||||
| 60CP-0027 | PDB10 | 10.0 | 0-140 | 33 | |||||
| 60CP-0028 | PDB16 | 16.0 | 50-150 | 50 | |||||
| 60CP-0029 | PDB30 | 30.0 | 100-270 | 108 | |||||
