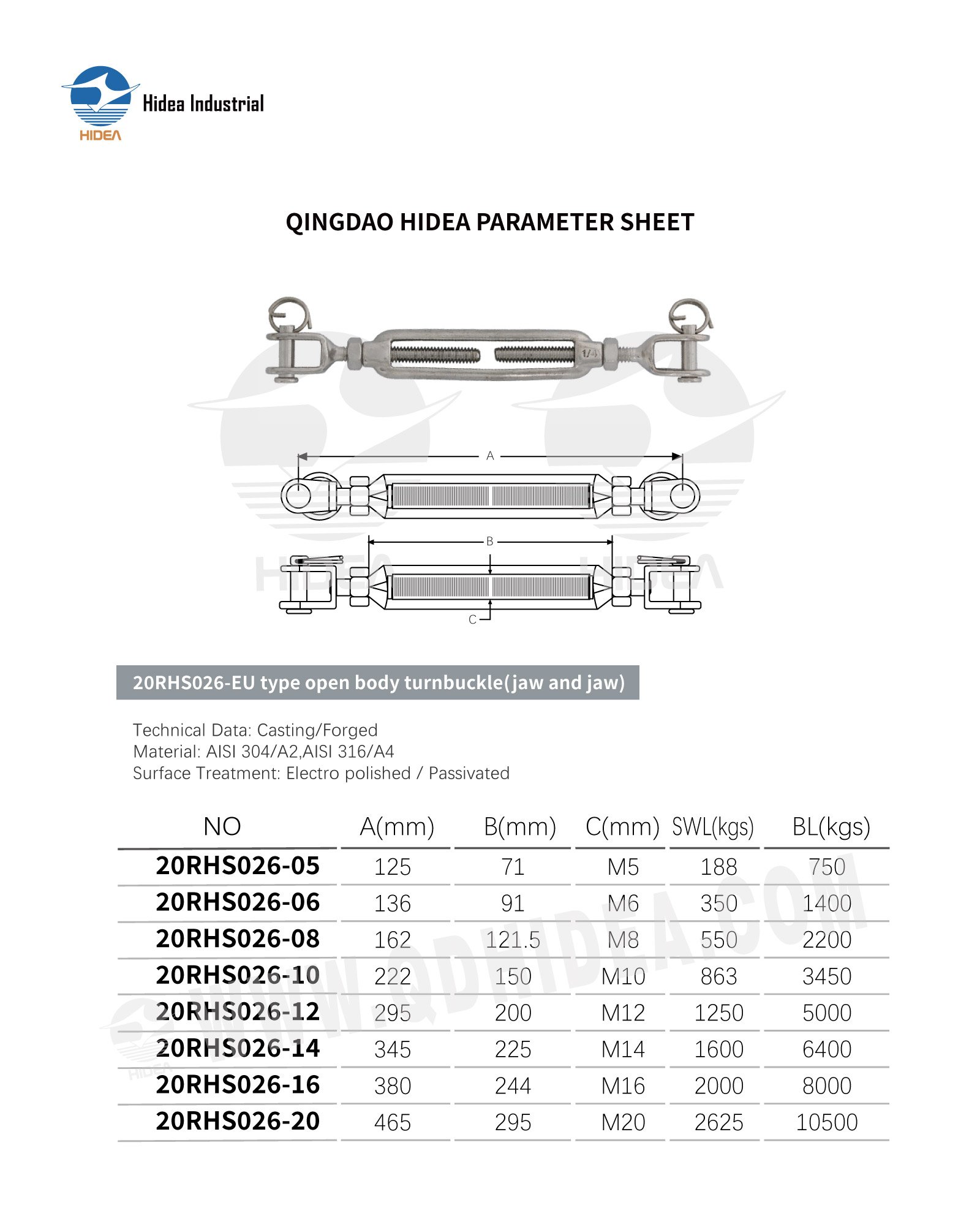

QINGDAO HIDEA PARAMETER SHEET FOR

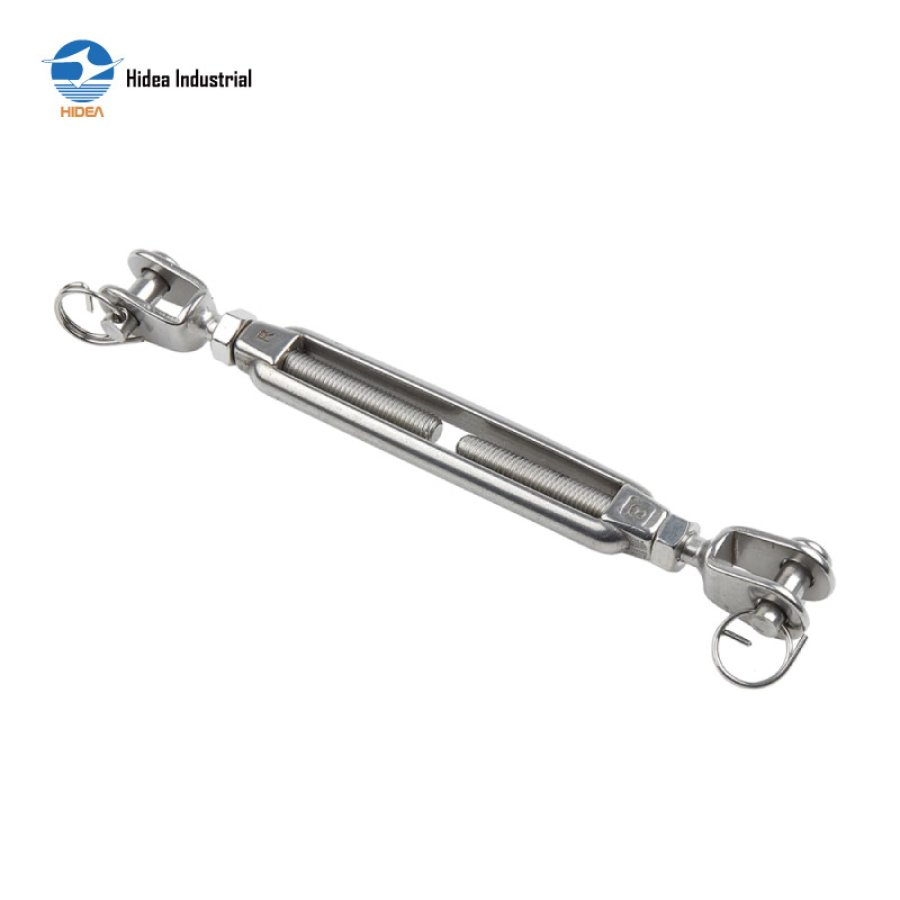

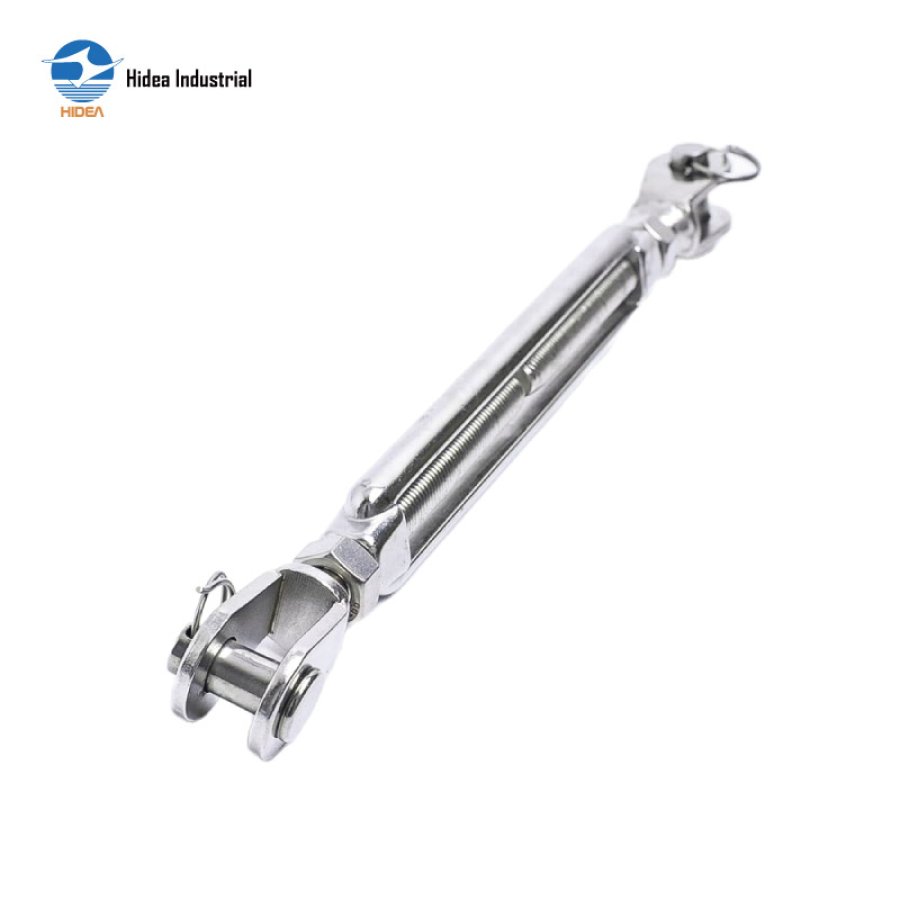

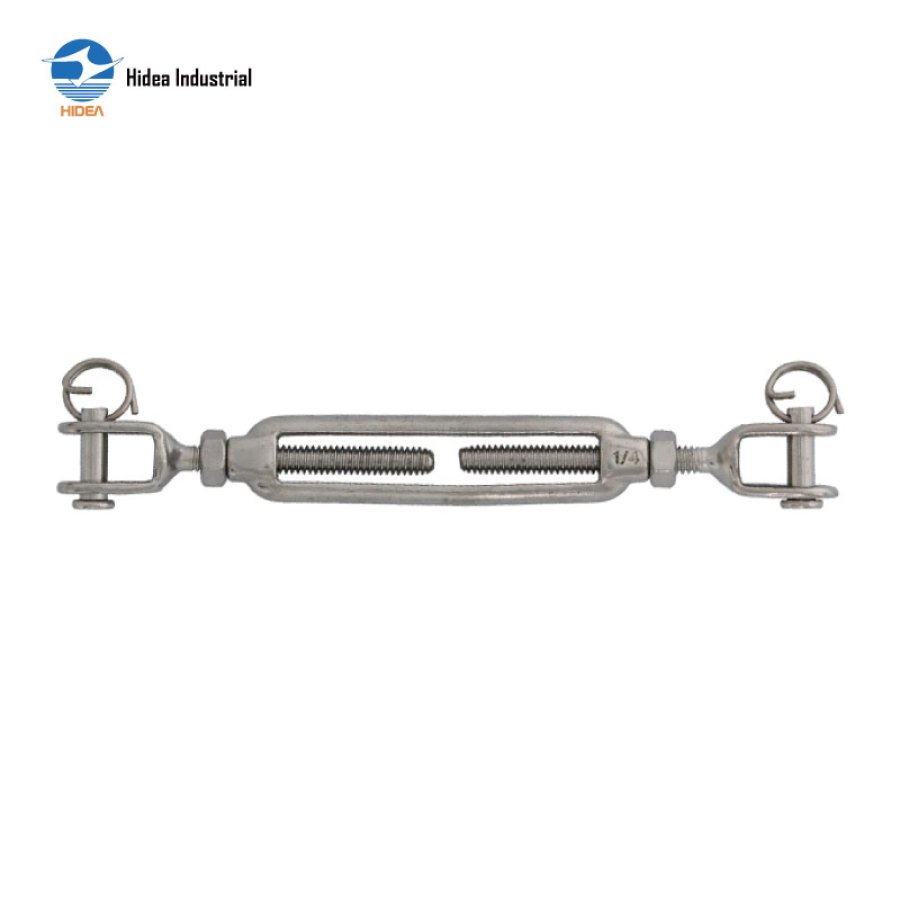

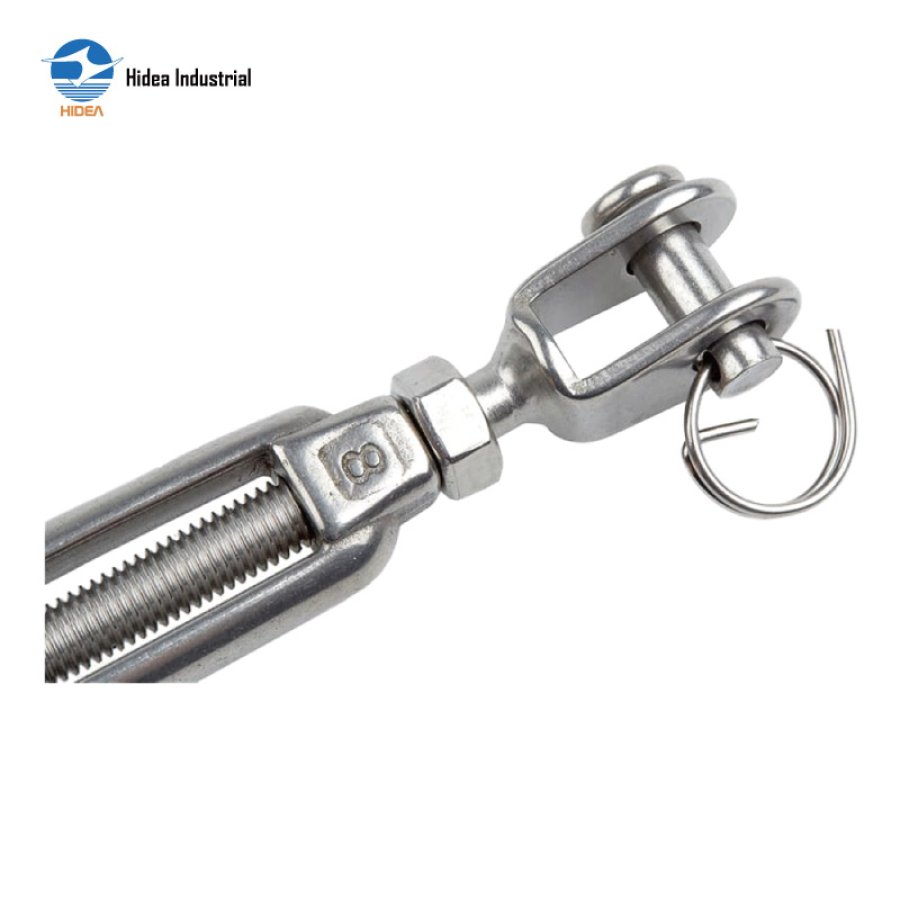

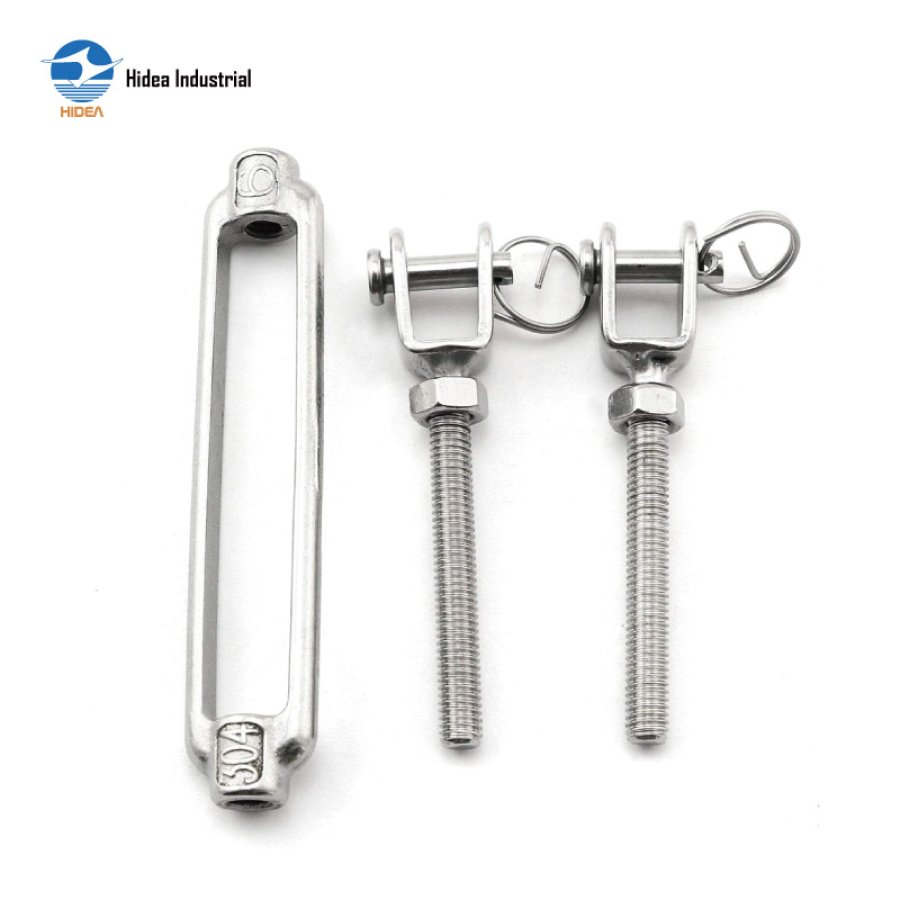

20RHSO26-EU type open body turnbuckle(jaw and jaw)
| NO | A(mm) | B(mm) | C(mm) | SWL(mm) | BL(kgs) |
| 20RHS026-05 | 125 | 71 | M5 | 188 | 750 |
| 20RHSO26-06 | 136 | 91 | M6 | 350 | 1400 |
| 20RHS026-08 | 162 | 121.5 | M8 | 550 | 2200 |
| 20RHS026-10 | 222 | 150 | M10 | 863 | 3450 |
| 20RHS026-12 | 295 | 200 | M12 | 1250 | 5000 |
| 20RHS026-14 | 345 | 225 | M14 | 1600 | 6400 |
| 20RHS026-16 | 380 | 244 | M16 | 2000 | 8000 |
| 20RHS026-20 | 465 | 295 | M20 | 2625 | 10500 |
