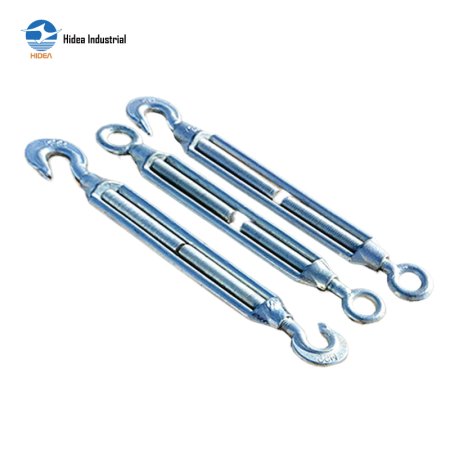

Adjustable Cable Tensioner - Hidea Commercial Type Malleable Steel Turnbuckle

COMMERCIAL TURNBUCKLE MALLEABLE TYPE

Material Casted Malleable Steel
Casted, quenched & tempered
Surface Electro Galv. / zinc plated OR as requested
Tested & certificates available
Casted commercial type turnbuckles

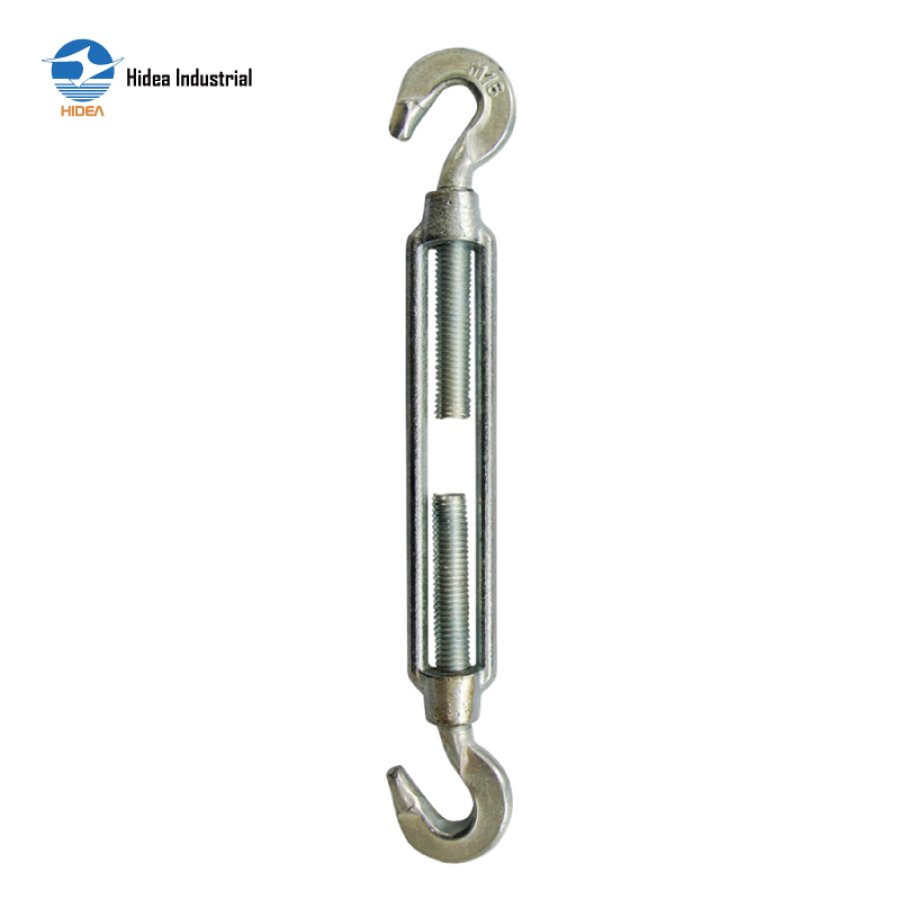

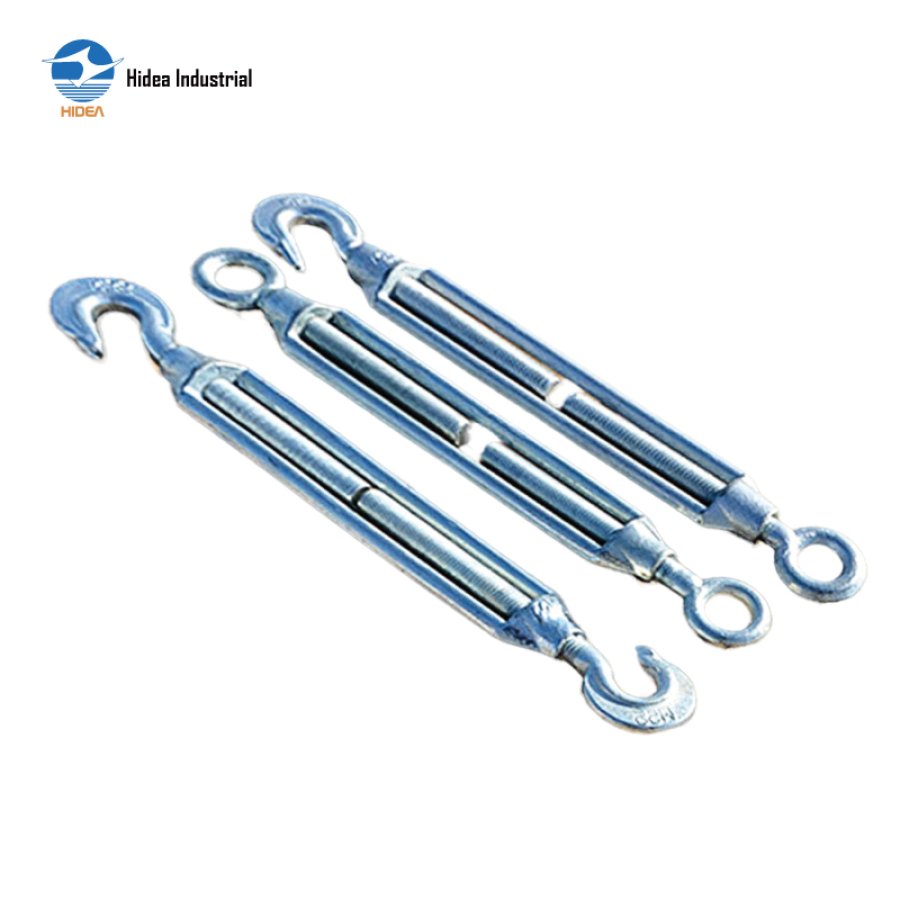

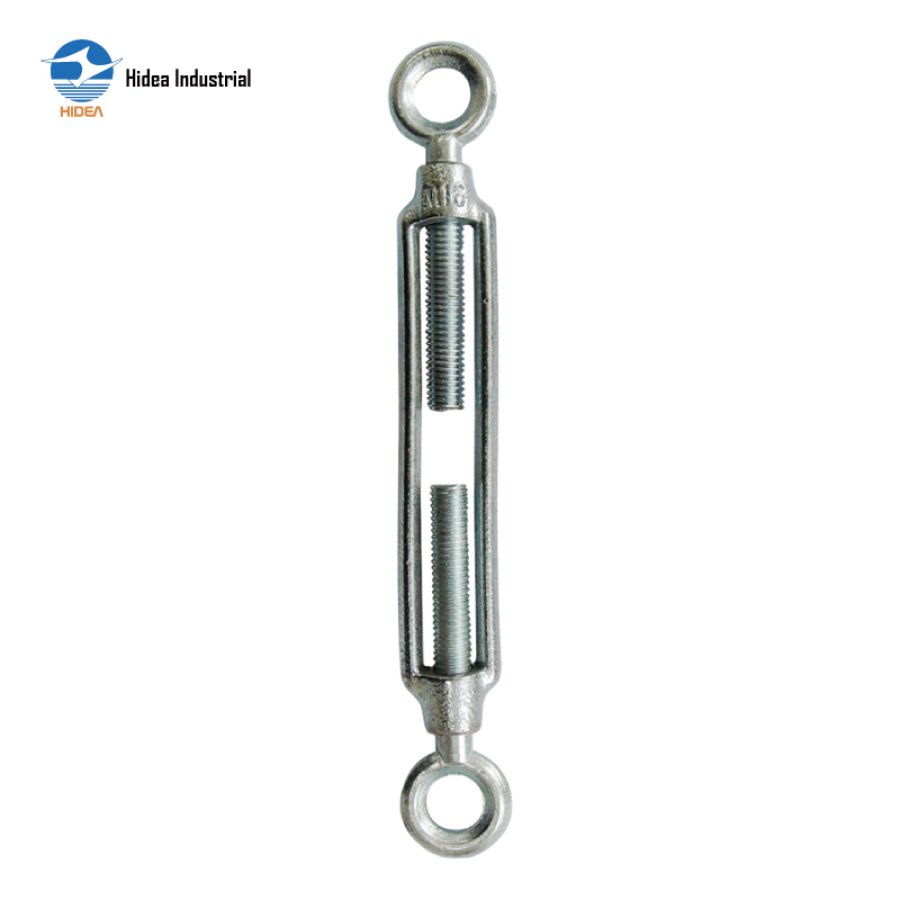

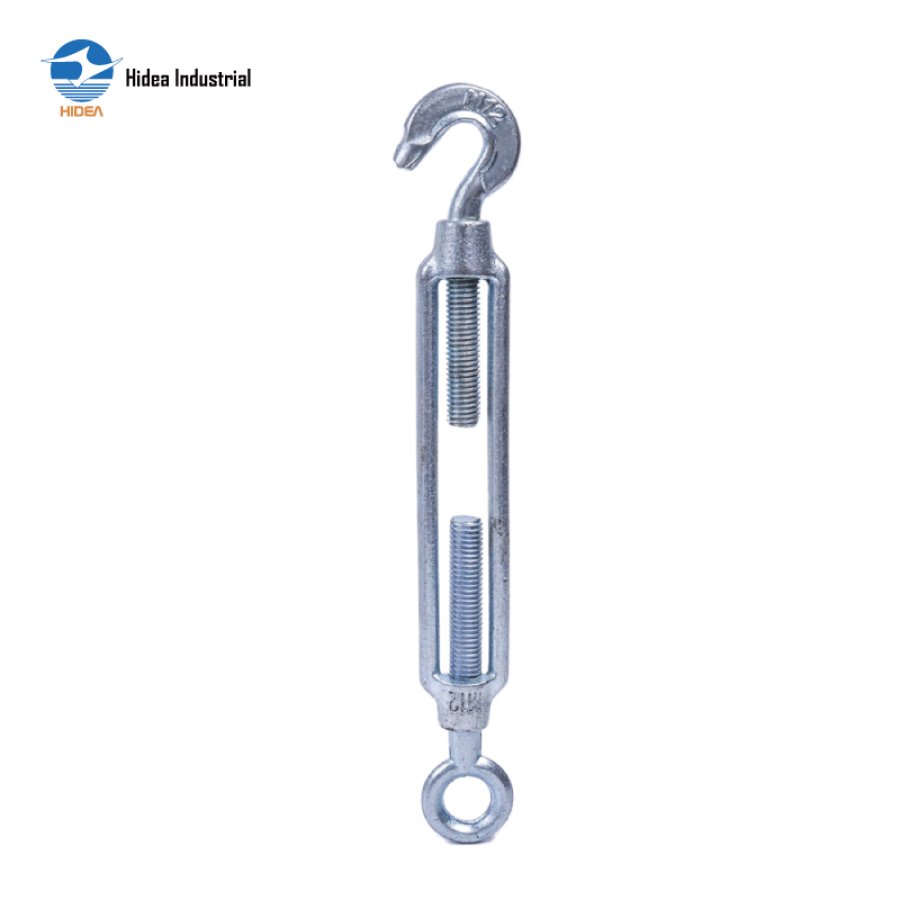

Hook-Hook, Eye-Eye & Hook-Eye types available

Inquire Now

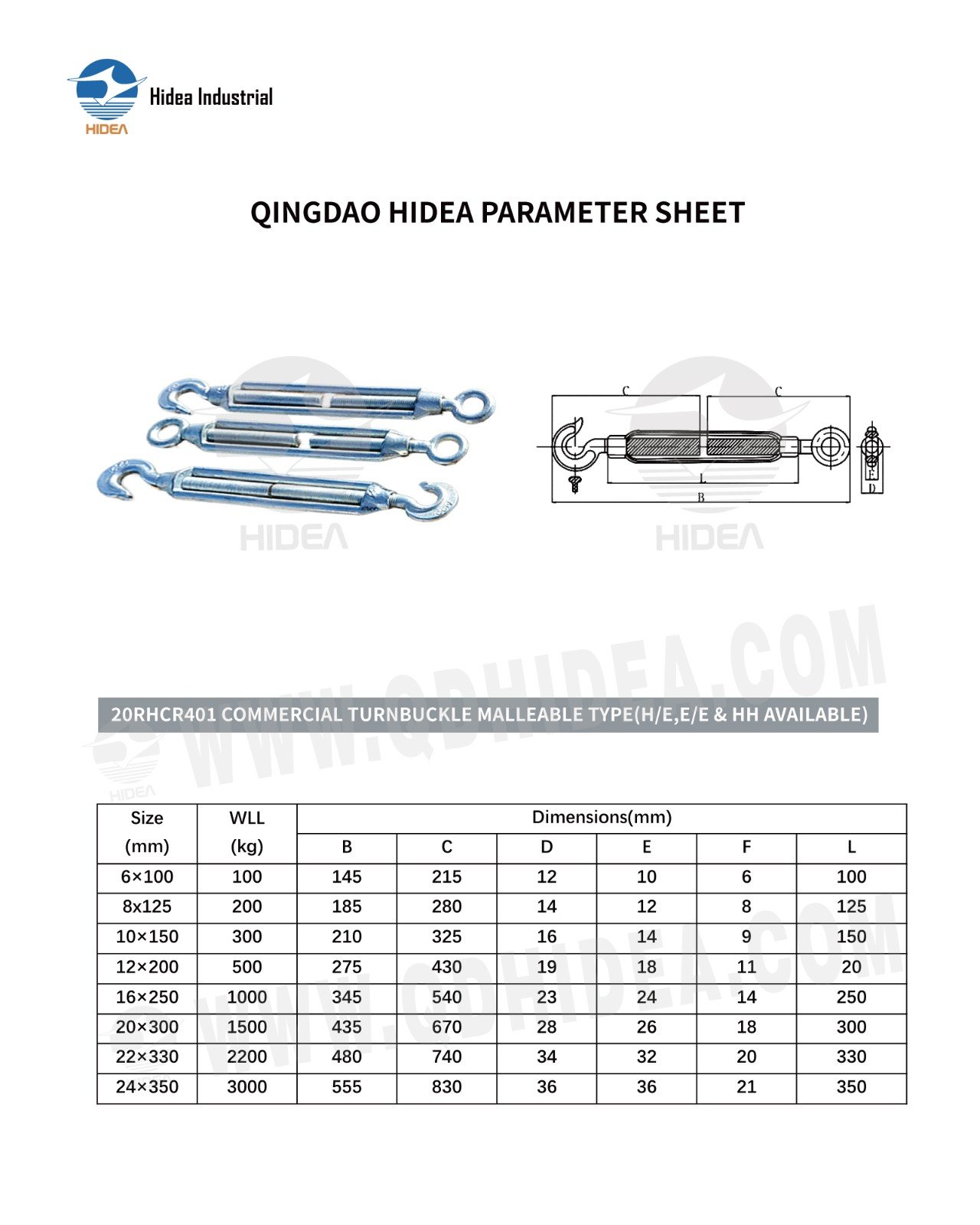

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR401 COMMERCIAL TURNBUCKLE MALLEABLE TYPE(H/E,E/E&HH AVAILABLE)

Size (mm)	WLL (kg)	Dimensions(mm)
Size (mm)	WLL (kg)	B	C	D	E	F	L
6×100	100	145	215	12	10	6	100
8x125	200	185	280	14	12	8	125
10×150	300	210	325	16	14	9	150
12×200	500	275	430	19	18	11	20
16×250	1000	345	540	23	24	14	250
20×300	1500	435	670	28	26	18	300
22×330	2200	480	740	34	32	20	330
24×350	3000	555	830	36	36	21	350
