Hidea European Type Large Dee Shackle – Engineered for Maximum Load Bearing and Safety

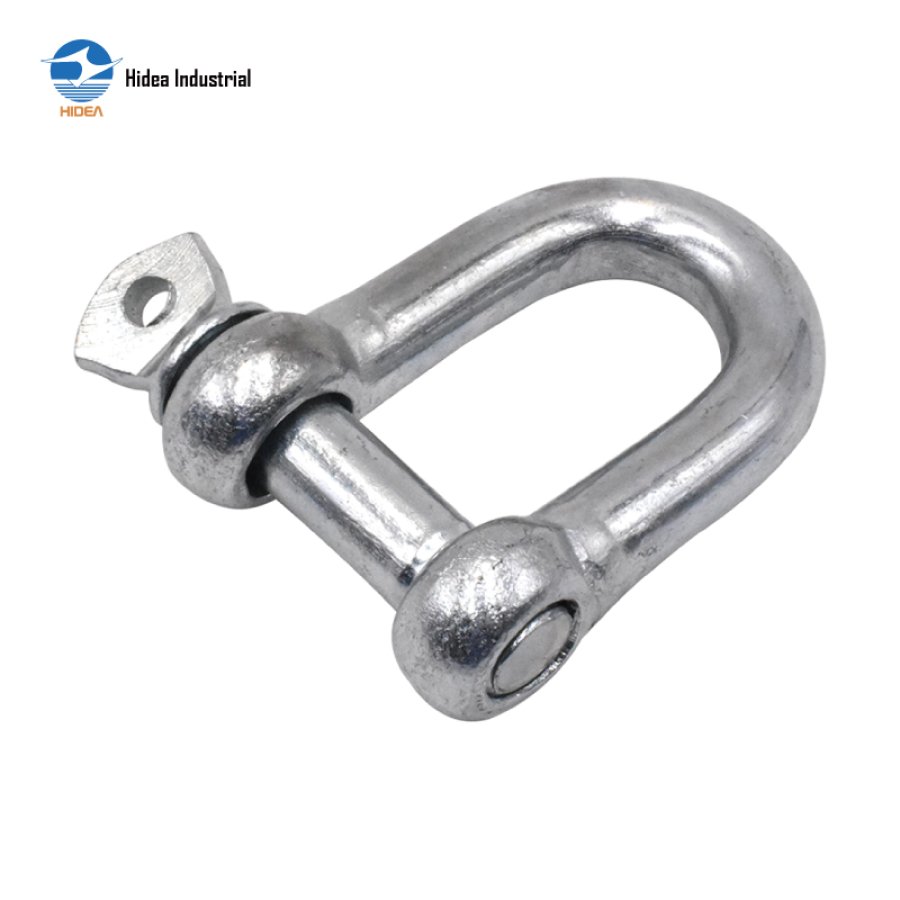

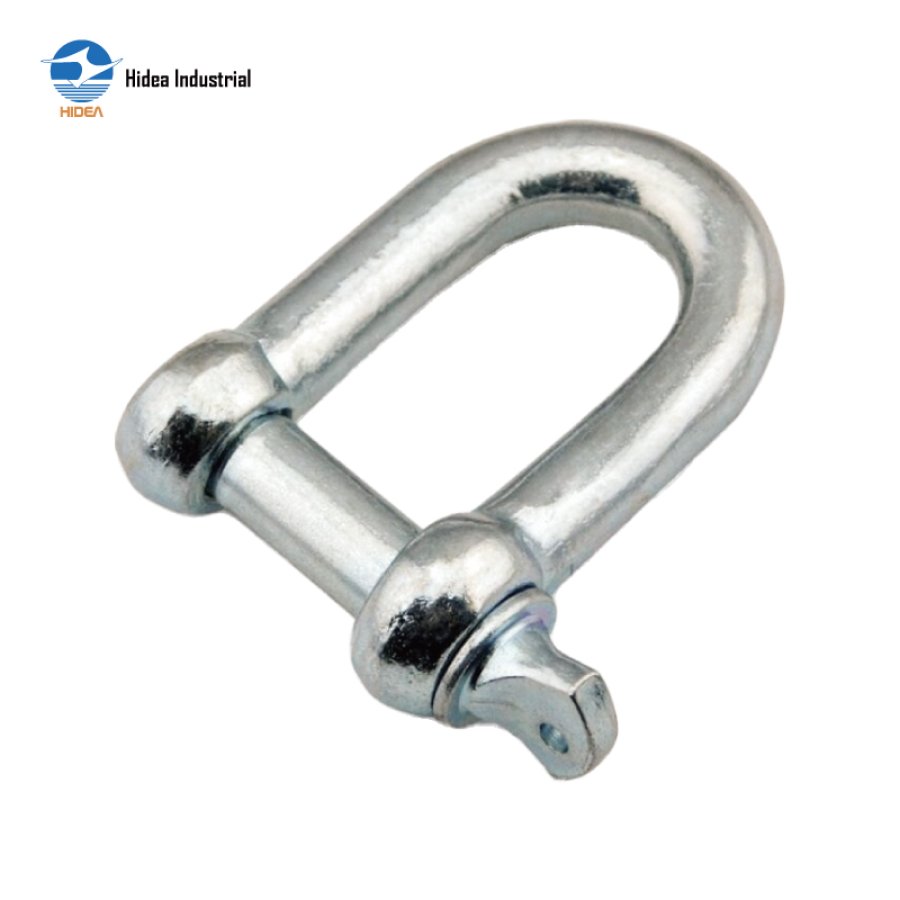

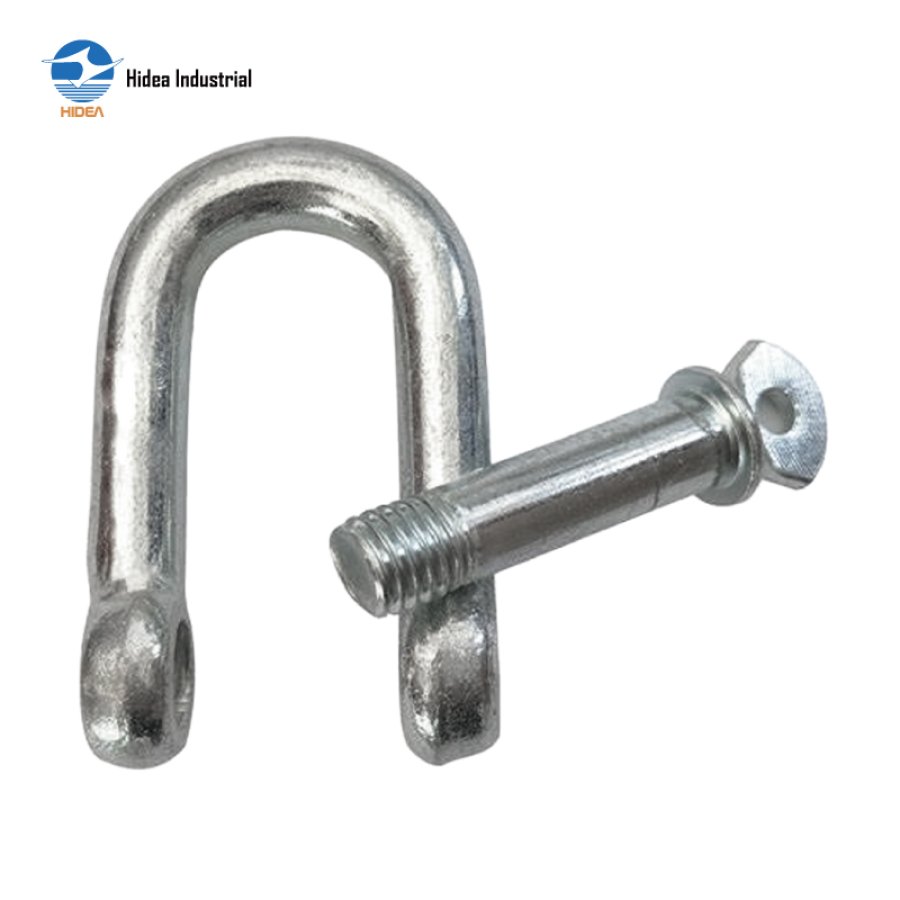

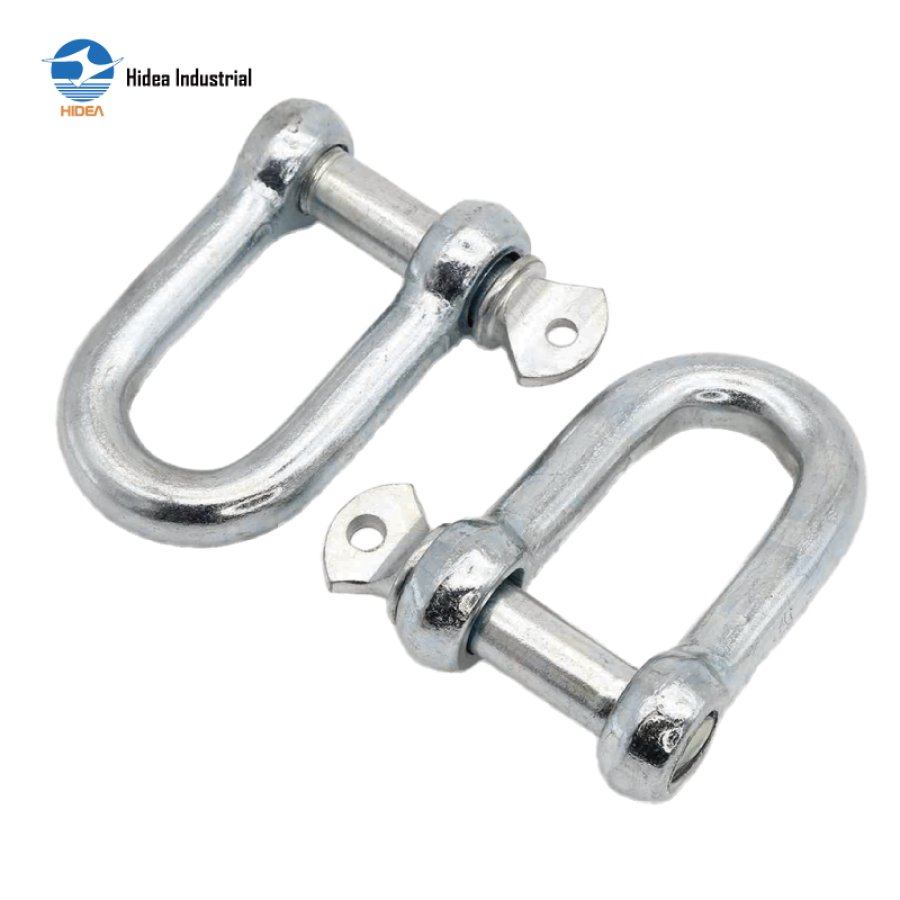

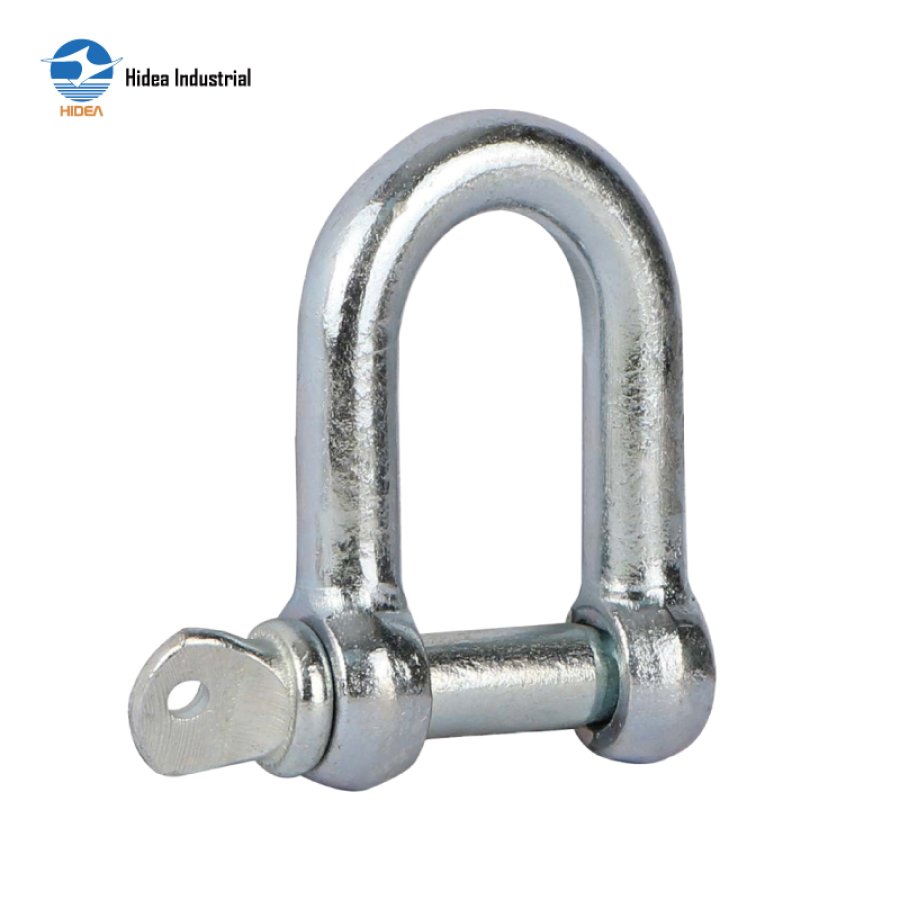

EUROPEAN TYPE LARGE DEE SHACKLE

Material: fine mild steel commercial shackle
Free forged with stamped sizes
Safety factor 5:1 & certificates available
Surface electro-galvanized (EG) OR powder coated OR self-colored OR as requested

Inquire Now

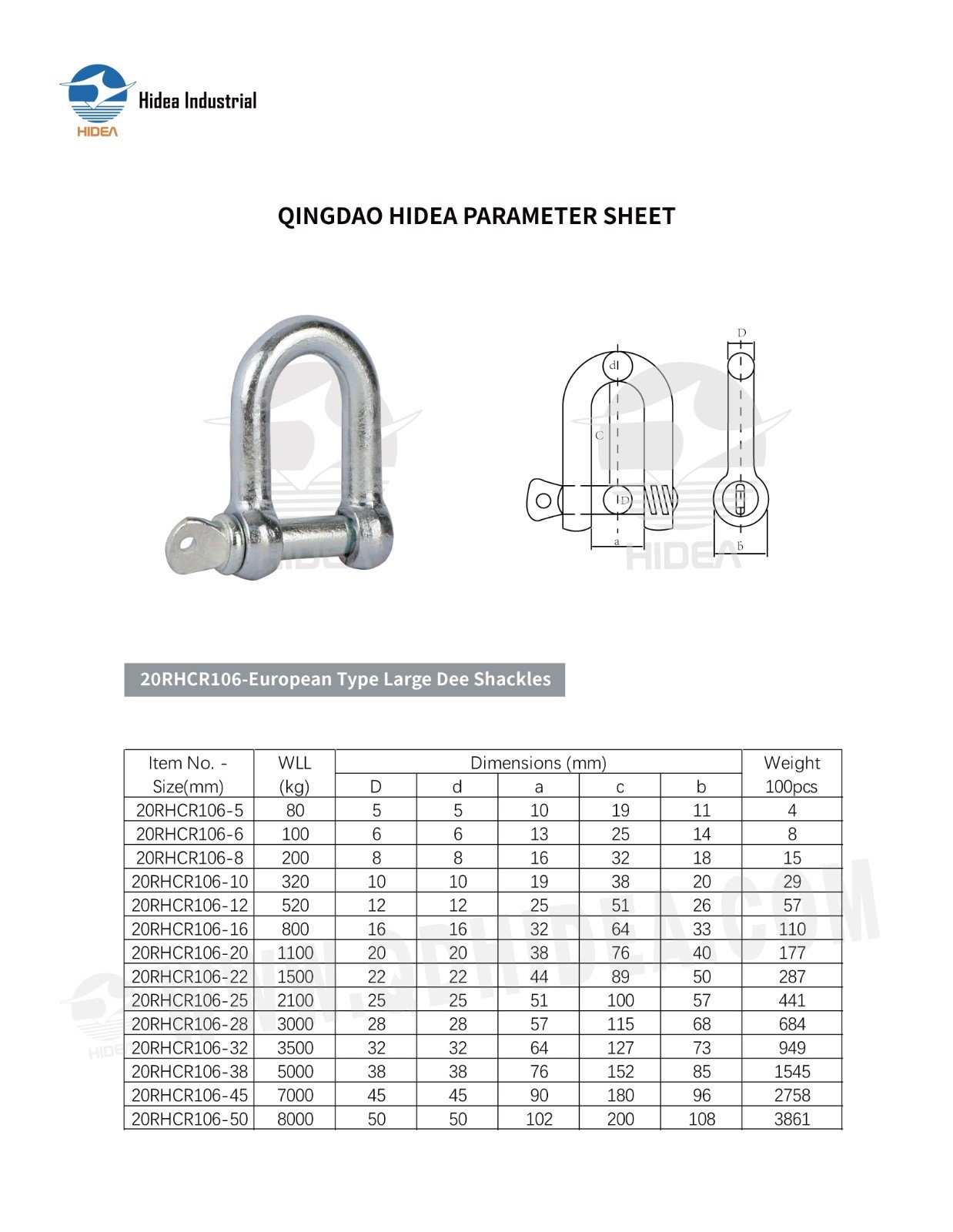

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR106-European Type Large Dee Shackles

Item No.- Size(mm)	WLL (kg)	Dimensions(mm)					Weight 100pcs
Item No.- Size(mm)	WLL (kg)	D	d	a	C	b	Weight 100pcs
20RHCR106-5	80	5	5	10	19	11	4
20RHCR106-6	100	6	6	13	25	14	8
20RHCR106-8	200	8	8	16	32	18	15
20RHCR106-10	320	10	10	19	38	20	29
20RHCR106-12	520	12	12	25	51	26	57
20RHCR106-16	800	16	16	32	64	33	110
20RHCR106-20	1100	20	20	38	76	40	177
20RHCR106-22	1500	22	22	44	89	50	287
20RHCR106-25	2100	25	25	51	100	57	441
20RHCR106-28	3000	28	28	57	115	68	684
20RHCR106-32	3500	32	32	64	127	73	949
20RHCR106-38	5000	38	38	76	152	85	1545
20RHCR106-45	7000	45	45	90	180	96	2758
20RHCR106-50	8000	50	50	102	200	108	3861
