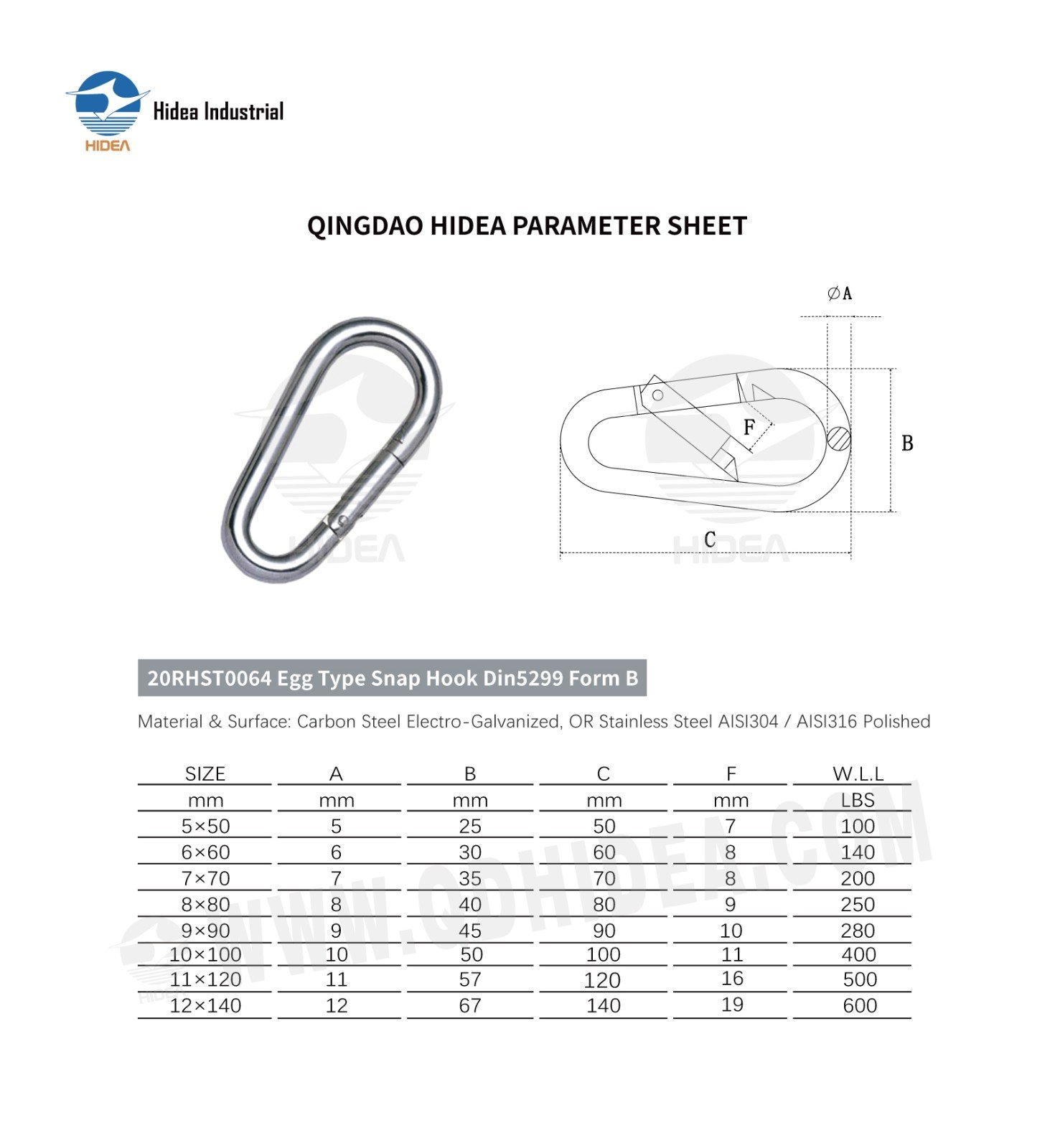

QINGDAO HIDEA PARAMETER SHEET FOR

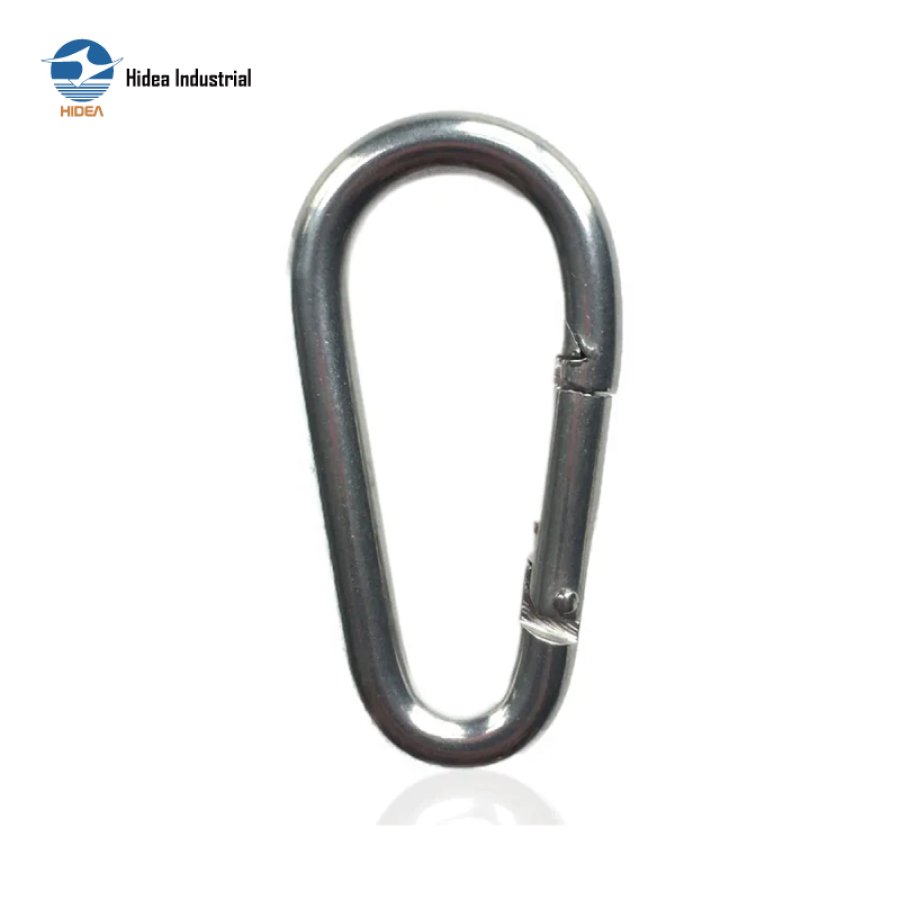

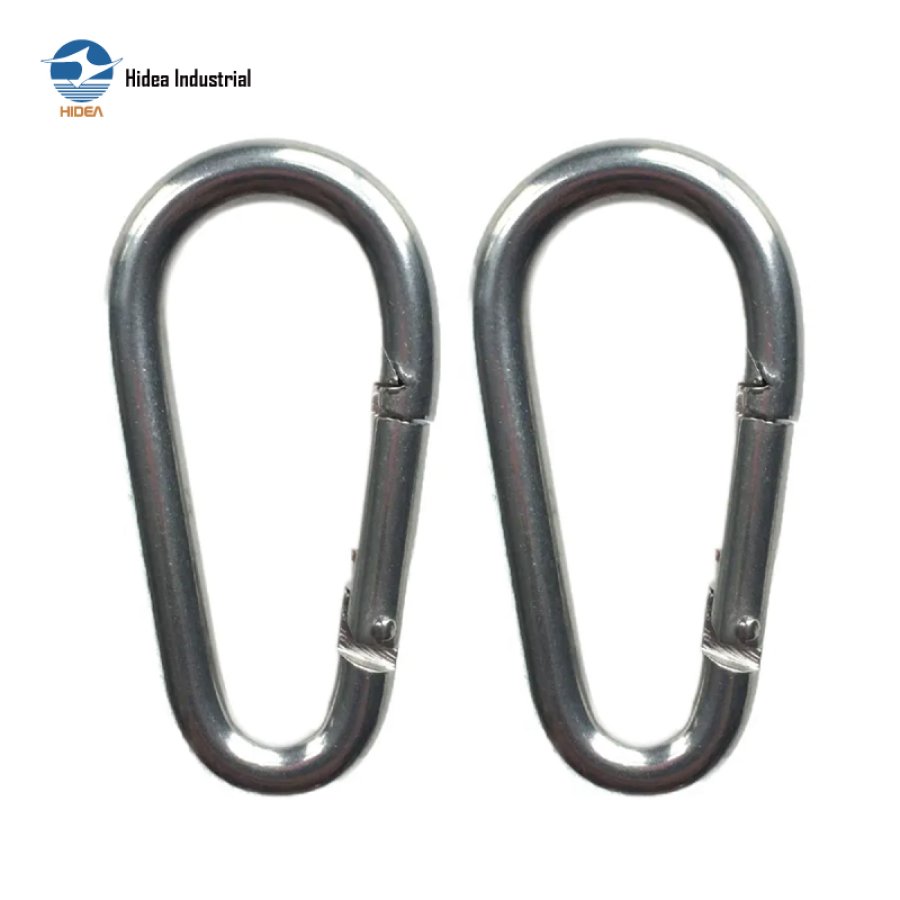

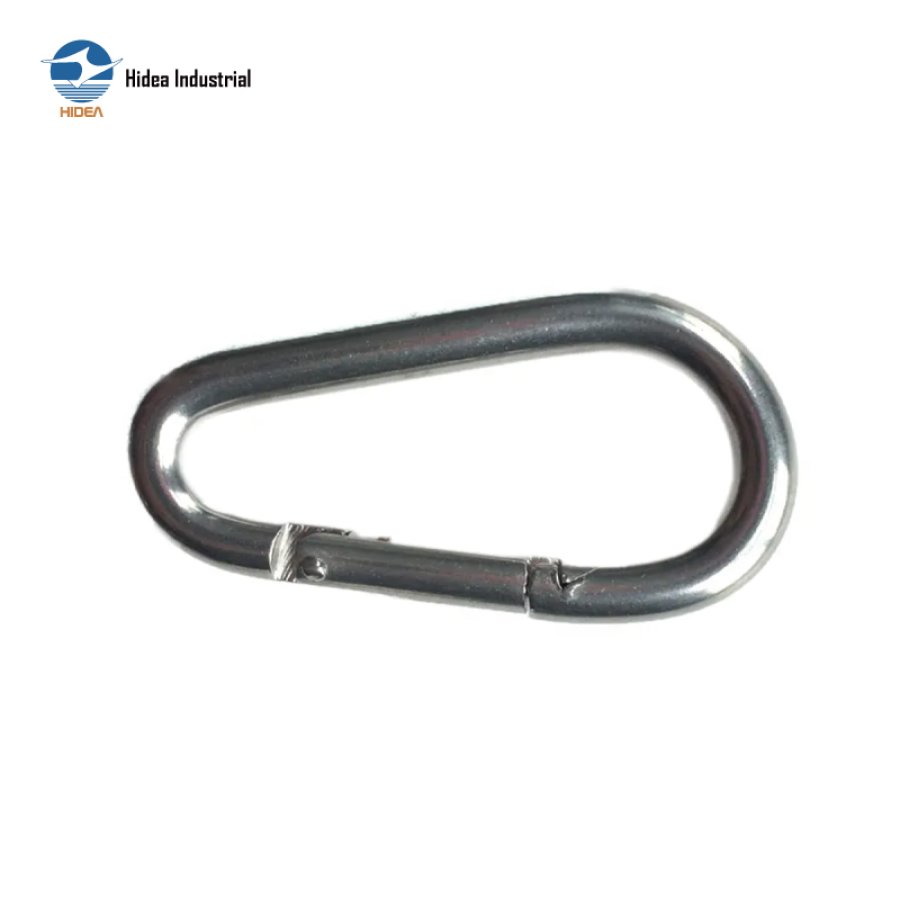

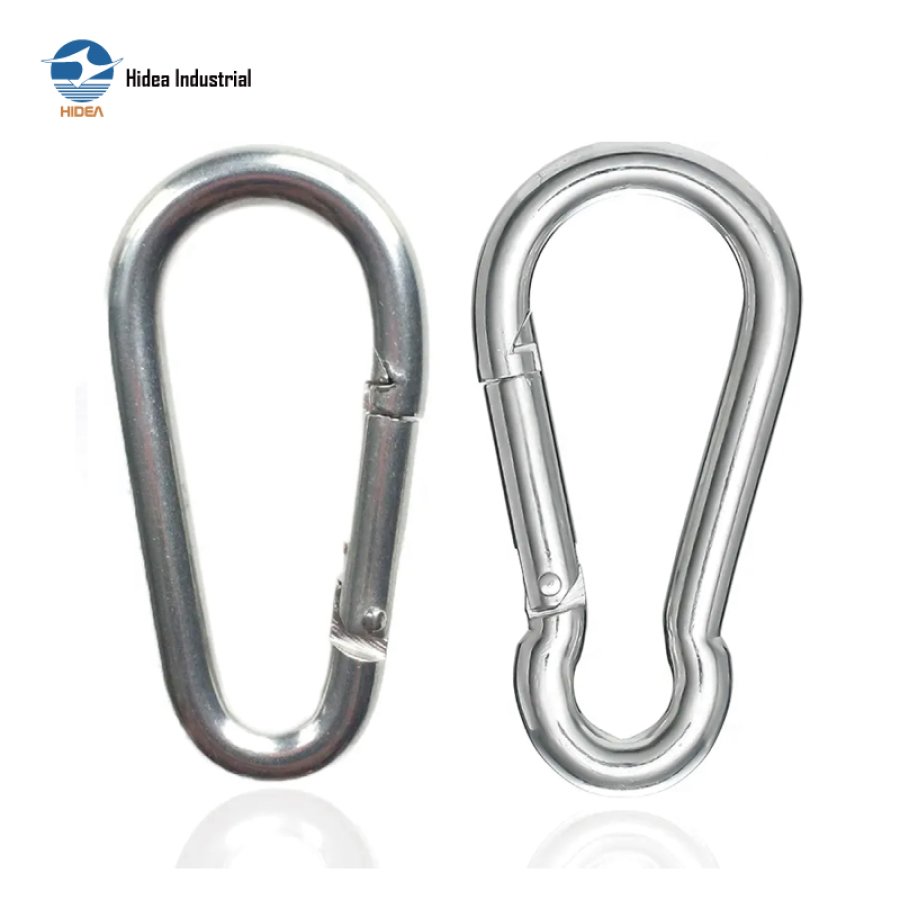

20RHST0064 Egg Type Snap Hook Din5299 Form B
| SIZE | A | B | C | F | W.L.L |
| mm | mm | mm | mm | mm | LBS |
| 5×50 | 5 | 25 | 50 | 7 | 100 |
| 6×60 | 6 | 30 | 60 | 8 | 140 |
| 7×70 | 7 | 35 | 70 | 8 | 200 |
| 8×80 | 8 | 40 | 80 | 9 | 250 |
| 9×90 | 9 | 45 | 90 | 10 | 280 |
| 10×100 | 10 | 50 | 100 | 11 | 400 |
| 11×120 | 11 | 57 | 120 | 16 | 500 |
| 12×140 | 12 | 67 | 140 | 19 | 600 |
