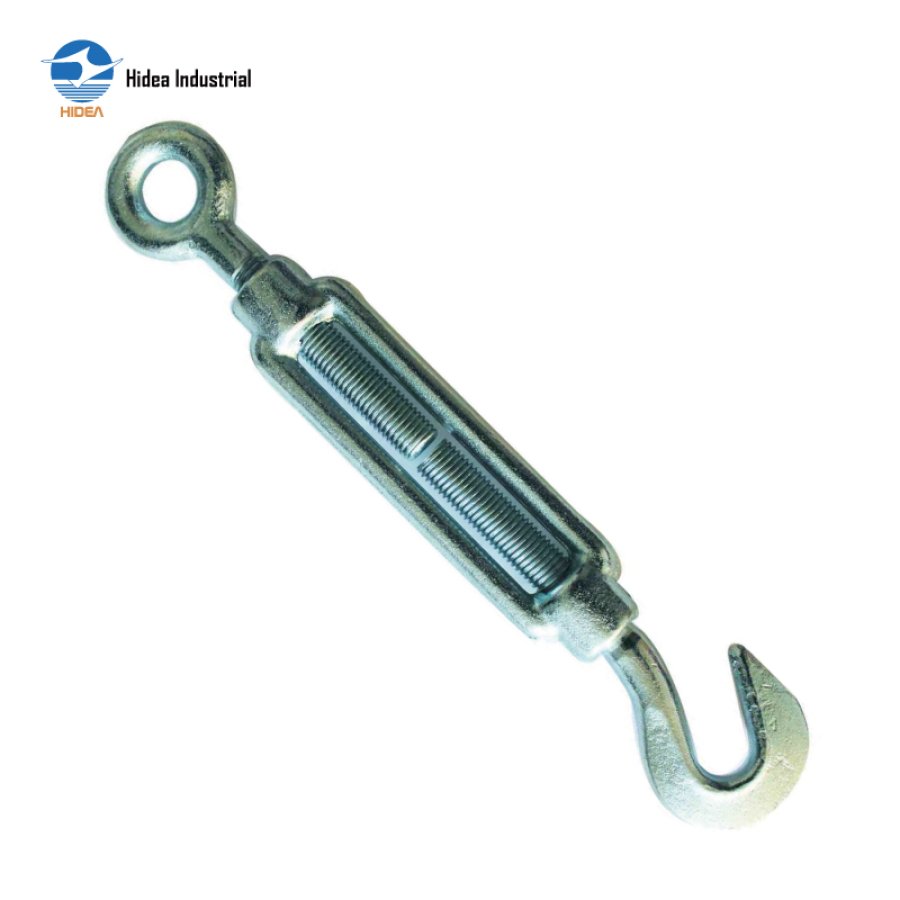

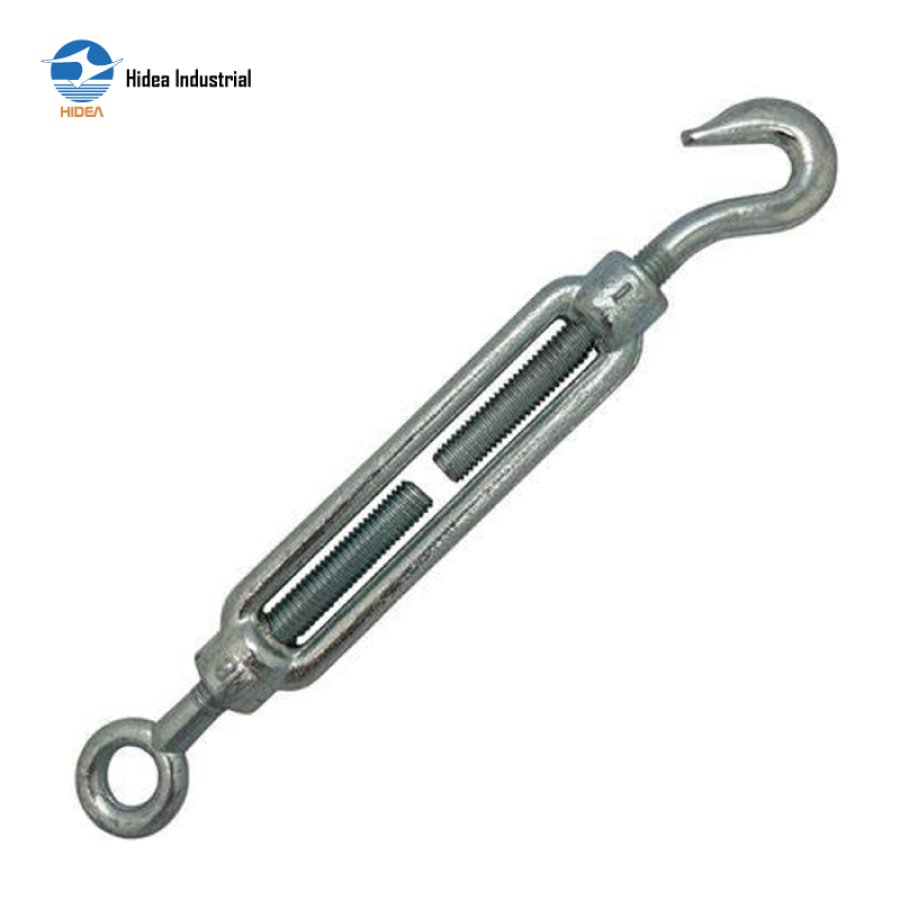

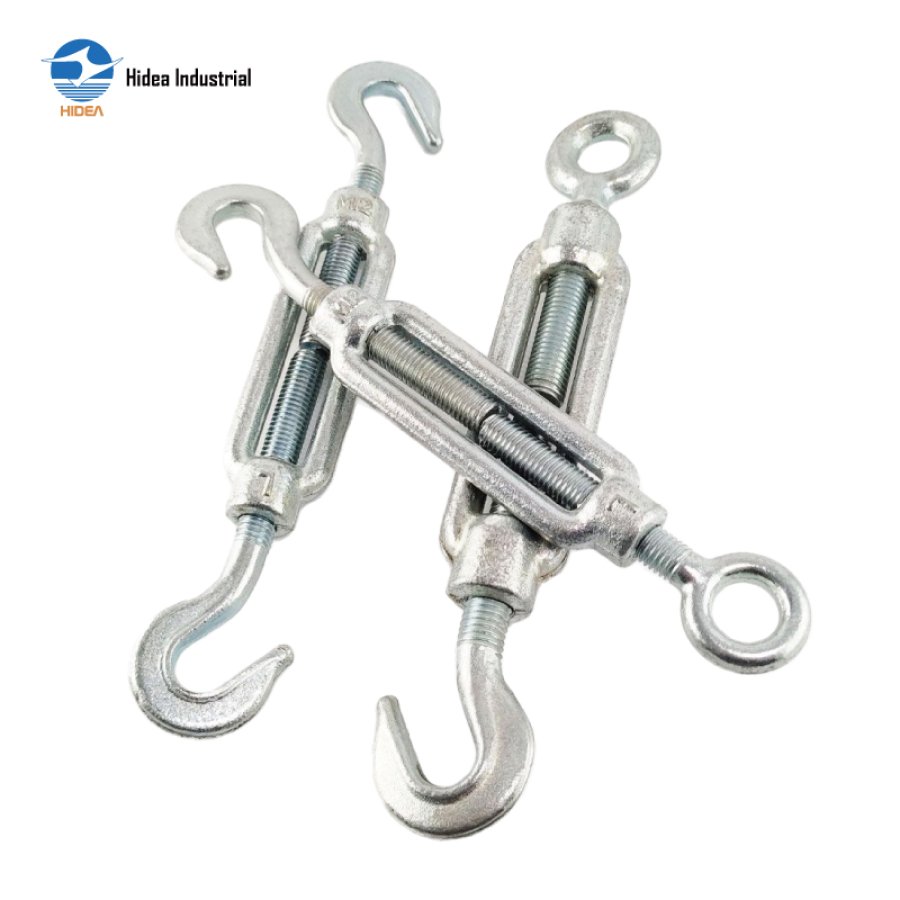

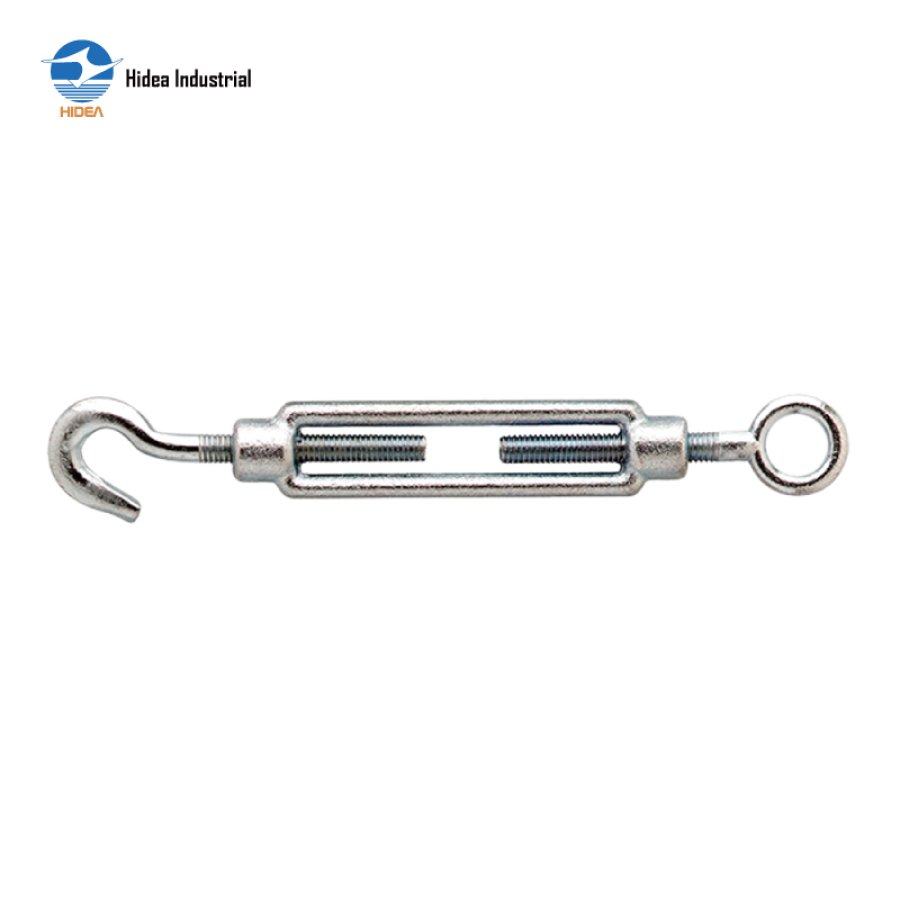

Hidea DIN1480 Eye to Hook Open Body Turnbuckles: Reliable Tensioning for Rigging

DIN1480 TURNBUCKLES WITH EYE/HOOK

Material: High tensile carbon steel
Forged, quenched & tempered
Proof tested individually & certificate available
Surface hot dip galvanized, electro galv. / zinc plated OR as requested
Din1480 hook & eye open body type turnbuckles

Inquire Now

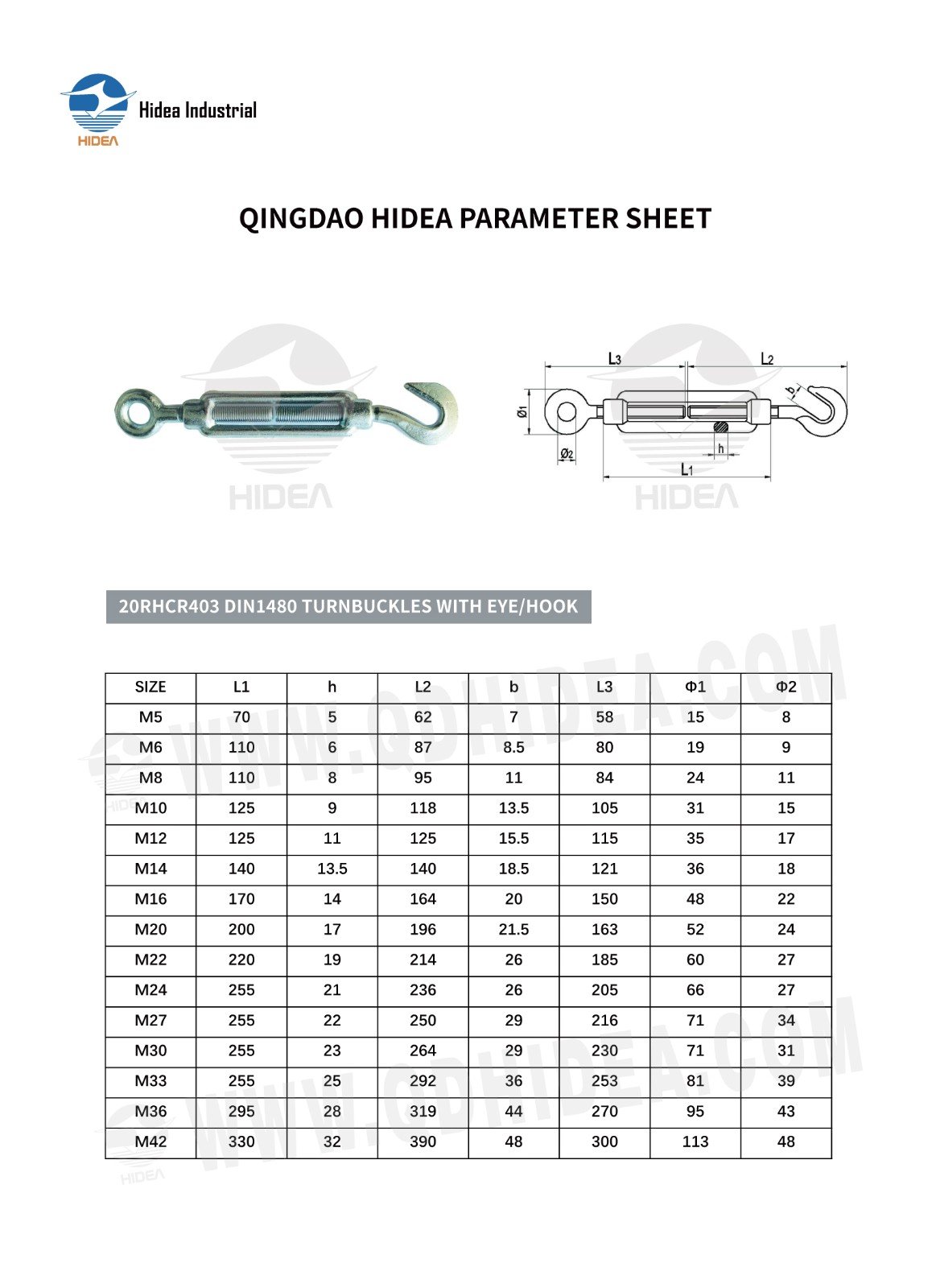

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR403 DIN1480 TURNBUCKLES WITH EYE/HOOK

SIZE	L1	h	L2	b	L3	Φ 1	Ф2
M5	70	5	62	7	58	15	8
M6	110	6	87	8.5	80	19	9
M8	110	8	95	11	84	24	11
M10	125	9	118	13.5	105	31	15
M12	125	11	125	15.5	115	35	17
M14	140	13.5	140	18.5	121	36	18
M16	170	14	164	20	150	48	22
M20	200	17	196	21.5	163	52	24
M22	220	19	214	26	185	60	27
M24	255	21	236	26	205	66	27
M27	255	22	250	29	216	71	34
M30	255	23	264	29	230	71	31
M33	255	25	292	36	253	81	39
M36	295	28	319	44	270	95	43
M42	330	32	390	48	300	113	48
