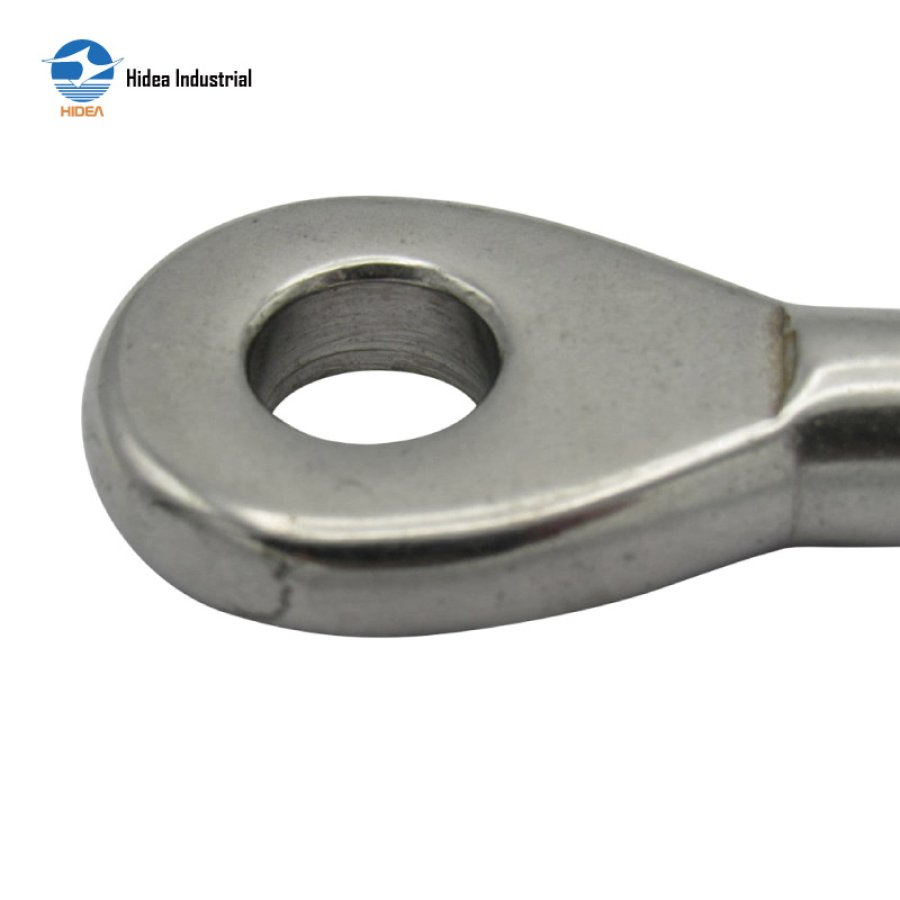

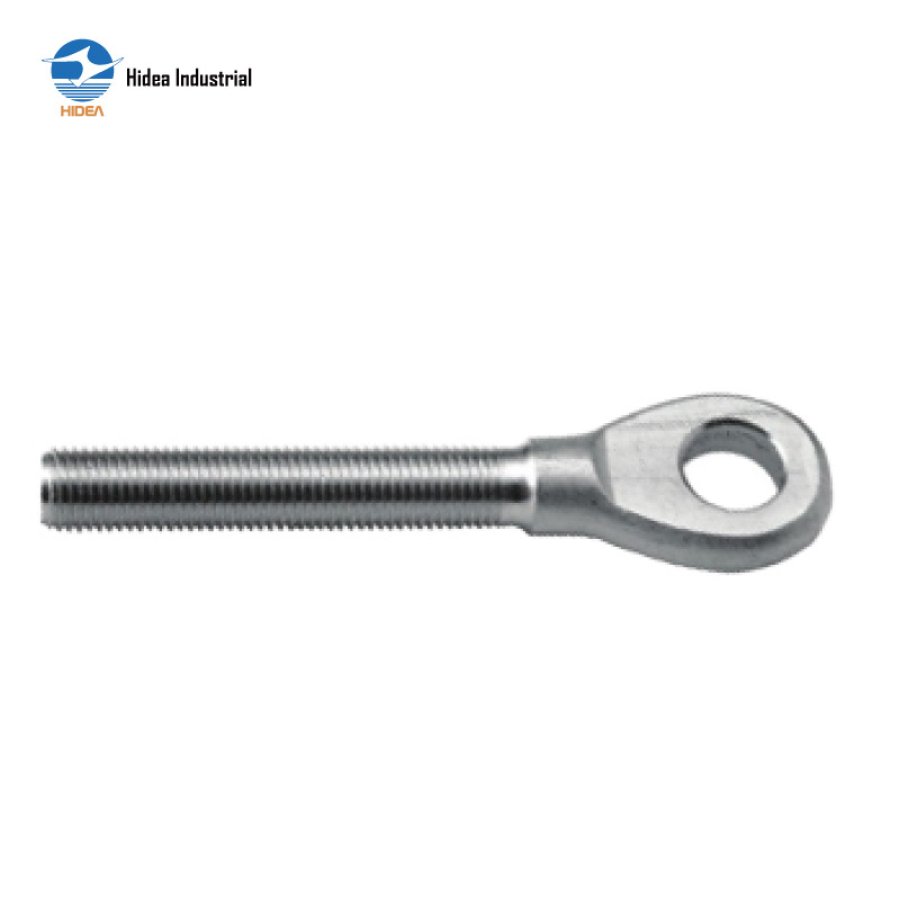

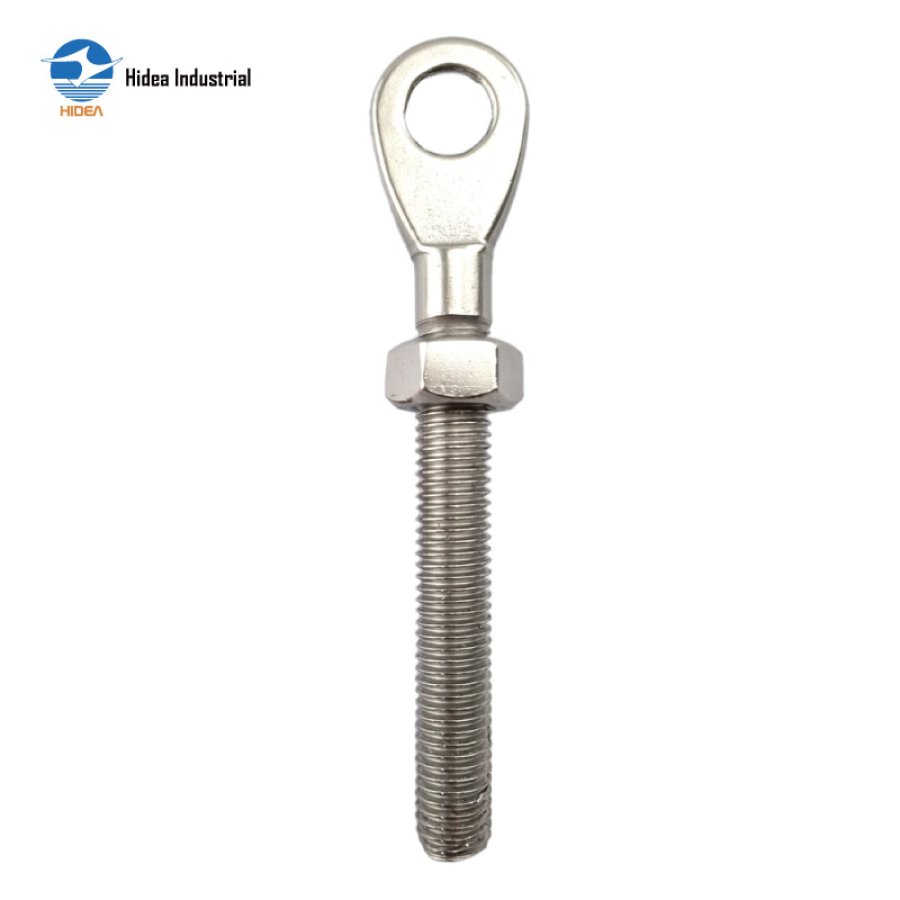

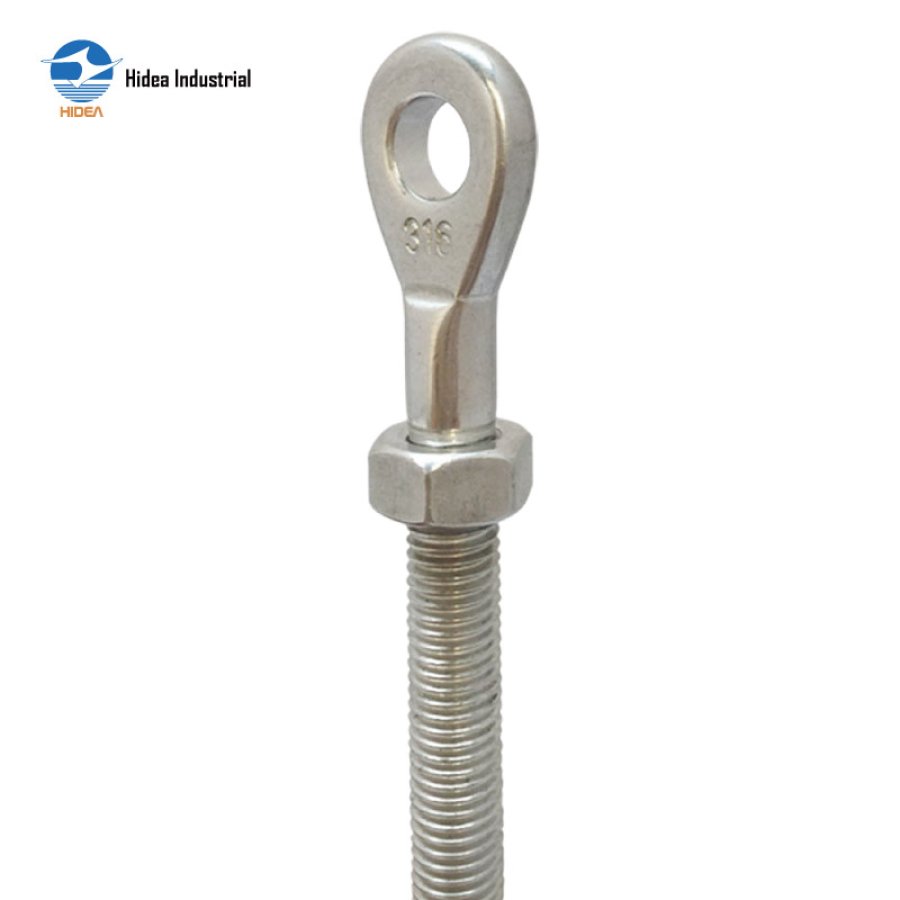

HIDEA Threaded Eye Terminal – High-Strength Stainless Steel Cable Railing Fittings

EYE TERMINAL WITH EXTERNAL THREAD

Technical Data: Machining
Material: SS304/SS316
Treatment: Electro Polished/Passivated

Inquire Now

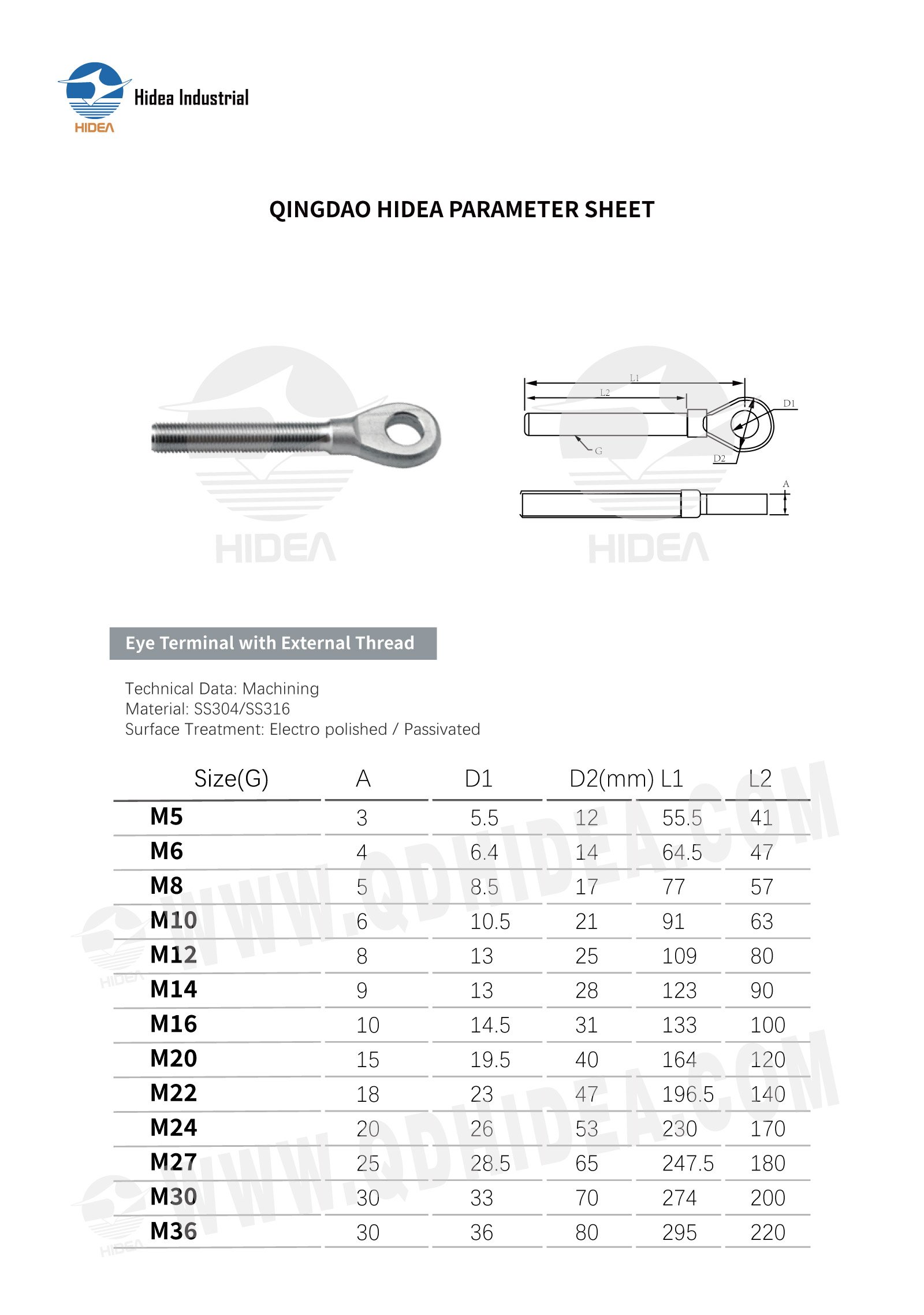

QINGDAO HIDEA PARAMETER SHEET FOR

Eye Terminal with External Thread

Size(G)	A	D1	D2(mm)	L1	L2
M5	3	5.5	12	55.5	41
M6	4	6.4	14	64.5	47
M8	5	8.5	17	77	57
M10	6	10.5	21	91	63
M12	8	13	25	109	80
M14	9	13	28	123	90
M16	10	14.5	31	133	100
M20	15	19.5	40	164	120
M22	18	23	47	196.5	140
M24	20	26	53	230	170
M27	25	28.5	65	247.5	180
M30	30	33	70	274	200
M36	30	36	80	295	220
