Durable Ship Chains for Efficient Marine Cargo Handling and Deck Operations

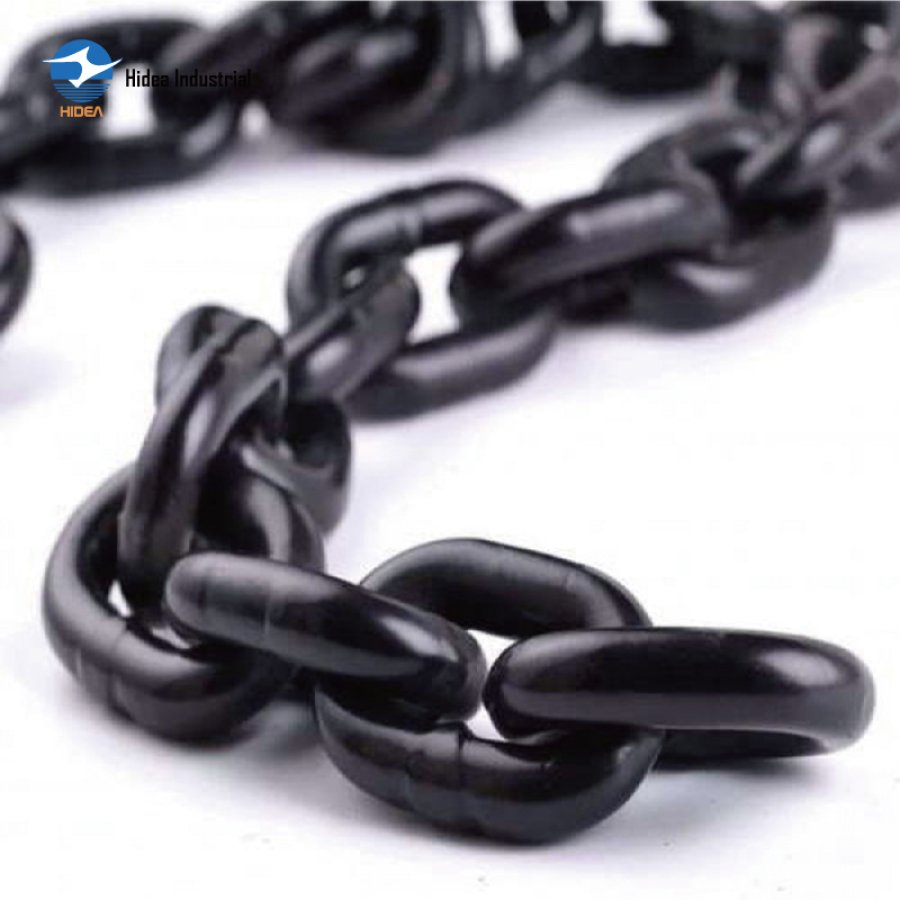

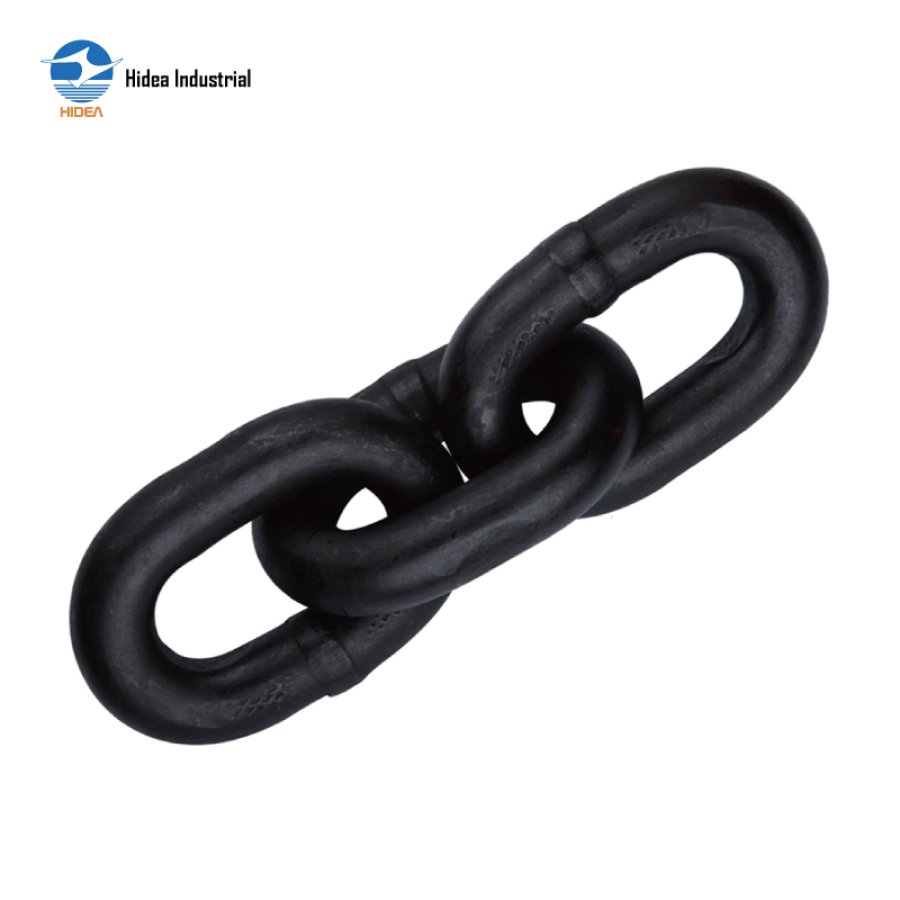

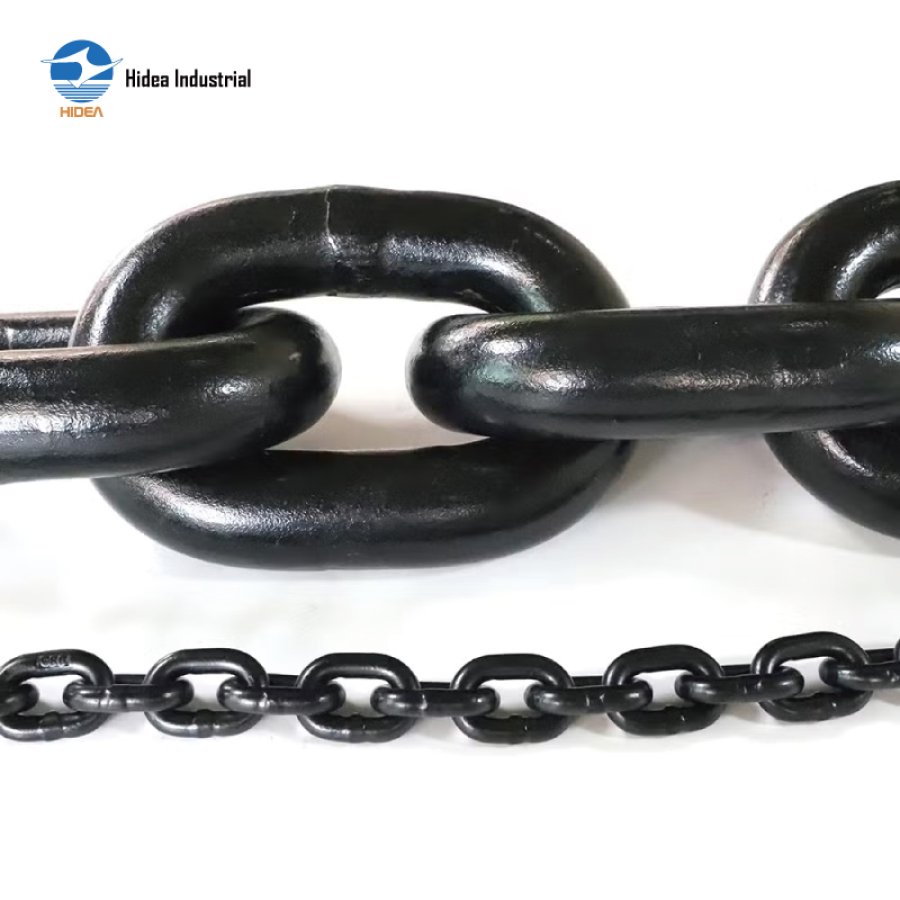

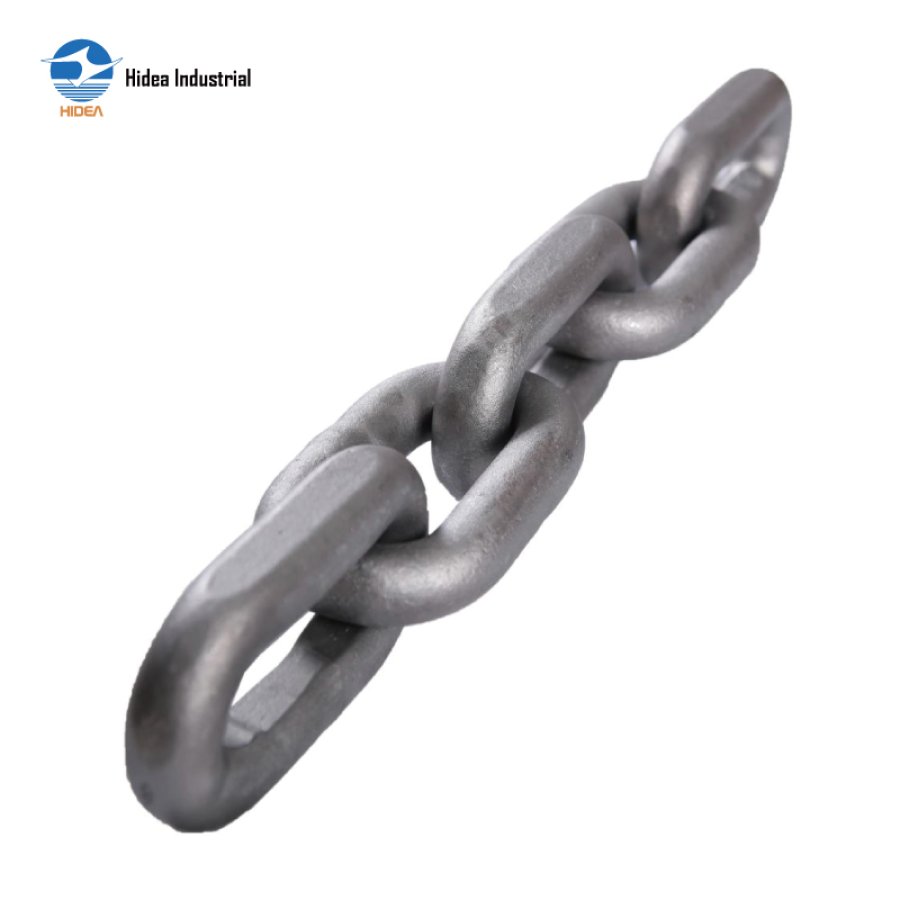

CHAIN FOR SHIP

Material: High-Quality Alloy Steel
Surface Treatment: Blackened, Painted, Powder Coated, Hot-dip OR Electro-galvanized etc.
Quality Grade G80, Safety Factor Min 4:1

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

30SC115 Chain for Ship

Size dxp	Inside Min.a	Outside Max.b	Weight	Breaking Load Min.
mm	mm	mm	kg/m	kn
14×50	17	48	4.00	250
14×78	24	55	3.60	250
16×55	19	52	5.10	320
16×55	19	52	5.10	250
18×64	21	60	6.60	410
18×90	30	69	6.00	320
20×80	23	67	7.70	500
20×90	30	73	7.60	500
22X86	33	80	9.90	610
22×86	33	80	9.90	480
