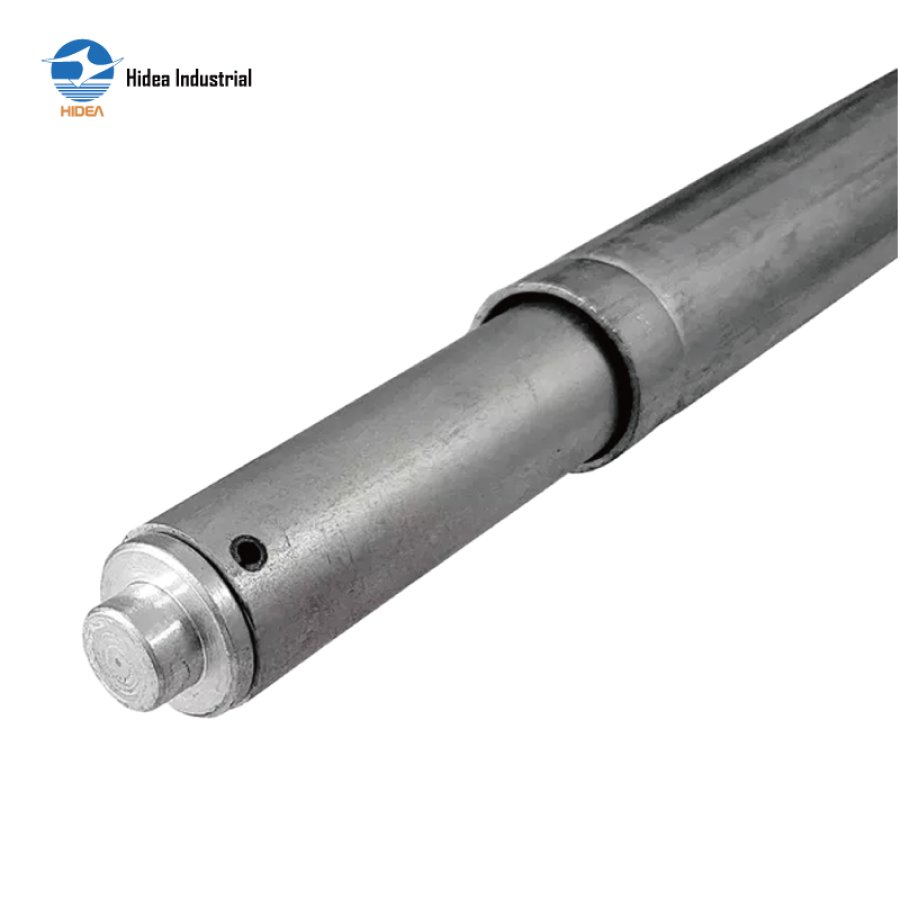

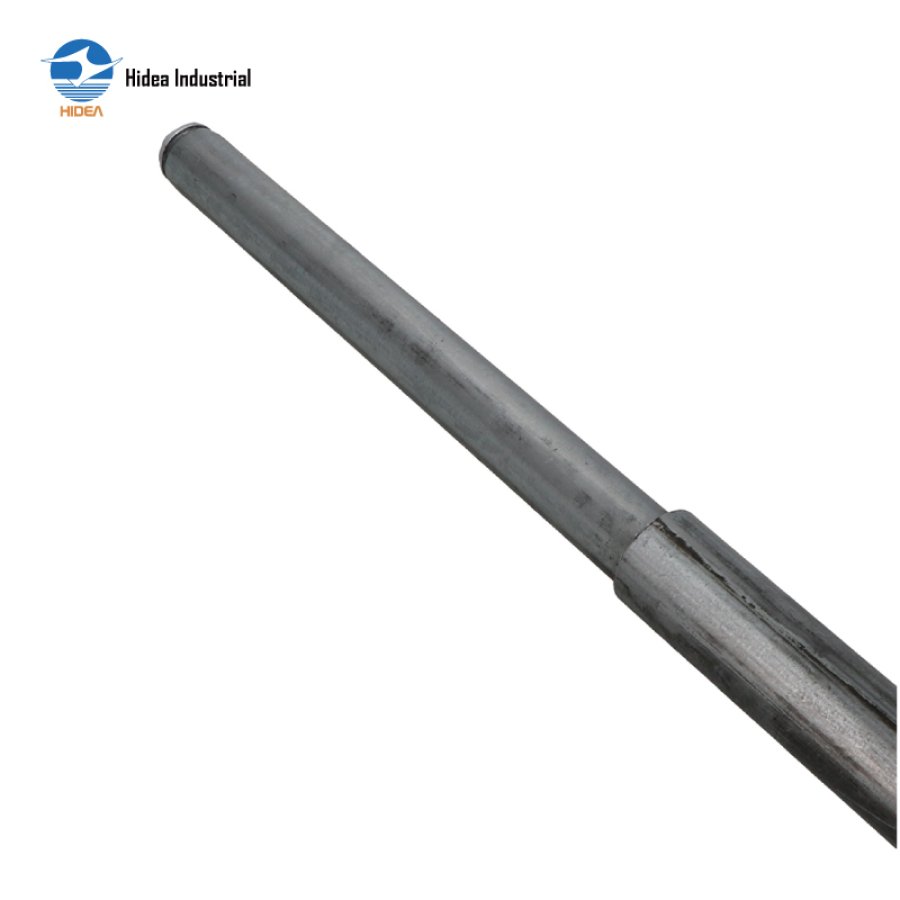

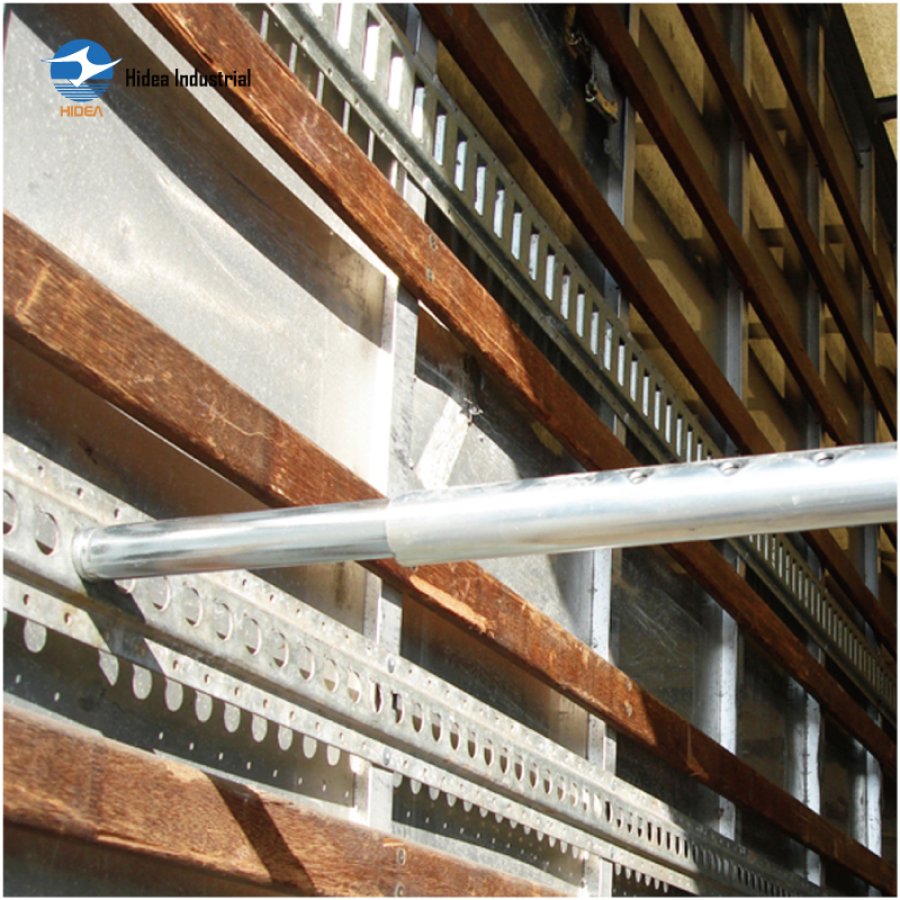

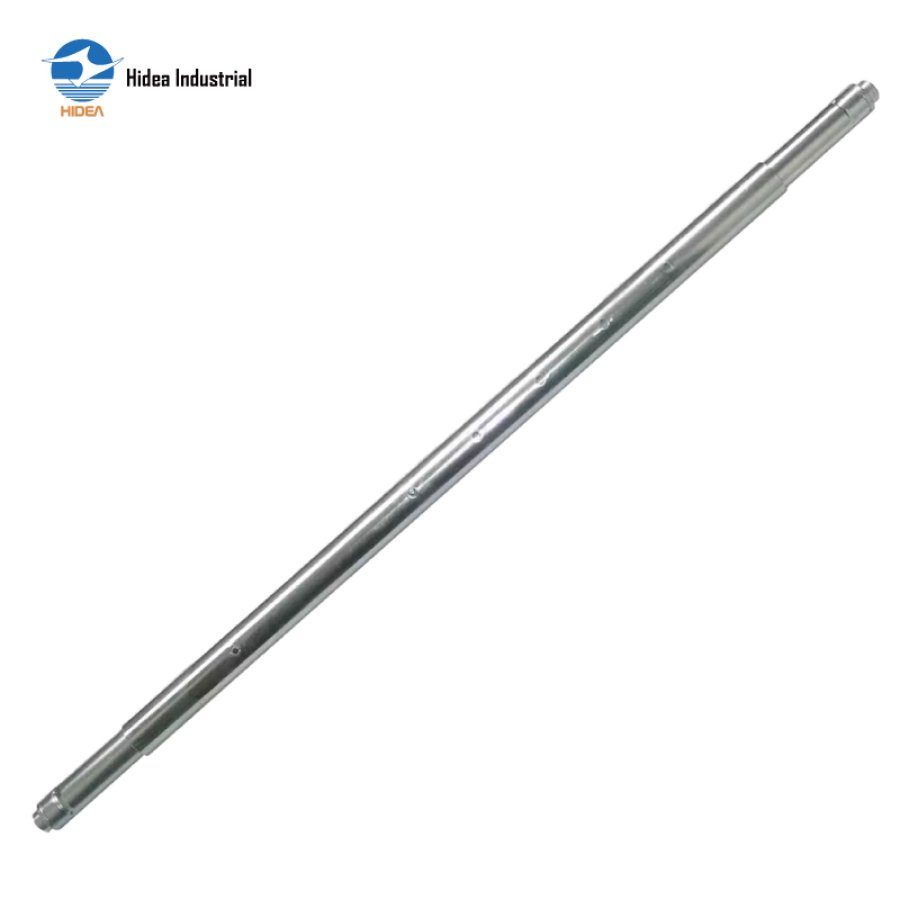

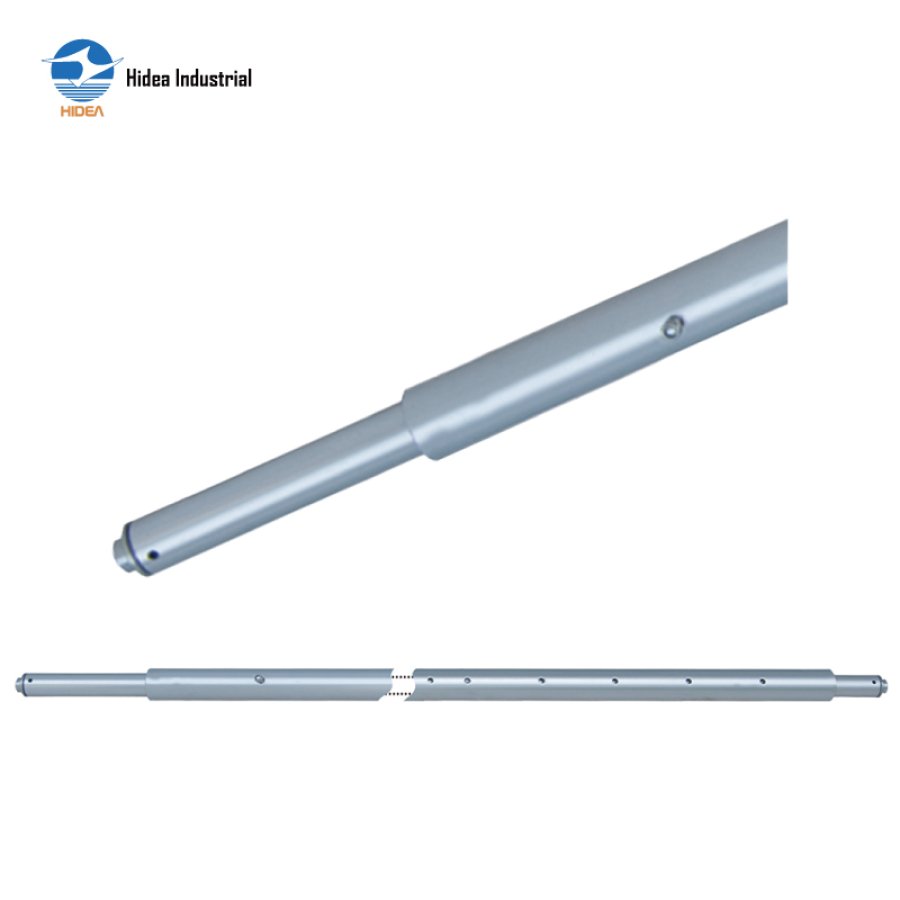

Round steel tube shoring bars are used to secure cargo by applying pressure against walls, roofs, bed or floor of the vehicles or warehouse, to prevent cargo from sliding or falling during transport or warehousing; the bars can be fitted horizontally or vertically with a wide range of adjustable lengths
The shoring bars apply pressure on the supporting points, which can help to distribute the load more evenly; and they can be used with different types of vehicles including dry vans, flatbeds, refrigerated trucks, and containers
Round steel shoring bars can be made of various sizes and adjustable lengths, OEM sizes acceptable
Round steel shoring bars meeting & rules of FMCSA Cargo Securement Rules, DOT, and European Cargo Securing for Road Transport
QINGDAO HIDEA PARAMETER SHEET FOR
SHORING BAR ROUND STEEL TUBE 38MM/1.5"&42MM/1.65"
38mm/1.5"Round Steel Tube Shoring Bar
| ltem No. | Dia(in/mm) | Length(in) | Weight(kgs) |
| 50SRB301 | 1.5"/38mm | 79"-93" | 5.2 |
| 50SRB302 | 1.5"/38mm | 87"-102" | 5.5 |
| 50SRB303 | 1.5"/38mm | 91"-116" | 6.0 |
42mm/1.65"Round Steel Tube Shoring Bar
| Item No. | Dia(in/mm) | Length(in) | Weight(kgs) |
| 50SRB401 | 1.65"/42mm | 80"-100" | 8.4 |
| 50SRB402 | 1.65"/42mm | 87"-102" | 8.6 |
| 50SRB403 | 1.65"/42mm | 91"-105" | 8.7 |
| 50SRB404 | 1.65"/42mm | 95"-107" | 8.8 |
| 50SRB405 | 1.65"/42mm | 96.5"-100.5" | 8.8 |
| 50SRB406 | 1.65"/42mm | 95"-109" | 8.9 |
| 50SRB407 | 1.65"/42mm | 106"-120" | 8.6 |
| 50SRB408 | 1.65"/42mm | 93.9"-97.2" | 8.7 |
| 50SRB409 | 1.65"/42mm | 92"-96" | 8.8 |
| 50SRB4010 | 1.65"/42mm | 93.9"-108.7" | 9.0 |
| 50SRB4011 | 1.65"/42mm | 90.2"-108.1" | 9.1 |
| 50SRB4012 | 1.65"/42mm | 84"-112" | 9.25 |
| 50SRB4013 | 1.65"/42mm | 84.5"-100.5" | 9.0 |
| 50SRB4014 | 1.65"/42mm | 82.1"-97.8" | 8.35 |
| 50SRB4015 | 1.65"/42mm | 80.7"-96.5" | 8.3 |
| 50SRB4016 | 1.65"/42mm | 94.9"-110.6" | 9.3 |
| 50SRB4017 | 1.65"/42mm | 86.6"-108.2" | 9.0 |
