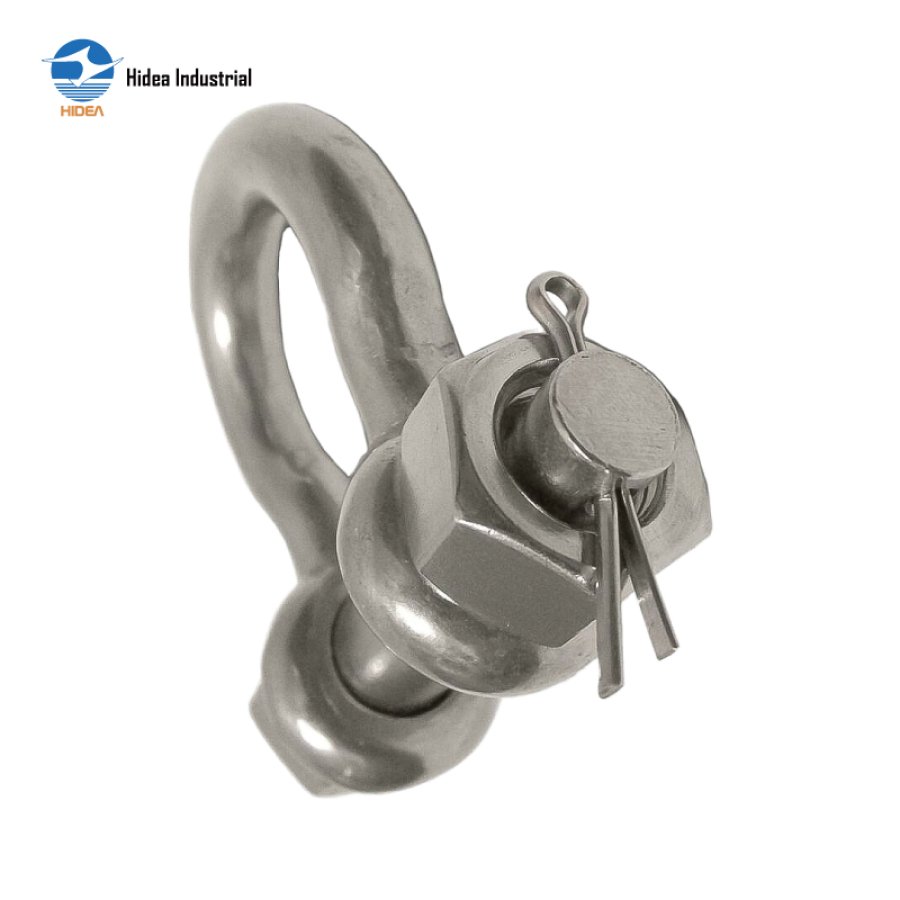

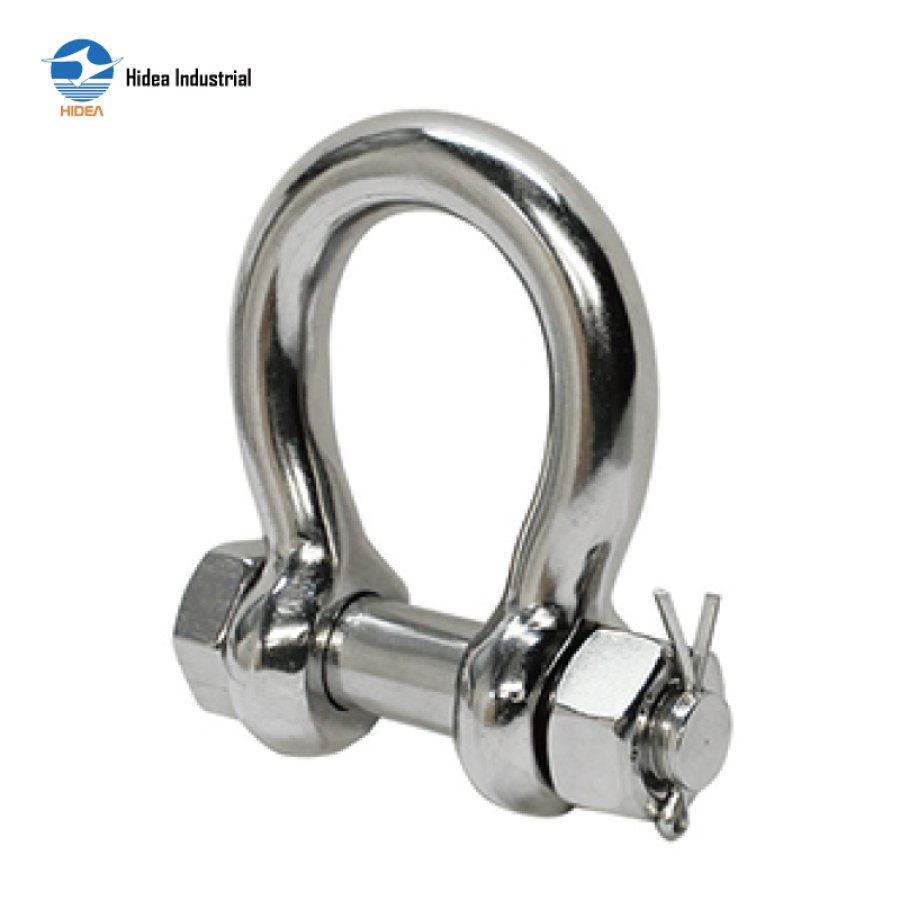

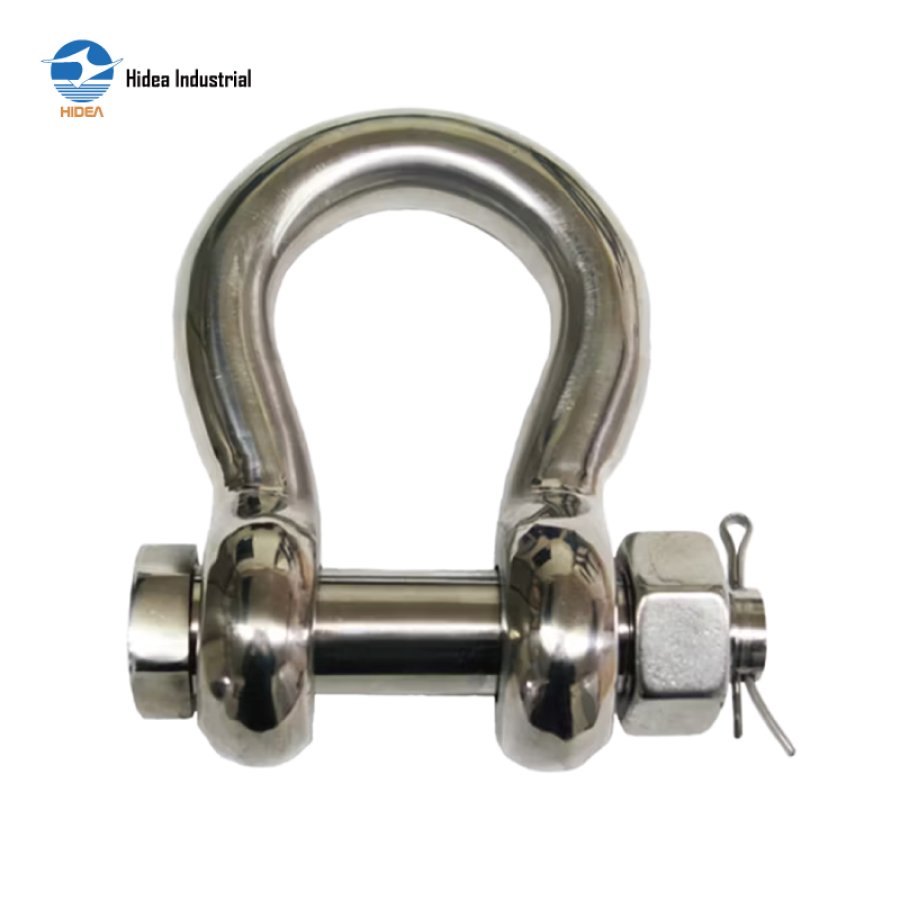

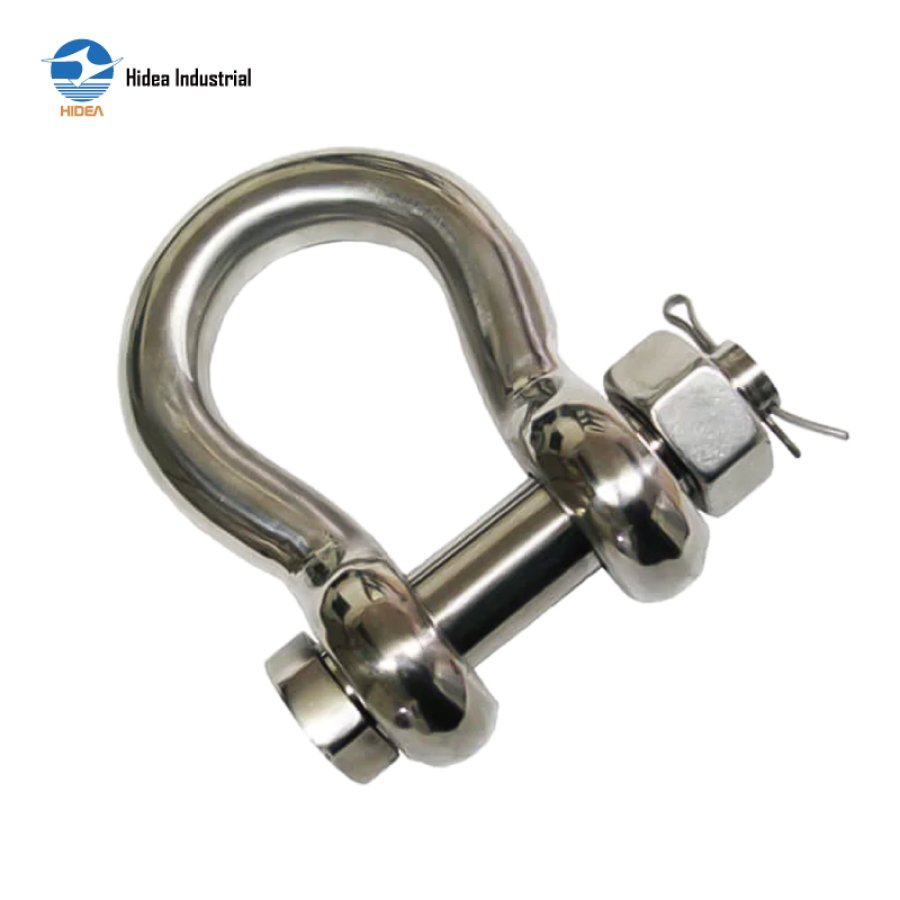

Hidea Stainless Steel Forged Bolt Anchor Shackle – Ideal for High-Load and Marine Environments

US SECURITY BOW SHACKLE BOLT ANCHOR SHACKLE

Technical Data: Investment Casting/Forged
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Electro Polished/Passivated

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

20RHS054-US Security Bow Shackle Bolt Anchor Shackle

NO

A
Inch

B
Inch

C
Inch

D
Inch

E
Inch

F
Inch

G
Inch

H
Inch

L
Inch

M
Inch

N
Inch

P
nch

WLL
T

20RHS054-05

0.38

0.25

0.88

0.19

0.60

0.56

0.98

1.47

0.16

1.12

000

0.19

1/3

20RHS054-06

0.47

0.31

1.13

0.25

0.78

0.61

1.28

1.84

0.19

1.38

1.34

0.25

1/2

20RHS054-08

0.53

0.38

1.22

0.31

0.84

0.75

147

2.09

0.22

1.66

1.59

0.31

3/4

20RHS054-10

0.66

0.44

1.44

0.38

1.03

0.91

1.78

2.49

0.25

2.03

186

0.38

000

20RHS054-11

0.75

0.50

1.69

0.44

1.16

1.06

2.03

2.91

0.31

2.38

2.13

0.44

1-1/2

20RHS054-12

0.81

0.63

1.88

0.50

131

1.19

2.31

3.28

0.38

2.69

2.38

0.50

2

20RHS054-16

1.06

0.75

2.38

0.63

1.69

1.50

2.94

4.19

0.44

2.34

2.91

0.69

3-1/4

20RHS054-20

1.25

0.88

2.81

0.75

2.00

1.81

3.50

4.97

0.50

3.97

3.44

0.81

4-3/4

20RHS054-22

1.44

1.00

3.31

0.88

2.28

2.09

4.03

5.83

0.50

4.50

3.81

097

6-1/2

20RHS054-25

1.69

1.13

3.75

100

2.69

2.38

4.69

6.56

0.56

5.07

4.53

1.06

8-1/2

20RHS054-28

1.81

1.25

4.25

1.16

2.91

2.69

5.16

7.47

0.63

5.59

5.13

125

9-1/2

20RHS054-32

2.03

1.38

4.69

129

3.25

3.00

5.75

8.25

0.69

6.16

5.50

1.38

12

20RHS054-35

2.25

1.50

5.25

142

3.63

3.31

6.38

9.16

0.75

6.84

6.13

1.50

13-1/2

20RHS054-38

2.38

1.63

5.75

154

3.88

3.63

6.88

10.00

0.81

7.35

6.50

1.62

17

20RHS054-44

2.88

2.00

7

184

5.00

4.19

8.86

12.34

1.00

9.08

7.75

2.25

25

20RHS054-50

3.25

2.25

7.75

2.08

5.75

4.81

9.97

13.68

1.22

10.34

8.75

2.40

35

20RHS054-64

4.13

2.75

10.5

2.71

7.25

5.69

12.87

17.84

1.38

13.00

000

3.13

55
