High tensile carbon steel
Forged, quenched & tempered
Proof tested individually
Surface hot dip galvanized, Electro Galv., Electro Galv. / zinc plated OR as requested

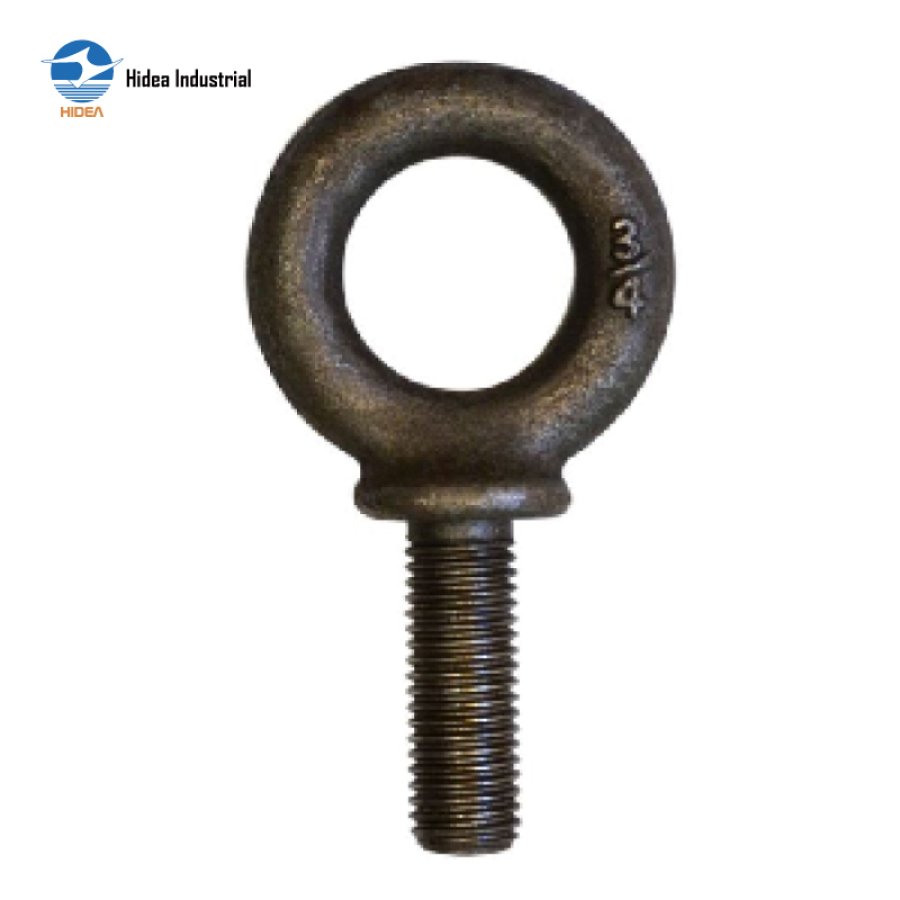

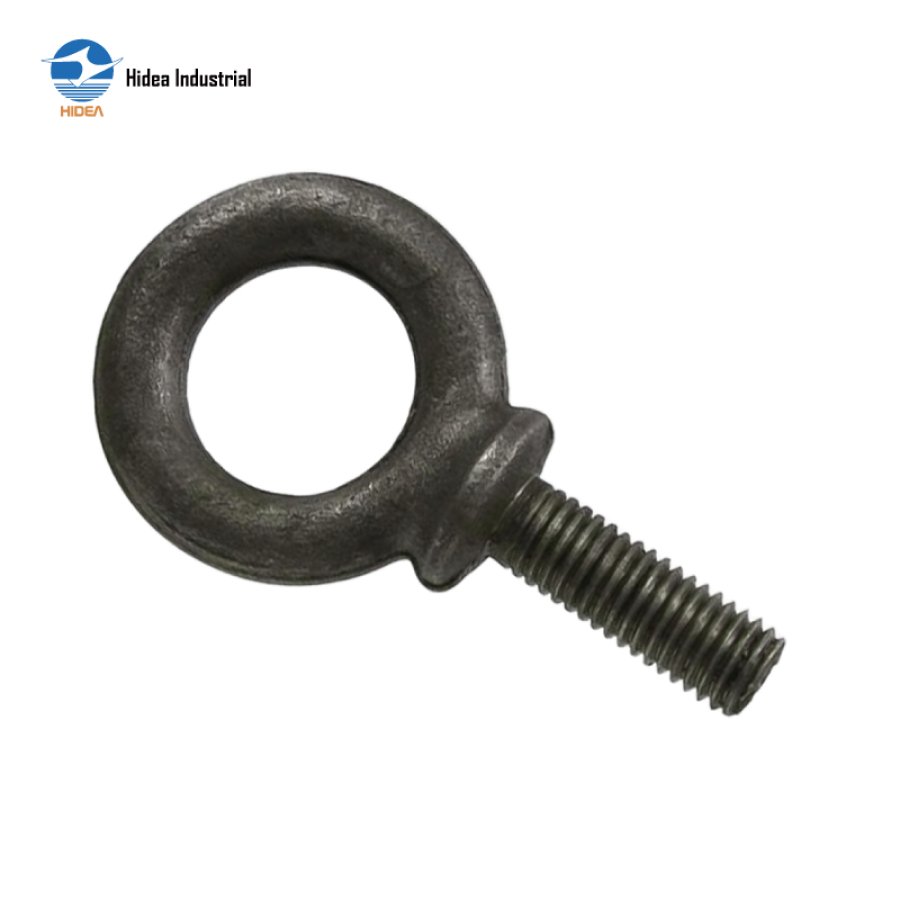

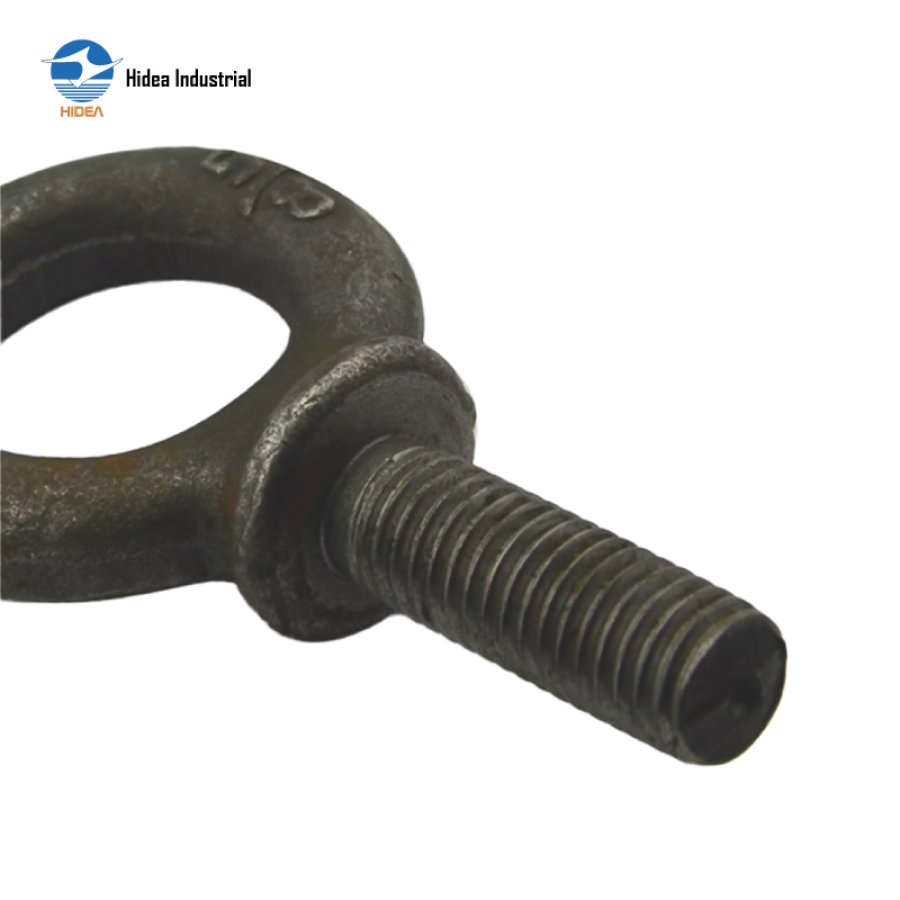

G-279 Forged UNC Shoulder Type Machinery Eye Bolts, meets or exceeds all requirements of ASME B30.26

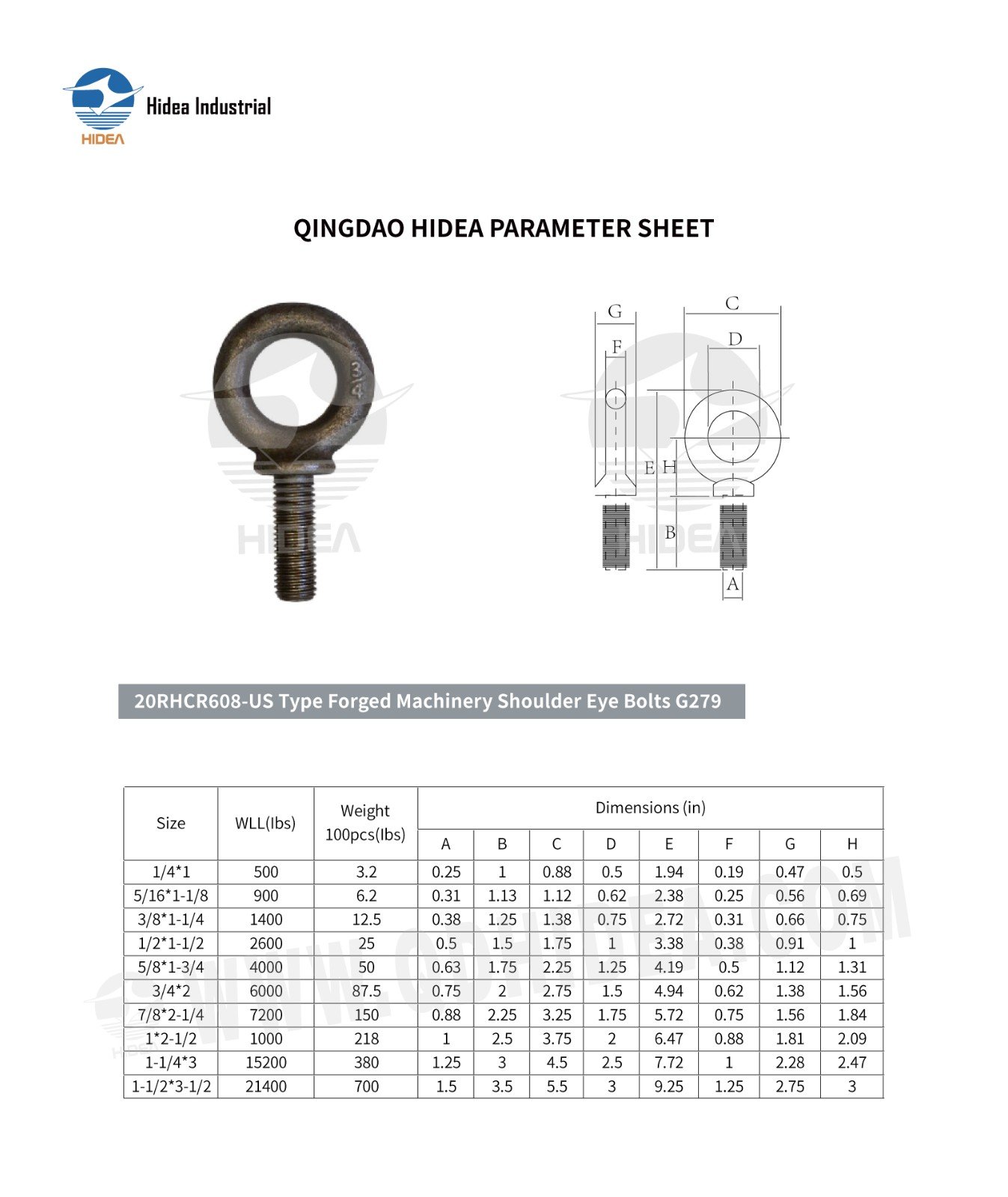

QINGDAO HIDEA PARAMETER SHEET FOR
20RHCR608-US Type Forged Machinery Shoulder Eye Bolts G279
| Size | WLL(Ibs) | Weight 100pcs(Ibs) | Dimensions(in) | |||||||
| A | B | C | D | E | F | G | H | |||
| 1/4*1 | 500 | 3.2 | 0.25 | 1 | 0.88 | 0.5 | 1.94 | 0.19 | 0.47 | 0.5 |
| 5/16*1-1/8 | 900 | 6.2 | 0.31 | 1.13 | 1.12 | 0.62 | 2.38 | 0.25 | 0.56 | 0.69 |
| 3/8*1-1/4 | 1400 | 12.5 | 0.38 | 1.25 | 1.38 | 0.75 | 2.72 | 0.31 | 0.66 | 0.75 |
| 1/2*1-1/2 | 2600 | 25 | 0.5 | 1.5 | 1.75 | 1 | 3.38 | 0.38 | 0.91 | 1 |
| 5/8*1-3/4 | 4000 | 50 | 0.63 | 1.75 | 2.25 | 1.25 | 4.19 | 0.5 | 1.12 | 1.31 |
| 3/4*2 | 6000 | 87.5 | 0.75 | 2 | 2.75 | 1.5 | 4.94 | 0.62 | 1.38 | 1.56 |
| 7/8*2-1/4 | 7200 | 150 | 0.88 | 2.25 | 3.25 | 1.75 | 5.72 | 0.75 | 1.56 | 1.84 |
| 1*2-1/2 | 1000 | 218 | 1 | 2.5 | 3.75 | 2 | 6.47 | 0.88 | 1.81 | 2.09 |
| 1-1/4*3 | 15200 | 380 | 1.25 | 3 | 4.5 | 2.5 | 7.72 | 1 | 2.28 | 2.47 |
| 1-1/2*3-1/2 | 21400 | 700 | 1.5 | 3.5 | 5.5 | 3 | 9.25 | 1.25 | 2.75 | 3 |
