HIDEA Long Link Chain: High-Quality Korean Standard Link Chain for Versatile Applications

KOREAN STANDARD LONG LINK CHAIN

Material: Carbon Steel Mild Steel
Surface Treatment: Electro OR Hot Dip galvanized, Blackened or as requested

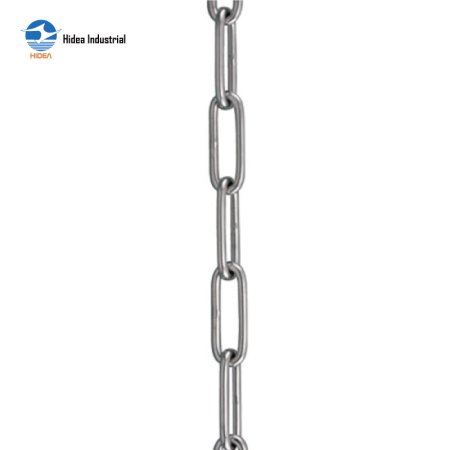

Korean Standard Long Link Chain

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

30SC142 Korean Standard Long Link Chain

Size	Material Dia.	Inside Length	Inside Width	Length Per Pc	Weight Per Pc
mm	mm	mm	mm	m	kg
4	3.9	34.3	6.2	30	7.26
5	5	44	9	30	9.46
5	5	45	11	30	11.31
6	6	47	12	30	18.00
7	7	50	11	15	11.19
12	12	50	18	15	42.00
15	15	64	23	15	61.44
19	19	75	25	10	71.00
