HIDEA Swing Eye Bolt – Strong, Rust-Resistant 304/316 Stainless Steel for Lasting Durability

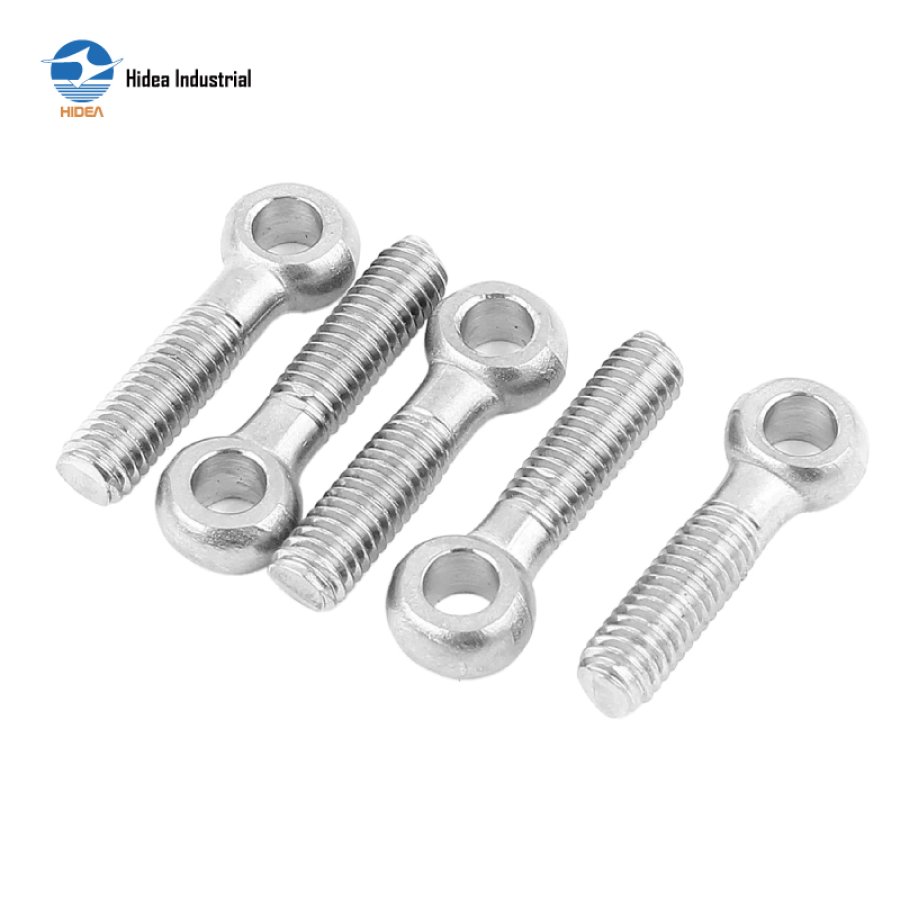

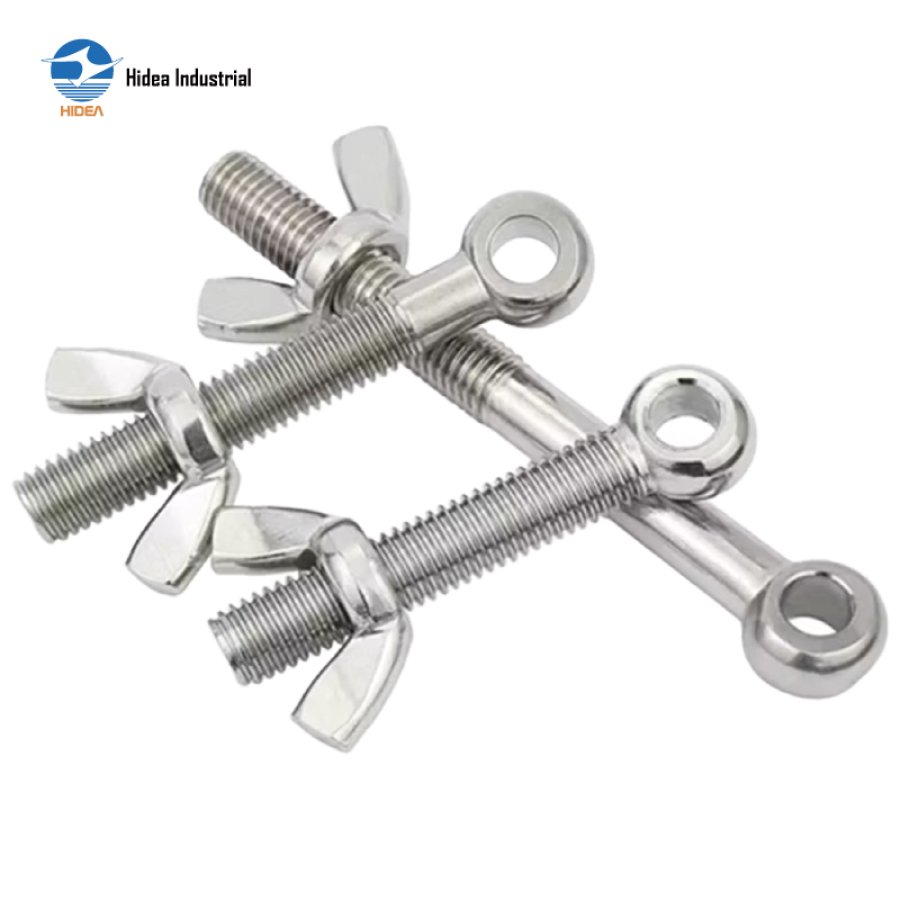

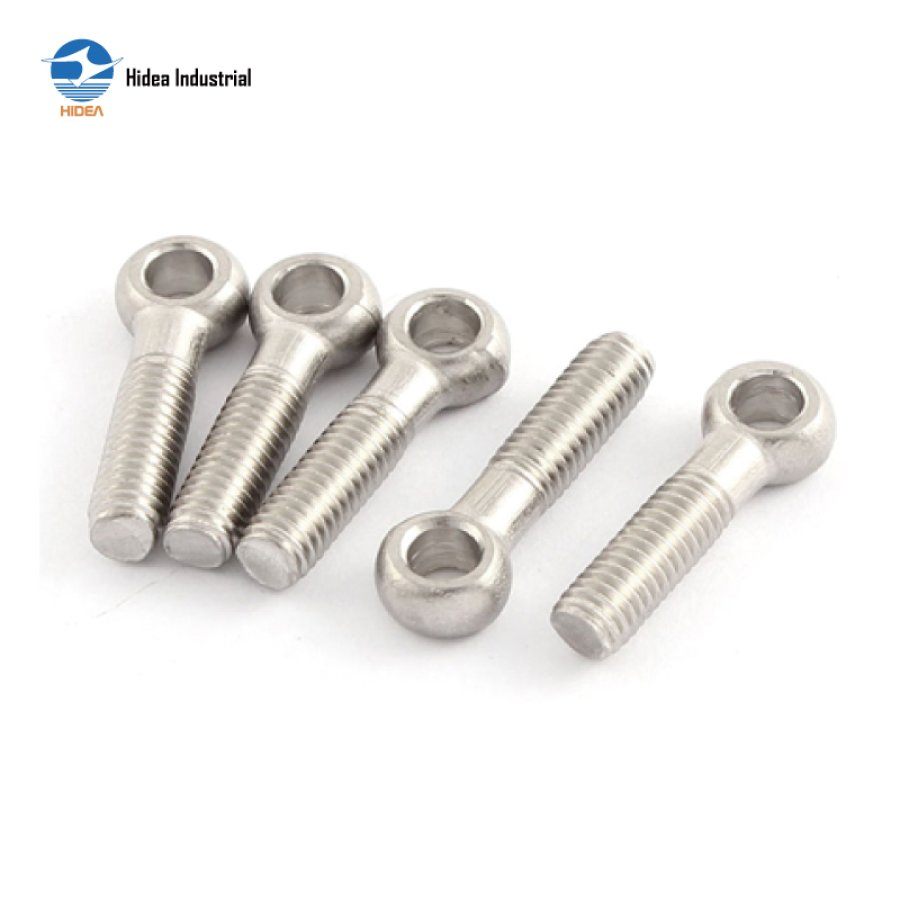

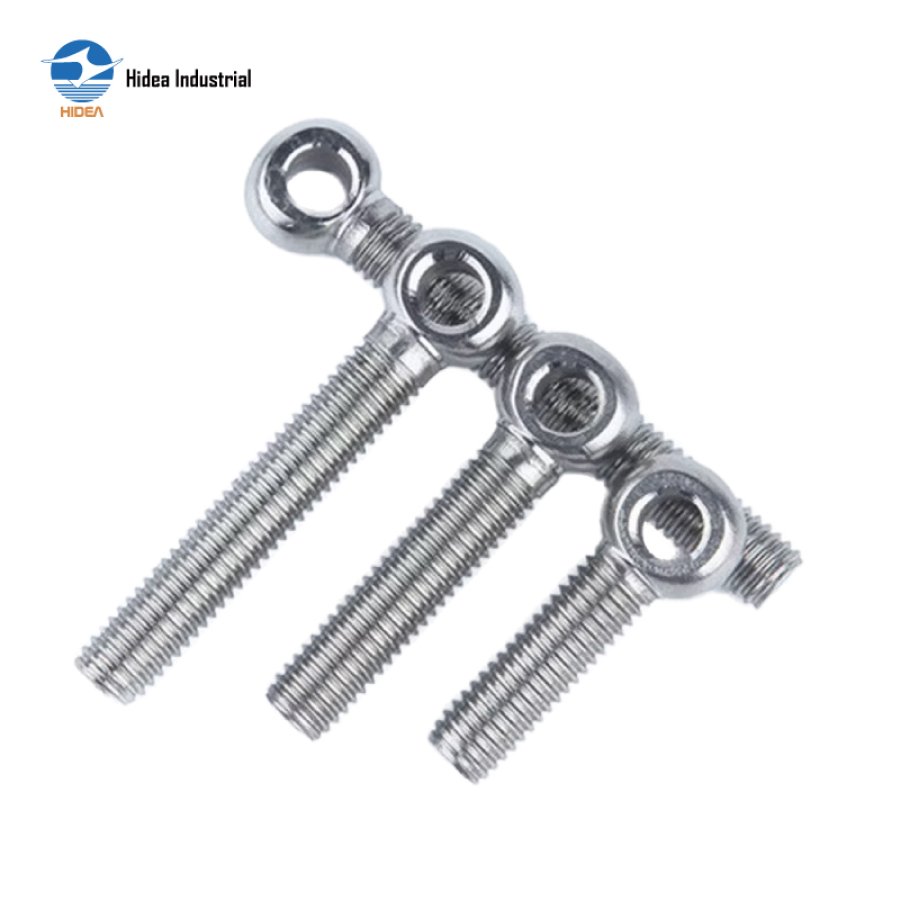

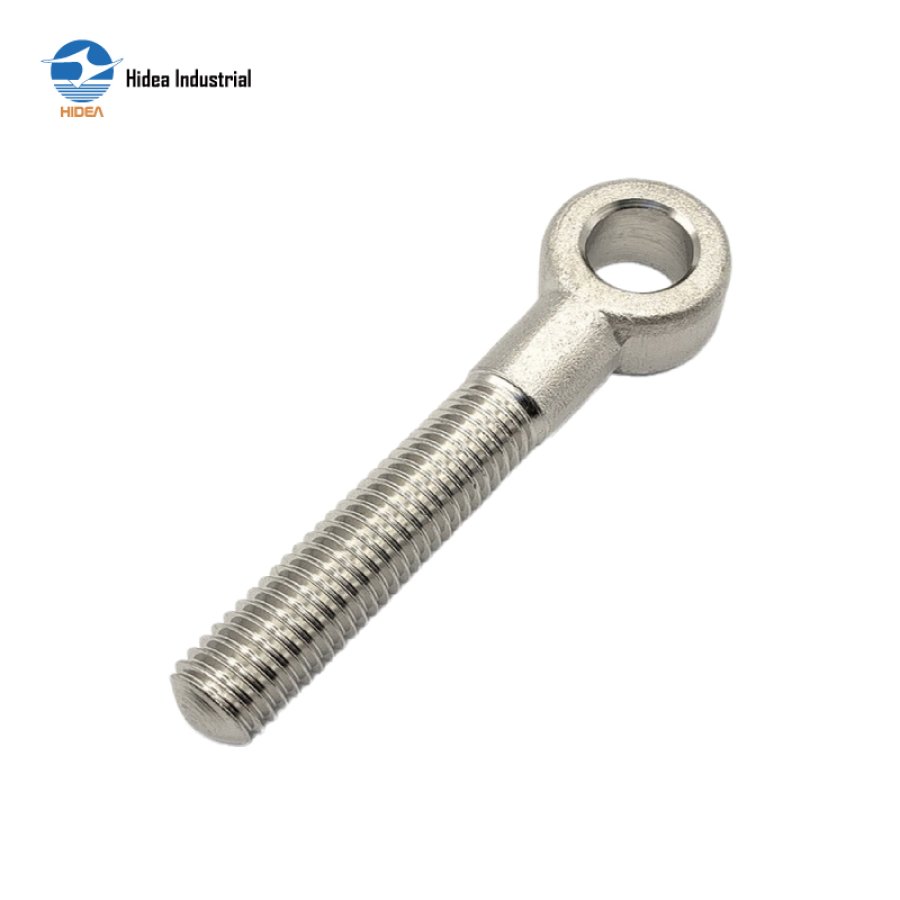

SWING EYE BOLT

Technical Data: Investment Casting/Forged
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Electro Polished/Passivated

Inquire Now

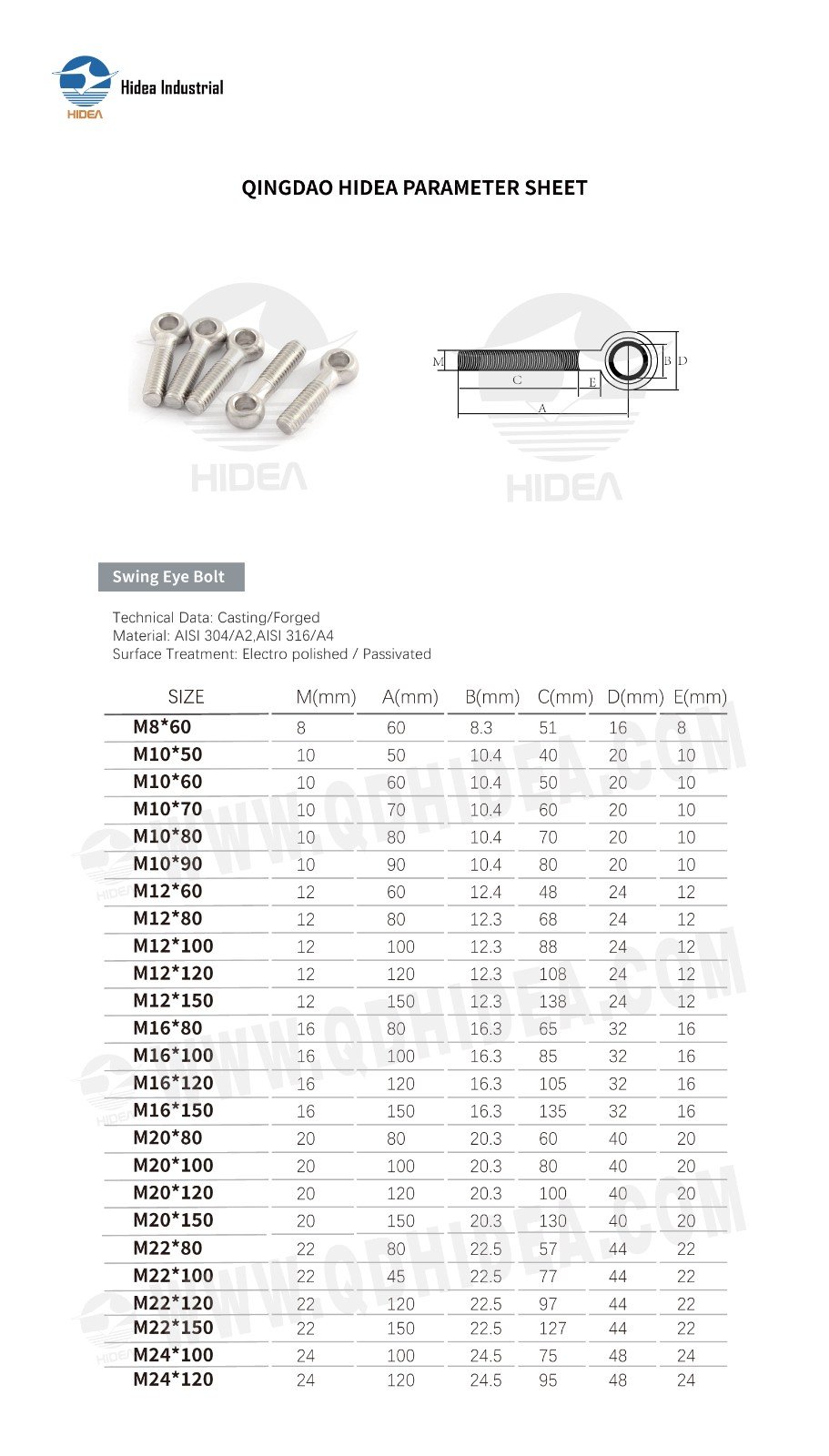

QINGDAO HIDEA PARAMETER SHEET FOR

Swing Eye Bolt

SIZE	M(mm) A(mm)		B(mm)	C(mm)	D(mm)	E(mm)
*M860**	8	60	8.3	51	16	8
*M1050**	10	50	10.4	40	20	10
*M1060**	10	60	10.4	50	20	10
*M1070**	10	70	10.4	60	20	10
*M1080**	10	80	10.4	70	20	10
*M1090**	10	90	10.4	80	20	10
*M1260**	12	60	12.4	48	24	12
*M1280**	12	80	12.3	68	24	12
*M12100**	12	100	12.3	88	24	12
*M12120**	12	120	12.3	108	24	12
*M12150**	12	150	12.3	138	24	12
*M1680**	16	80	16.3	65	32	16
*M16100**	16	100	16.3	85	32	16
*M16120**	16	120	16.3	105	32	16
*M16150**	16	150	16.3	135	32	16
*M2080**	20	80	20.3	60	40	20
*M20100**	20	100	20.3	80	40	20
*M20120**	20	120	20.3	100	40	20
*M20150**	20	150	20.3	130	40	20
*M2280**	22	80	22.5	57	44	22
*M22100**	22	45	22.5	77	44	22
*M22120**	22	120	22.5	97	44	22
*M22150**	22	150	22.5	127	44	22
*M24100**	24	100	24.5	75	48	24
*M24120**	24	120	24.5	95	48	24
