Hidea G215 US Type Round Pin Chain Shackle: Versatile and Robust for Chain Applications

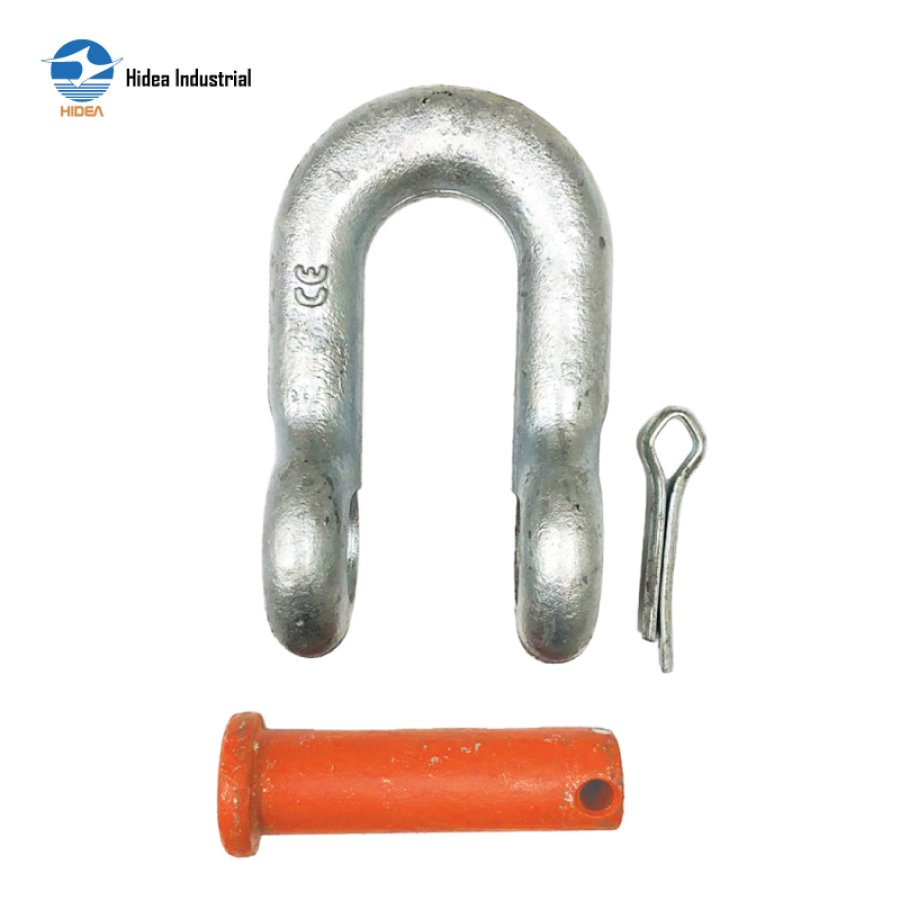

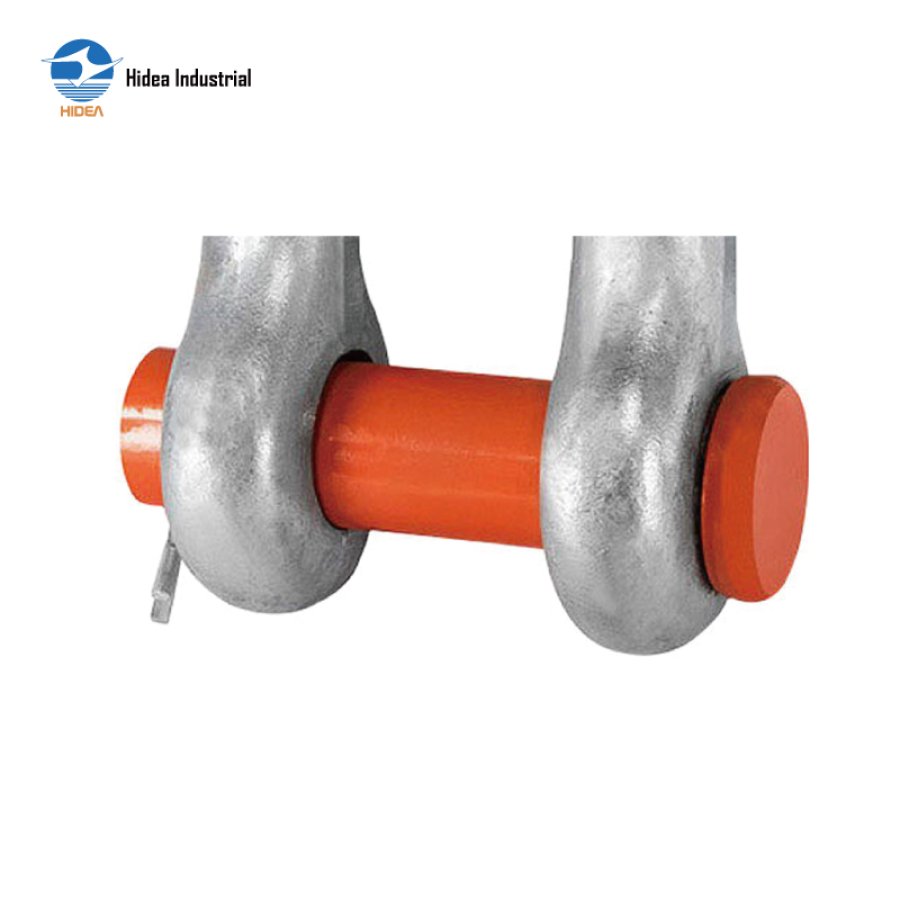

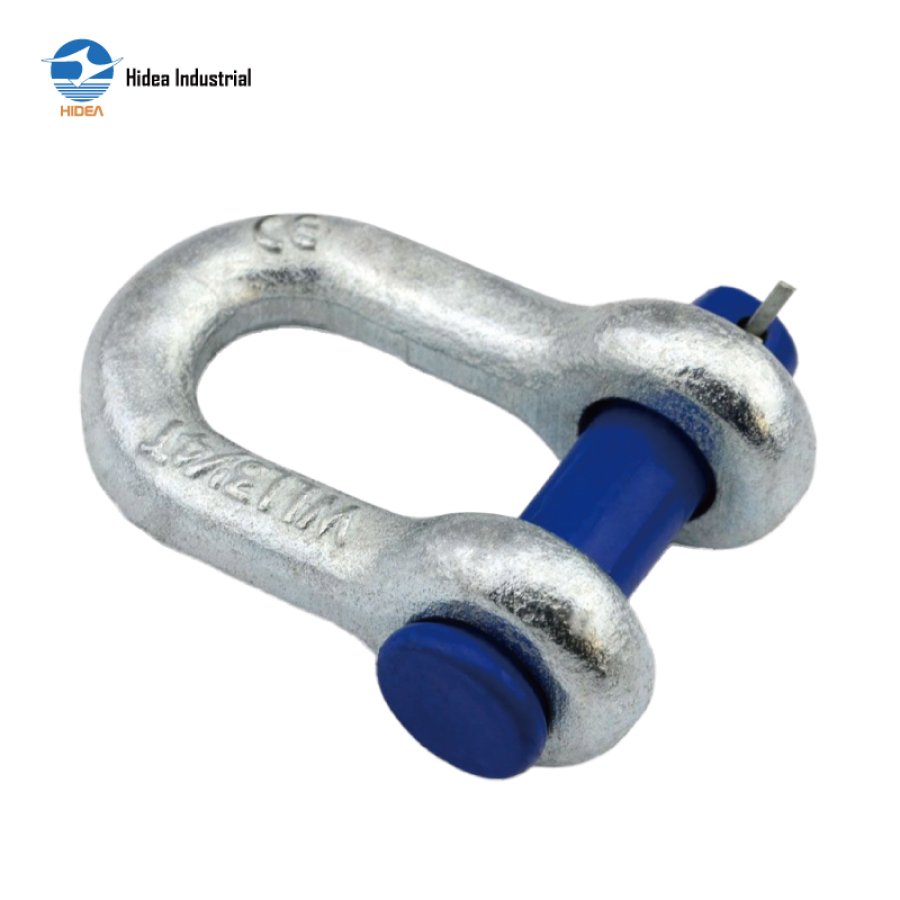

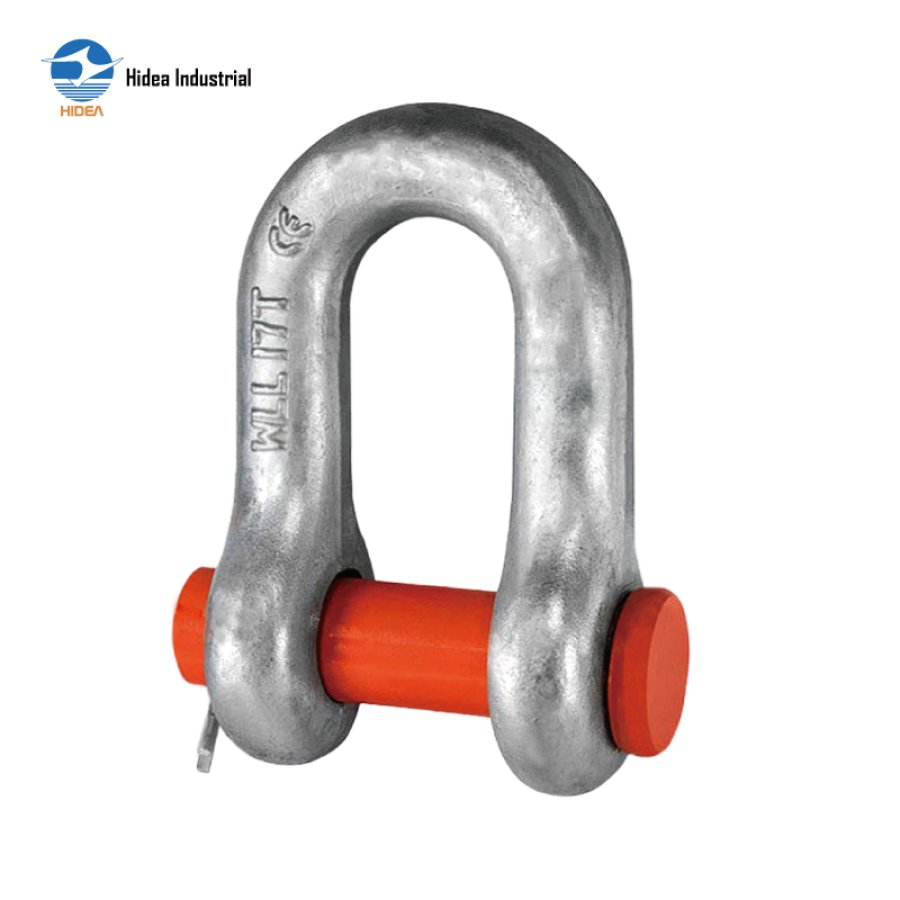

G215 US TYPE ROUND PIN CHAIN SHACKLE

Material: body, carbon steel; pin, alloy steel
Drop forged, quenched & tempered
Magnaflux crack detection
Safety factor 6:1 & certificates available
Surface hot dip galvanized (H.D.G) OR electro galvanized (EG) OR powder coated
Standard US Federal Specification RR-C-271G, Type IVB, Grade A, Class 1

Inquire Now

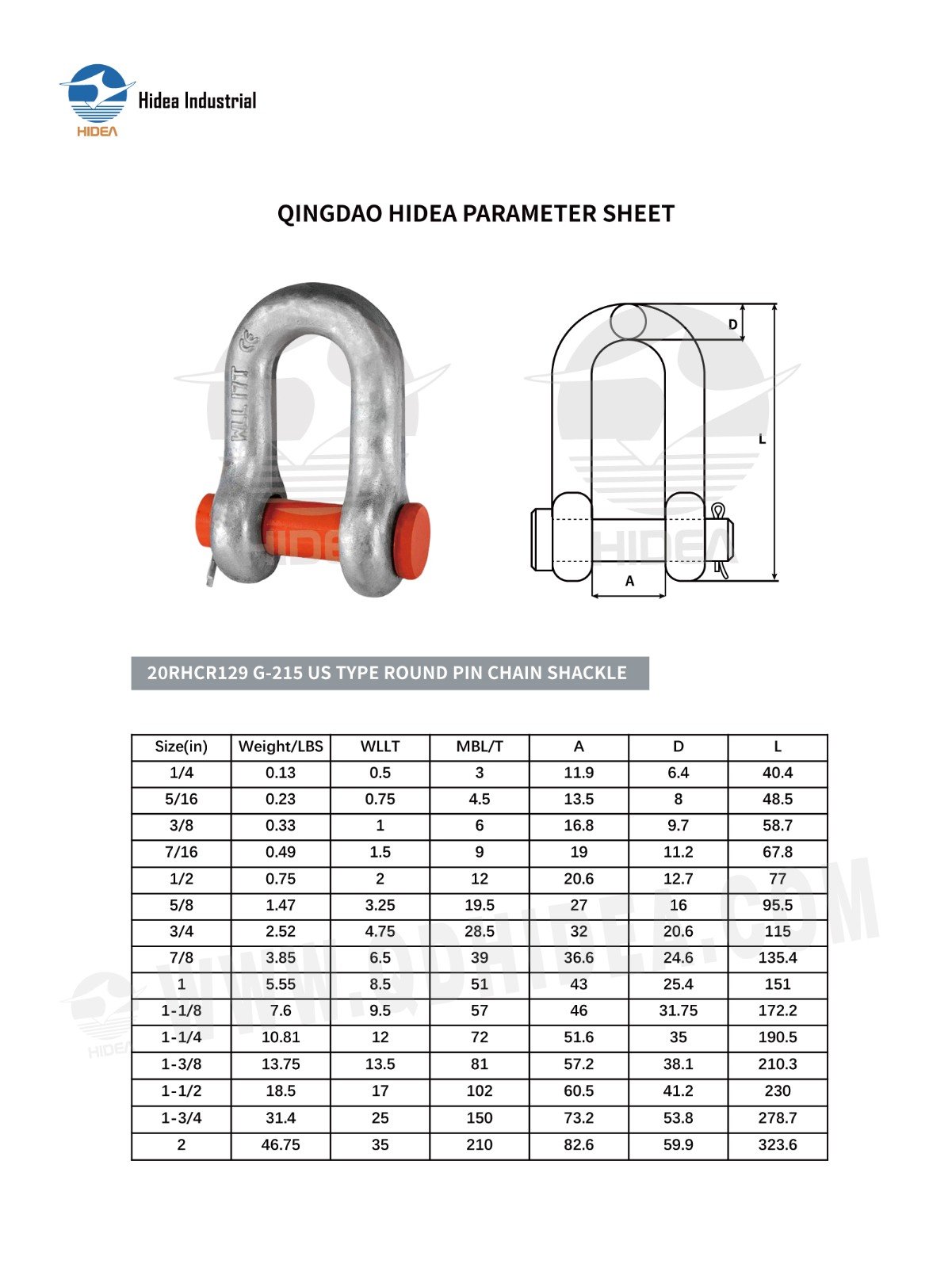

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR129 G-215US TYPE ROUND PIN CHAIN SHACKLE

Size(in)	Weight/LBS	WLLT	MBL/T	A	D	L
1/4	0.13	0.5	3	11.9	6.4	40.4
5/16	0.23	0.75	4.5	13.5	8	48.5
3/8	0.33	1	6	16.8	9.7	58.7
7/16	0.49	1.5	9	19	11.2	67.8
1/2	0.75	2	12	20.6	12.7	77
5/8	1.47	3.25	19.5	27	16	95.5
3/4	2.52	4.75	28.5	32	20.6	115
7/8	3.85	6.5	39	36.6	24.6	135.4
1	5.55	8.5	51	43	25.4	151
1-1/8	7.6	9.5	57	46	31.75	172.2
1-1/4	10.81	12	72	51.6	35	190.5
1-3/8	13.75	13.5	81	57.2	38.1	210.3
1-1/2	18.5	17	102	60.5	41.2	230
1-3/4	31.4	25	150	73.2	53.8	278.7
2	46.75	35	210	82.6	59.9	323.6
