G80 Clevis Angle Regulator Hook for Optimized Lifting and Rigging

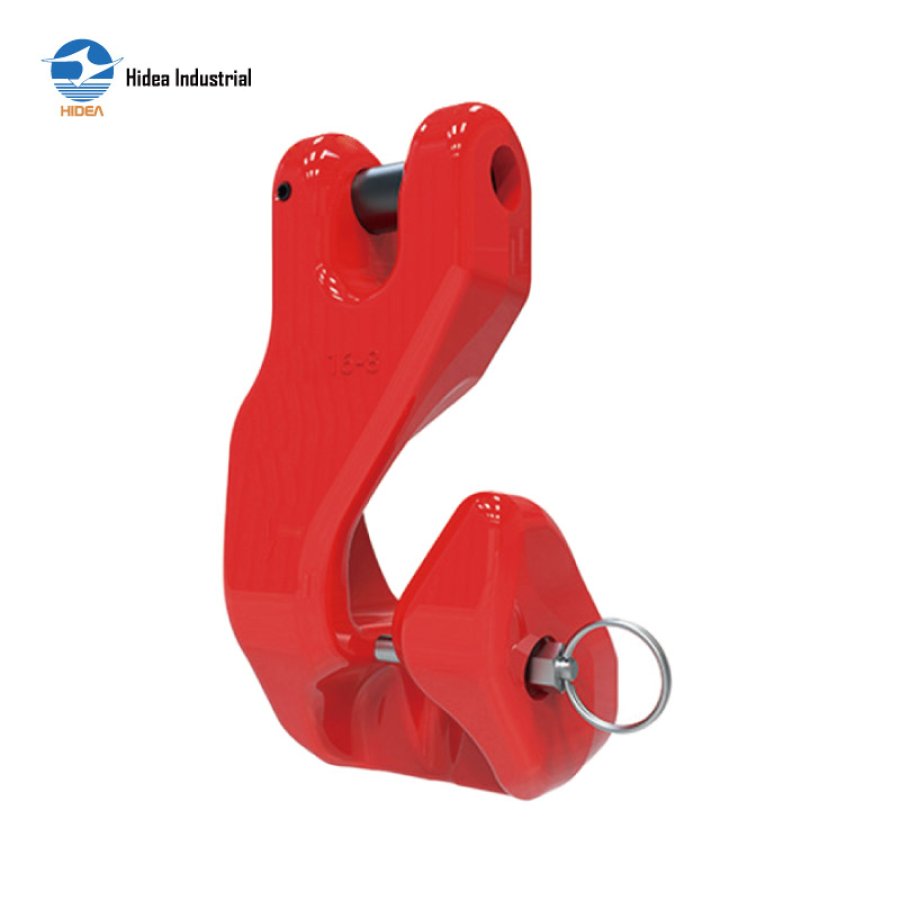

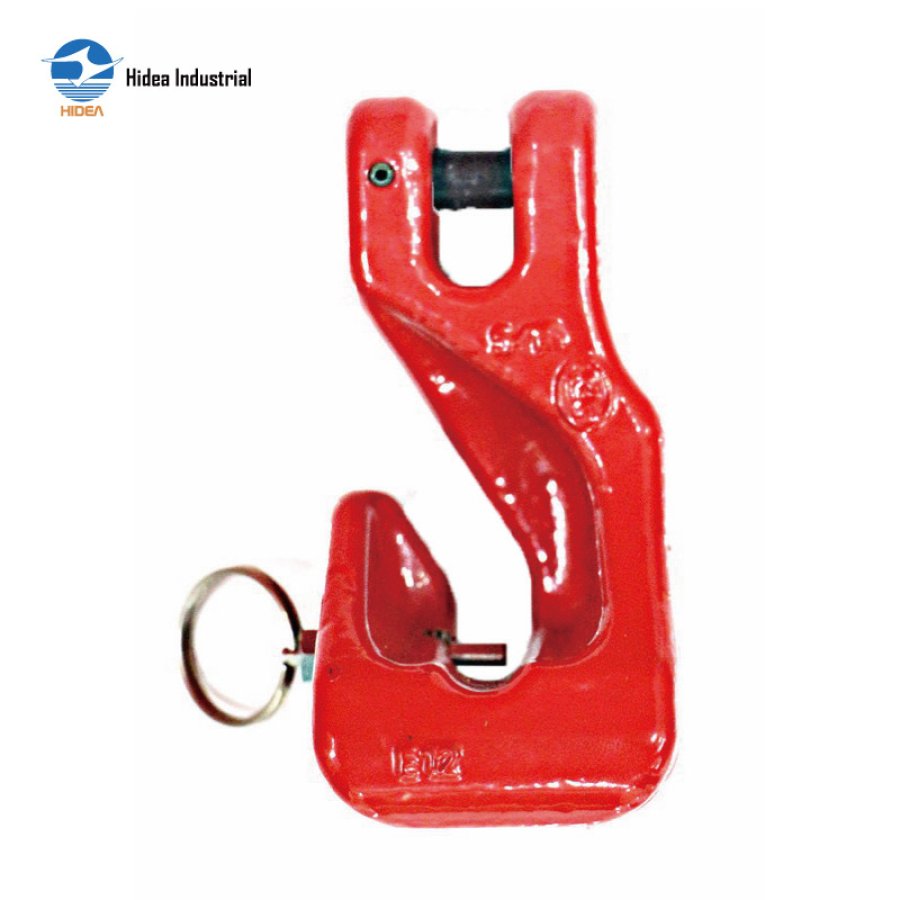

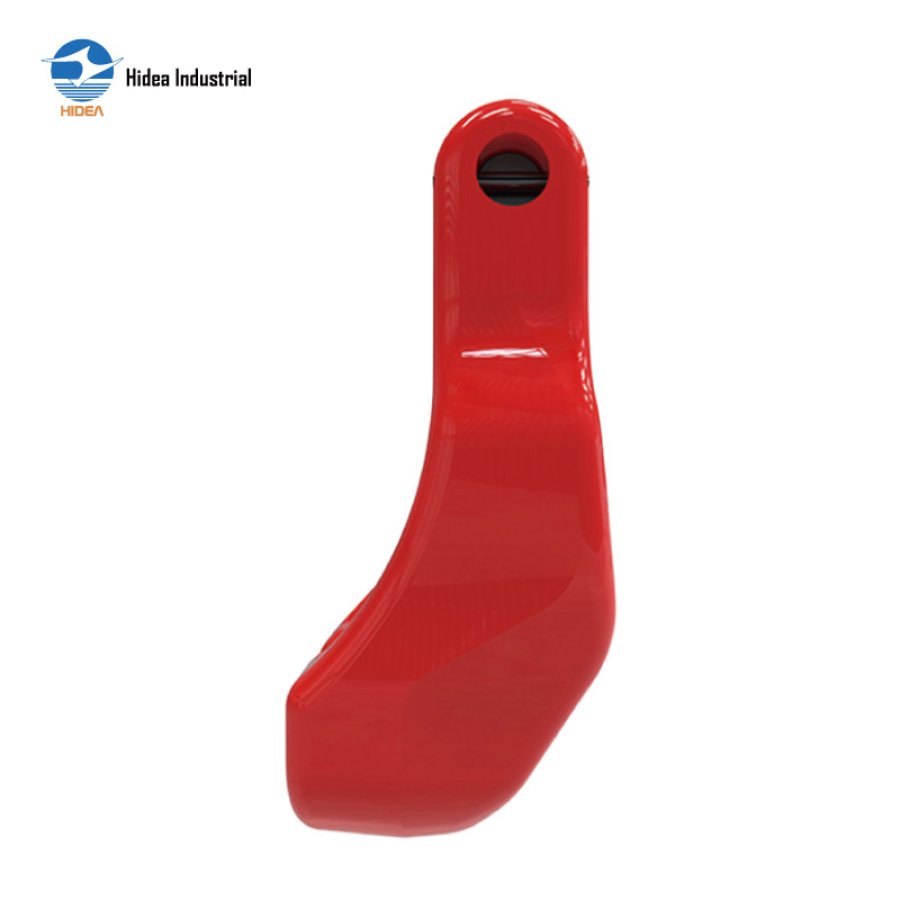

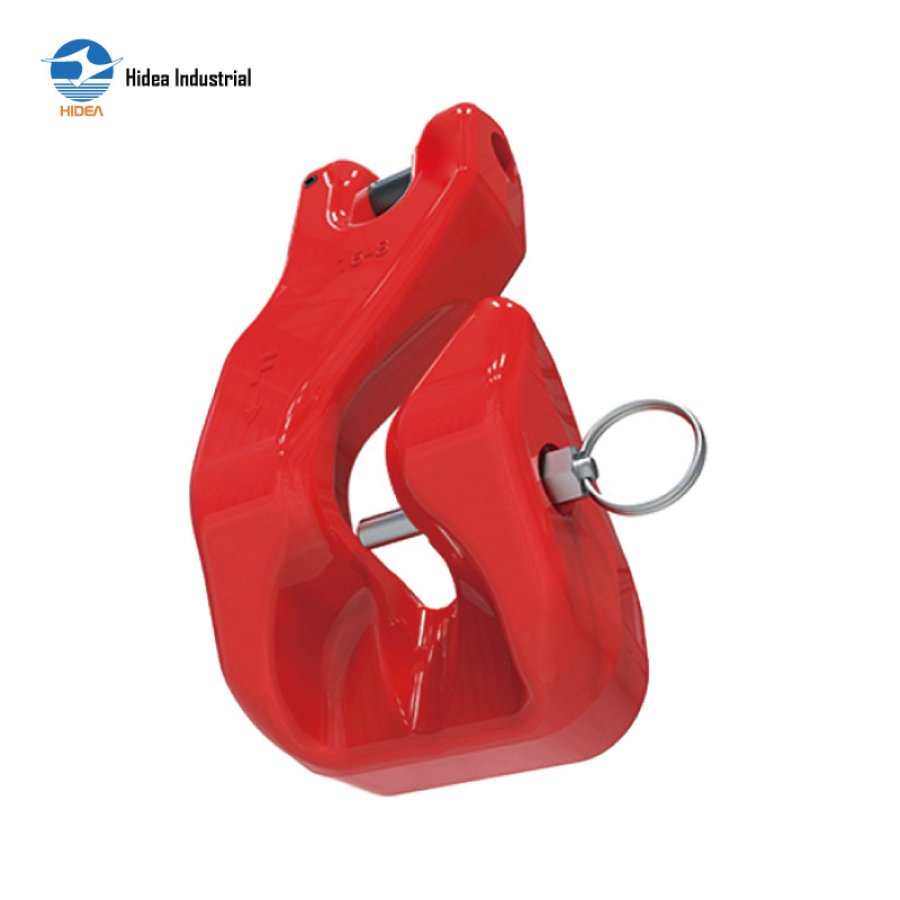

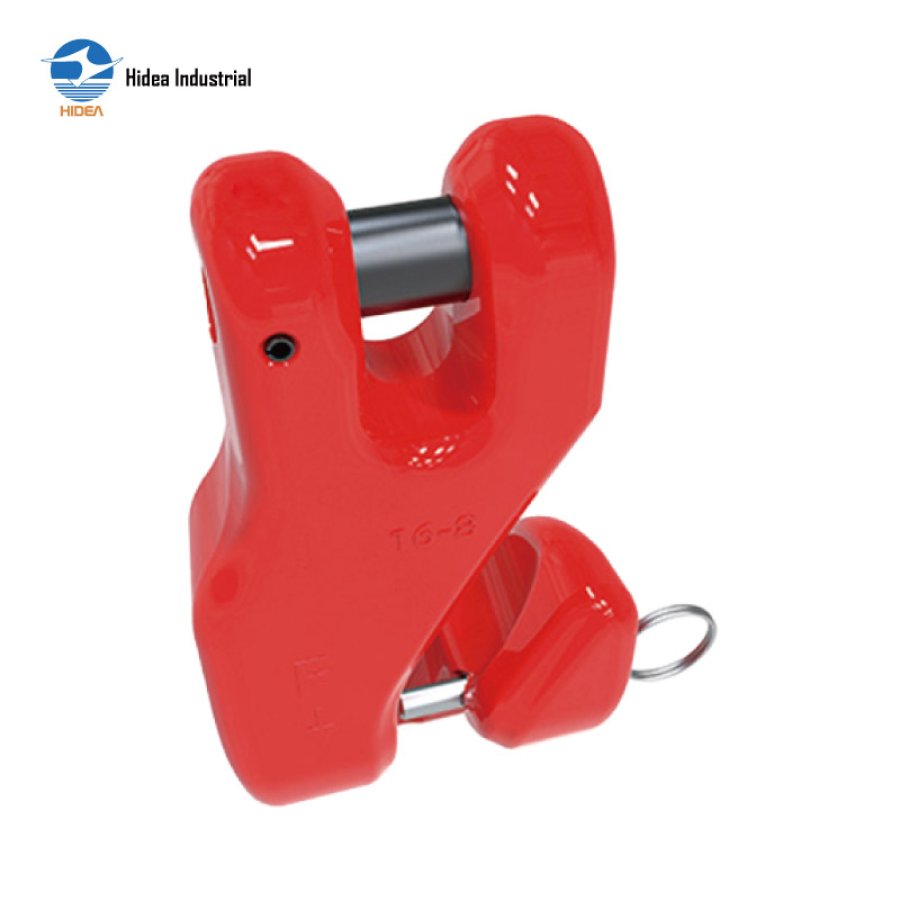

G80 CLEVIS ANGLE REGULATOR HOOK

Forged super alloy steel-Quenched and Tempered
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection

Inquire Now

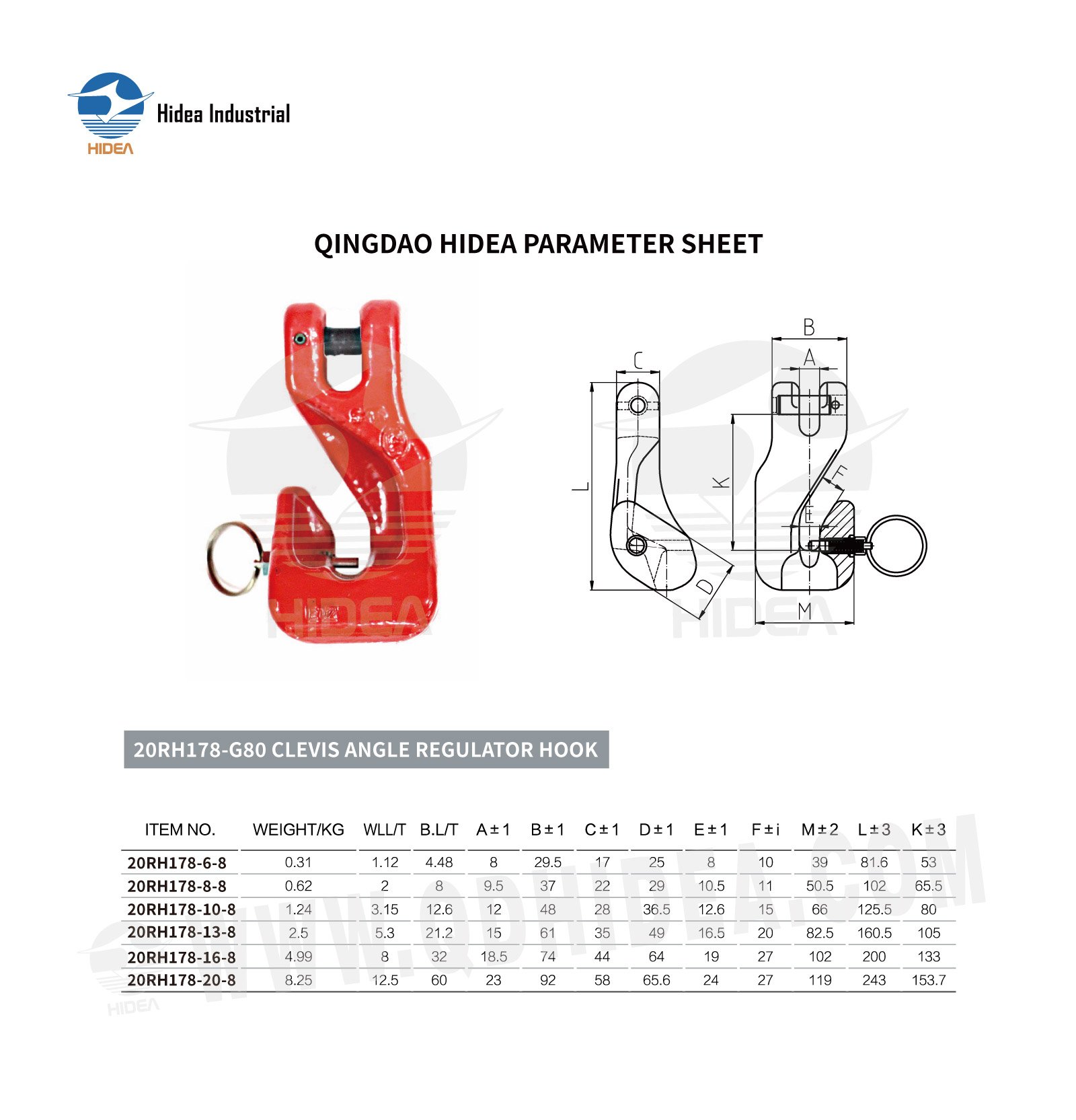

QINGDAO HIDEA PARAMETER SHEET FOR

20RH178-G80 CLEVIS ANGLE REGULATOR HOOK

ITEM NO.	WEIGHT/KG	WLL/T	B.L/T	A±1	B±1	C±1	D±1	E±1	F±1	M±2	L±3	K±3
20RH178-6-8	0.31	1.12	4.48	8	29.5	17	25	8	10	39	81.6	53
20RH178-8-8	0.62	2	8	9.5	37	22	29	10.5	11	50.5	102	655
20RH178-10-8	1.24	3.15	12.6	12	48	28	36.5	12.6	15	66	125.5	80
20RH178-13-8	2.5	5.3	21.2	15	61	35	49	16.5	20	82.5	160.5	105
20RH178-16-8	4.99	8	32	18.5	74	44	64	19	27	102	200	133
20RH178-20-8	8.25	12.5	60	23	92	58	85.6	24	27	119	243	153.7
