Hidea G80 Clevis Pear Shaped Link: Heavy-Duty Lifting Solution for Rigging Systems

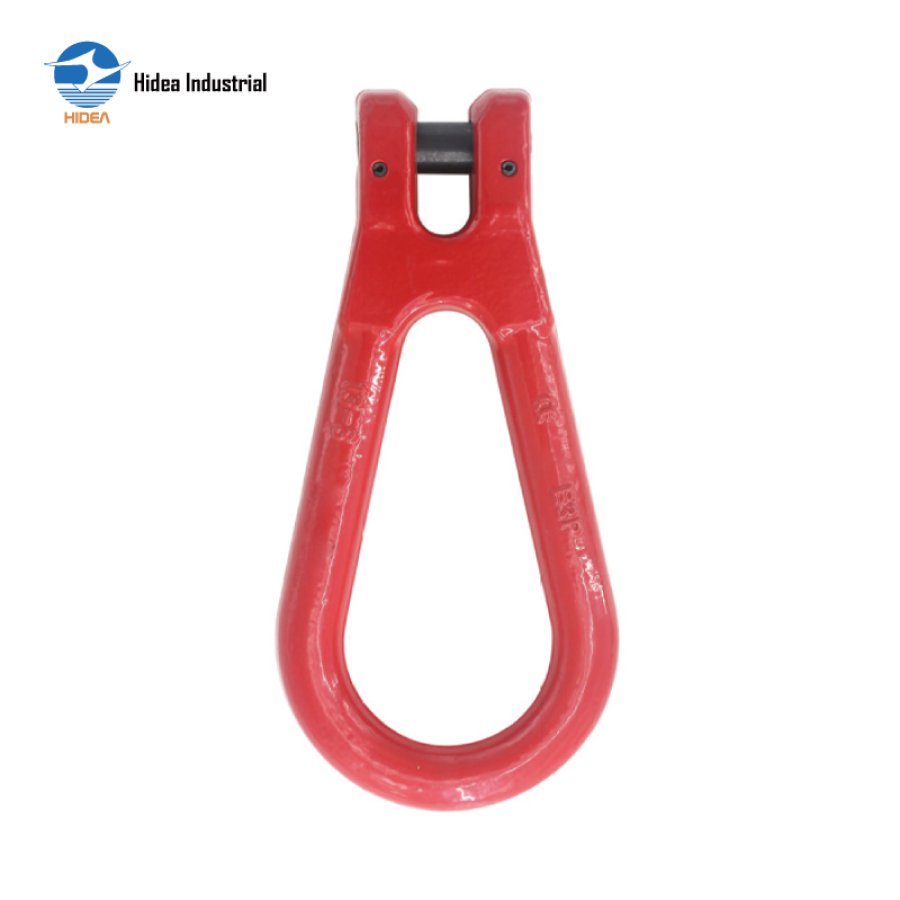

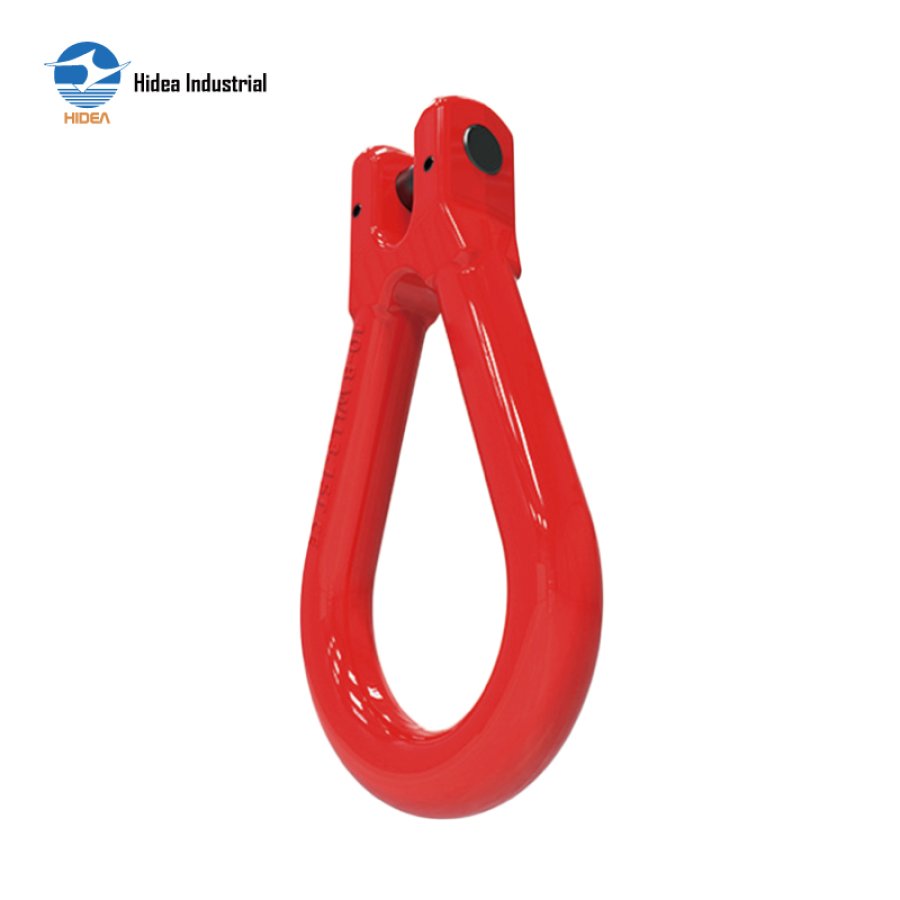

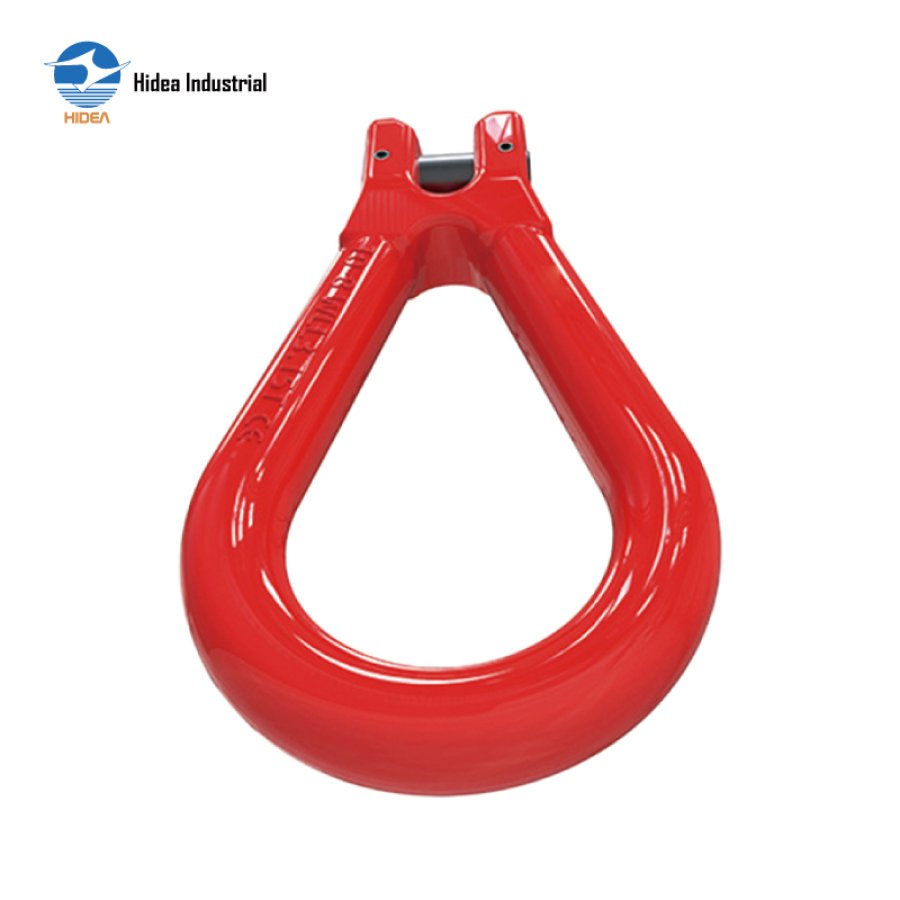

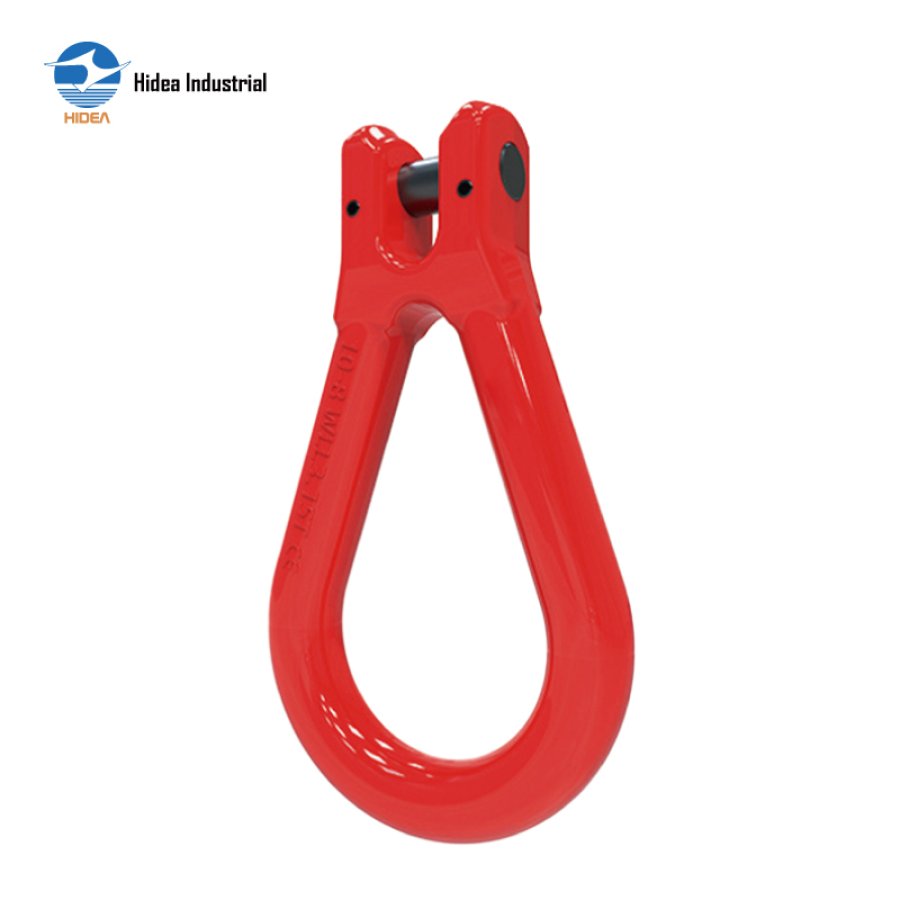

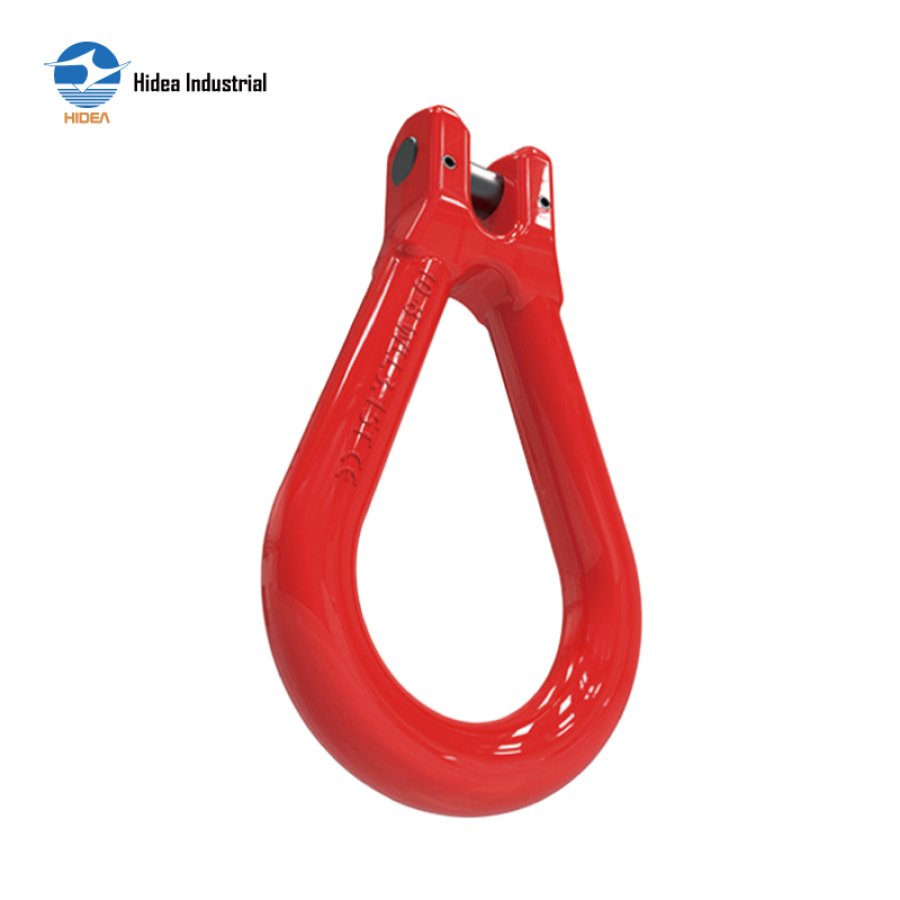

G80 CLEVIS PEAR SHAPED LINK

Forged super alloy steel-Quenched and Tempered
Suitable for EN818-2 G80 chain
Individually proof test to 2.5 times the Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test

Inquire Now

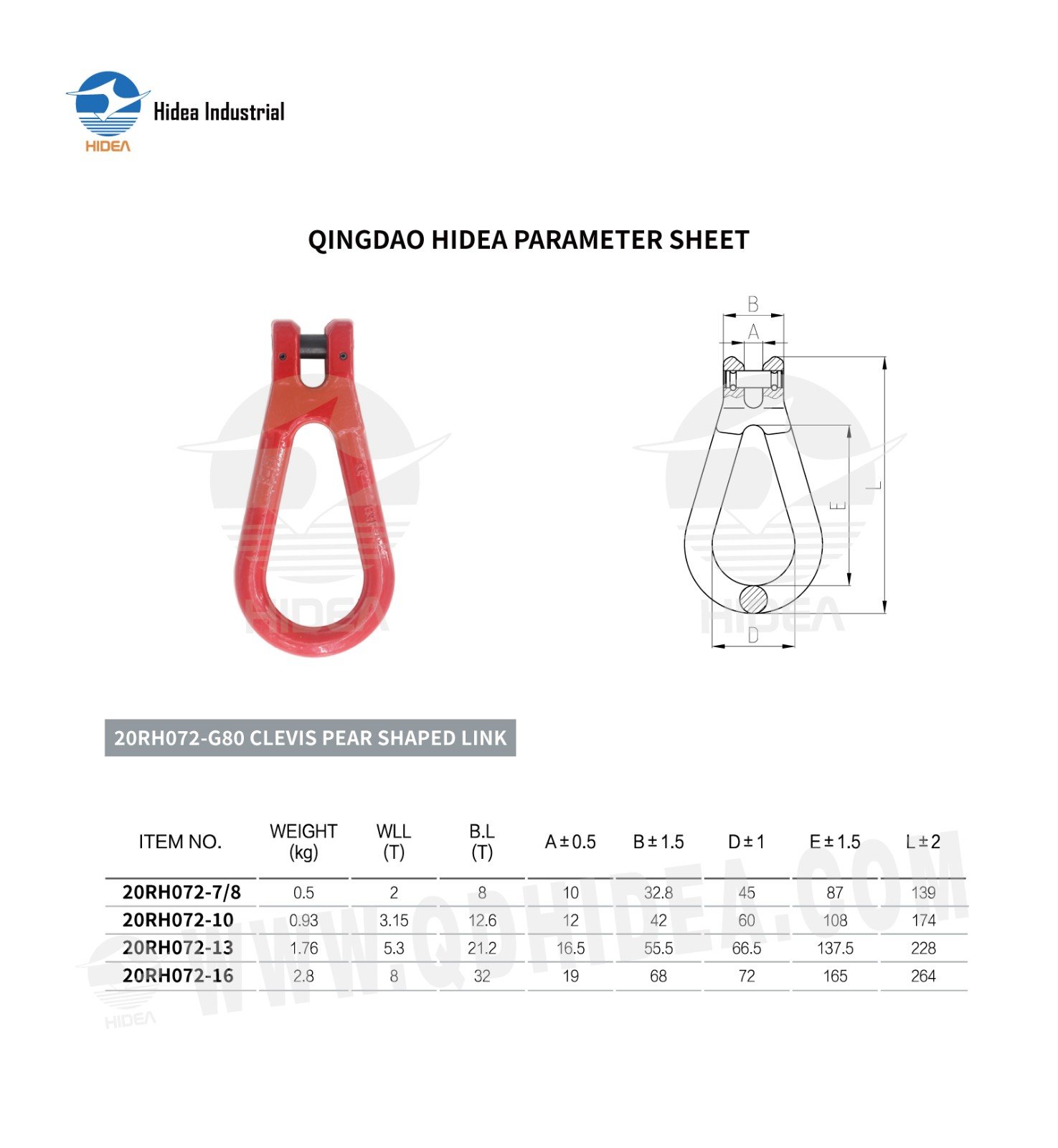

QINGDAO HIDEA PARAMETER SHEET FOR

20RH072-G80 CLEVIS PEAR SHAPED LINK

ITEM NO.	WEIGHT (kg)	WLL (T)	B.L (T)	A±0.5	B±1.5	D±1	E±1.5	L±2
20RH072-7/8	0.5	2	8	10	32.8	45	87	139
20RH072-10	0.93	3.15	12.6	12	42	60	108	174
20RH072-13	1.76	5.3	21.2	16.5	55.5	66.5	137.5	228
20RH072-16	2.8	8	32	19	68	72	165	264
