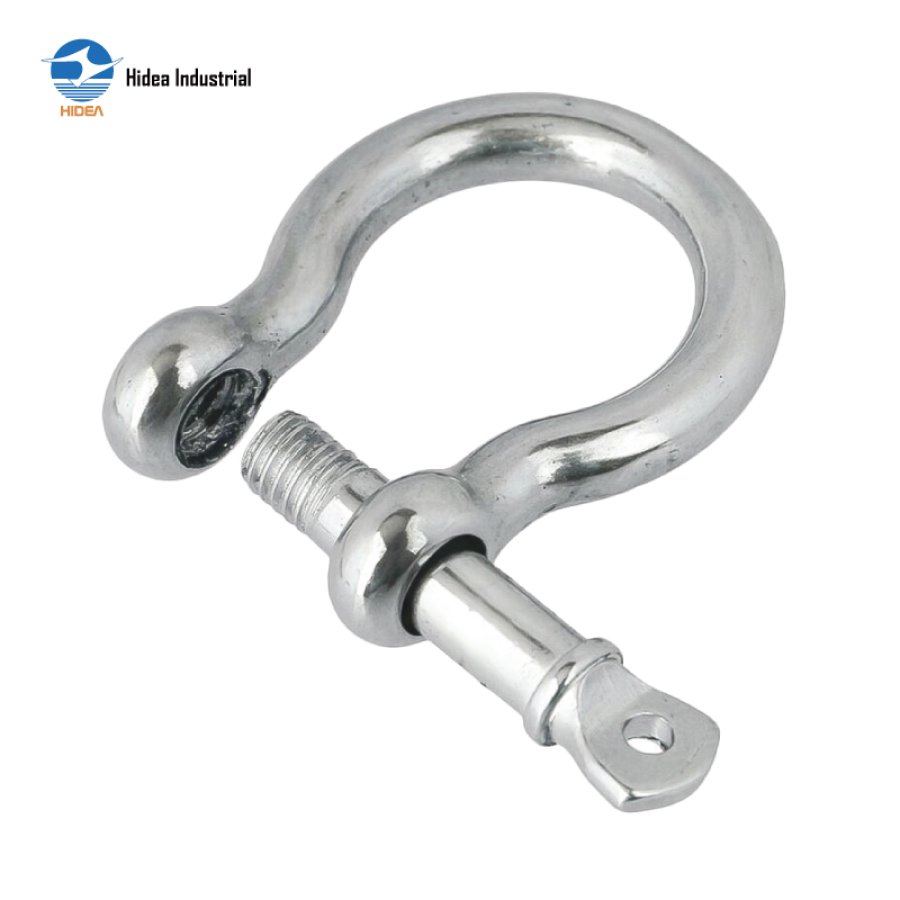

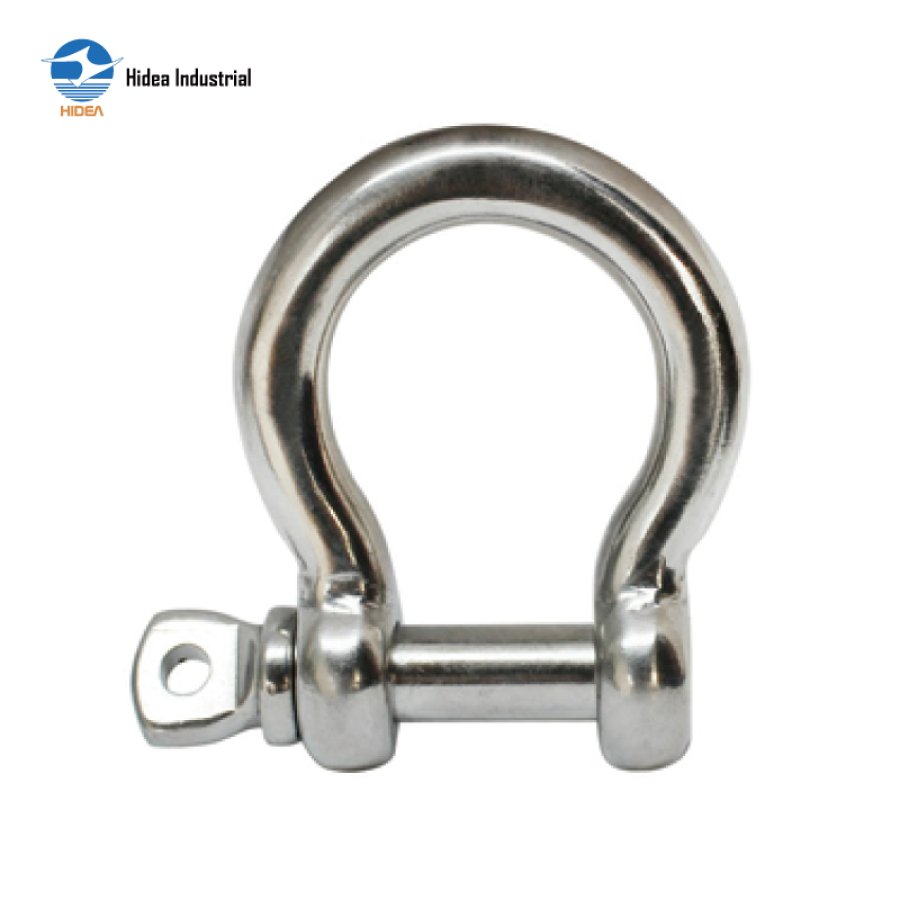

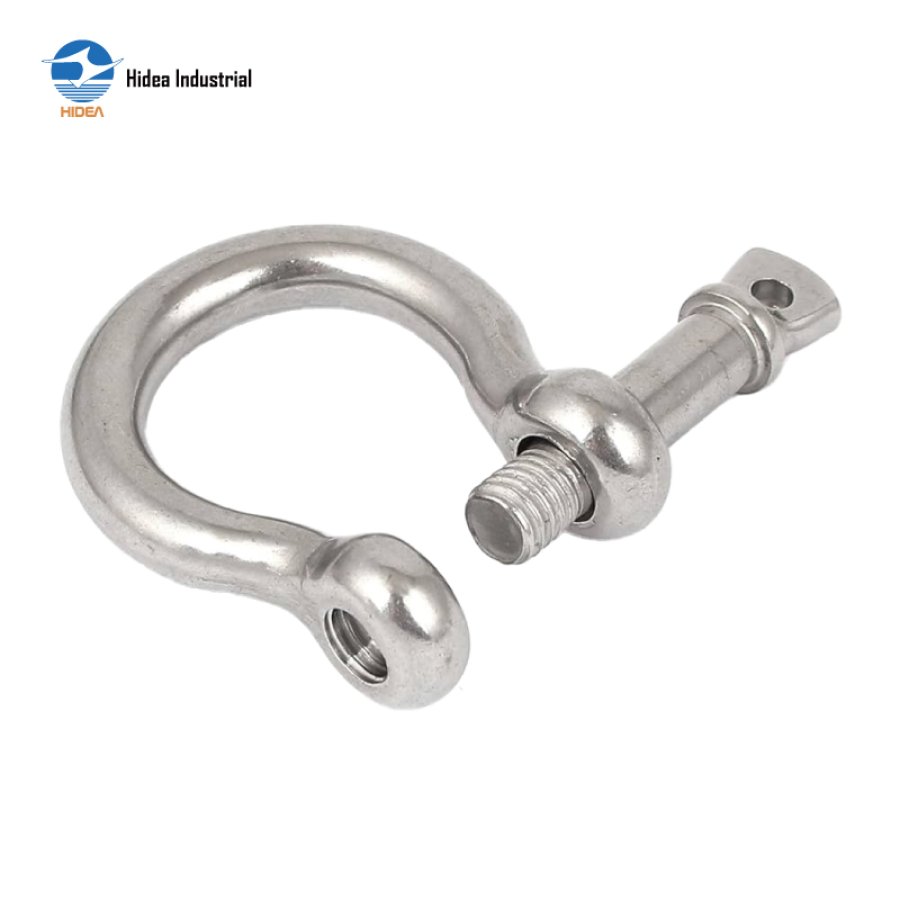

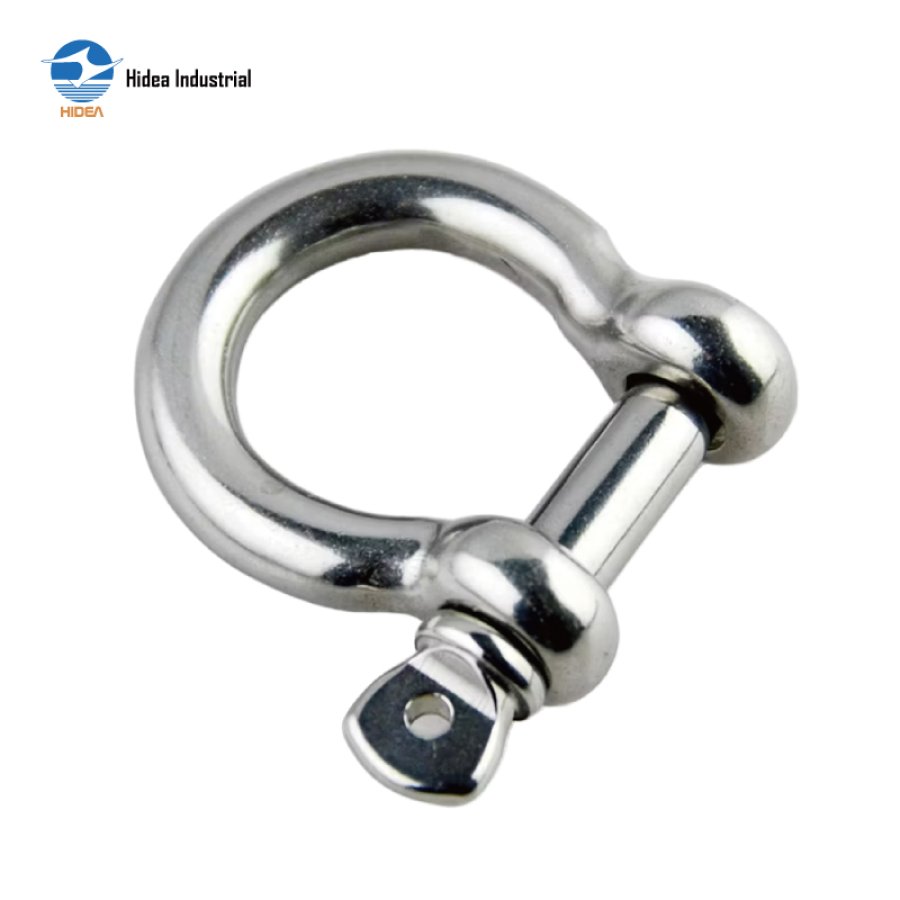

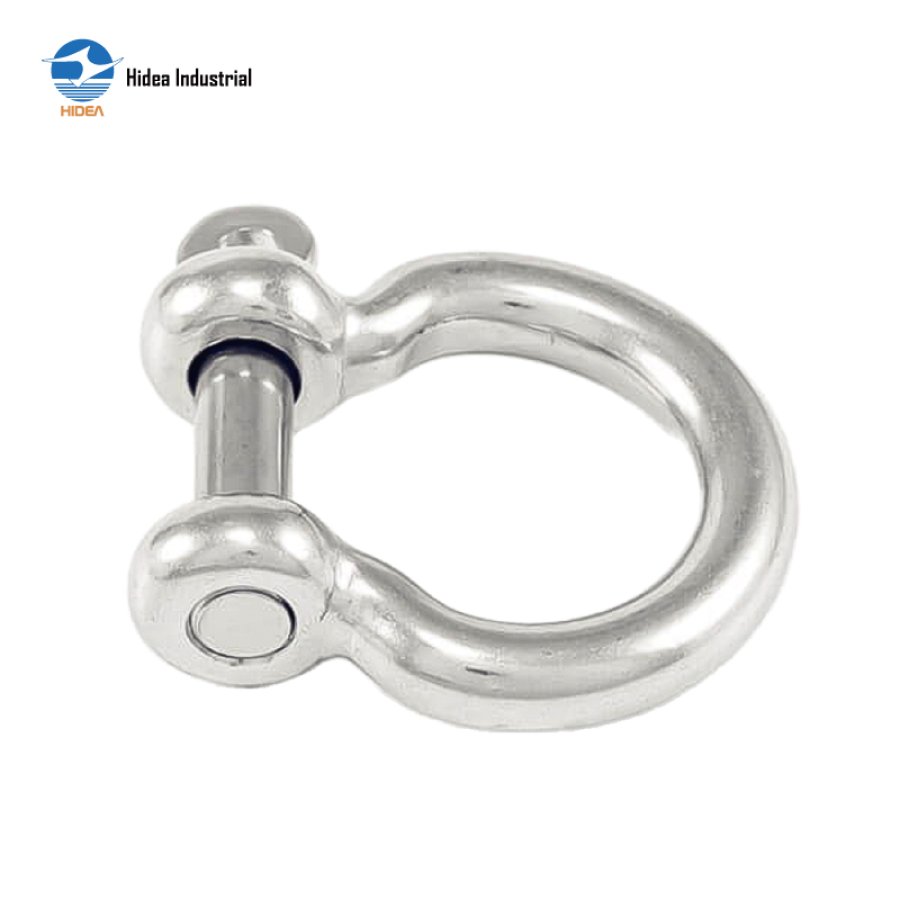

Durable HIDEA Stainless Steel Anchor Bow Shackles for Safe & Secure Connections

BOW SHACKLE-EU & JIS BOW SHACKLE

Technical Data: Investment Casting/Forged
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Electro Polished/Passivated

Inquire Now

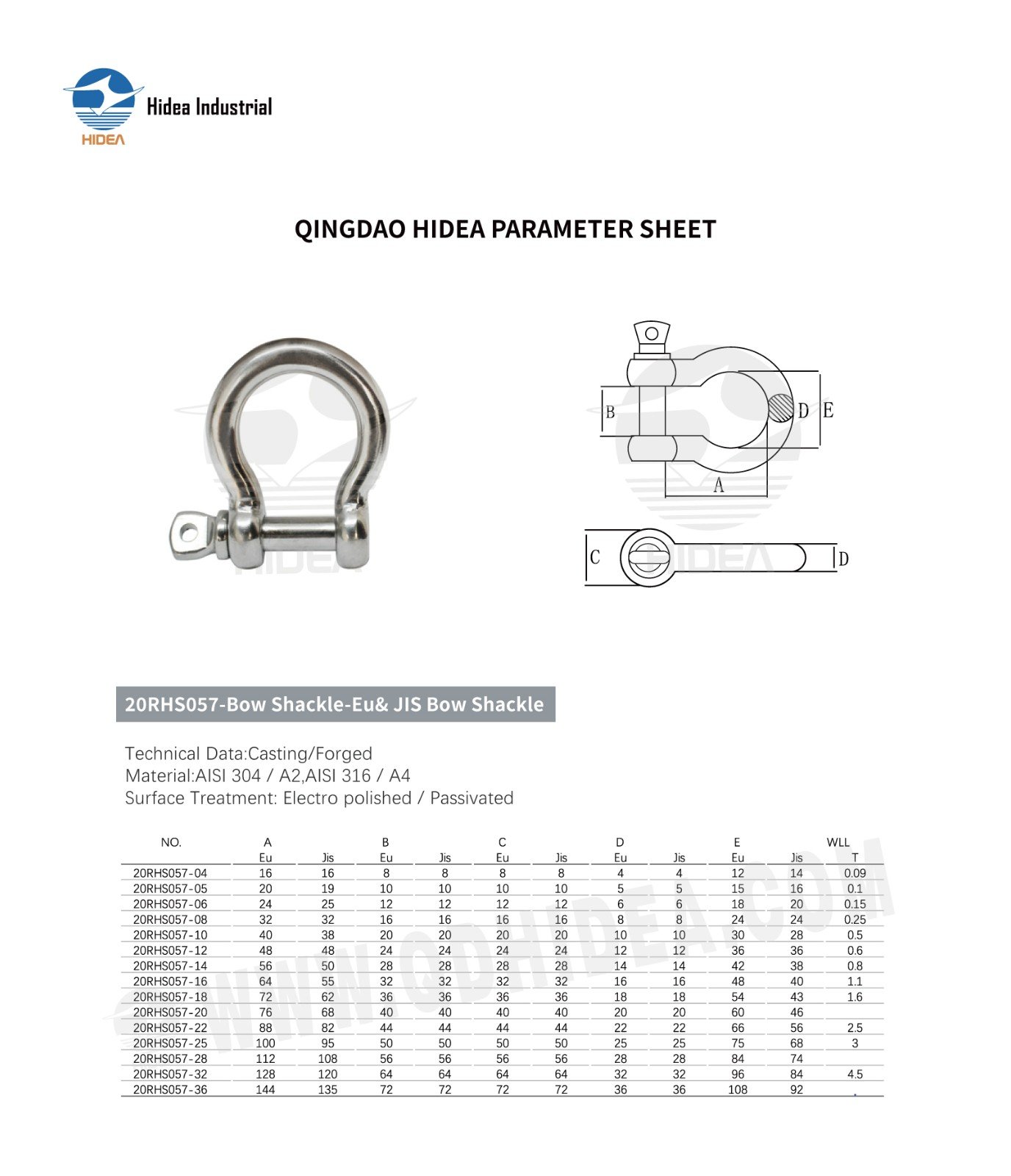

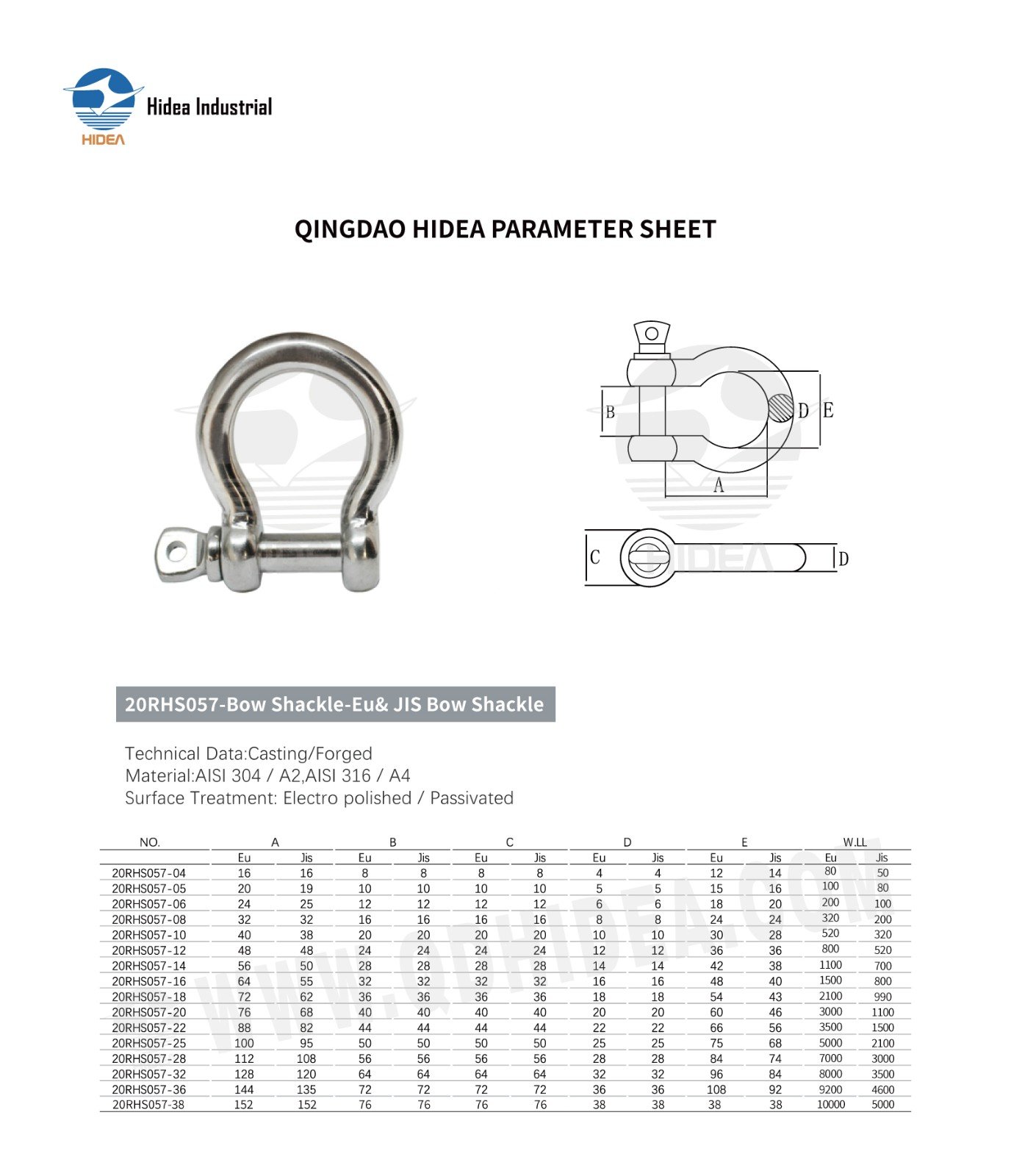

QINGDAO HIDEA PARAMETER SHEET FOR

20RHS057-Bow Shackle-Eu&JIS Bow Shackle

NO.	A		B		C		D		E		WLL
NO.	Eu	Jis	Eu	Jis	Eu	Jis	Eu	Js	Eu	Jis	T
20RHS057-04	16	16	8	8	8	8	4	4	12	14	0.09
20RHS057-05	20	19	10	10	10	10	5	5	15	16	0.1
20RHS057-06	24	25	12	12	12	12	6	6	18	20	0.15
20RHS057-08	32	32	16	16	16	16	8	8	24	24	0.25
20RHS057-10	40	38	20	20	20	20	10	10	30	28	0.5
20RHS057-12	48	48	24	24	24	24	12	12	36	36	0.6
20RHS057-14	56	50	28	28	28	28	14	14	42	38	0.8
20RHS057-16	64	55	32	32	32	32	16	16	48	40	1.1
20RHS057-18	72	62	36	36	36	36	18	18	54	43	1.6
20RHS057-20	76	68	40	40	40	40	20	20	60	46
20RHS057-22	88	82	44	44	44	44	22	22	66	56	2.5
20RHS057-25	100	95	50	50	50	50	25	25	75	68	3
20RHS057-28	112	108	56	56	56	56	28	28	84	74
20RHS057-32	128	120	64	64	64	64	32	32	96	84	4.5
20RHS057-36	144	135	72	72	72	72	36	36	108	92
