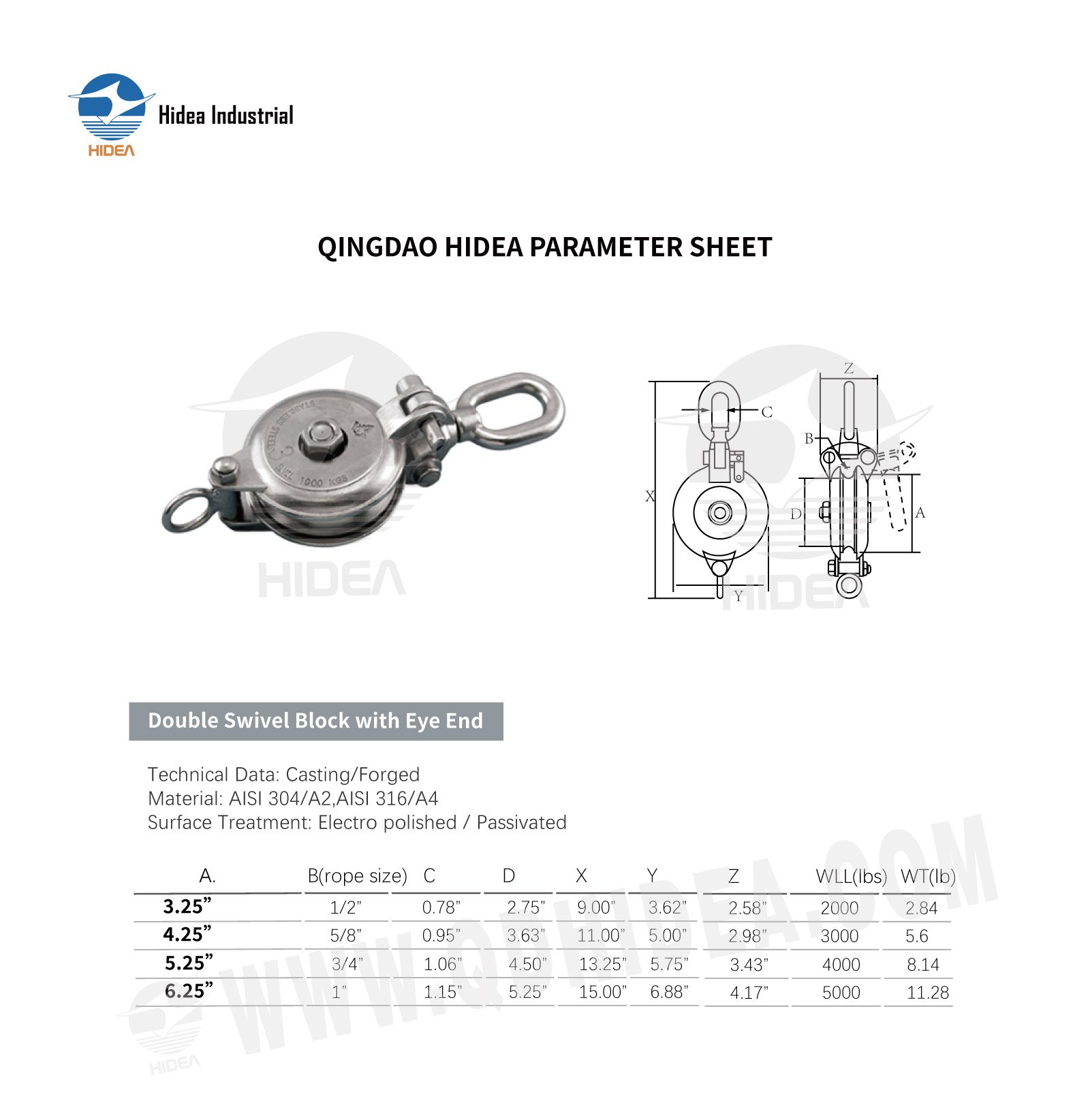

QINGDAO HIDEA PARAMETER SHEET FOR

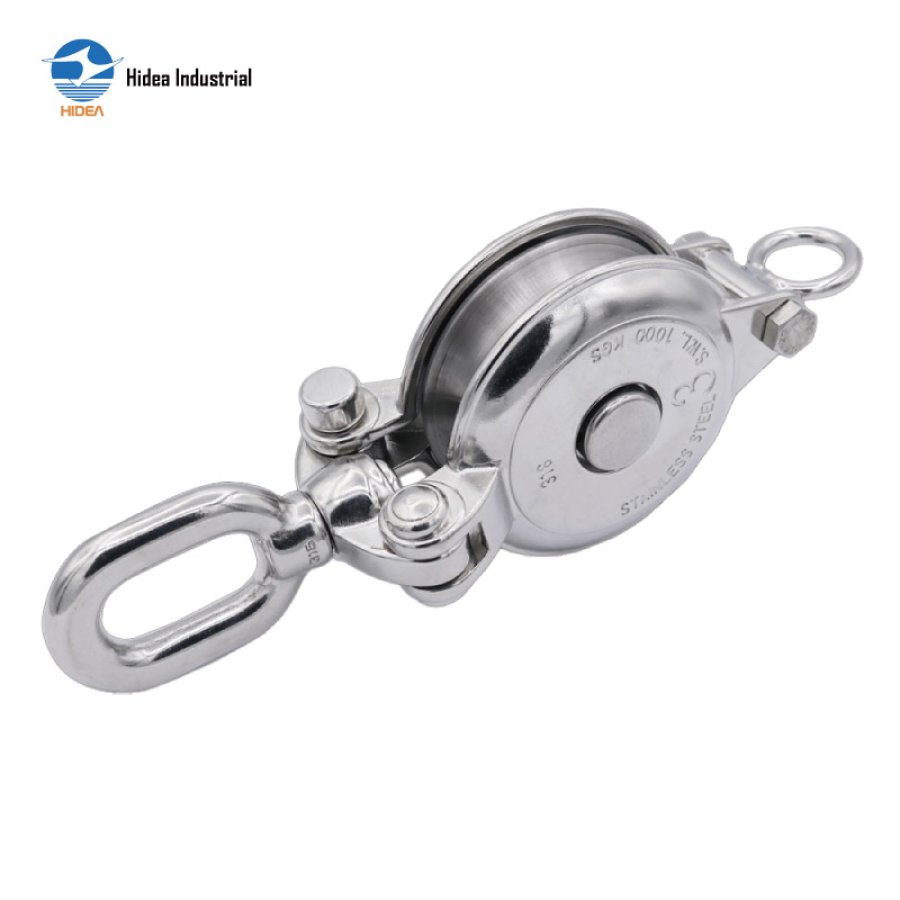

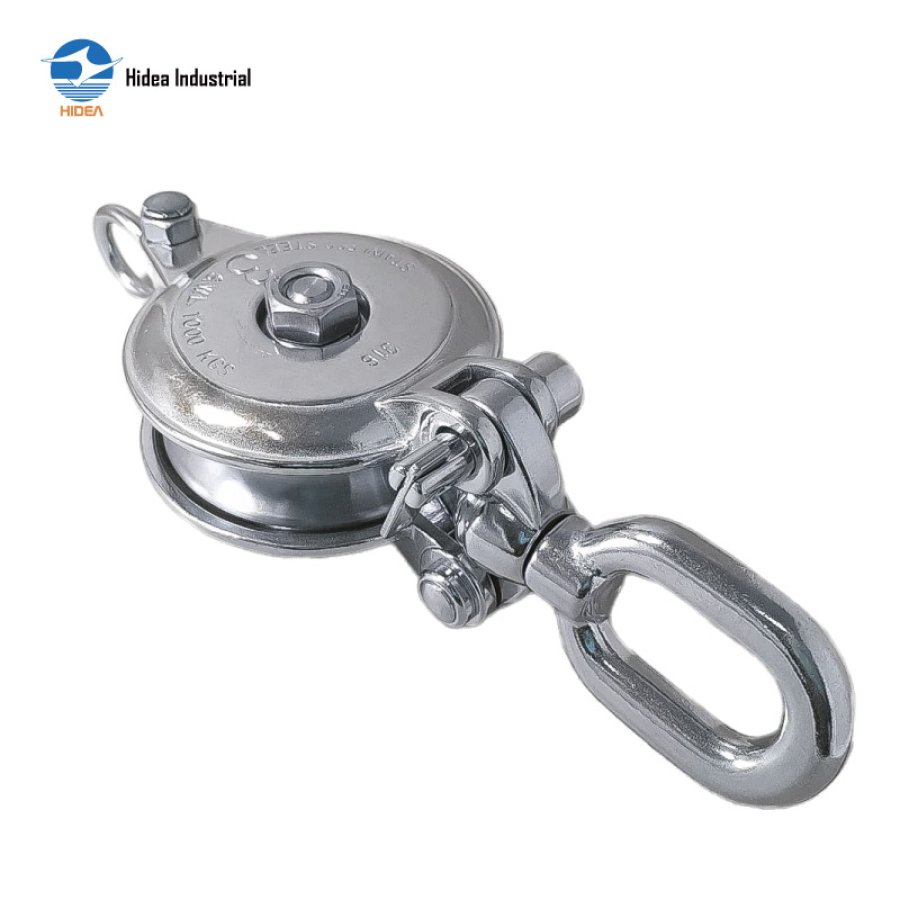

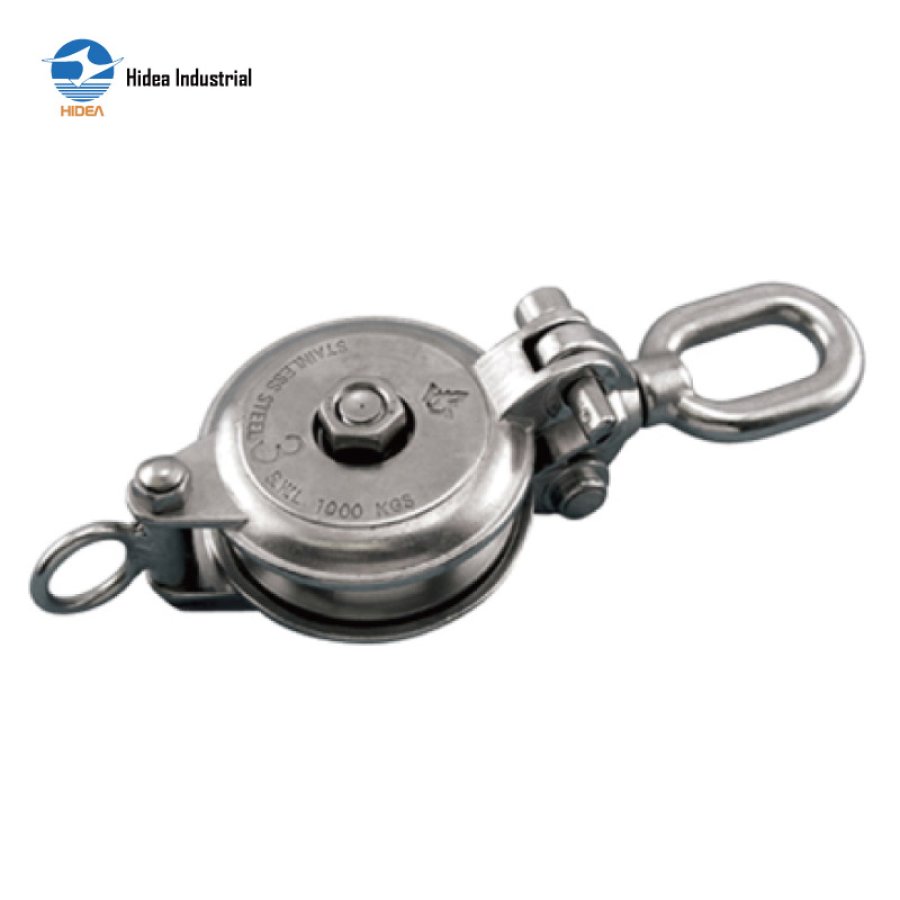

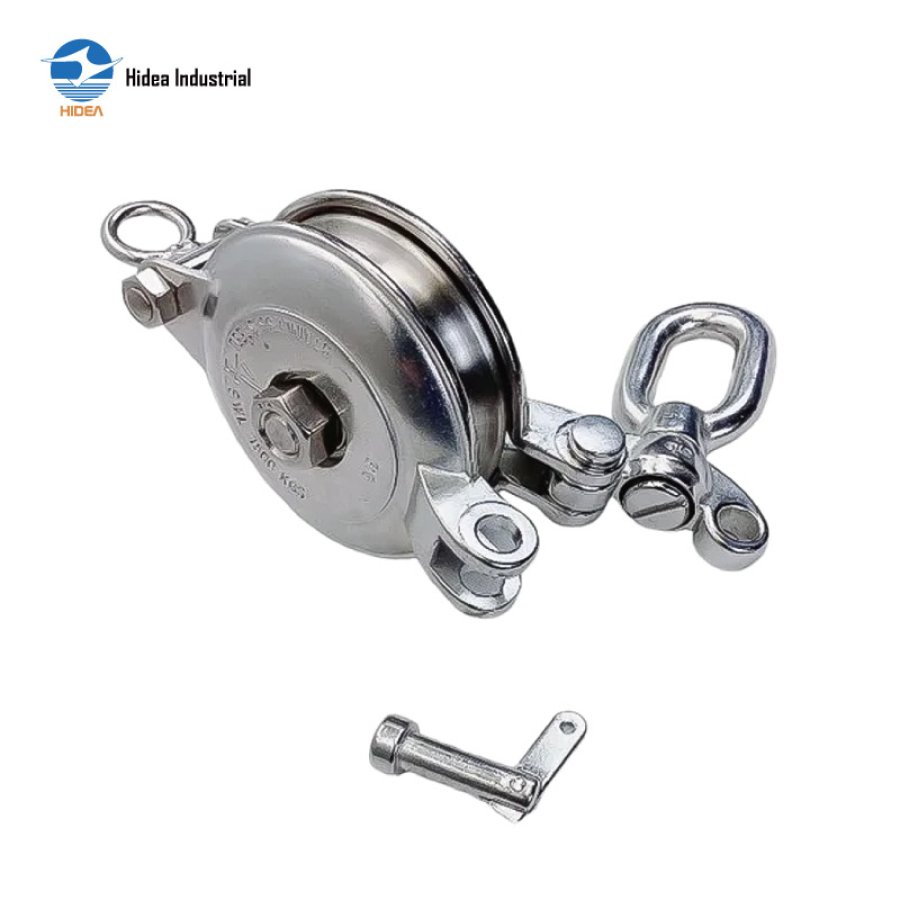

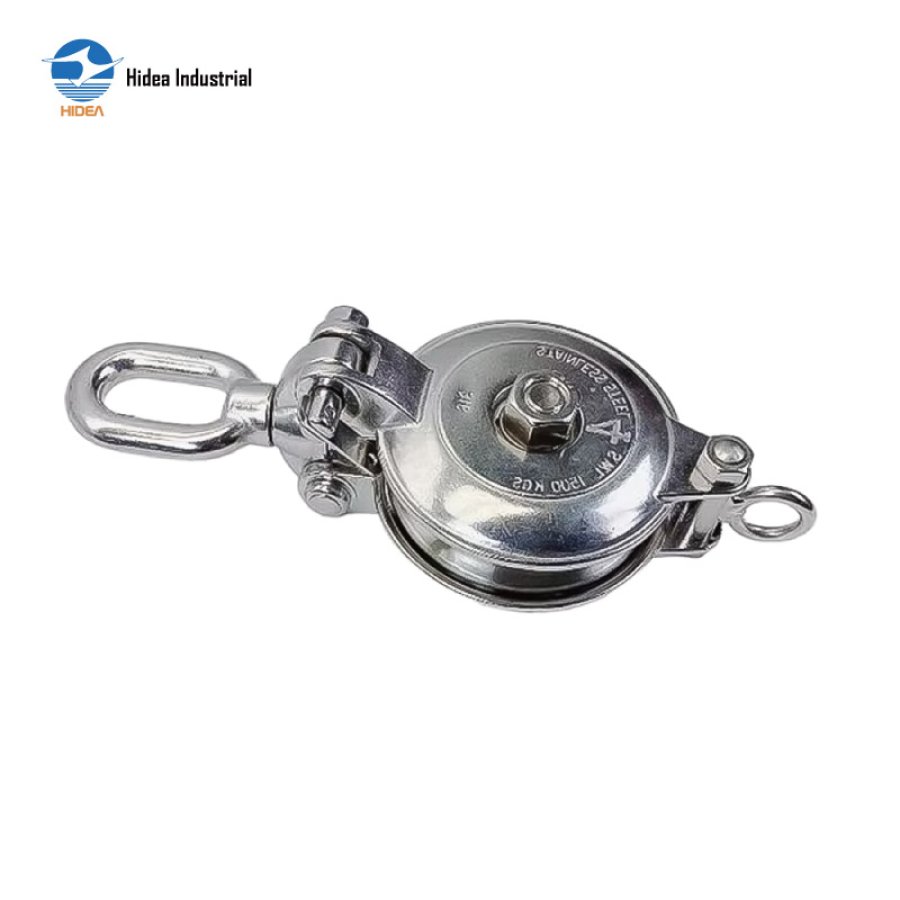

Double Swivel Block with Eye End
| A. | B(rope size) | C | D | X | Y | Z | WLL(Ibs) | WT(Ib) | |
| 3.25” | 1/2” | 0.78” | 2.75” | 9.00” | 3.62” | 2.58" | 2000 | 2.84 | |
| 4.25" | 5/8” | 0.95” | 3.63” | 11.00” | 5.00” | 2.98” | 3000 | 5.6 | |
| 5.25" | 3/4” | 1.06” | 4.50” | 13.25” | 5.75” | 3.43” | 4000 | 8.14 | |
| 6.25” | 1” | 1.15” | 5.25” | 15.00” | 6.88" | 4.17” | 5000 | 11.28 | |
