Durable Hidea Stub Ends Turnbuckle - Ideal for Pipe and Frame Tensioning Systems

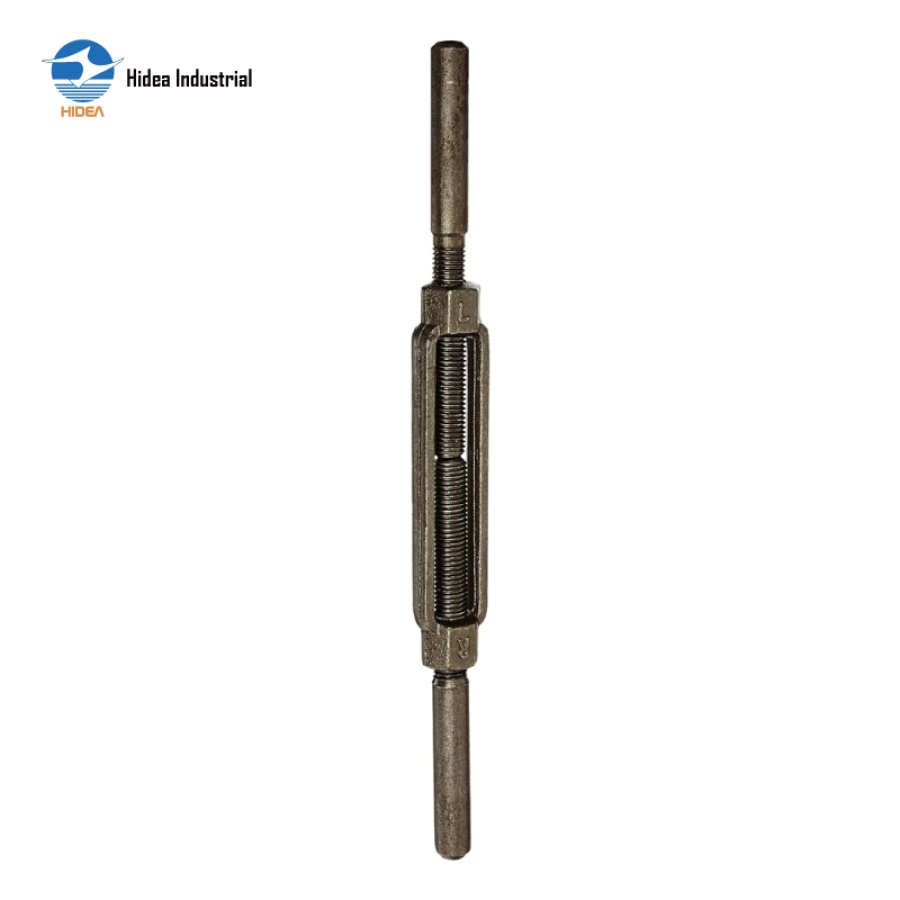

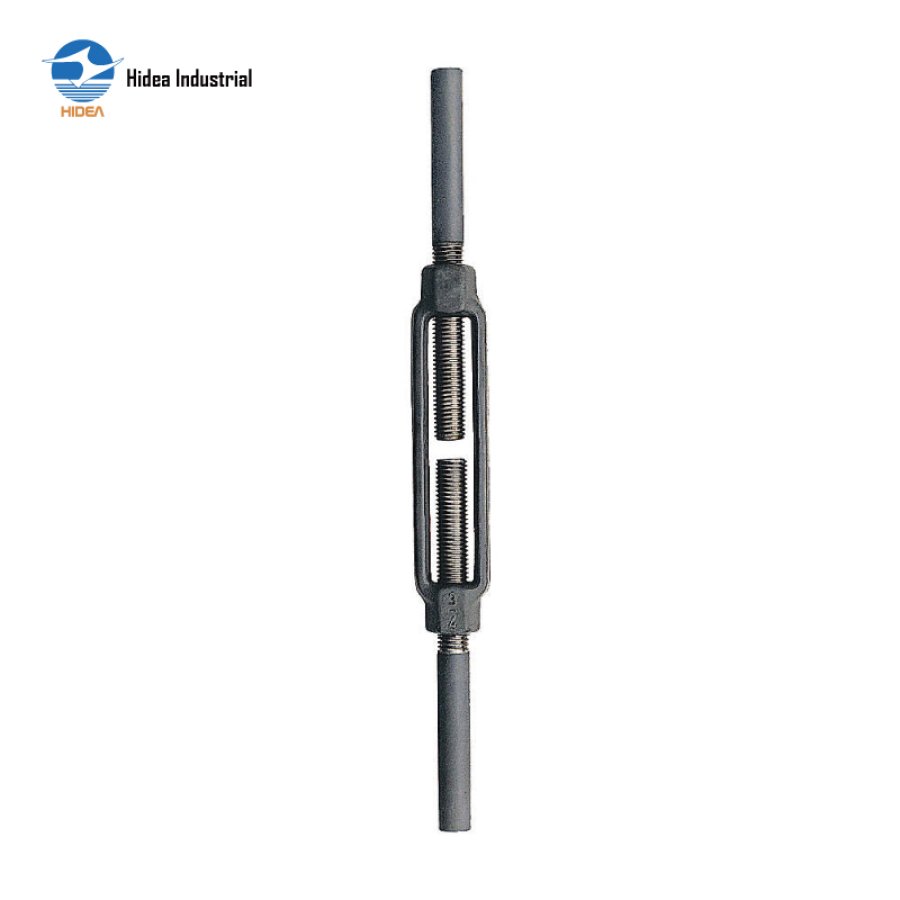

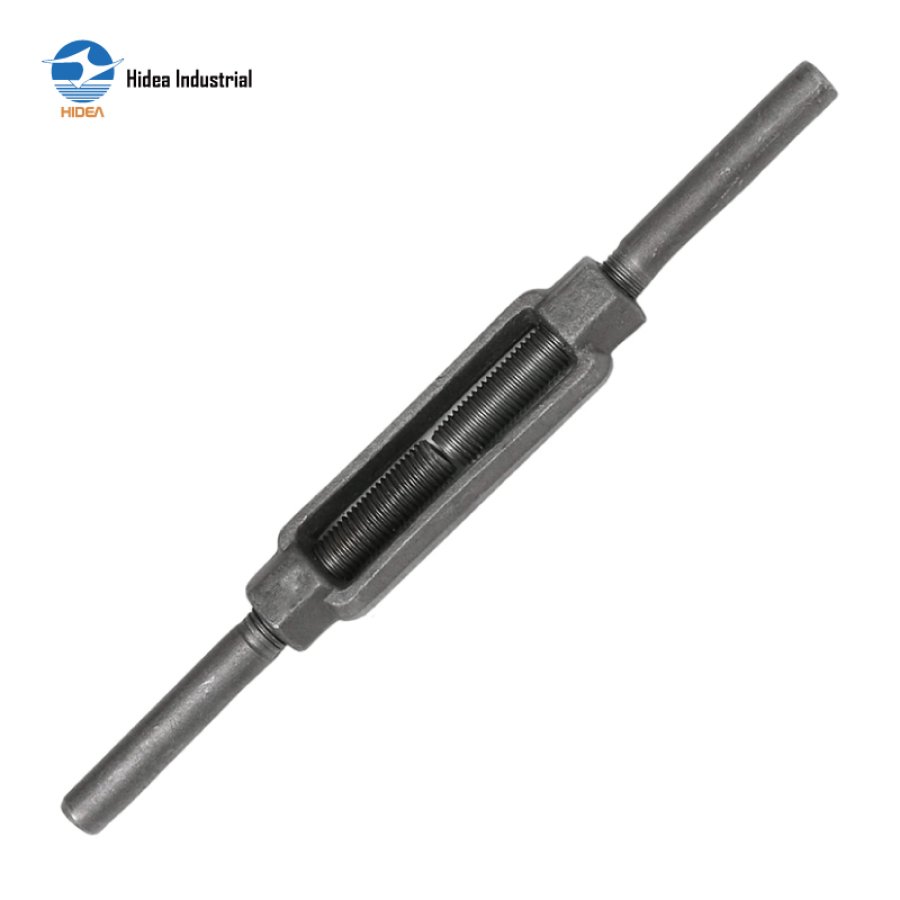

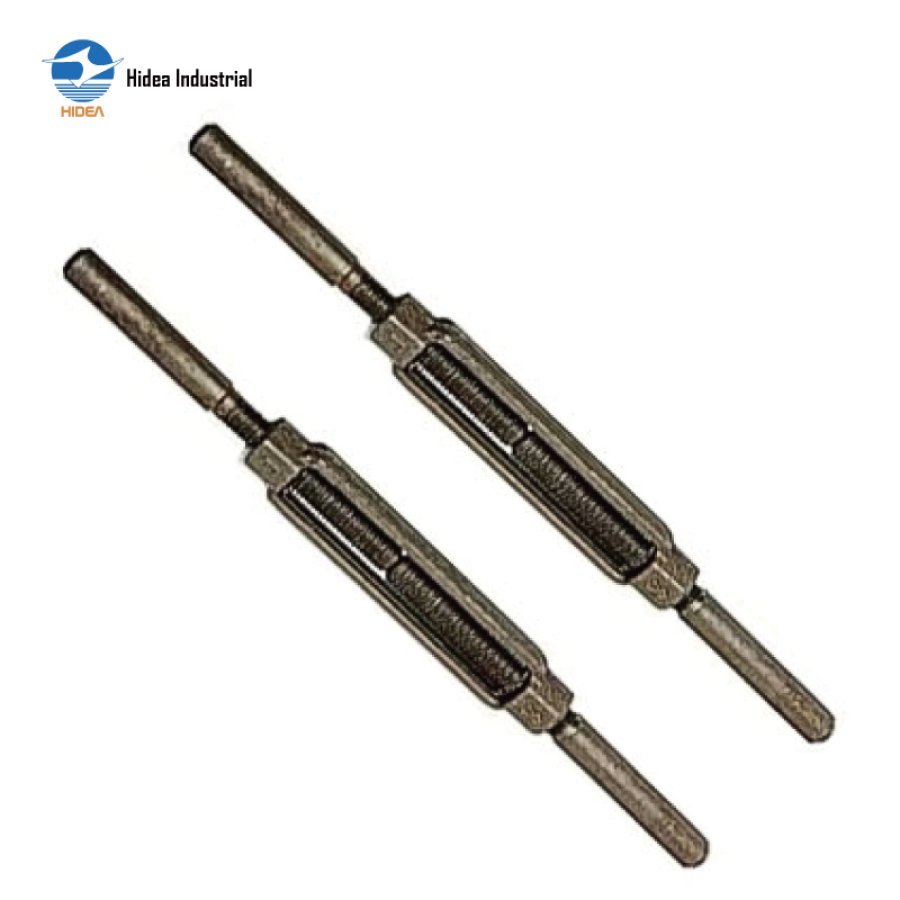

US TYPE DROP FORGED TURNBUCKLE WITH STUB ENDS HS-251

Material High tensile carbon steel ASTM(AISI)1045
Drop forged, quenched & tempered
Proof tested individually & certificate available
Surface Hot Dip Galv. OR as requested
Meets the performance requirements of Federal Specifications FF-T-791b, Type 1, Form 1 & ASTM F-1145; Meets or exceeds all requirements of ASME B30.26
HS-251 US type drop forged turnbuckle Stub ends type

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR426-US TYPE DROP FORGED TURNBUCKLE WITH STUB ENDS HS-251

ITEM NO./SIZE (in.)	WLL (Ibs.)	Weight Each (Ibs.)	DIMENSIONS(in)
ITEM NO./SIZE (in.)	WLL (Ibs.)	Weight Each (Ibs.)	A	R	S	U	W
20RHCR424-3/8X6	1200	0.75	0.38	6	7.13	4.44	16
20RHCR424-1/2X6	2200	1.25	0.5	6	7.5	4.25	16
20RHCR424-5/8X6	3500	2.11	0.63	6	7.88	4.06	16
20RHCR424-3/4X6	5200	3.27	0.75	6	8.25	4.38	17
20RHCR424-7/8X6	7200	4.78	0.88	6	8.63	4.69	18
20RHCR424-1X6	10000	6.36	1	6	9	5	19
20RHCR424-1X12	10000	8.8	1	12	15	5	25
20RHCR424-1-1/8X6	12400	8.88	1.13	6	9.13	4.94	19
20RHCR424-1-1/4X6	15200	10.18	1.25	6	9.13	5.44	20
20RHCR424-1-1/4X12	15200	13.6	1.25	12	15.12	5.44	26
20RHCR424-1-1/2X12	21400	20.44	1.5	12	15.75	5.38	26.5
