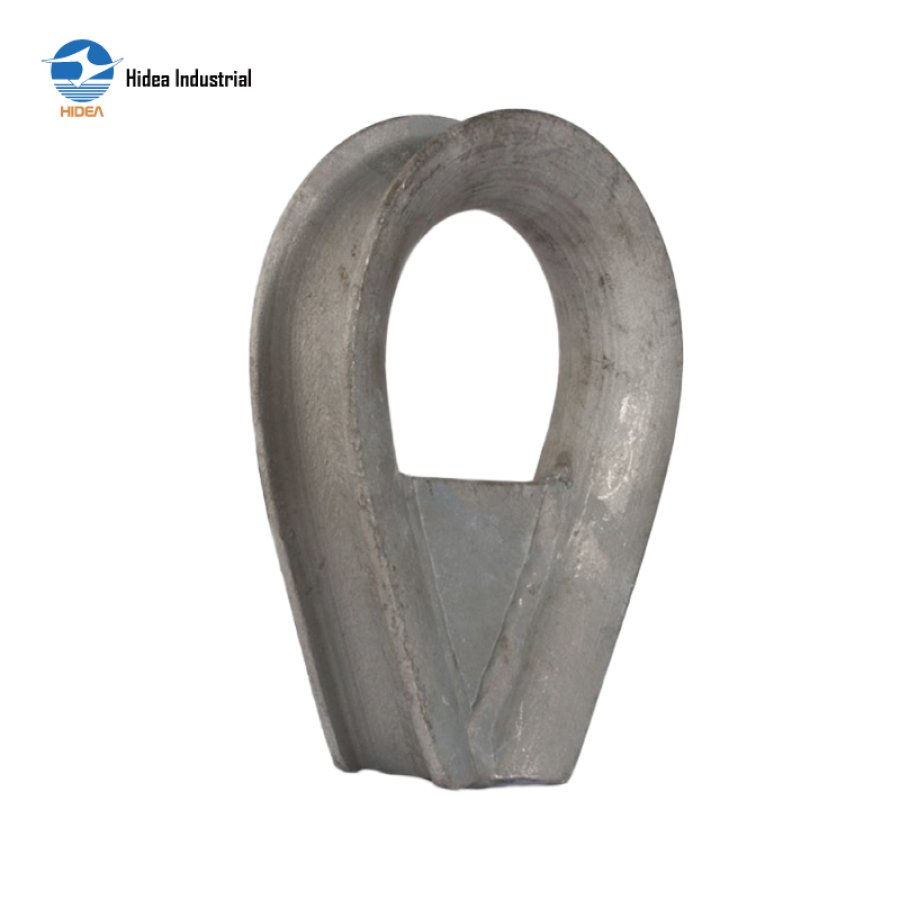

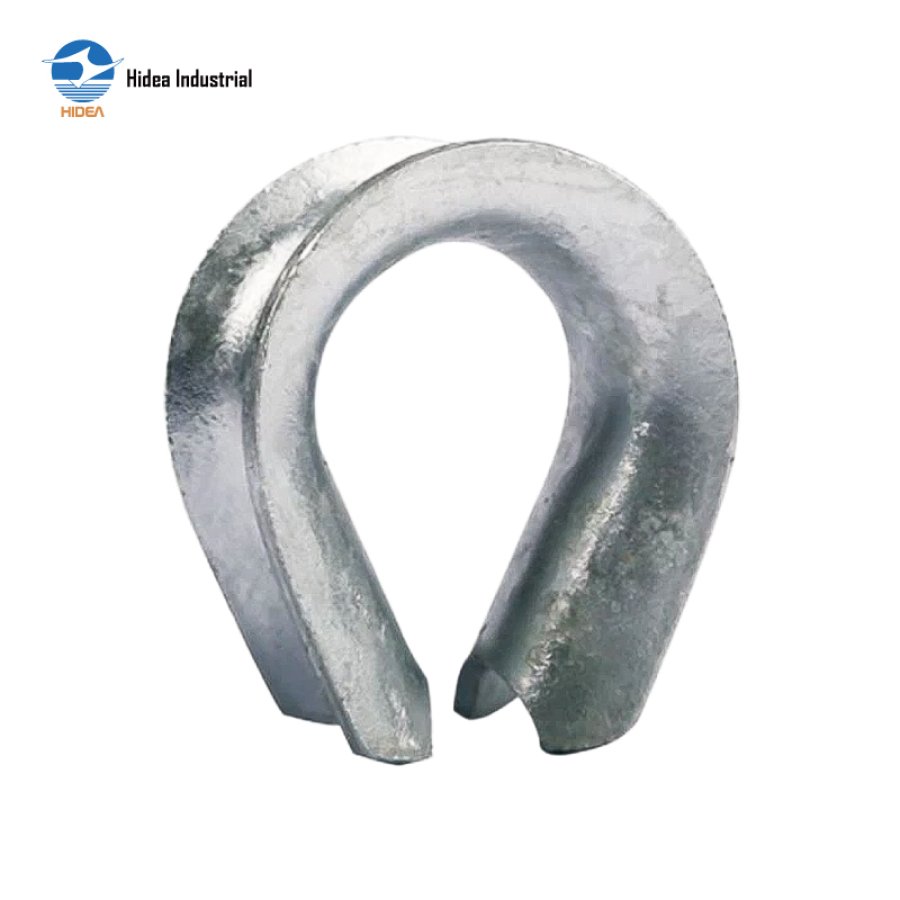

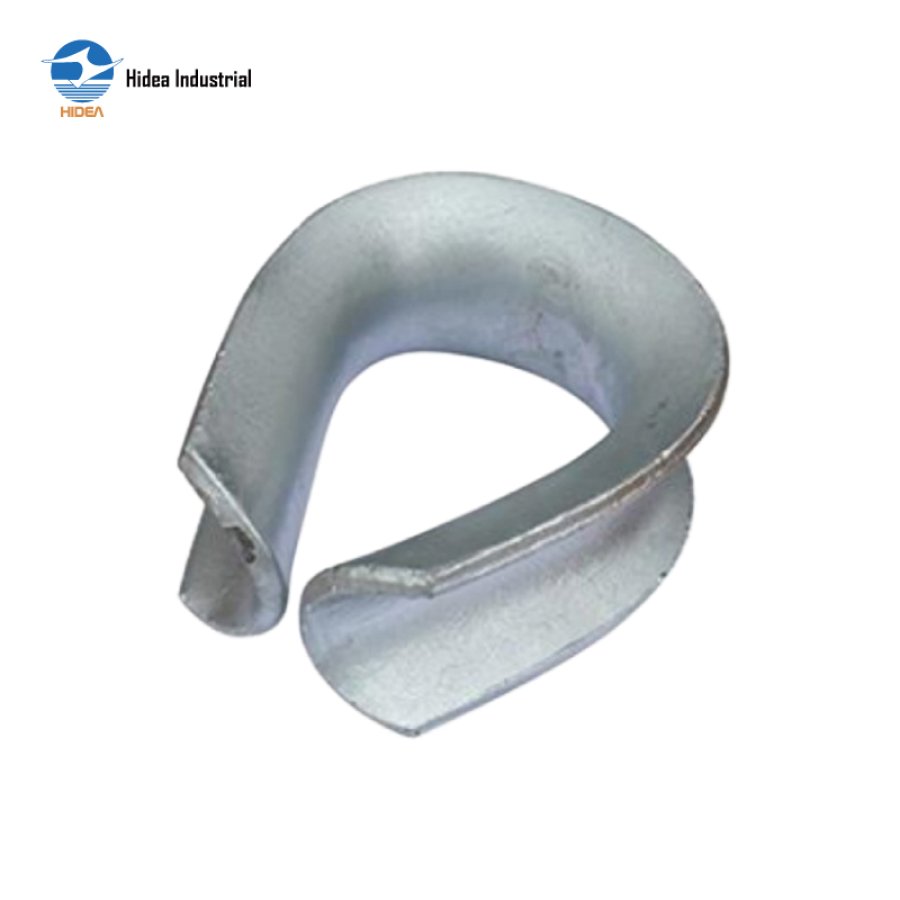

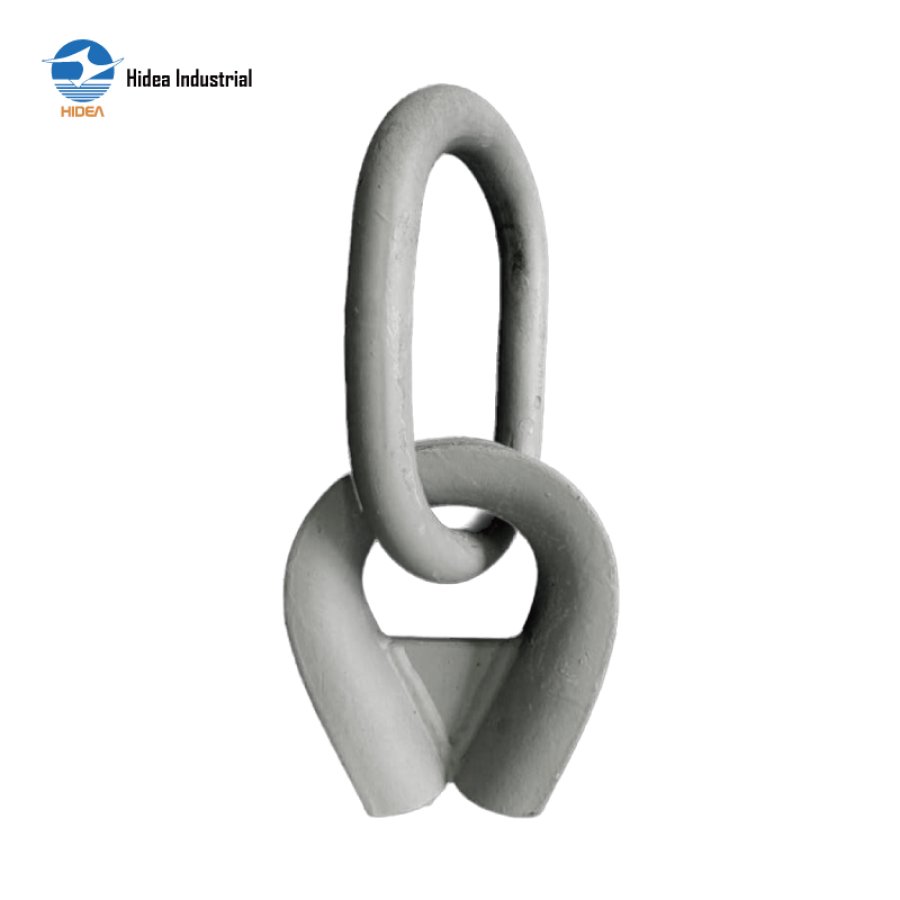

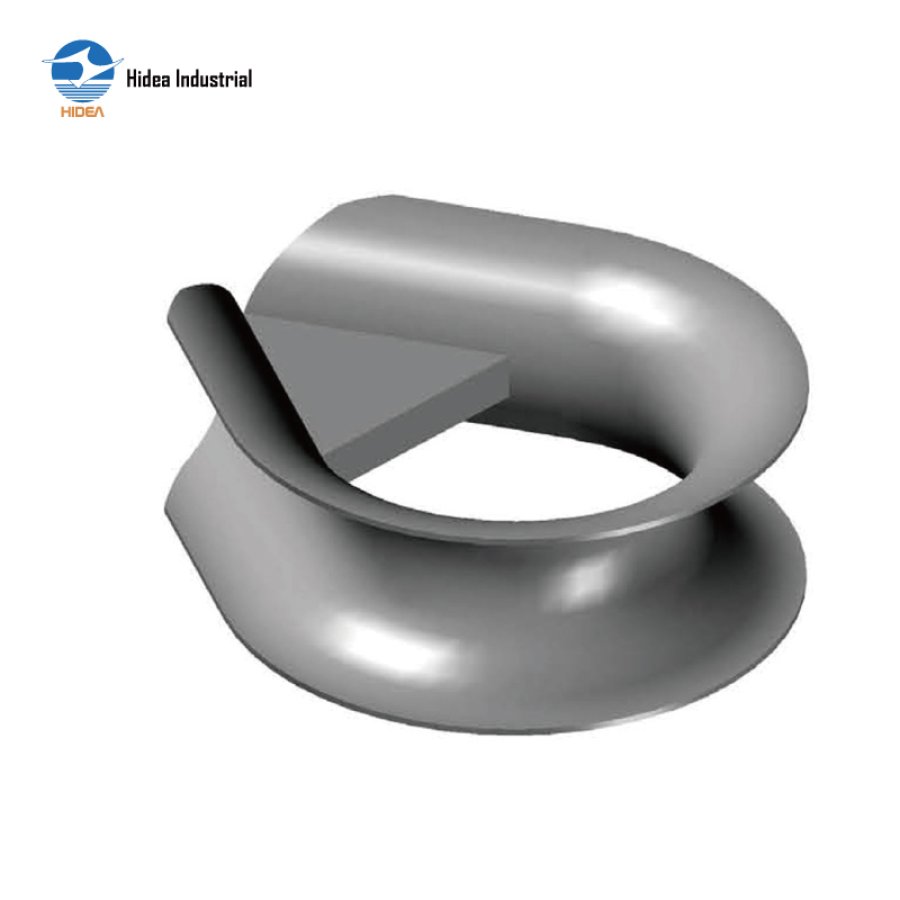

HIDEA K3-B Thimble: Strong, Durable, and Reliable for Fiber Rope

K3-B FIBRE ROPE THIMBLE REINFORCED

Material Mild Steel
Stamped & Bent to shape, Machined & polished
Surface Hot Dip Galv.,Electro Galv. / zinc plated OR as requested
Temperature range -20°C up to +200°C
K3-B Synthetic Poly Fibre rope thimbles, also K3, K4 and K10

Inquire Now

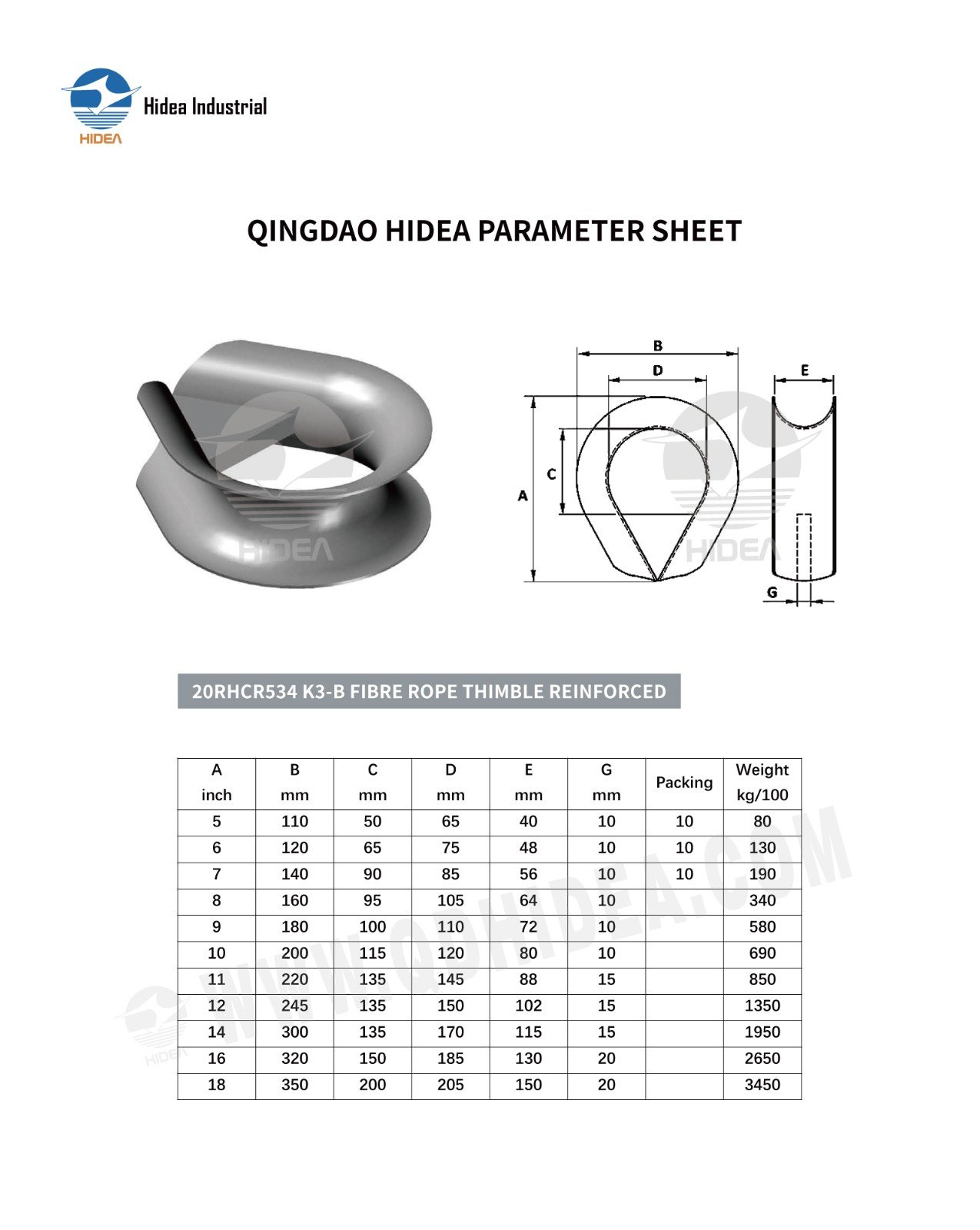

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR534 K3-B FIBRE ROPE THIMBLE REINFORCED

A inch	B mm	C mm	D mm	E mm	G mm	Packing	Weight kg/100
5	110	50	65	40	10	10	80
6	120	65	75	48	10	10	130
7	140	90	85	56	10	10	190
8	160	95	105	64	10		340
9	180	100	110	72	10		580
10	200	115	120	80	10		690
11	220	135	145	88	15		850
12	245	135	150	102	15		1350
14	300	135	170	115	15		1950
16	320	150	185	130	20		2650
18	350	200	205	150	20		3450
