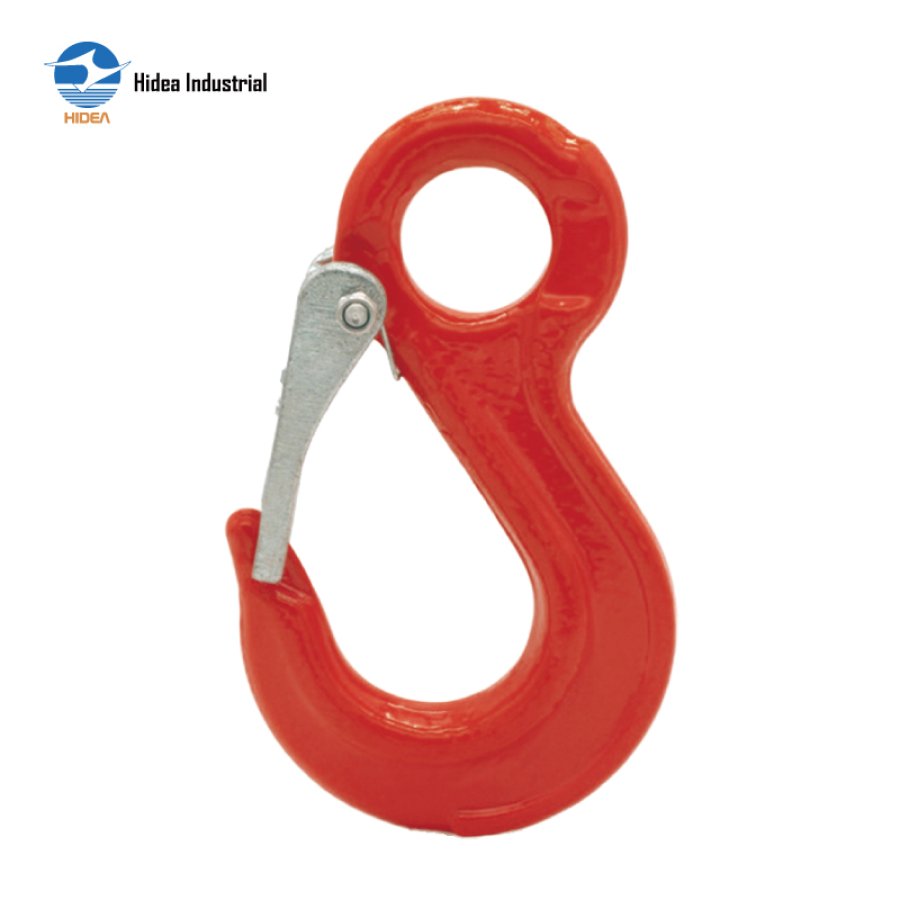

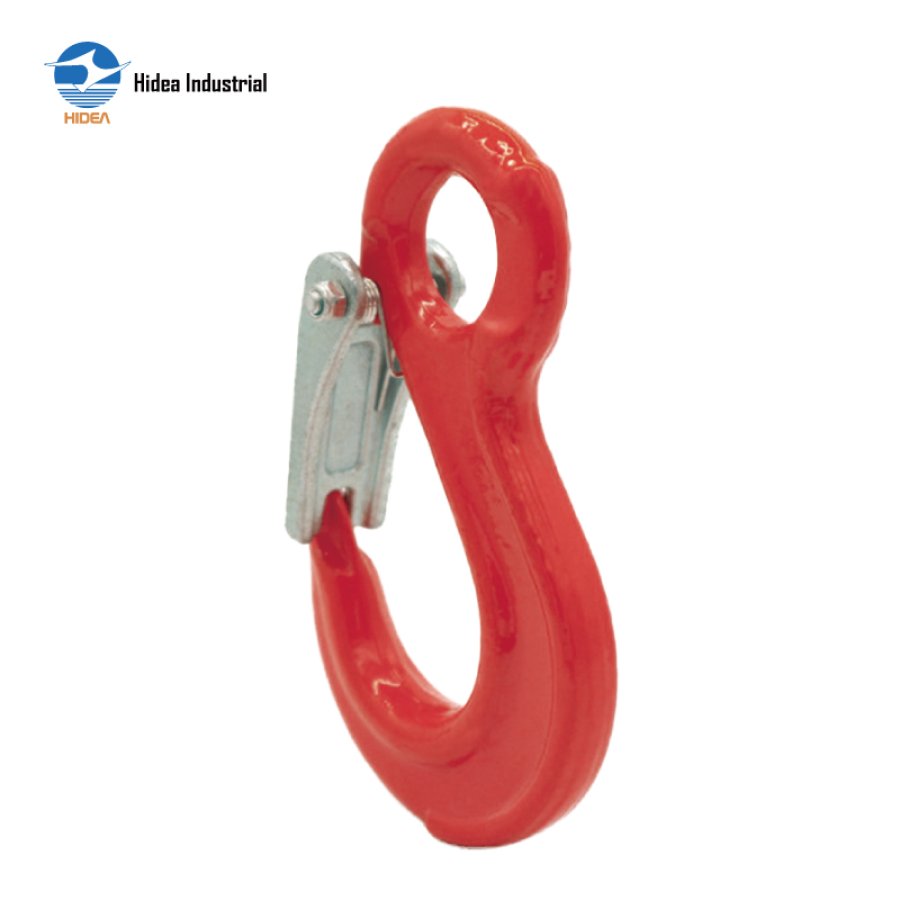

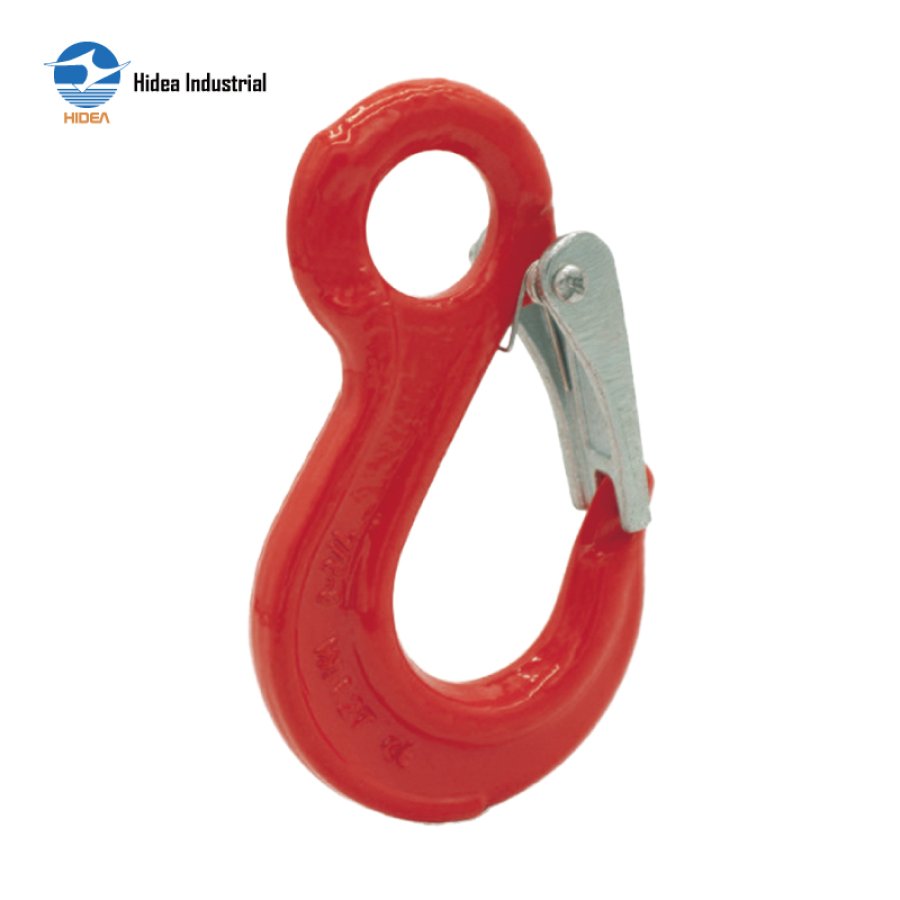

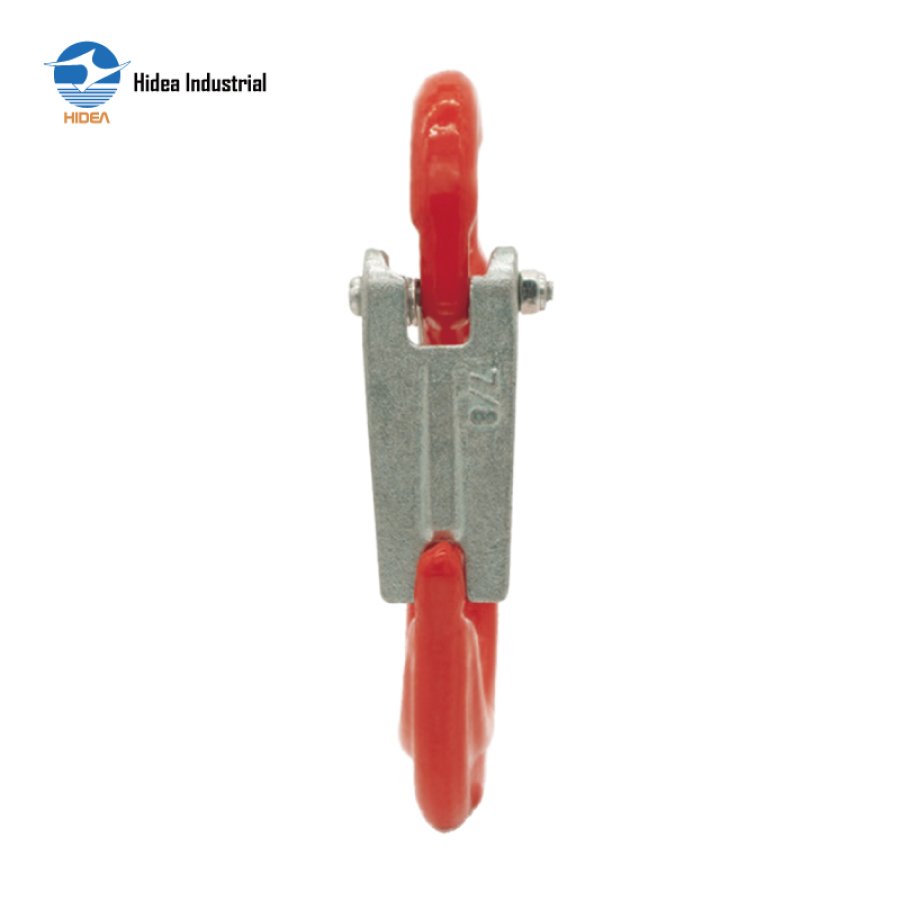

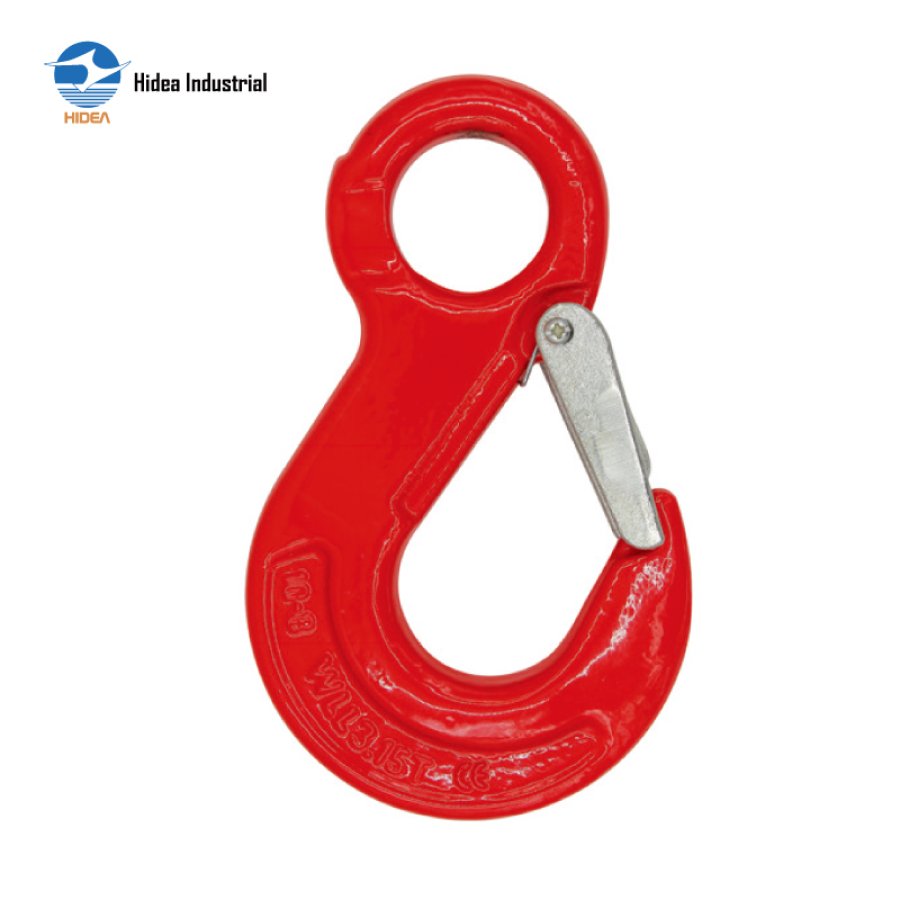

Hidea Grade 80 A-327 Eye Sling Hook for Safe Lifting Operations

G80 NEW TYPE A-327 EYE SLING HOOK

Forged super alloy steel-Quenched and Tempered
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection
Surface finish: Powder plastified
Colour code: Red RAL3020/Yellow RAL1003
Positive lock latch is self locking when hook is loaded

Inquire Now

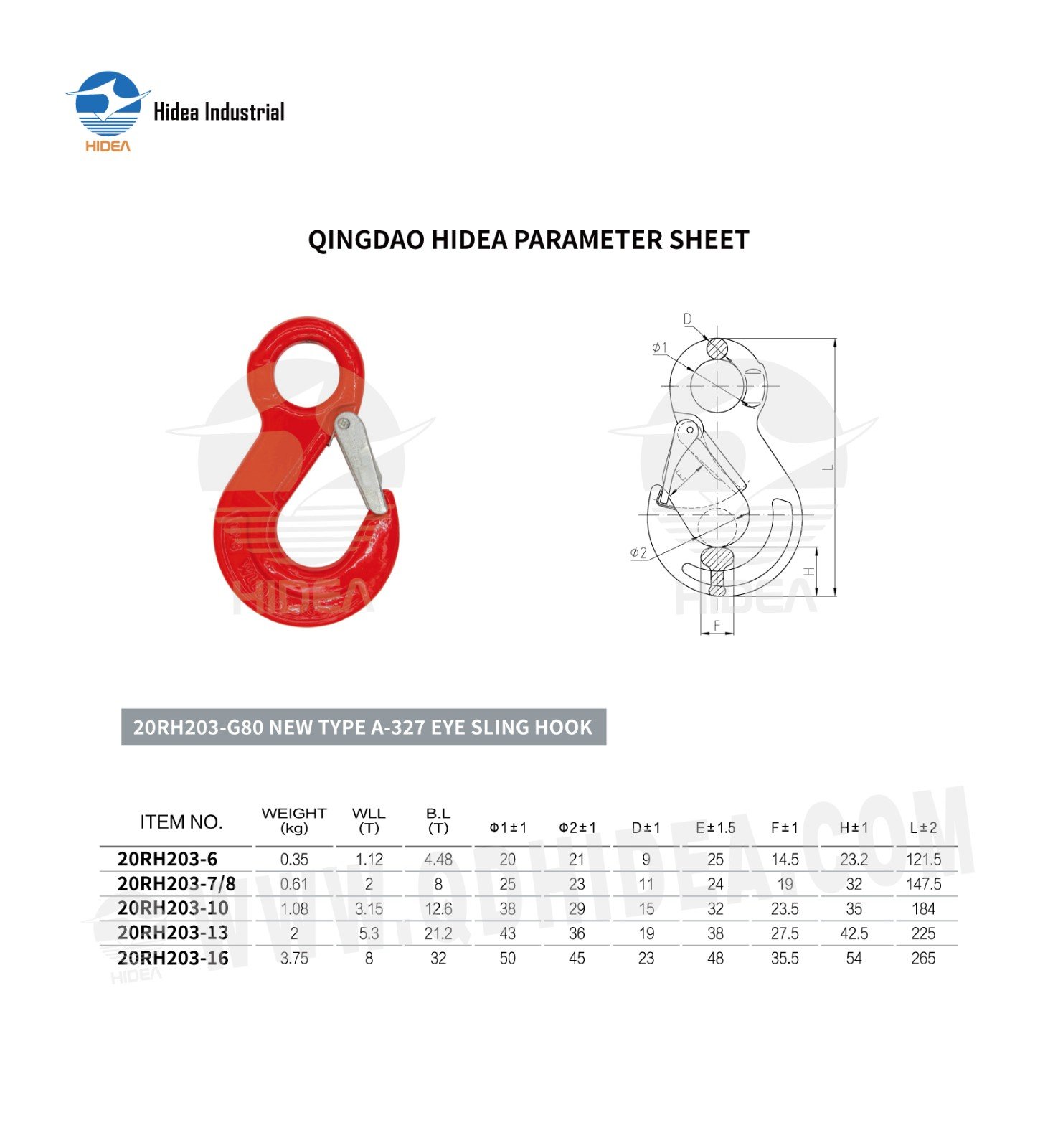

QINGDAO HIDEA PARAMETER SHEET FOR

20RH203-G80 NEW TYPE A-327 EYE SLING HOOK

ITEM NO.	WEIGHT (kg)	WLL (T)	B.L (T)	Ф1±1	Ф2±1	D±1	E±1.5	F±1	H±1	L±2
20RH203-6	0.35	1.12	4.48	20	21	9	25	14.5	23.2	121.5
20RH203-7/8	0.61	2	8	25	23	11	24	19	32	147.5
20RH203-10	1.08	3.15	12.6	38	29	15	32	23.5	35	184
20RH203-13	2	5.3	21.2	43	36	19	38	27.5	42.5	225
20RH203-16	3.75	8	32	50	45	23	48	35.5	54	265
