Premium HIDEA Forged Oval Connecting Quick Link – Ideal for Tension Mounting and Suspension Systems

QUICK CHAIN LINK CONNECTOR FOR MISSING CHAIN LINK

High tensile alloy / carbon steel rated G70 / G43
Forged, quenched & tempered
Proof tested & certificate available
Surface hot dip galvanized, Electro Galv. / zinc plated OR as requested
Meets or exceeds the performance requirements of Federal Specifications RR-C-271G, Type II

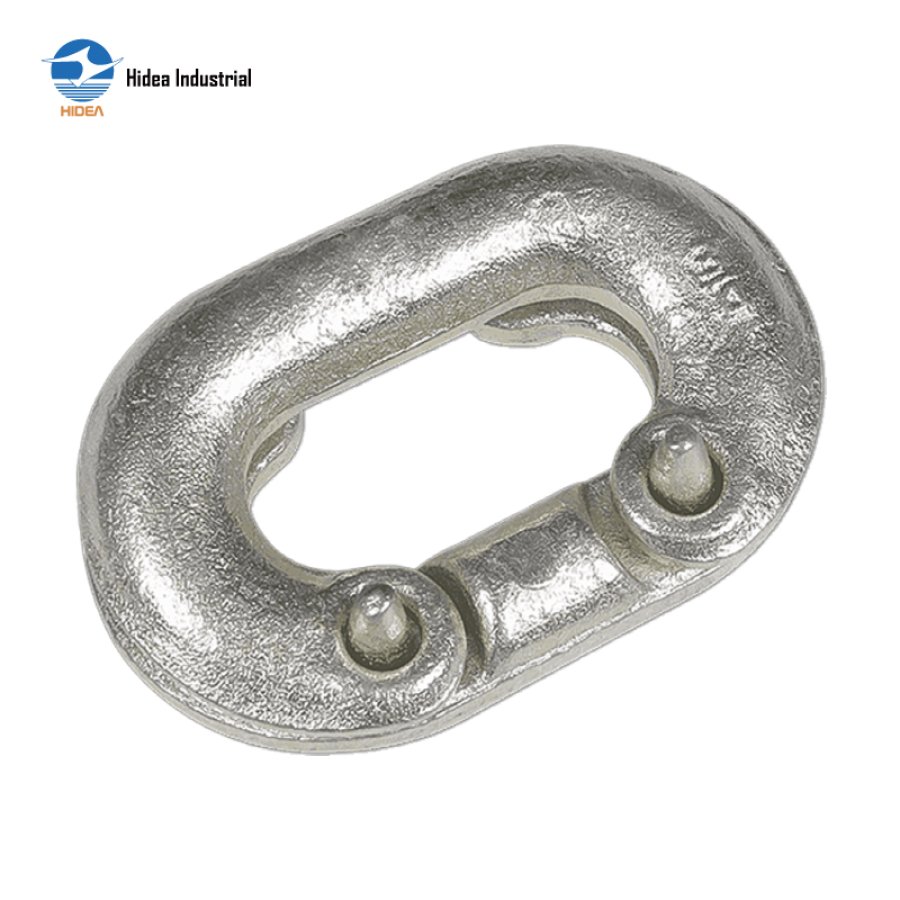

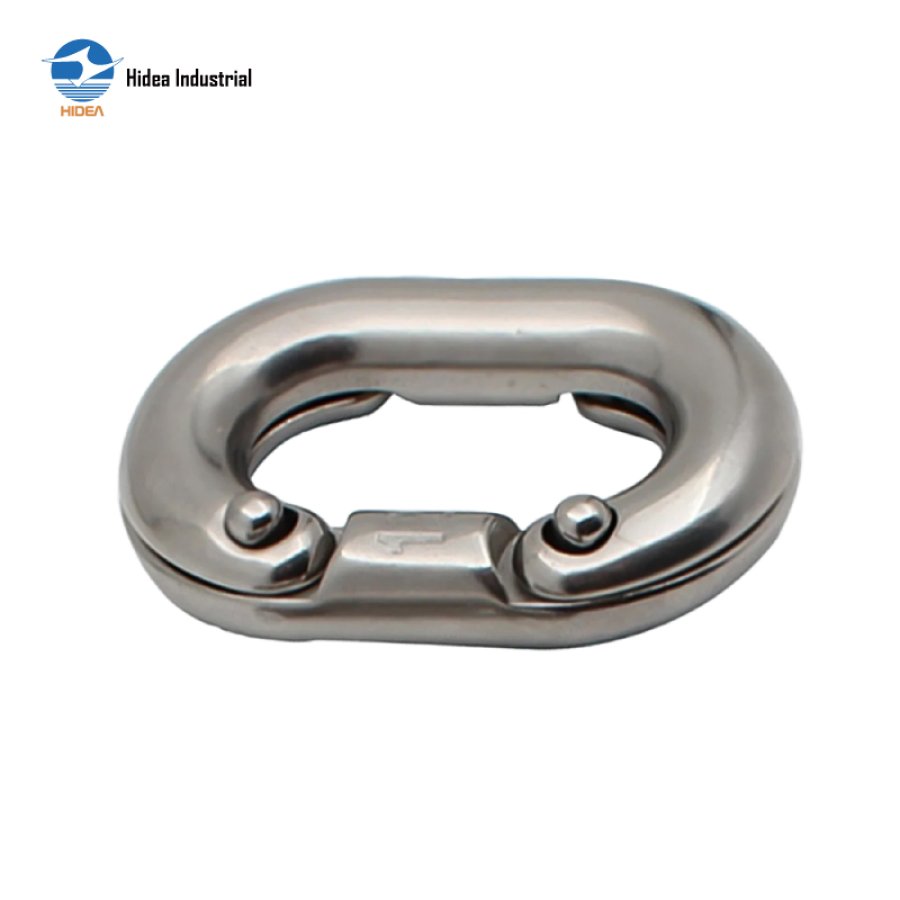

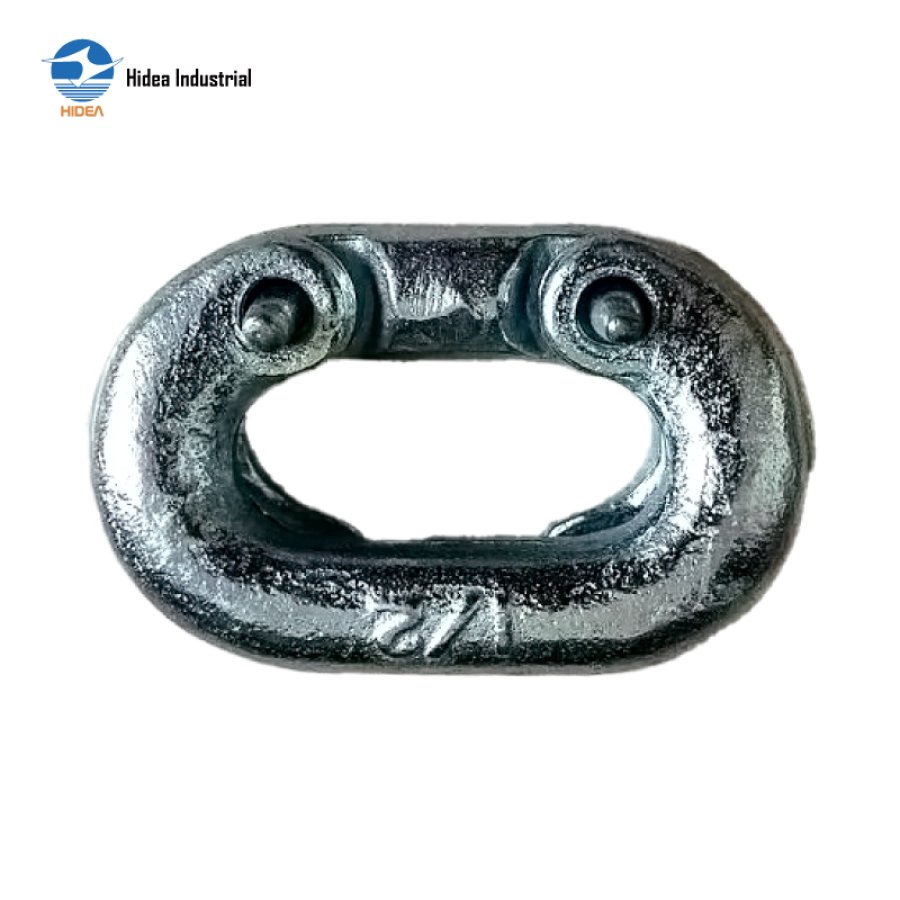

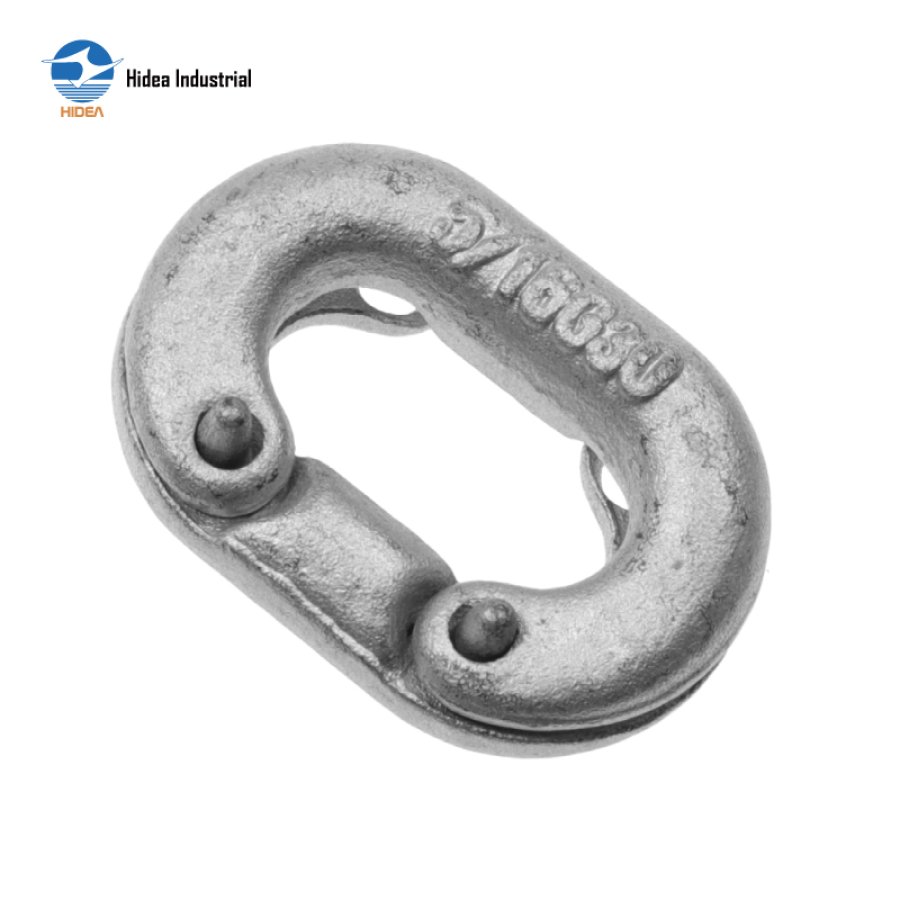

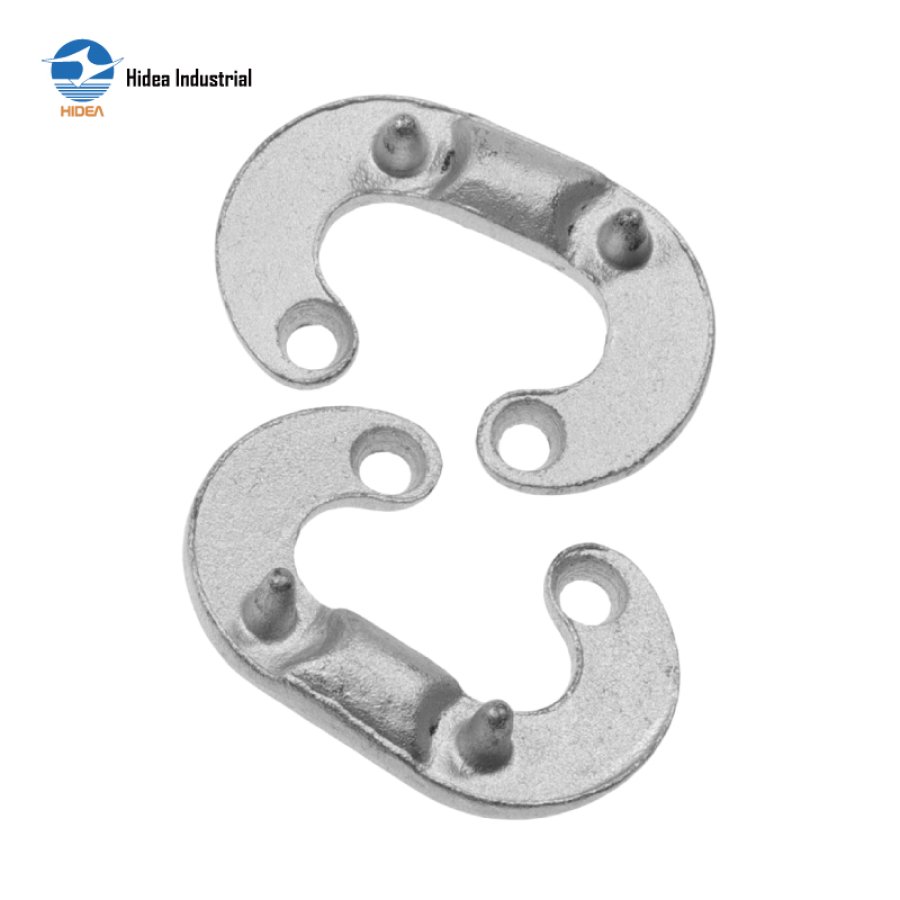

Forged Quick Chain Link, Connector For Missing Chain Link

Inquire Now

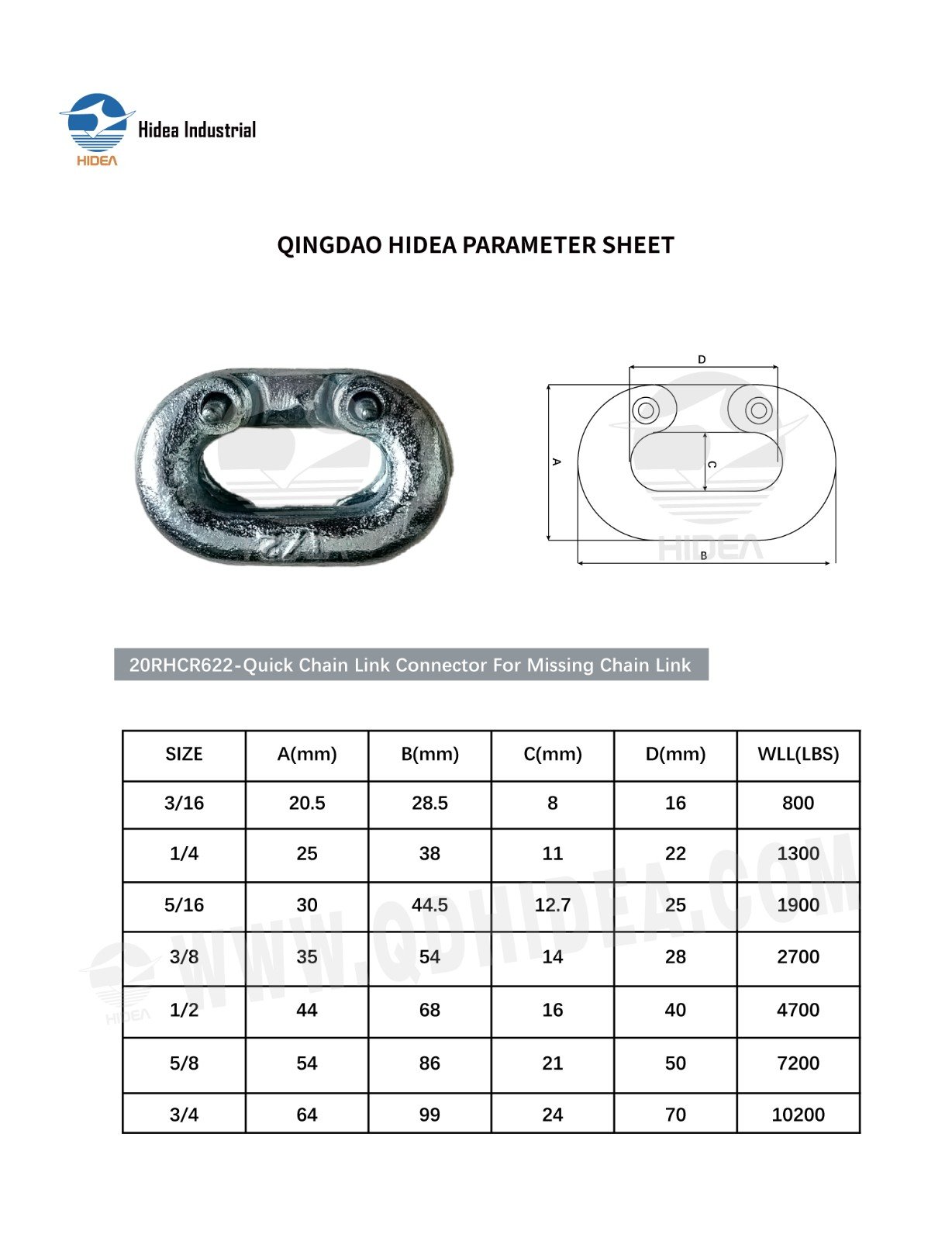

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR622-Quick Chain Link Connector For Missing Chain Link

SIZE	A(mm)	B(mm)	C(mm)	D(mm)	WLL(LBS)
3/16	20.5	28.5	8	16	800
1/4	25	38	11	22	1300
5/16	30	44.5	12.7	25	1900
3/8	35	54	14	28	2700
1/2	44	68	16	40	4700
5/8	54	86	21	50	7200
3/4	64	99	24	70	10200
