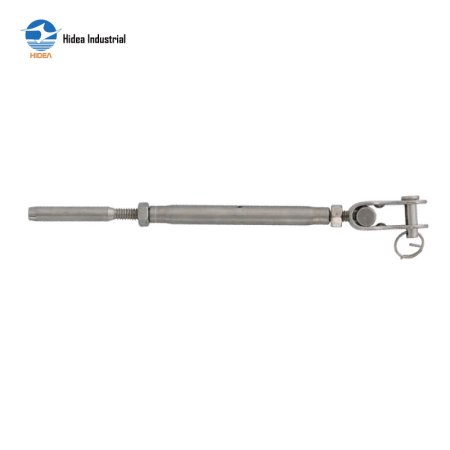

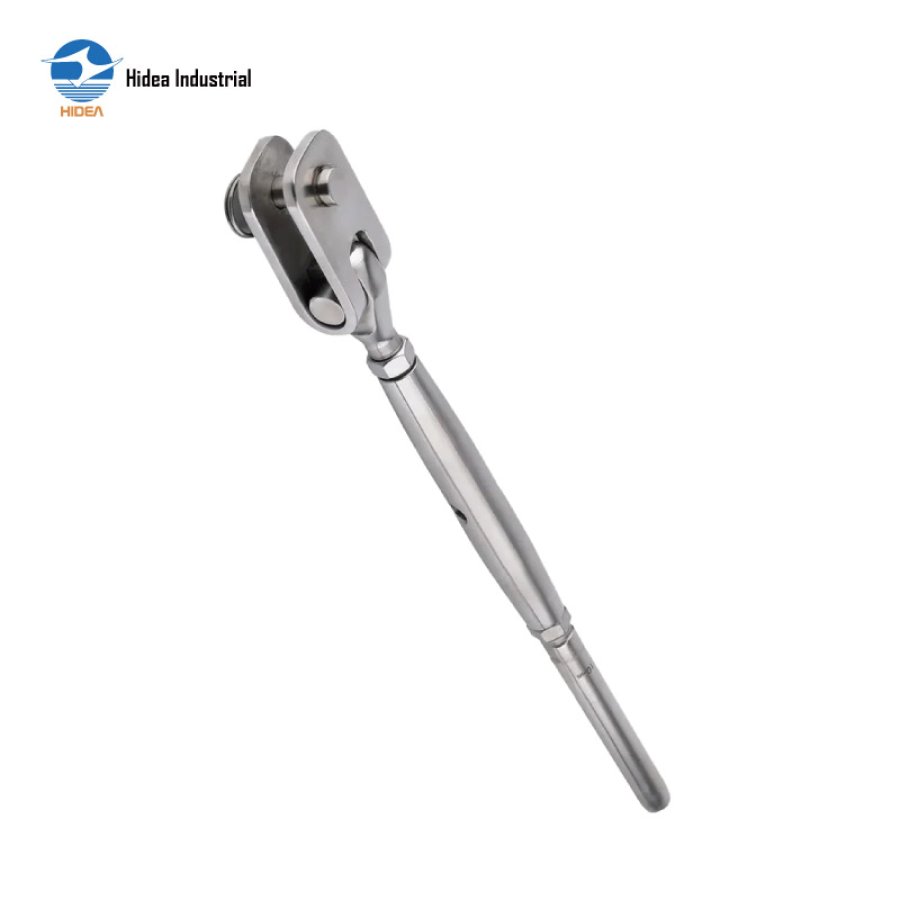

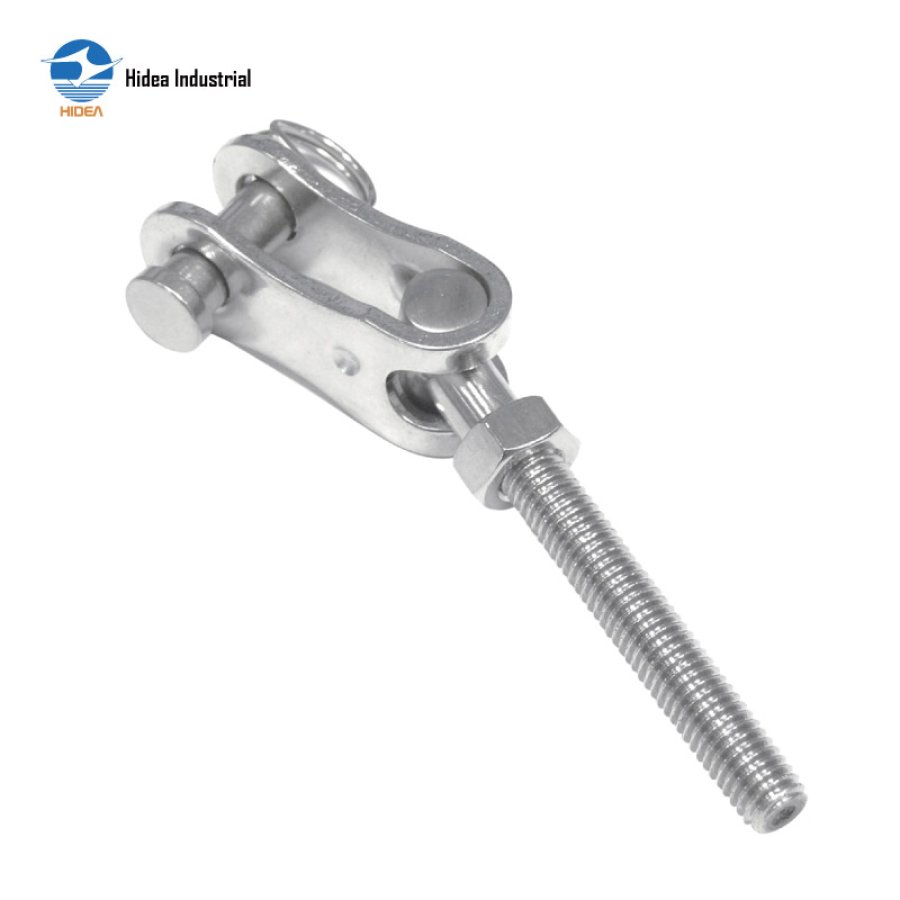

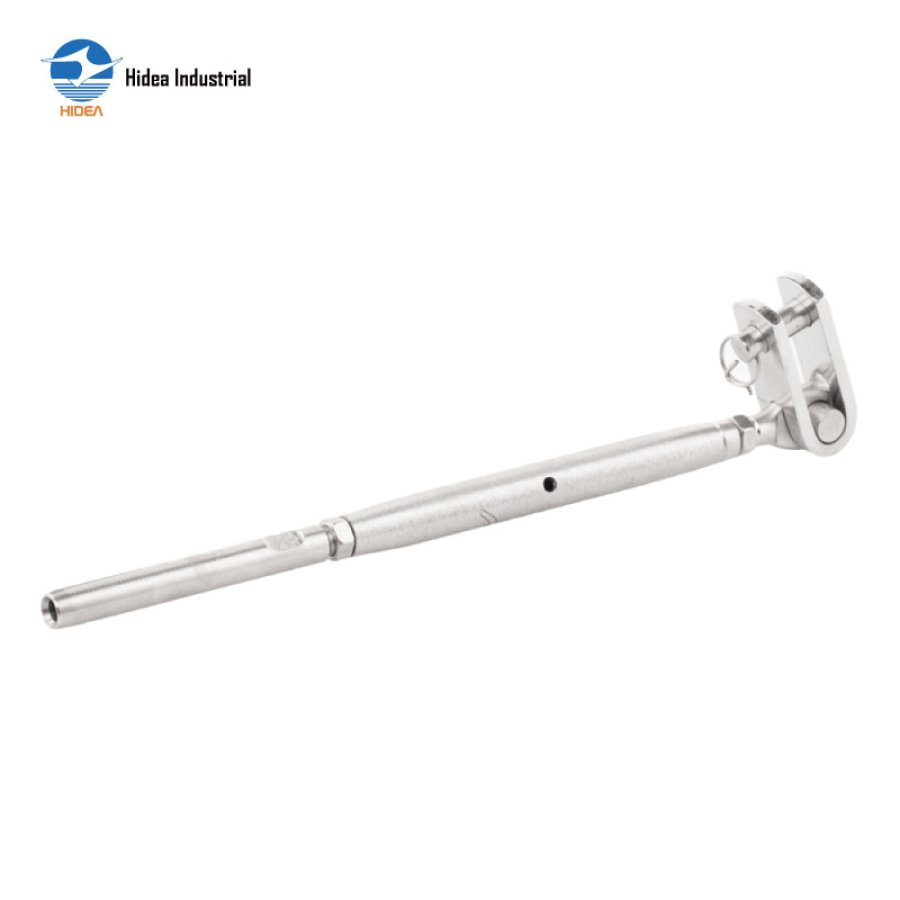

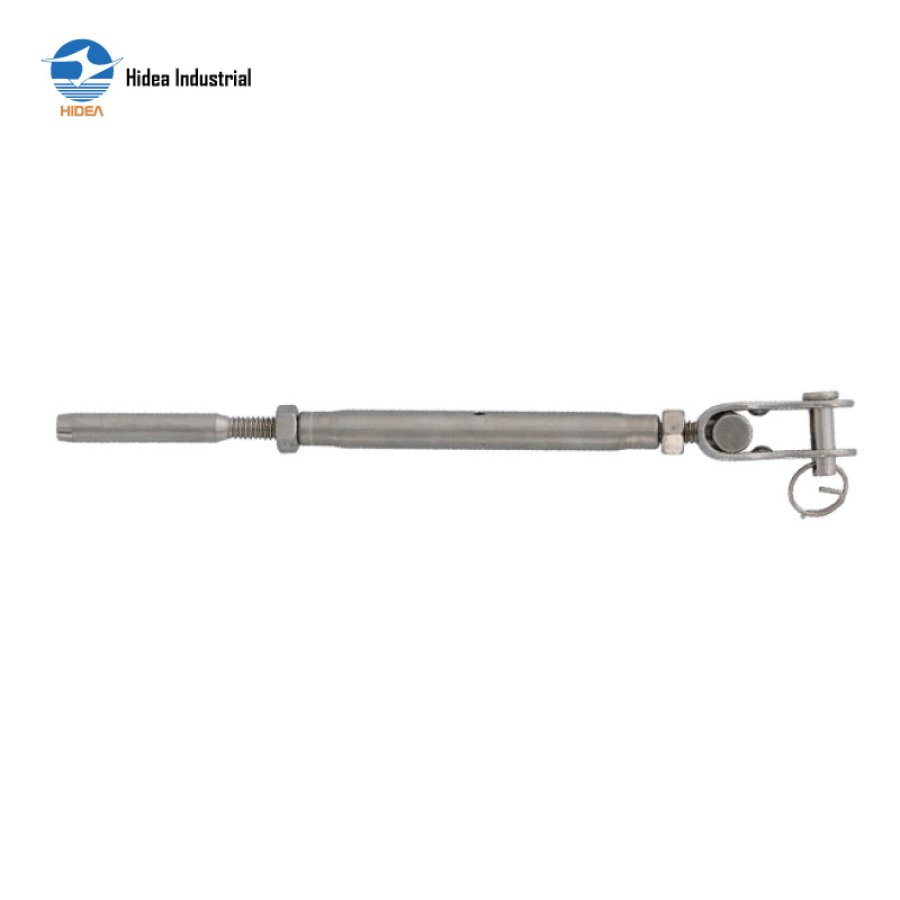

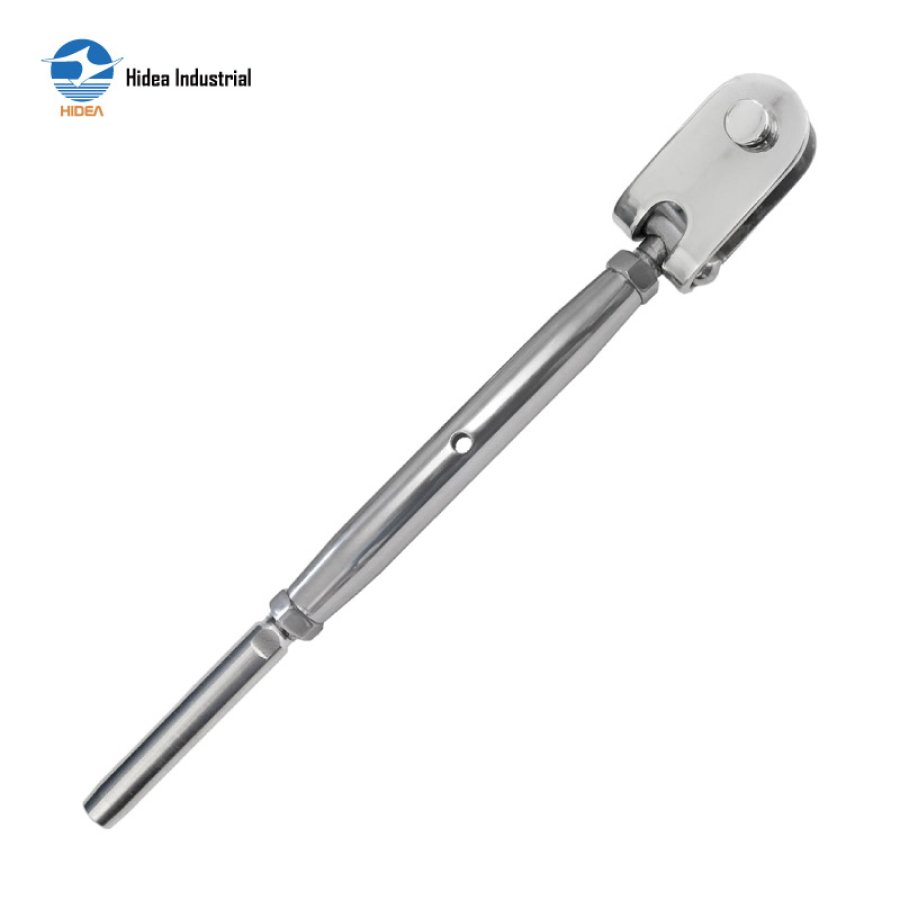

HIDEA Pipe Turnbuckle Toggle & Swage Stud Terminal – Excellent Rust-Resistance, Ideal for Marine & Industrial Applications

TOGGLE AND SWAGE STUD TERMINAL

Technical Data: Investment Casting/Forged
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Electro Polished/Passivated

Inquire Now

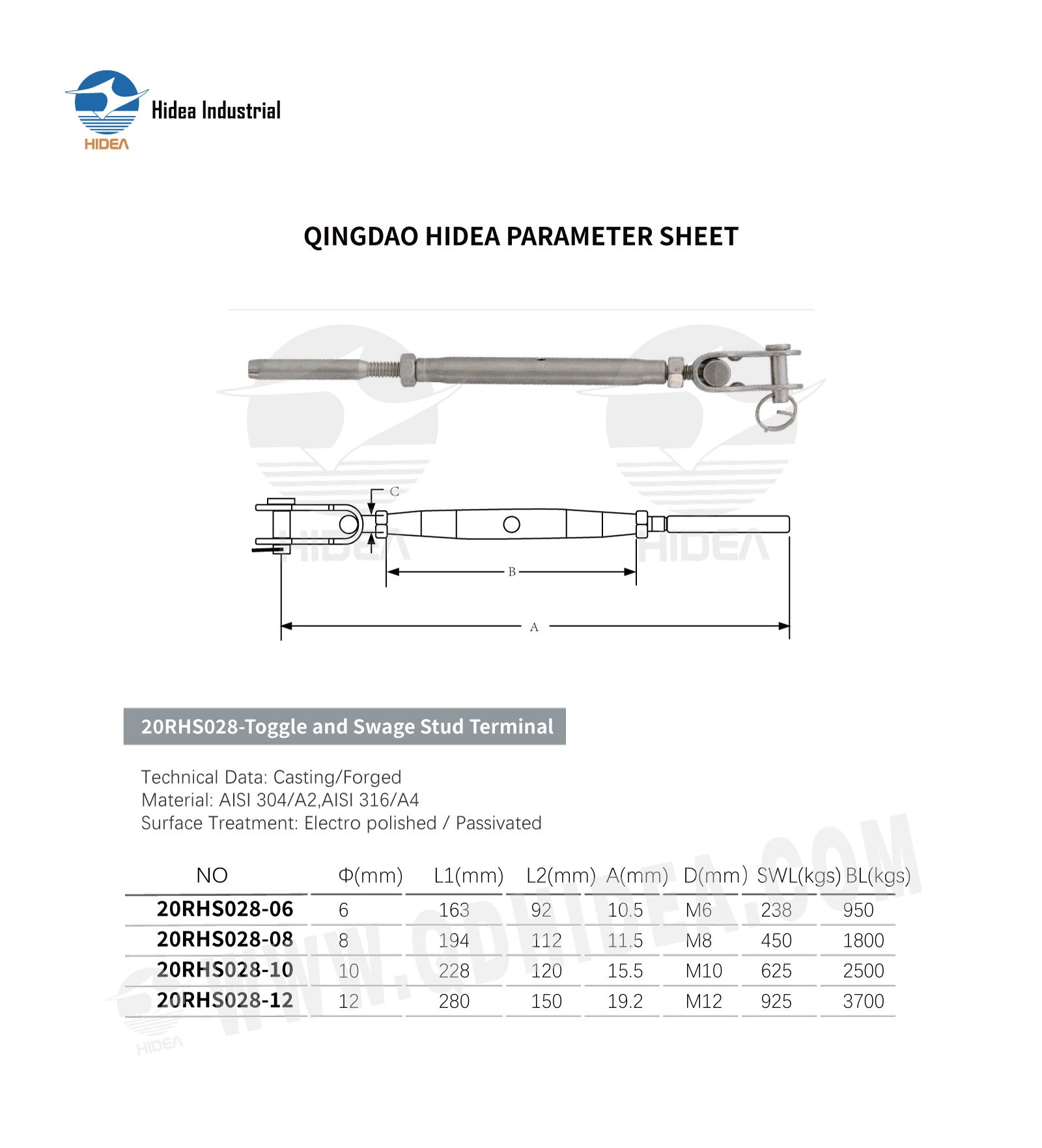

QINGDAO HIDEA PARAMETER SHEET FOR

20RHS028-Toggle and Swage Stud Terminal

NO	Φ(mm)	L1(mm)	L2(mm) A(mm)		D(mm)	SWL(kgs)	BL(kgs)
20RHS028-06	6	163	92	10.5	M6	238	950
20RHS028-08	8	194	112	11.5	M8	450	1800
20RHS028-10	10	228	120	15.5	M10	625	2500
20RHS028-12	12	280	150	19.2	M12	925	3700
