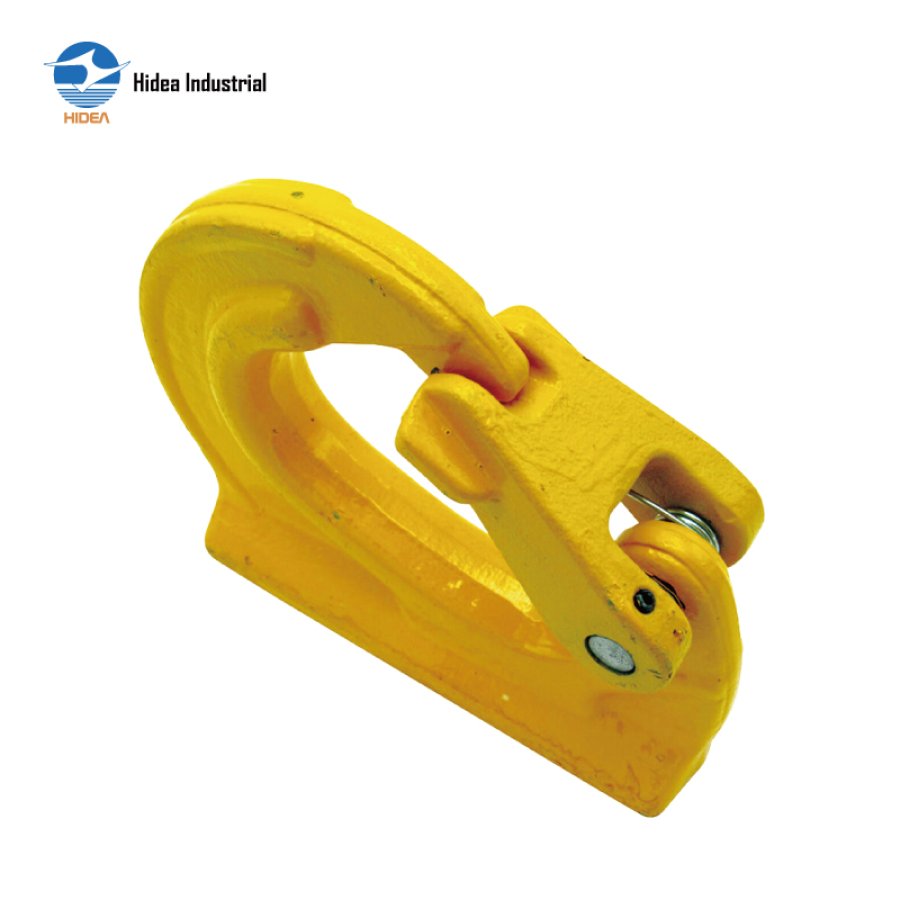

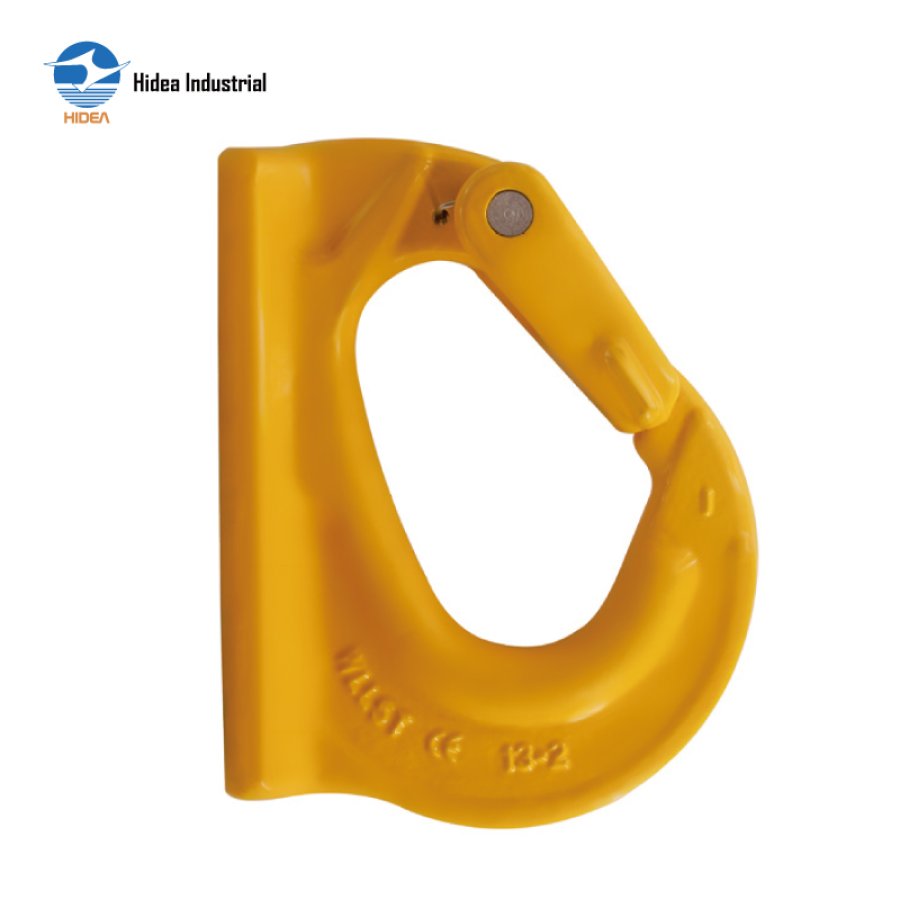

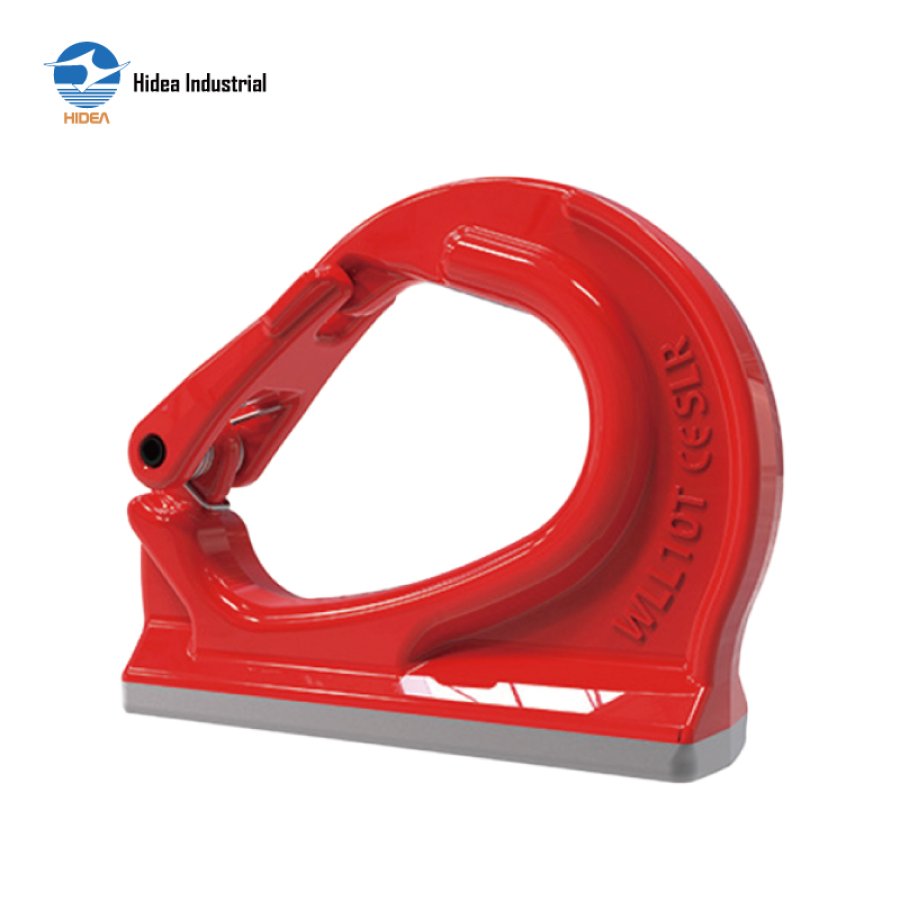

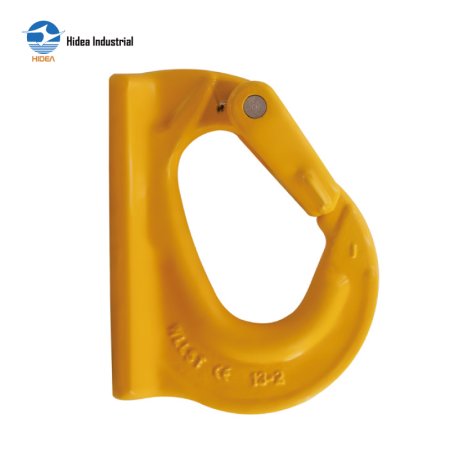

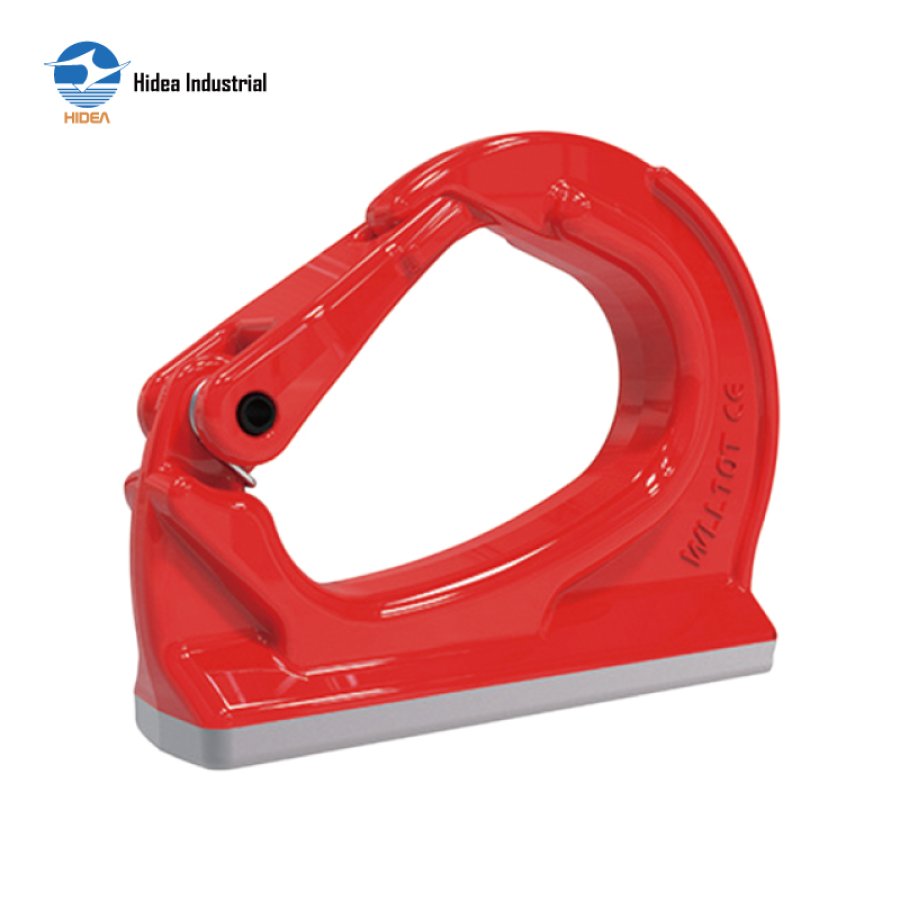

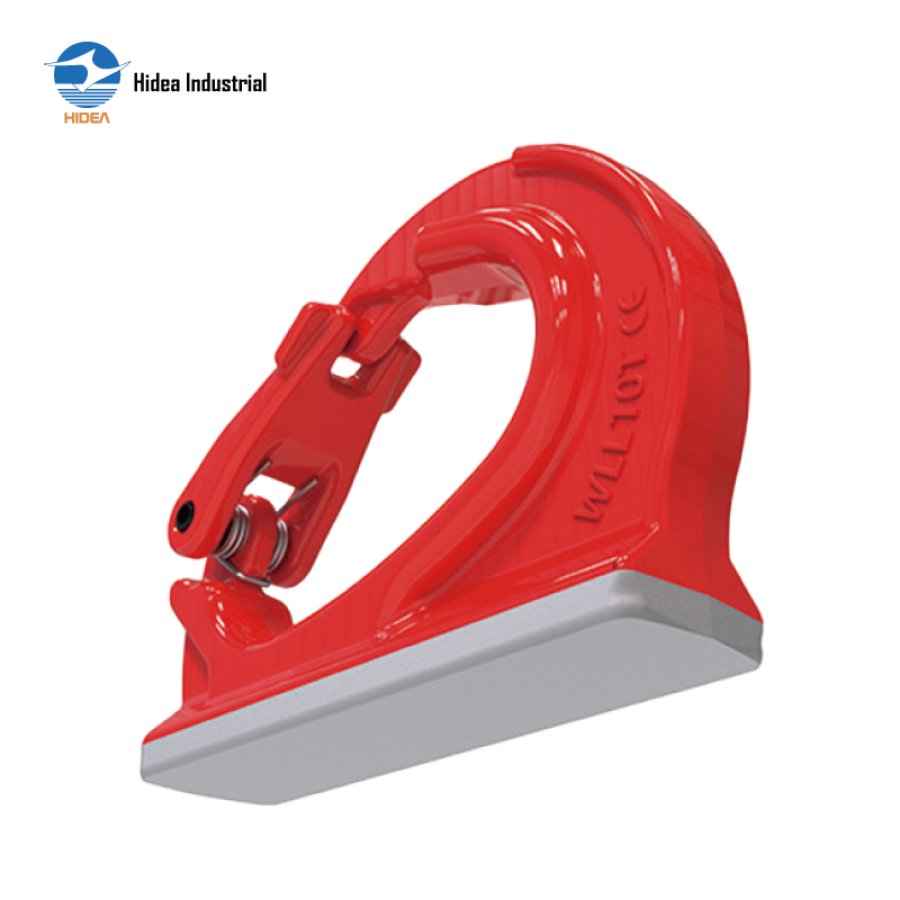

Enhance Safety and Durability with Hidea G80 Weld-On Hook with Forged Safety Latch

G80 WELD ON HOOK REGULAR TYPE

Forged super alloy steel-Quenched and Tempered
Breakage test
100% magnaflux crack detection
Surface finish: Powder plastified
Colour code: Red RAL3020
With forged latch

Inquire Now

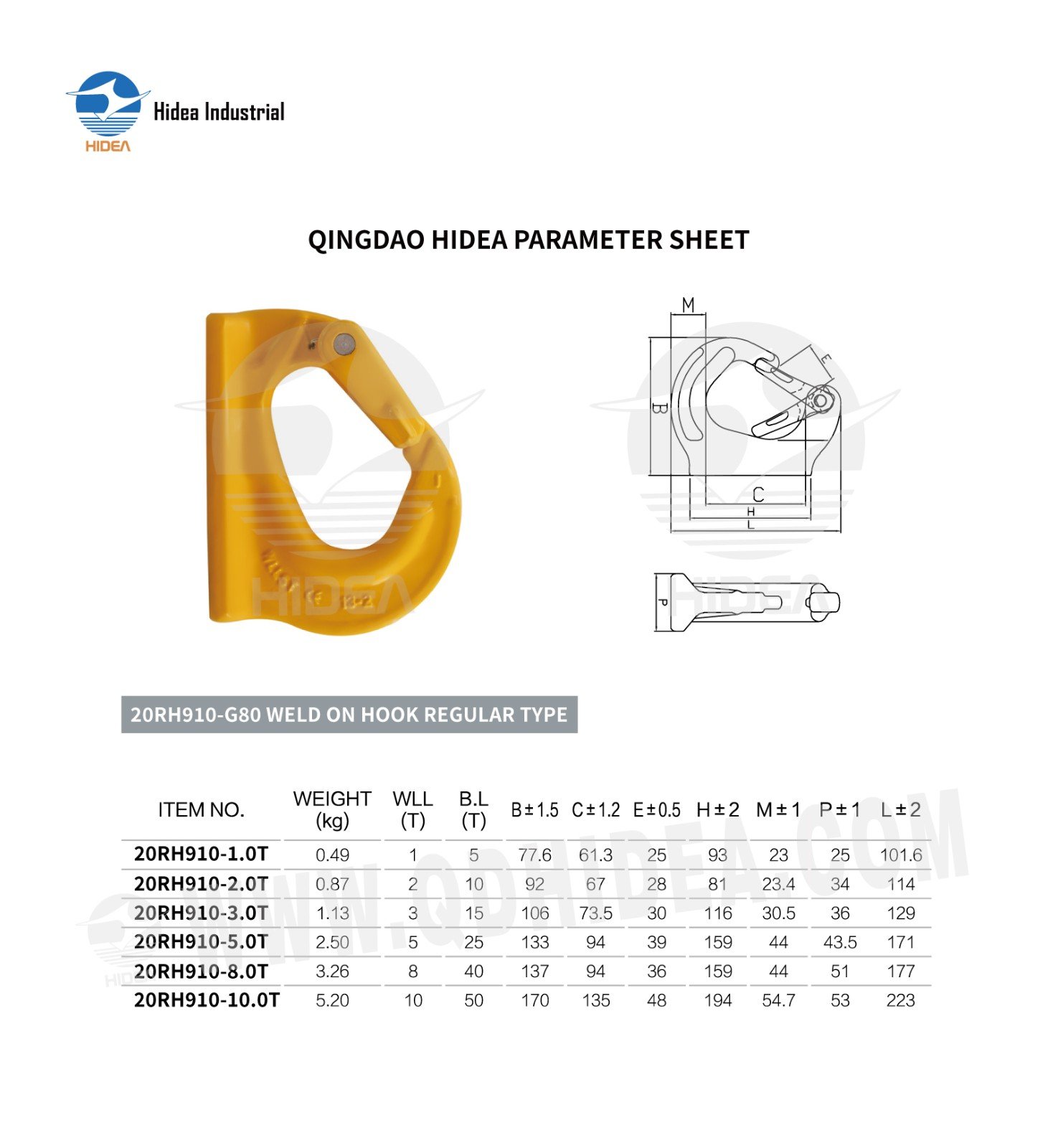

QINGDAO HIDEA PARAMETER SHEET FOR

20RH910-G80 WELD ON HOOK REGULAR TYPE

ITEM NO.	WEIGHT (kg)	WLL (T)	B.L (T)	B±1.5	C±1.2	E±0.5	H±2	M±1	P±1	L±2
20RH910-1.0T	0.49	1	5	77.6	61.3	25	93	23	25	101.6
20RH910-2.0T	0.87	2	10	92	67	28	81	23.4	34	114
20RH910-3.0T	1.13	3	15	106	73.5	30	116	30.5	36	129
20RH910-5.0T	2.50	5	25	133	94	39	159	44	43.5	171
20RH910-8.0T	3.26	8	40	137	94	36	159	44	51	177
20RH910-10.0T	5.20	10	50	170	135	48	194	54.7	53	223
