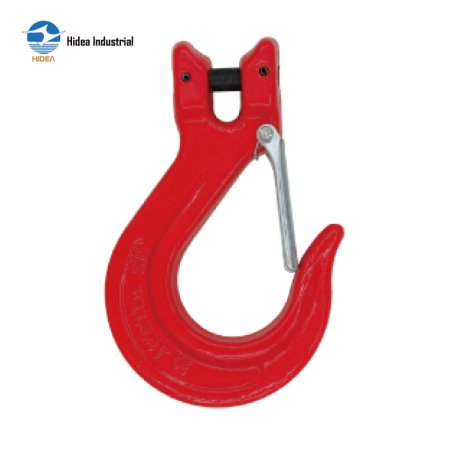

Safe and Reliable Hidea G80 US Type Clevis Sling Hook for Lifting

G80 US TYPE CLEVIS SLING HOOK

Forged super alloy steel-Quenched and Tempered
Suitable for EN818-2 G80 chain
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection
All load pins are 100% individually inspected and tested
Surface finish: Powder plastified
Colour code: Red RAL3020/Yellow RAL1003

Inquire Now

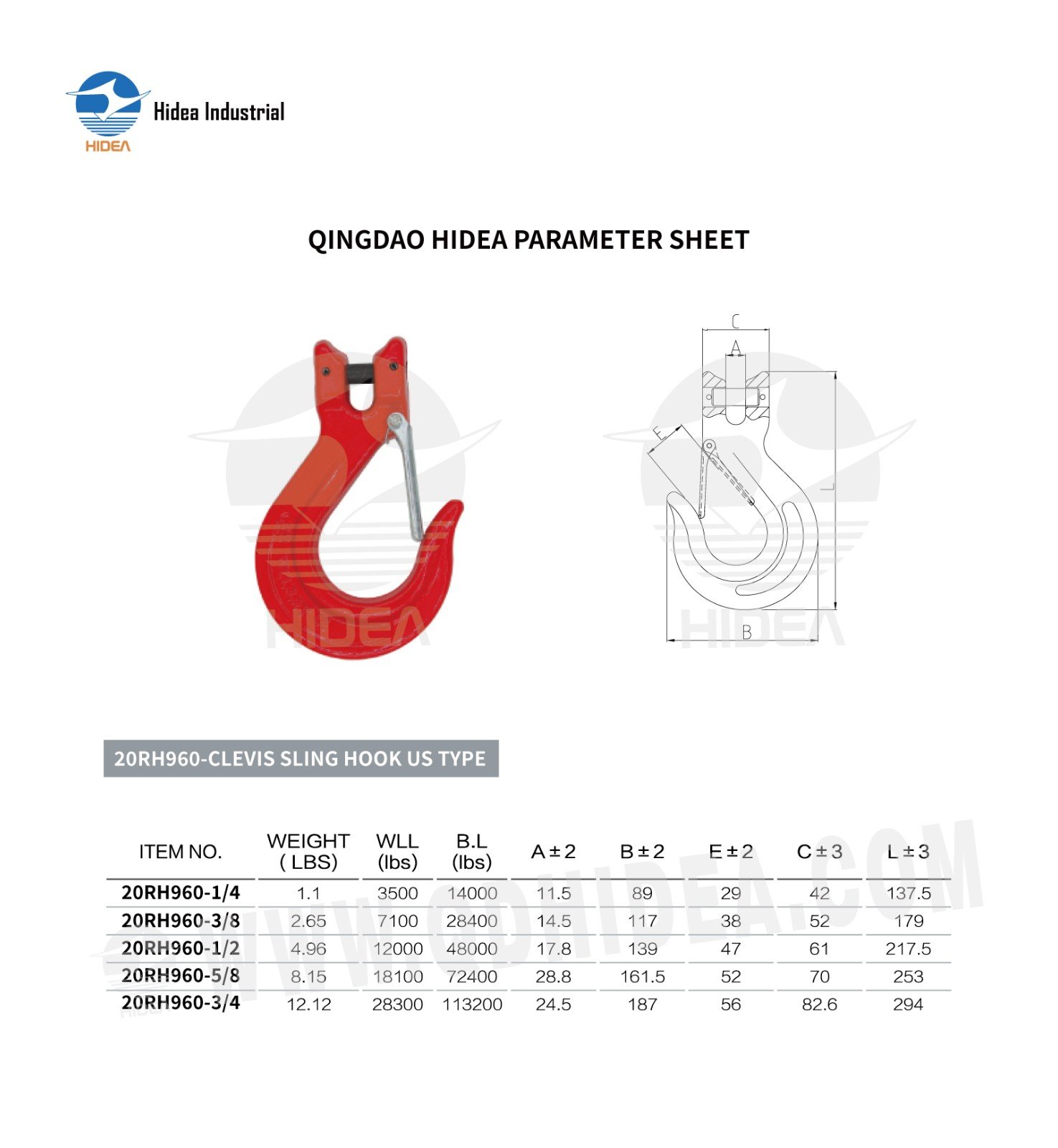

QINGDAO HIDEA PARAMETER SHEET FOR

20RH960-CLEVIS SLING HOOK US TYPE

ITEM NO.	WEIGHT (LBS)	WLL (Ibs)	B.L (Ibs)	A±2	B±2	E±2	C±3	L±3
20RH960-1/4	1.1	3500	14000	11.5	89	29	42	137.5
20RH960-3/8	2.65	7100	28400	14.5	117	38	52	179
20RH960-1/2	4.96	12000	48000	17.8	139	47	61	217.5
20RH960-5/8	8.15	18100	72400	28.8	161.5	52	70	253
20RH960-3/4	12.12	28300	113200	24.5	187	56	82.6	294
