Hidea G213 Round Pin Bow Anchor Shackle: Perfect for Industrial and Marine Anchoring

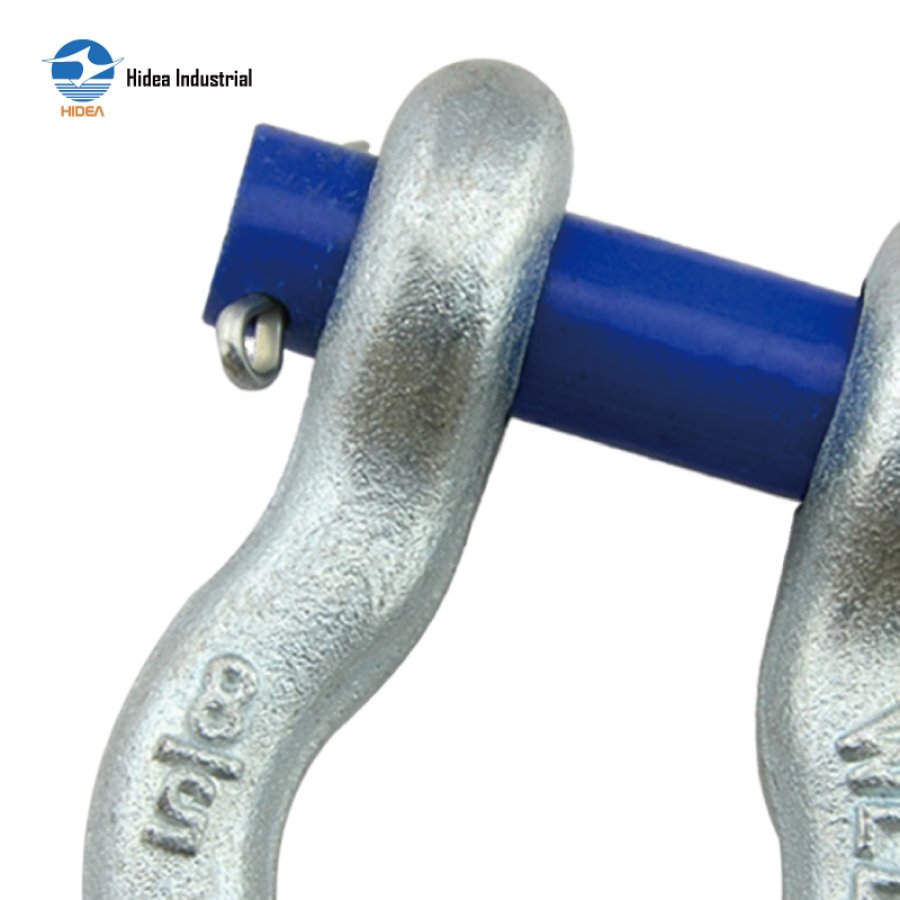

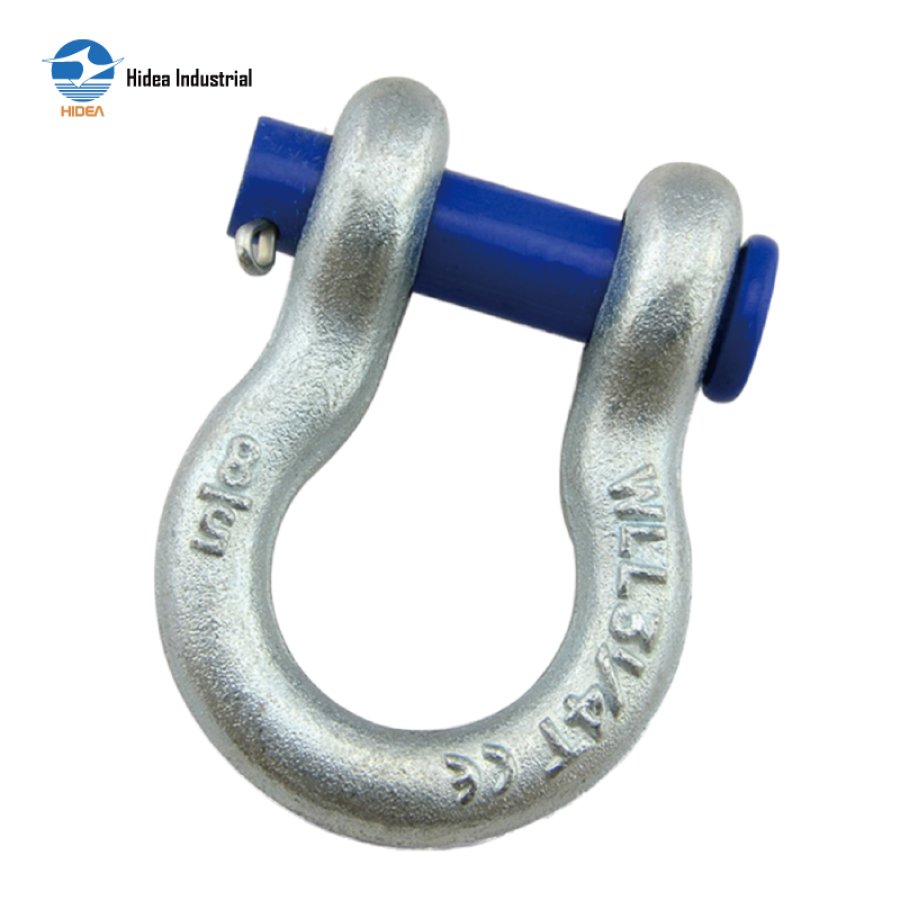

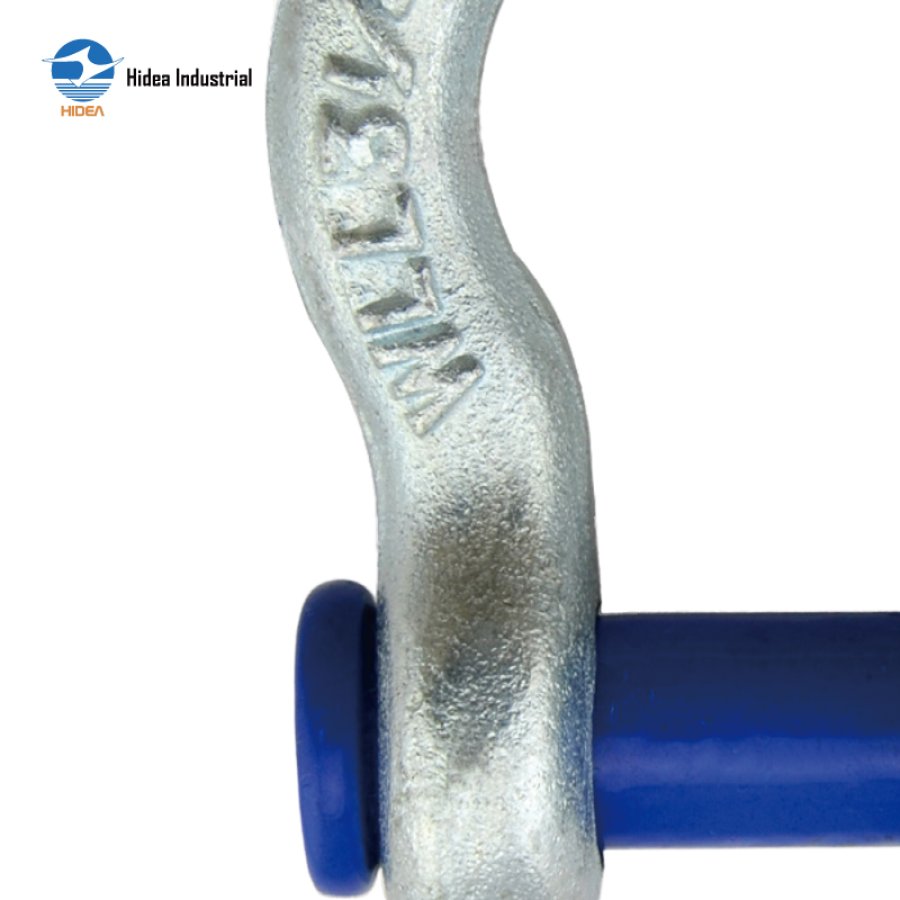

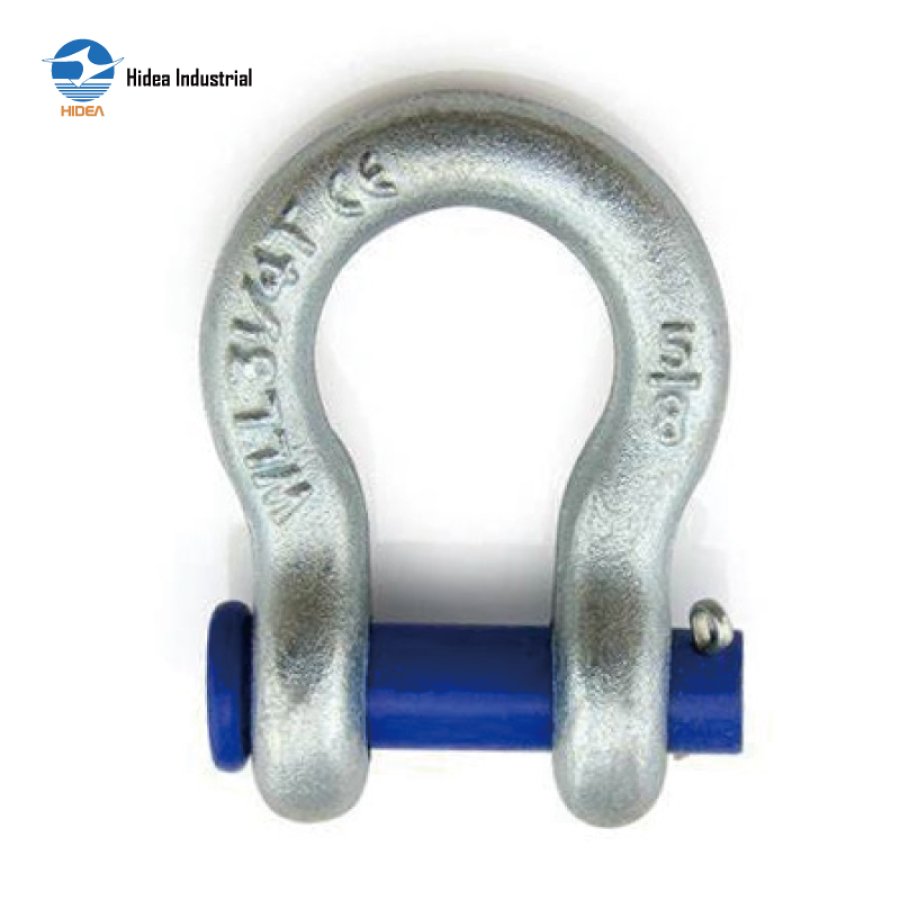

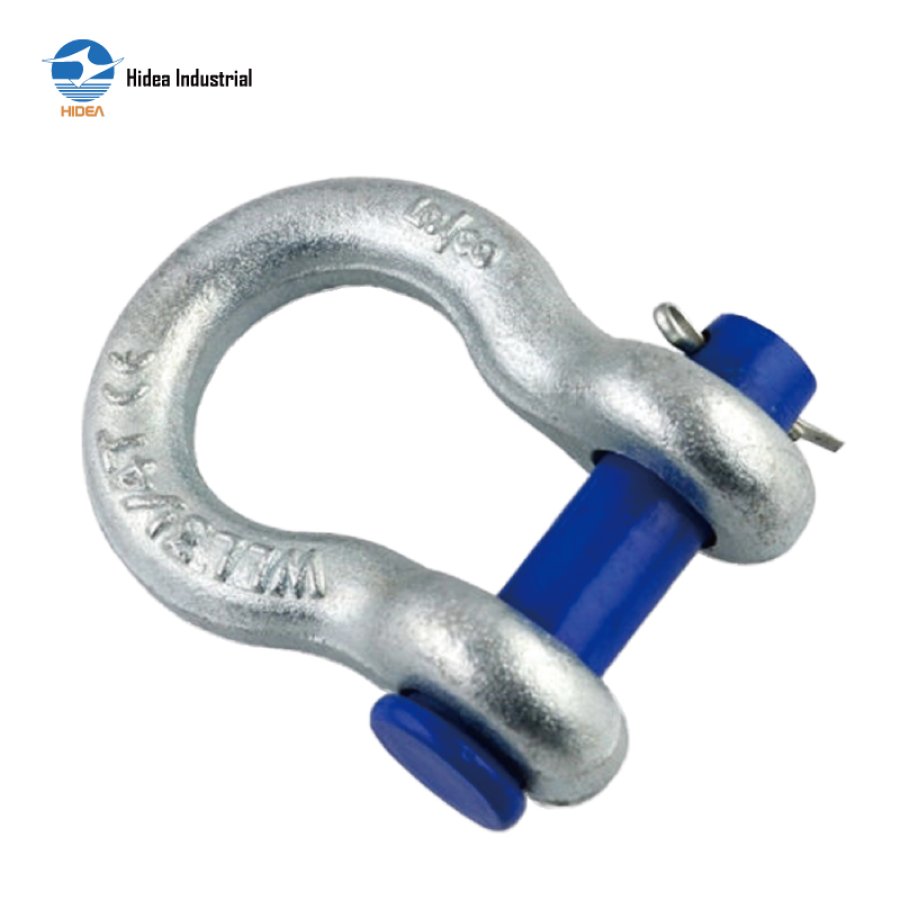

G213 US TYPE ROUND PIN BOW SHACKLE

Material: body, carbon steel; pin, alloy steel
Drop forged, quenched & tempered
Magnaflux crack detection
Safety factor 6:1 & certificates available
Surface hot dip galvanized (H.D.G) OR electro galvanized (EG) OR powder coated
Standard US Federal Specification RR-C-271G, Type IVA, Grade A, Class 1

Inquire Now

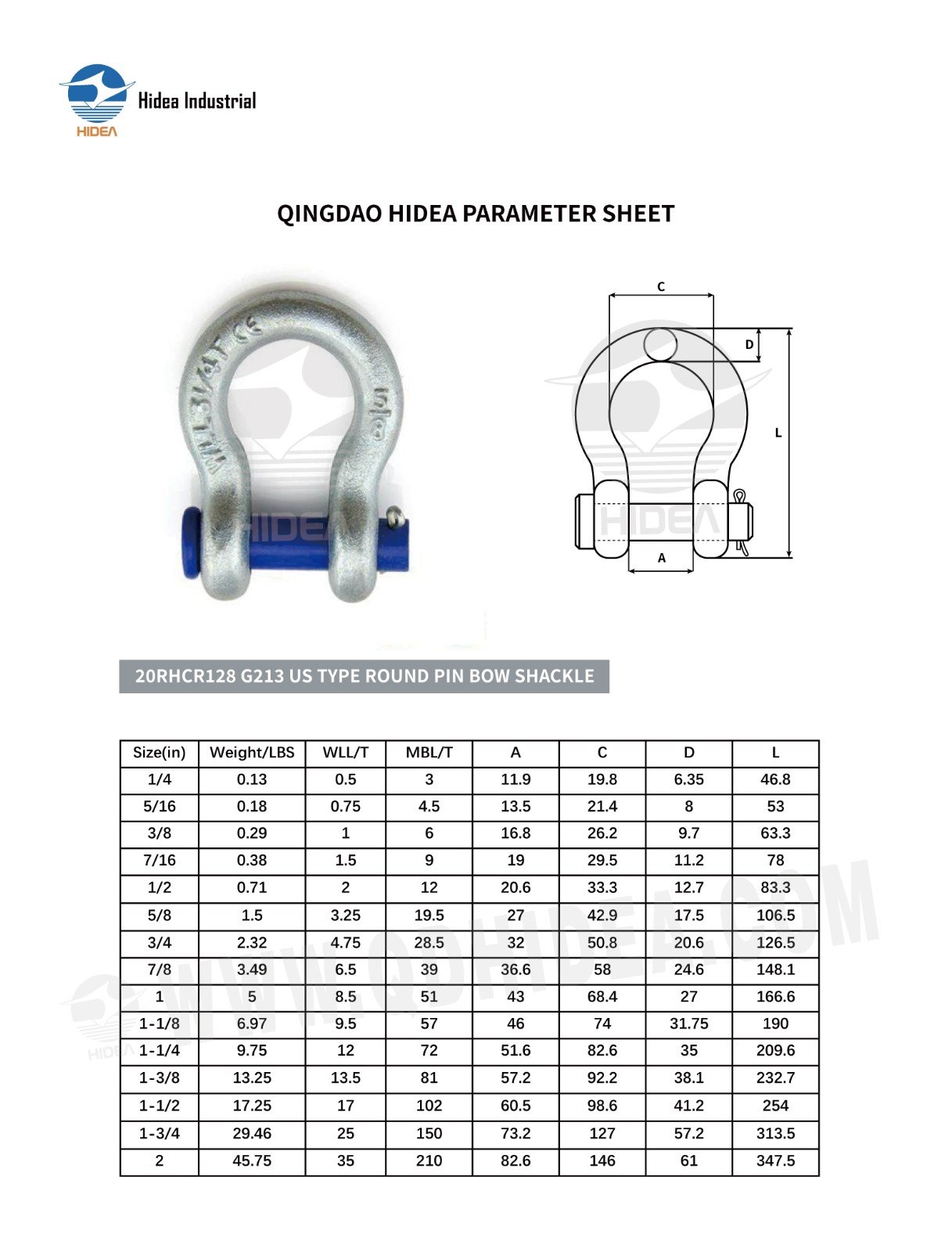

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR128 G213 US TYPE ROUND PIN BOW SHACKLE

Size(in)	Weight/LBS	WLL/T	MBL/T	A	C	D	L
1/4	0.13	0.5	3	11.9	19.8	6.35	46.8
5/16	0.18	0.75	4.5	13.5	21.4	8	53
3/8	0.29	1	6	16.8	26.2	9.7	63.3
7/16	0.38	1.5	9	19	29.5	11.2	78
1/2	0.71	2	12	20.6	33.3	12.7	83.3
5/8	1.5	3.25	19.5	27	42.9	17.5	106.5
3/4	2.32	4.75	28.5	32	50.8	20.6	126.5
7/8	3.49	6.5	39	36.6	58	24.6	148.1
1	5	8.5	51	43	68.4	27	166.6
1-1/8	6.97	9.5	57	46	74	31.75	190
1-1/4	9.75	12	72	51.6	82.6	35	209.6
1-3/8	13.25	13.5	81	57.2	92.2	38.1	232.7
1-1/2	17.25	17	102	60.5	98.6	41.2	254
1-3/4	29.46	25	150	73.2	127	57.2	313.5
2	45.75	35	210	82.6	146	61	347.5
