Hidea DIN1478 Hook & Eye Pipe Body Turnbuckle – Perfect for Adjustable Tensioning

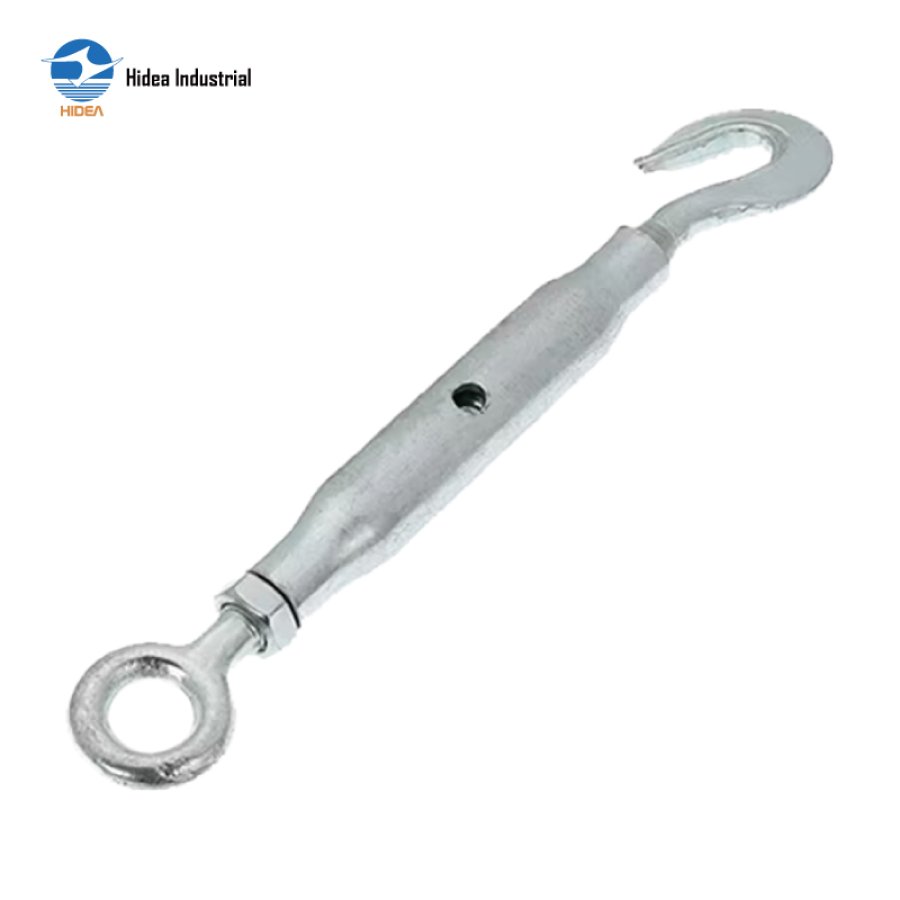

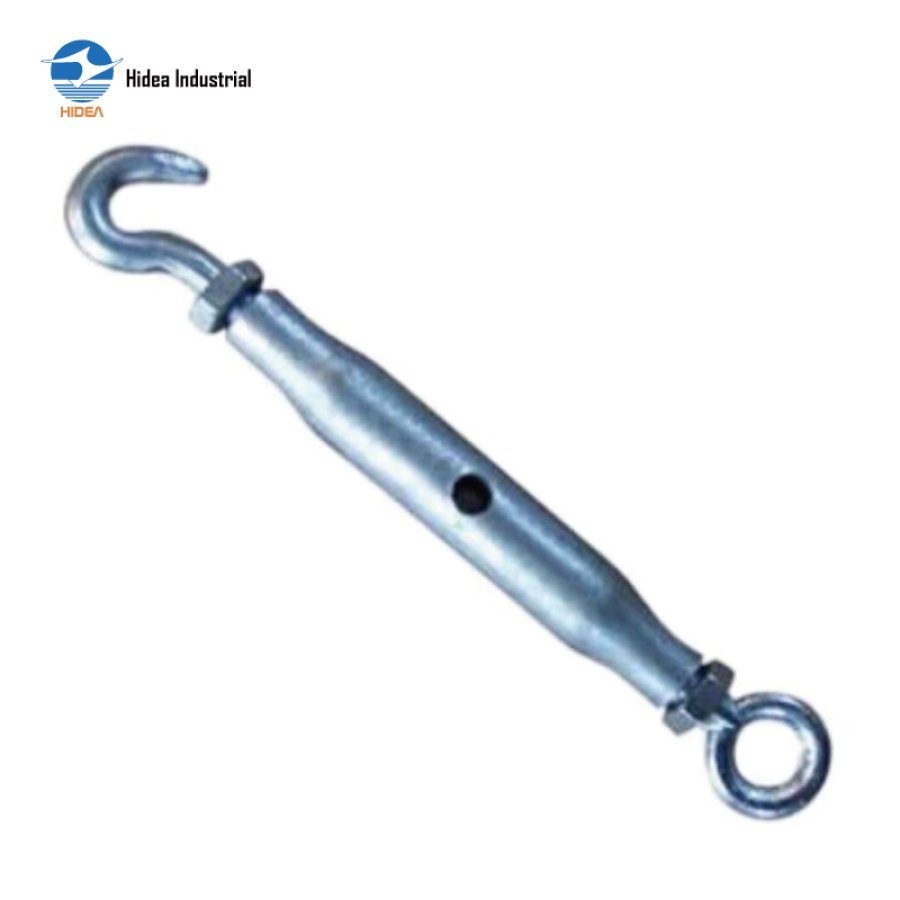

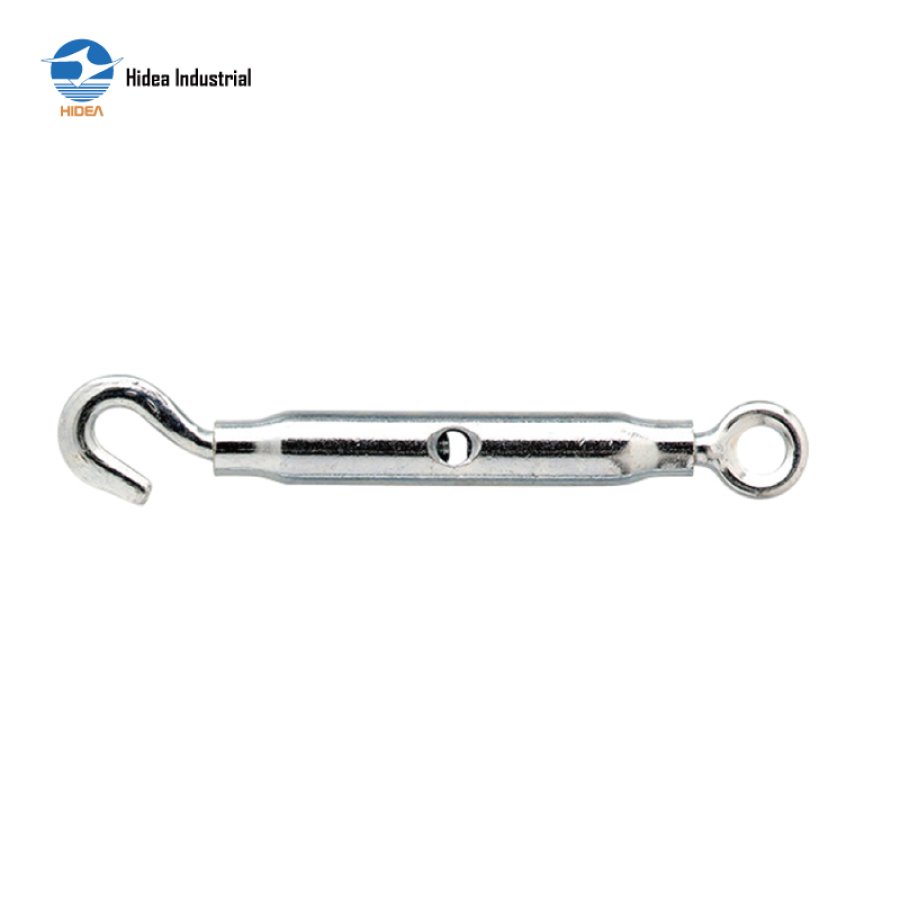

DIN1478 TUBULAR TURNBUCKLE HOOK & EYE

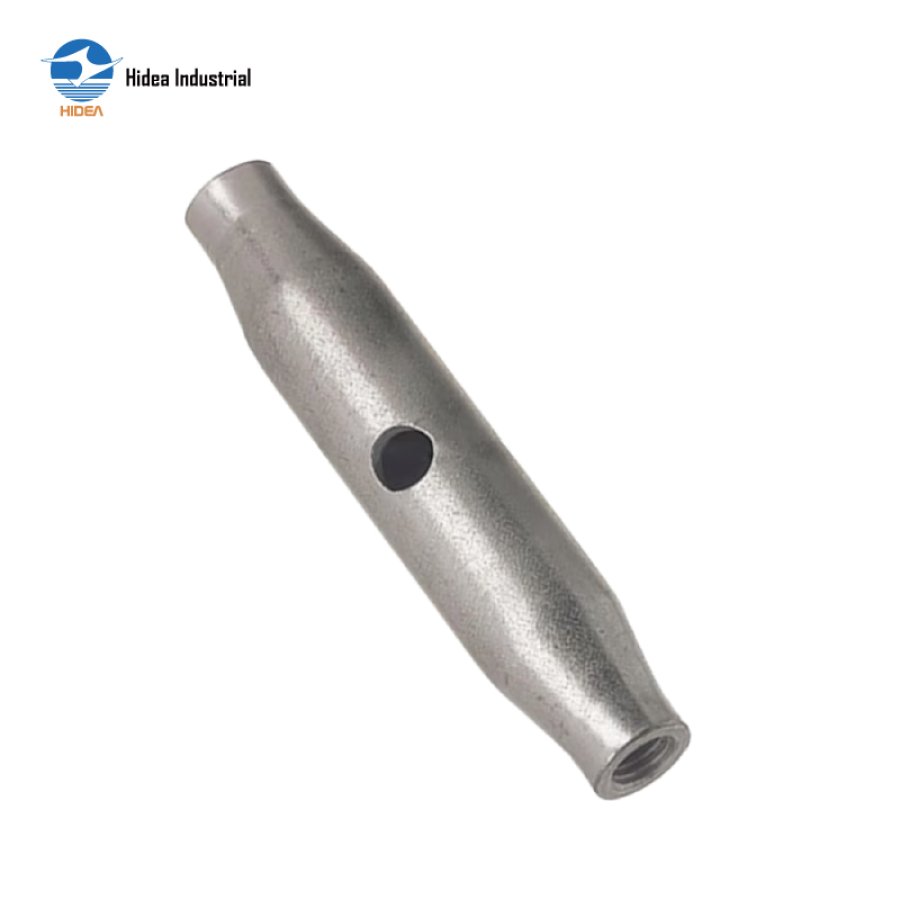

Material: High tensile seamless steel tube body
Contracted pipe both ends & forged end fittings, quenched & tempered
Proof tested individually & certificate available
Surface hot dip galvanized, electro galv. / zinc plated OR as requested
Din1478 tubular rigging screws tubular / pipe turnbuckles hook & eye type

Inquire Now

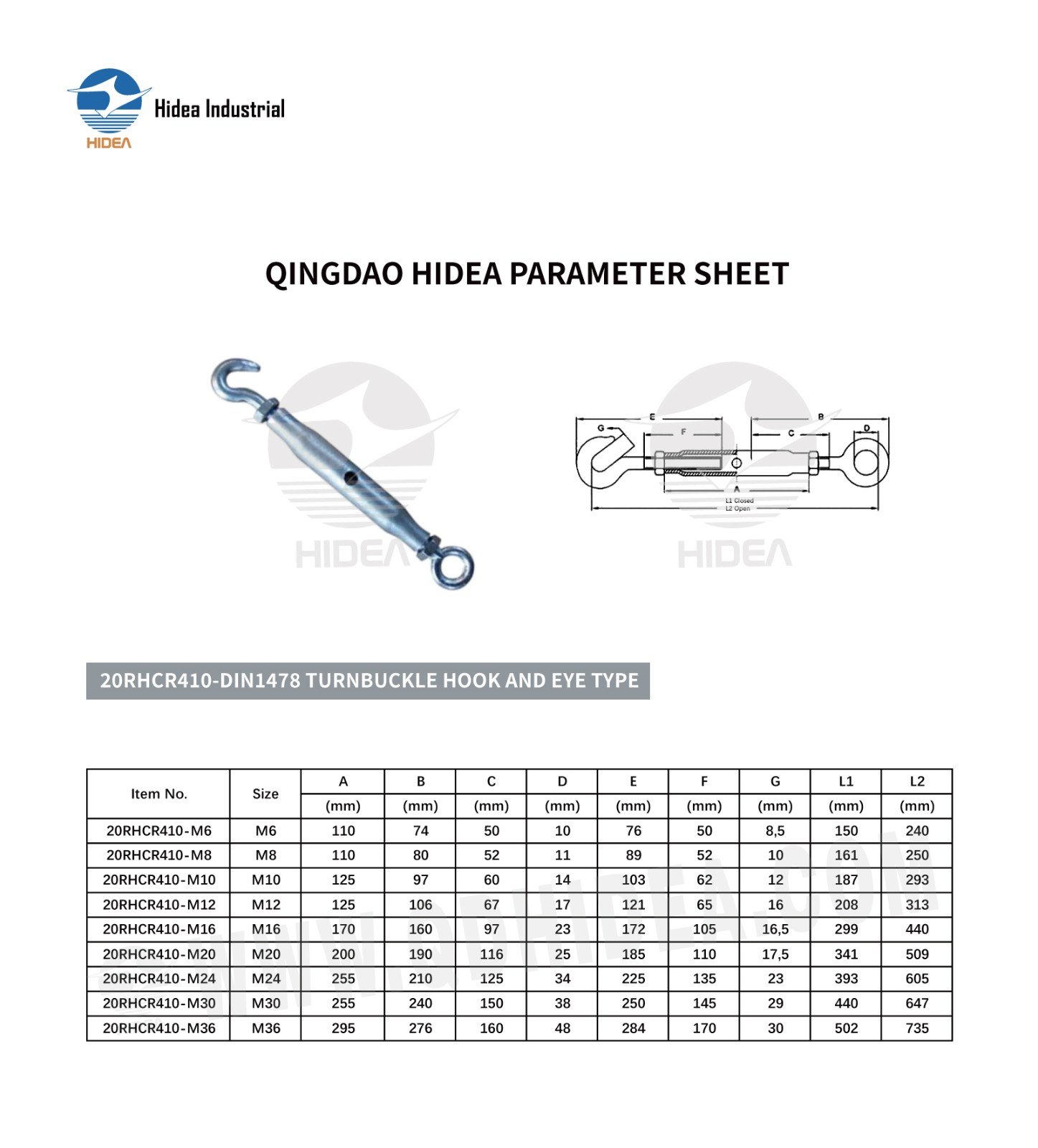

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR410-DIN1478 TURNBUCKLE HOOK AND EYE TYPE

Item No	Size	A	B	C	D	E	F	G	L1	L2
Item No	Size	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)
20RHCR410-M6	M6	110	74	50	10	76	50	85	150	240
20RHCR410-M8	M8	110	80	52	11	89	52	10	161	250
20RHCR410-M10	M10	125	97	60	14	103	62	12	187	293
20RHCR410-M12	M12	125	106	67	17	121	65	16	208	313
20RHCR410-M16	M16	170	160	97	23	172	105	165	299	440
20RHCR410-M20	M20	200	190	116	25	185	110	175	341	509
20RHCR410-M24	M24	255	210	125	34	225	135	23	393	605
20RHCR410-M30	M30	255	240	150	38	250	145	29	440	647
20RHCR410-M36	M36	295	276	160	48	284	170	30	502	735
