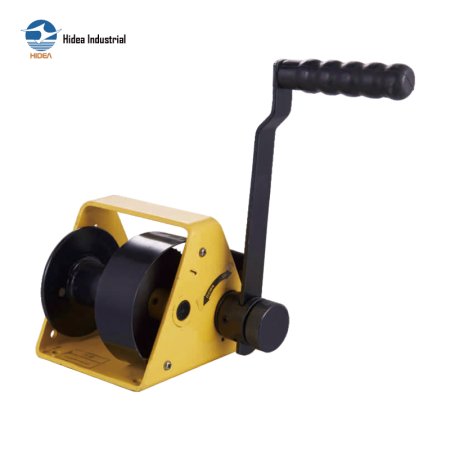

The worm gear winch heavy type for vertical lifting is designed self-locking and typically with heavy body for more durable and powerful lifting or pulling, ideal for heavy-duty applications such as crane and other overhead devices or equipment
The heavy worm gear winch worms and wheel gears are made extra heavier and properly heat treated with rated capacity up to 2,000Kgs, the robust design can withstand rigorous running applications under harsh conditions but long life
The heavy duty worm gear hand winch is usually equipped with high quality anti-twist wire ropes cables of extra length up to 30 meters or longer
The heavy duty worm gear hand winch meeting standards of and in conformity with ASME B30.16, OSHA regulations & EN 13157

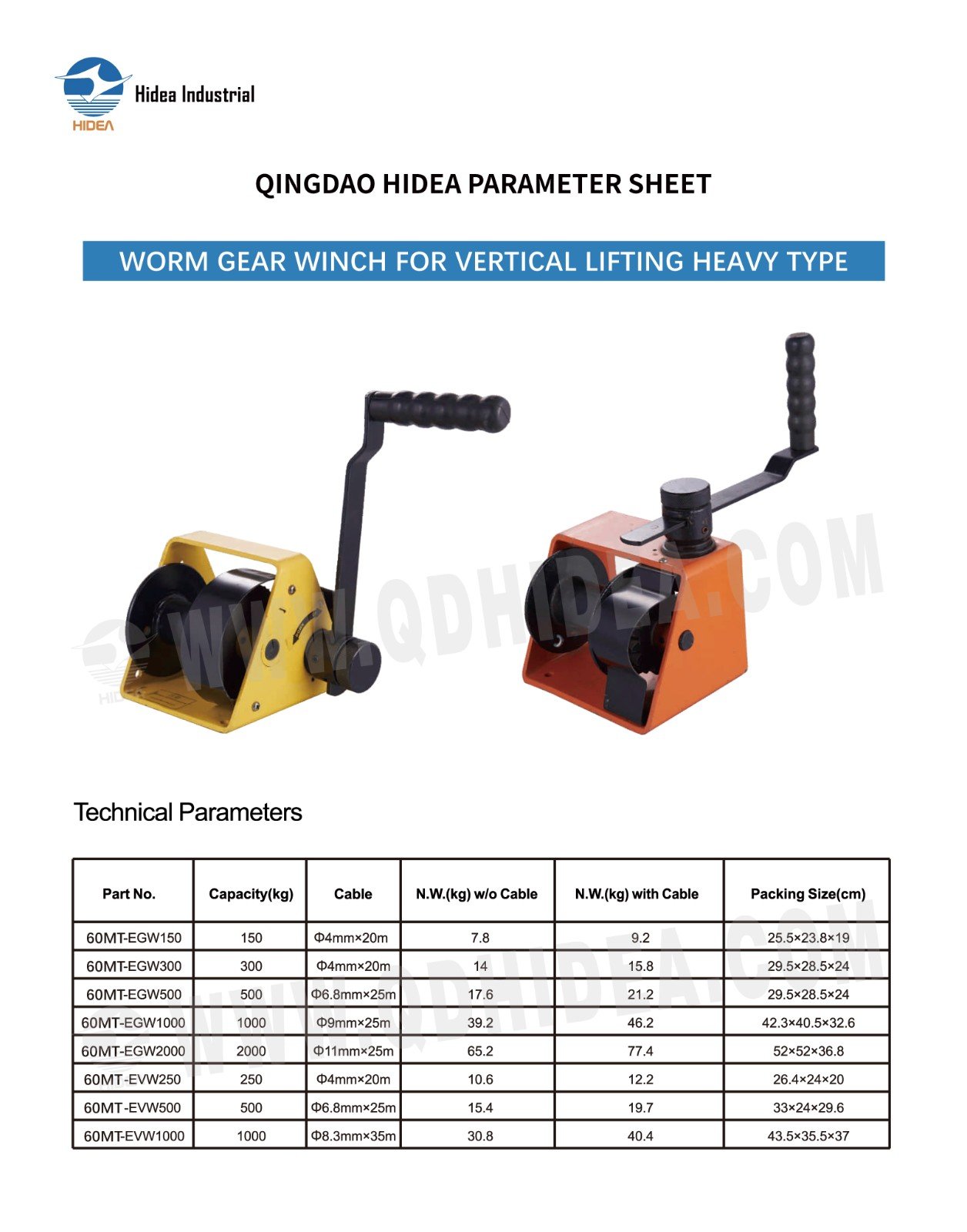

QINGDAO HIDEA PARAMETER SHEET FOR
WORM GEAR WINCH FOR VERTICAL LIFTING HEAVY TYPE
| Part No. | Capacity(kg) | Cable | N.W. (kg)wlo Cable | N.W. (kg)with Cable | Packing Size(cm) | |
| 60MT-EGW150 | 150 | φ4mm×20m | 7.8 | 9.2 | 25.5×23.8×19 | |
| 60MT-EGW300 | 300 | φ4mm×20m | 14 | 15.8 | 29.5×28.5×24 | |
| 60MT-EGW500 | 500 | φ6.8mm×25m | 17.6 | 21.2 | 29.5×28.5×24 | |
| 60MT-EGW1000 | 1000 | φ9mm×25m | 39.2 | 46.2 | 42.3×40.5×32.6 | |
| 60MT-EGW2000 | 2000 | Φ11mm×25m | 65.2 | 77.4 | 52×52×36.8 | |
| 60MT-EVW250 | 250 | 中4mm×20m | 10.6 | 12.2 | 26.4×24×20 | |
| 60MT-EVW500 | 500 | φ6.8mm×25m | 15.4 | 19.7 | 33×24×29.6 | |
| 60MTEVW1000 | 1000 | φ8.3mm×35m | 30.8 | 40.4 | 43.5×35.5×37 | |
