Din766 Windlass Chain | Short Link

DIN766 MEDIUM LINK CHAIN GERMAN TYPE

Material: Carbon Steel Mild Steel
Surface Treatment: Electro OR Hot Dip galvanized or as requested

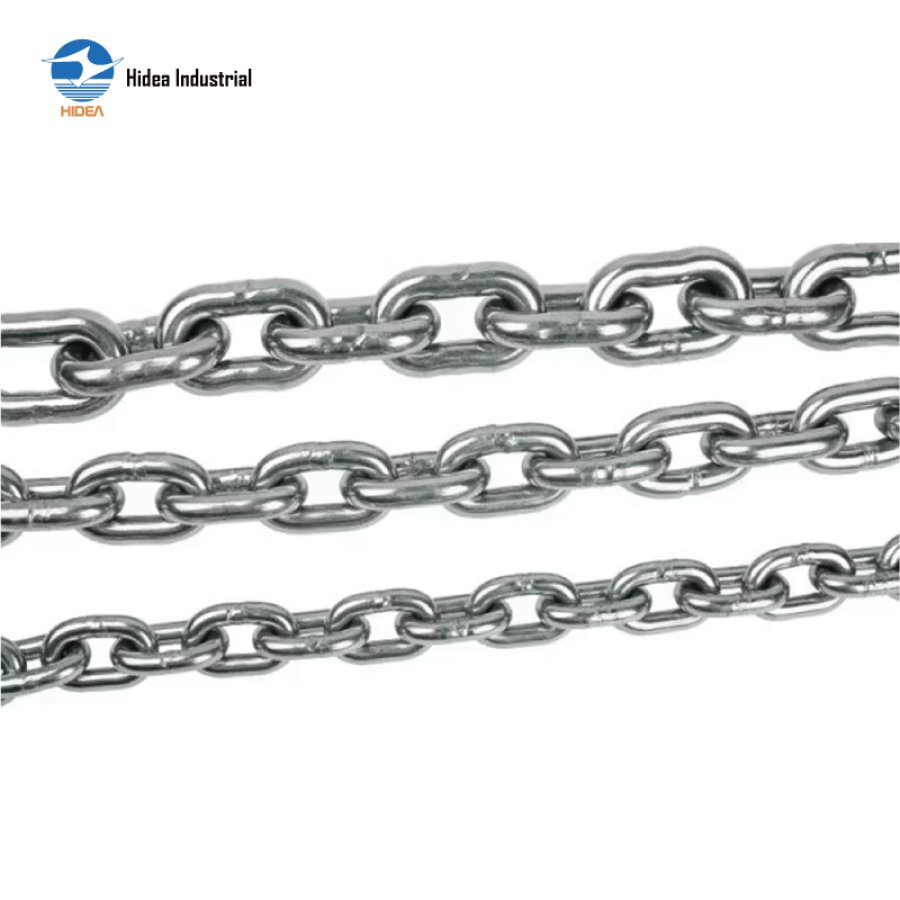

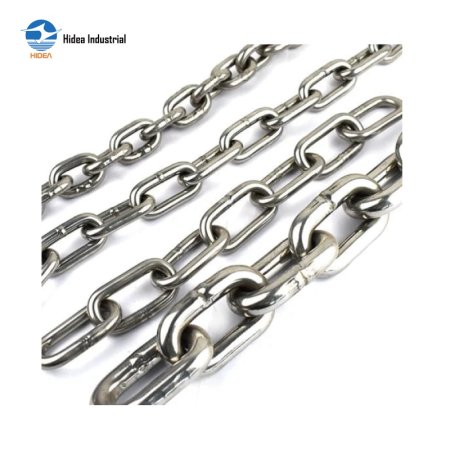

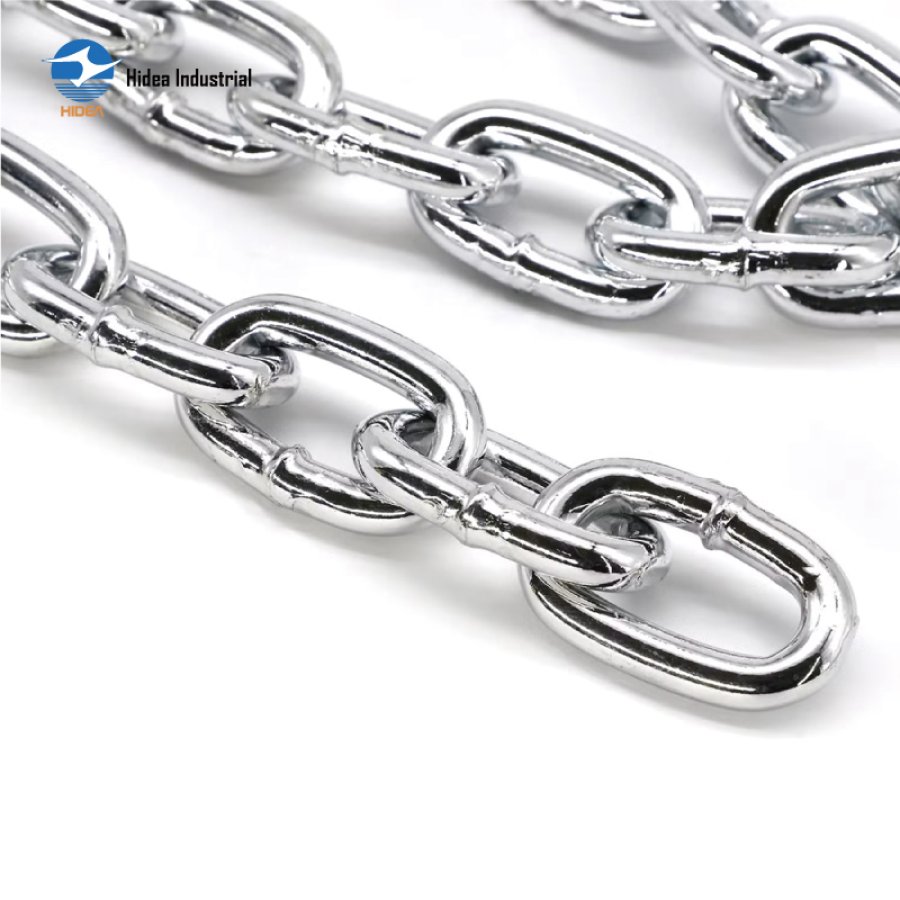

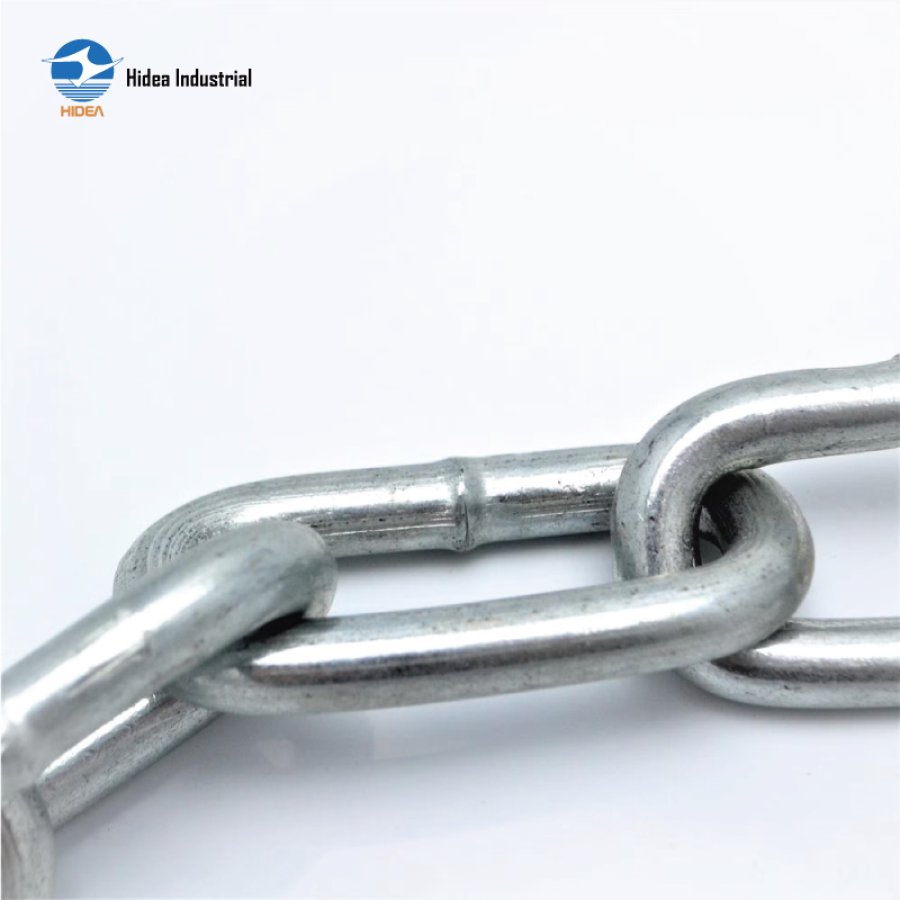

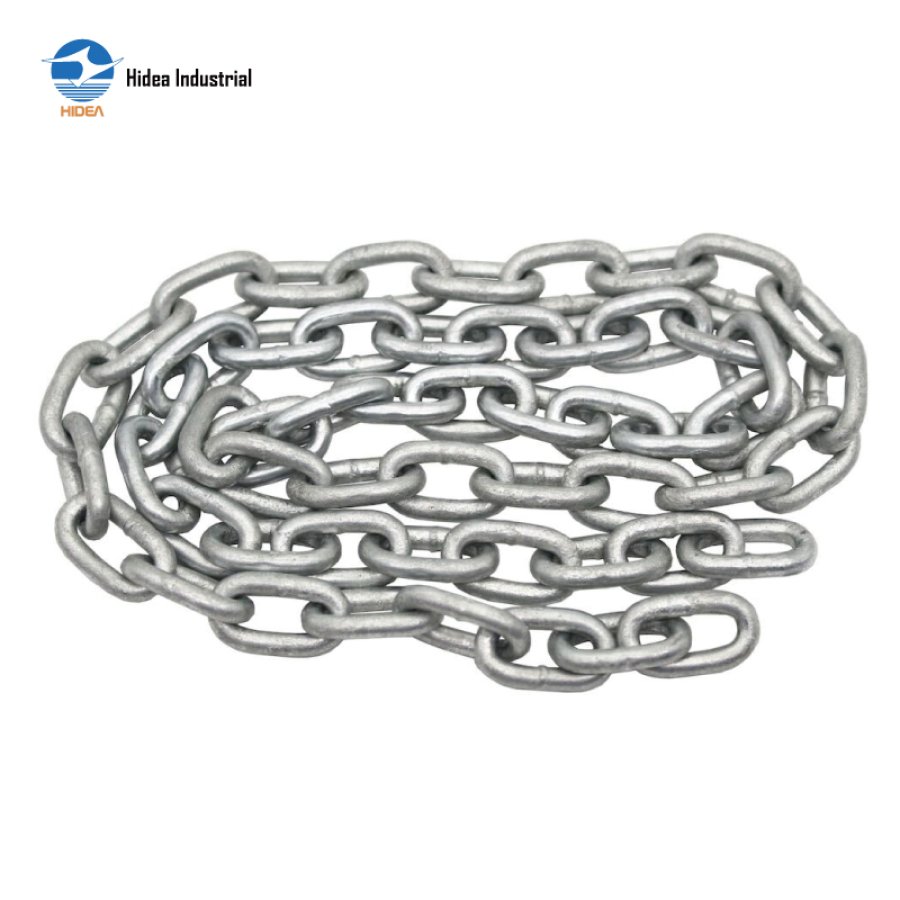

Din766 Medium Link Chain German Type

Inquire Now

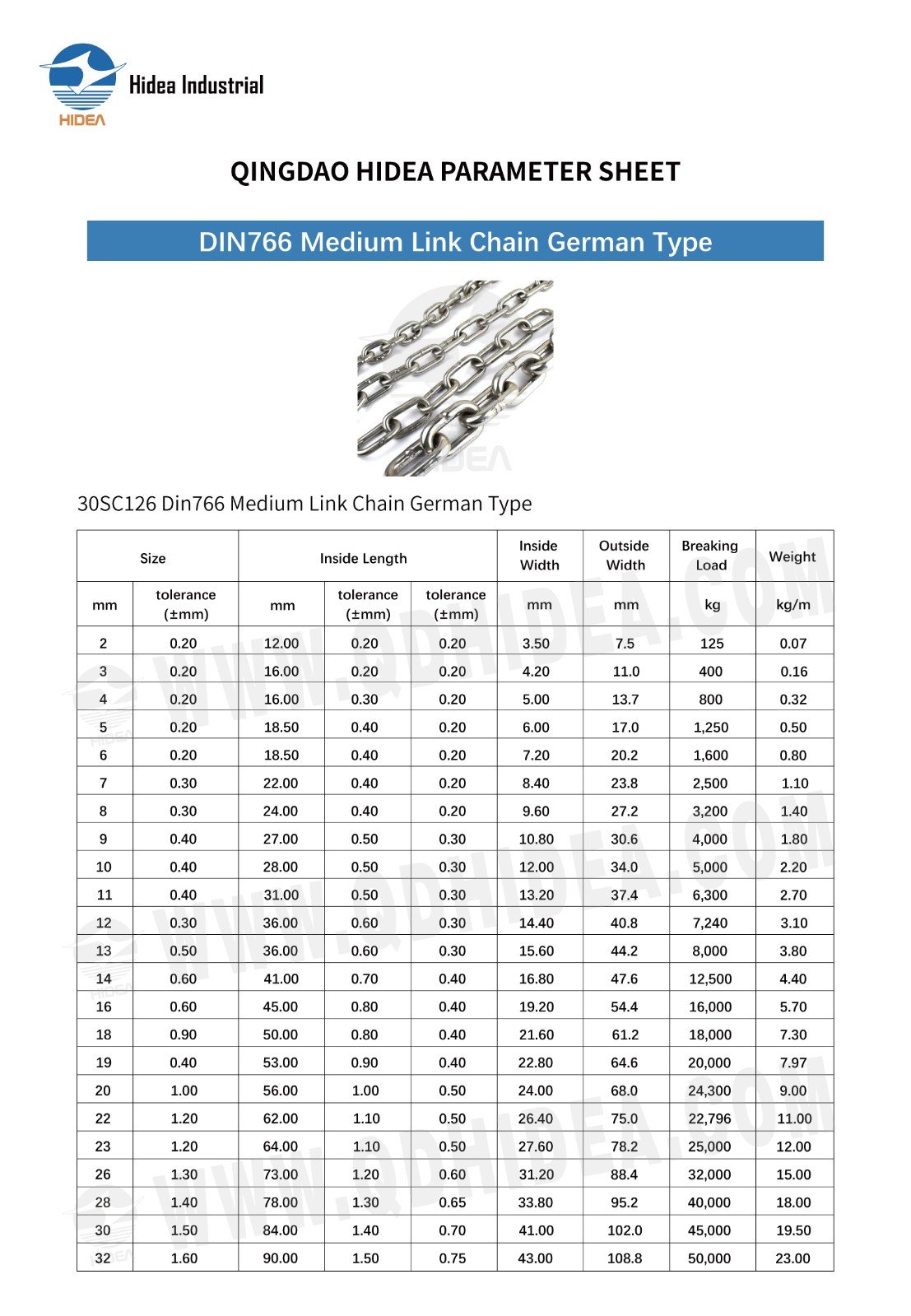

QINGDAO HIDEA PARAMETER SHEET FOR

30SC126 Din766 Medium Link Chain German Type

Size		nside Length			Inside Width	Outside Width	Breaking Load	Weight
mm	tolerance (±mm)	mm	tolerance (±mm)	tolerance (±mm)	mm	mm	kg	kg/m
2	0.20	12.00	0.20	0.20	3.50	7.5	125	0.07
3	0.20	16.00	0.20	0.20	4.20	11.0	400	0.16
4	0.20	16.00	0.30	0.20	5.00	13.7	800	0.32
5	0.20	18.50	0.40	0.20	6.00	17.0	1,250	0.50
6	0.20	18.50	0.40	0.20	7.20	20.2	1,600	0.80
7	0.30	22.00	0.40	0.20	8.40	23.8	2,500	1.10
8	0.30	24.00	0.40	0.20	9.60	27.2	3,200	1.40
9	0.40	27.00	0.50	0.30	10.80	30.6	4,000	1.80
10	0.40	28.00	0.50	0.30	12.00	34.0	5,000	2.20
11	0.40	31.00	0.50	0.30	13.20	37.4	6,300	2.70
12	0.30	36.00	0.60	0.30	14.40	40.8	7,240	3.10
13	0.50	36.00	0.60	0.30	15.60	44.2	8,000	3.80
14	0.60	41.00	0.70	0.40	16.80	47.6	12,500	4.40
16	0.60	45.00	0.80	0.40	19.20	54.4	16,000	5.70
18	0.90	50.00	0.80	0.40	21.60	61.2	18,000	7.30
19	0.40	53.00	0.90	0.40	22.80	64.6	20,000	7.97
20	1.00	56.00	1.00	0.50	24.00	68.0	24,300	9.00
22	1.20	62.00	1.10	0.50	26.40	75.0	22,796	11.00
23	1.20	64.00	1.10	0.50	27.60	78.2	25,000	12.00
26	1.30	73.00	1.20	0.60	31.20	88.4	32,000	15.00
28	1.40	78.00	1.30	0.65	33.80	95.2	40,000	18.00
30	1.50	84.00	1.40	0.70	41.00	102.0	45,000	19.50
32	1.60	90.00	1.50	0.75	43.00	108.8	50,000	23.00
