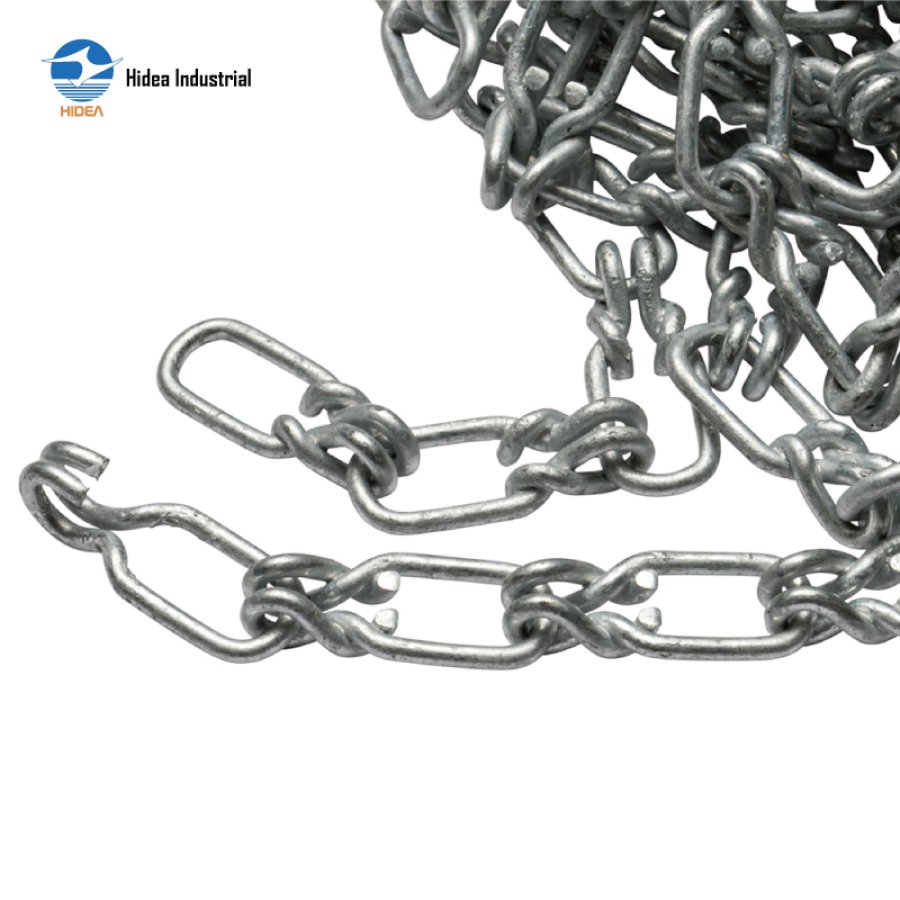

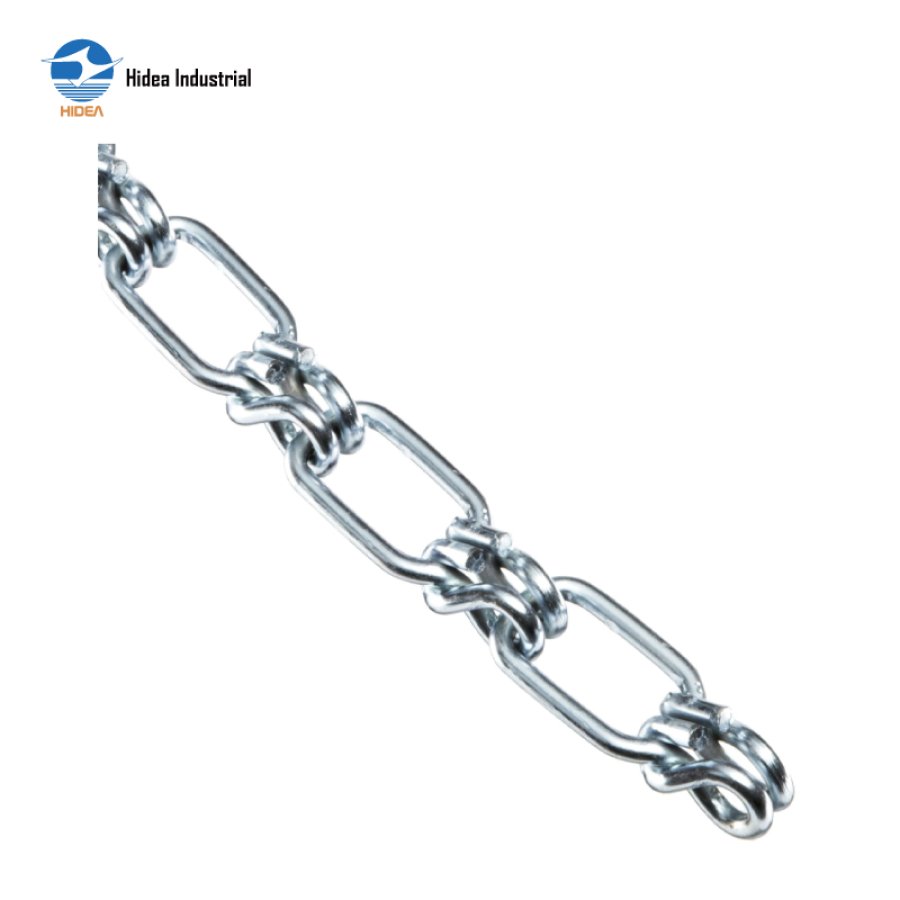

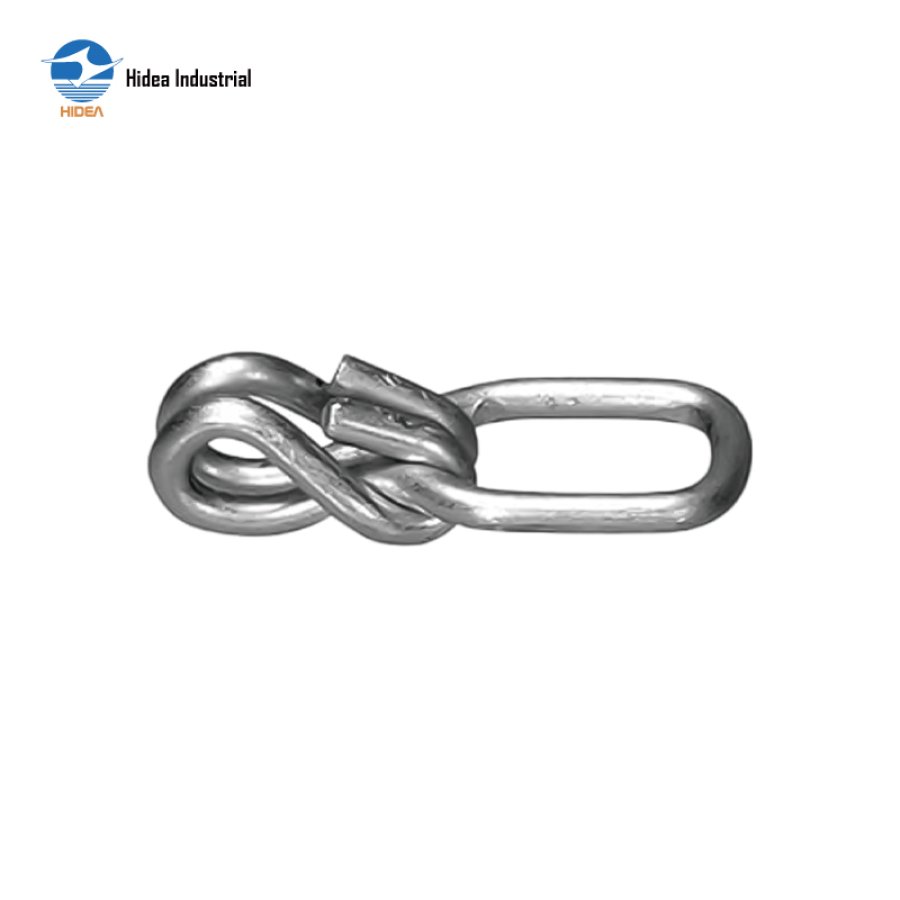

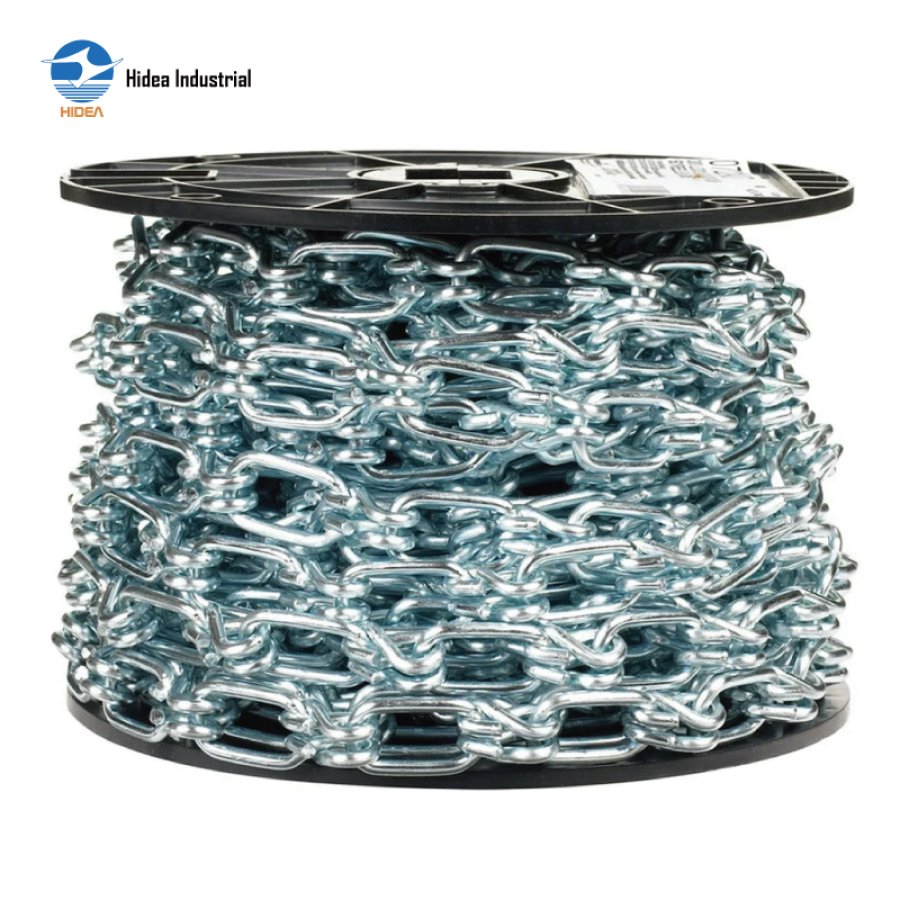

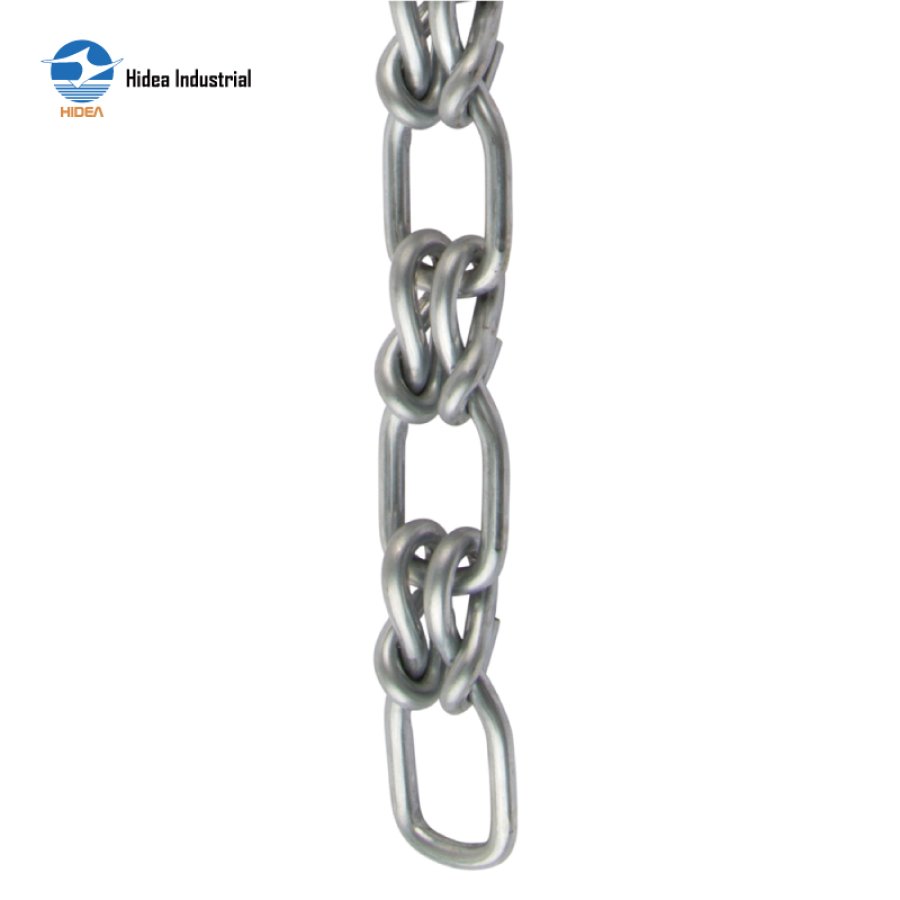

Hidea Weldless Single Loop Chain: Strong, Secure, and Versatile for General Utility Uses

SINGLE LOOP CHAIN

Material: Low Carbon Steel Or Stainless Steel
Surface Treatment: Electro or as OR as requested
Single Loop Chain Weldless Chain
Standard ASTM A466/A466M-98 Class 1.2.1 SL—Single-loop chain

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

30SC150 Single Loop Chain

Chain Size (Trade Size)	Material Diameter (INCHES)	Length per 100Links (INCHES)	Weight Per Ft. (LBS)	Inside Length (INCHES)	Working Load Limit (LBS)
2	2.3mm	109	0.100	1.08	155
1/00	3mm	132	0.167	1.29	265
2/00	3.4mm	147	0.230	1.48	340
3/00	3.8mm	165	0.276	1.63	405
4/00	4.1mm	177	0.293	1.80	485
5/00	4.5mm	215	0.344	2.15	580
