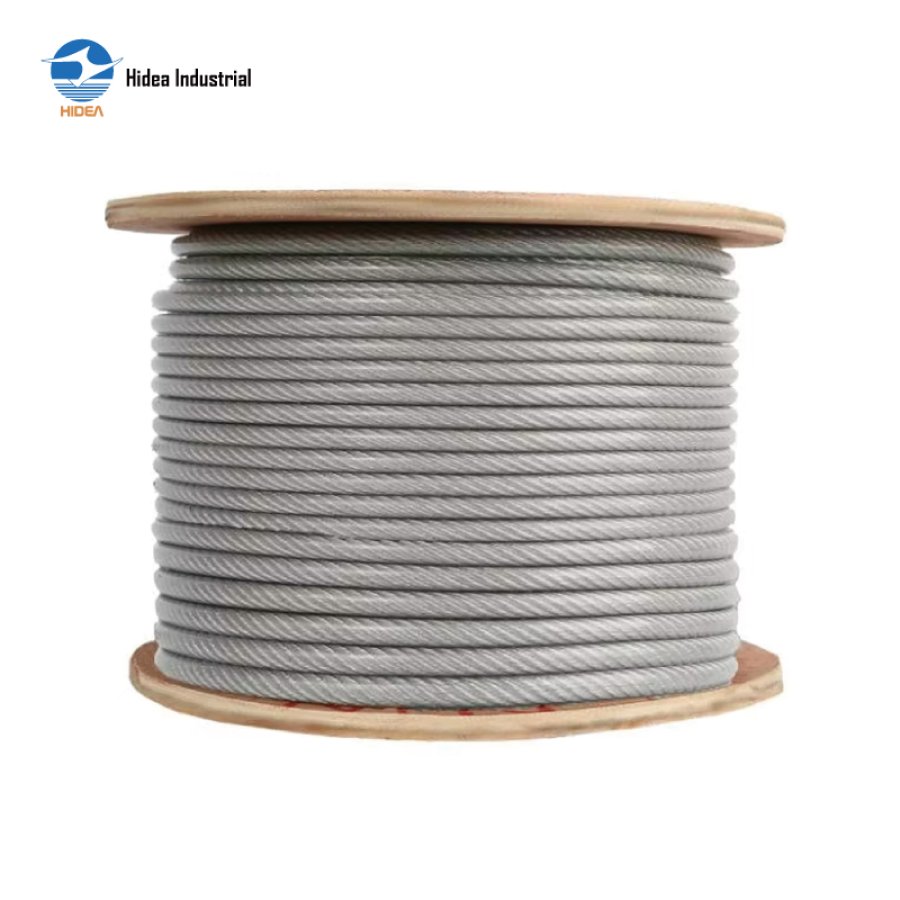

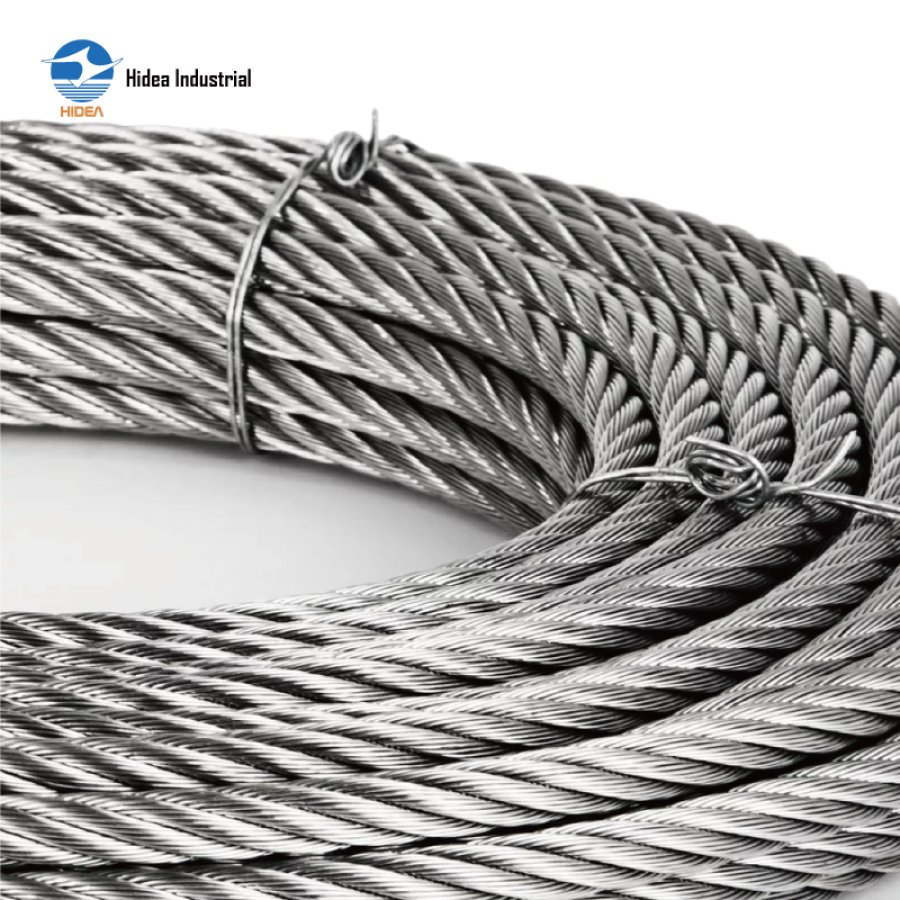

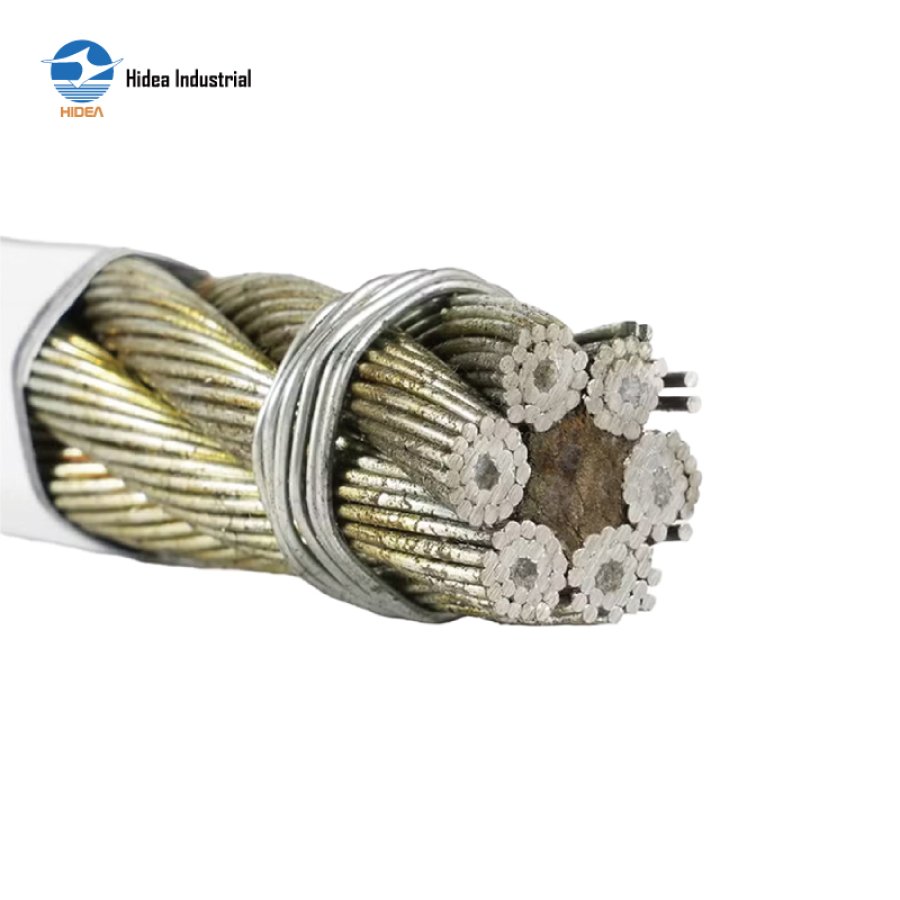

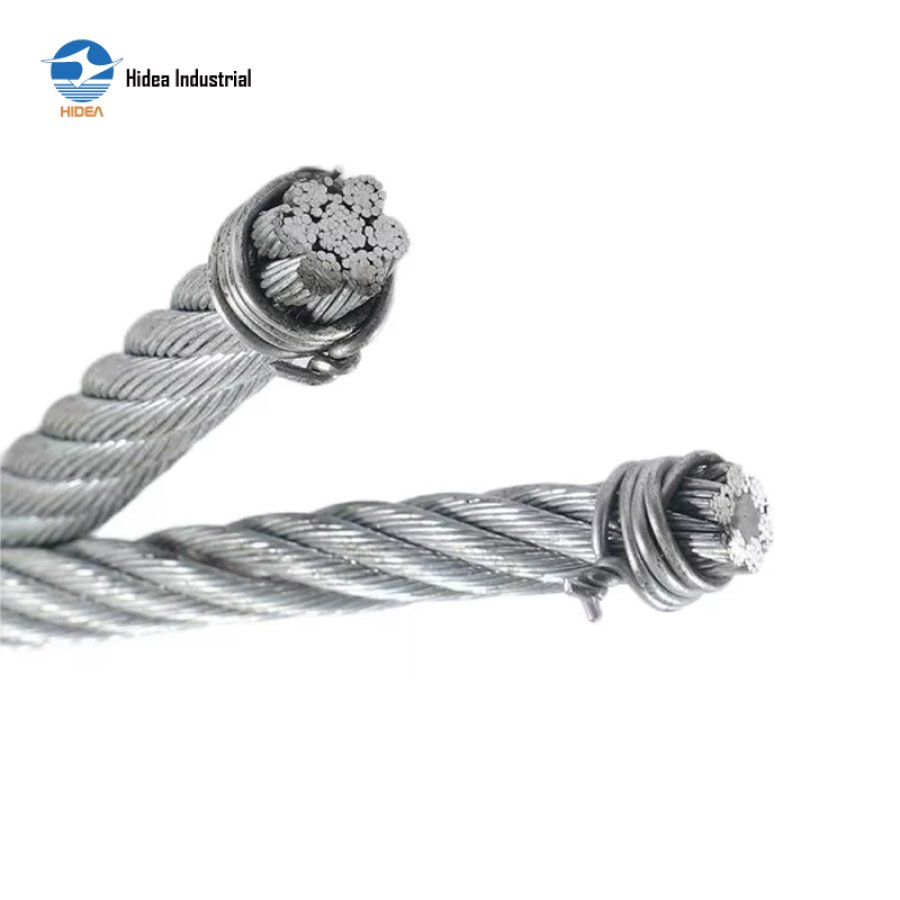

HIDEA Ungalvanized Wire Rope IPS+ FC: Engineered for Resilience & Strength

RR-W-410 UNGALVANIZED WIRE ROPE IPS 6x24+7FC/6x12+7FC

Federal Spec. RR-W-410 Ungalvanized Wire Rope 6x24+7FC / 6x12+7FC

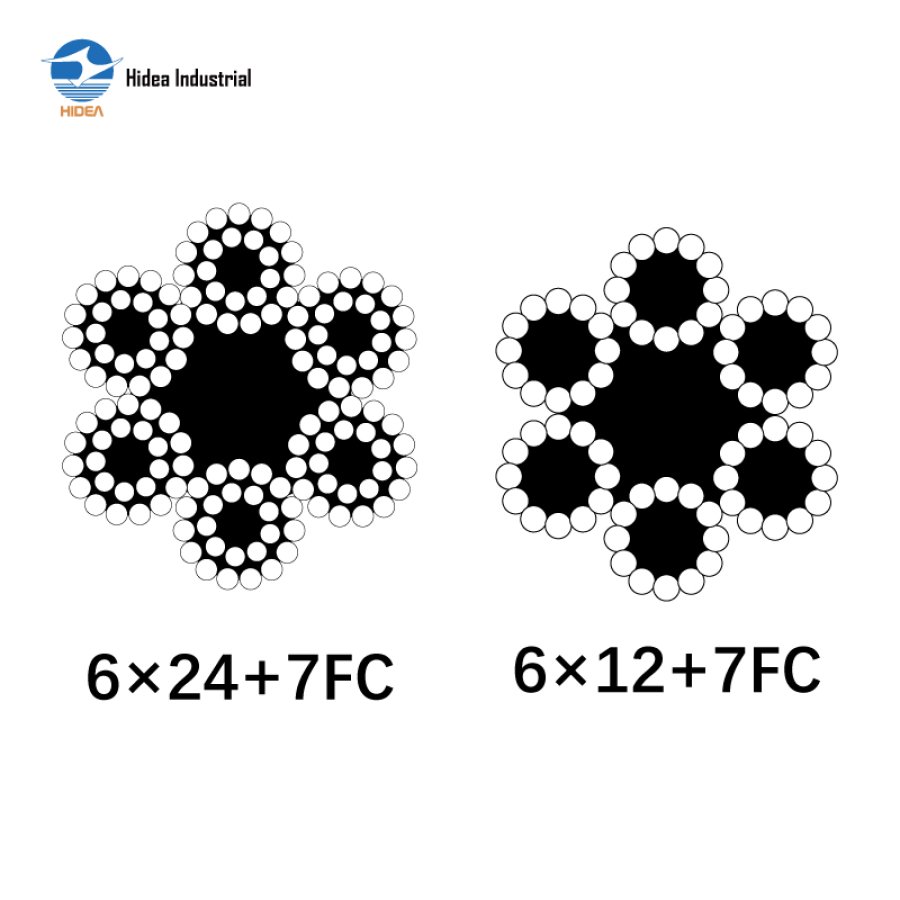

Constructions 6x24+7FC / 6x12+7FC Ungalvanized
Improved Plow Steel, High Carbon Steel

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

RR-W-410 UNGALVANIZED WIRE ROPE IPS 6x24+7FC/6x12+7FC

	Specification:RR-W-410 Improved Plow Steel(IPS)
6×24+7FC				6×12+7FC
Diameter(mm)		Approx.Weight		Min.Breaking Strength	Acceptance Breaking Strength
Nominal (minimum)	Nominal (Maximum)	Approx.Weight		Min.Breaking Strength	Acceptance Breaking Strength
in	in	lb/1000	Kg/1000'	Ib	Ib
6×24+7FC,ungalvanized
3/8"	0.394	194	88	9540	9300
7/16"	0.459	264	120	12900	12600
1/2"	0.525	344	156	16800	16380
9/16"	0.591	437	198	21200	20700
5/8"	0.656	540	244	26000	25400
3/4"	0.788	780	352	37200	36200
13/16"	0.853	910	413	43600	42600
7/8"	0.919	1060	480	50400	49200
1"	1.050	1380	626	65600	64000
6×12+7FC,ungalvanized
3/8"	0.394	140	64	6400	一
1/2"	0.525	250	114	11400	—
9/16"	0.591	320	144	15100	一
5/8"	0.656	390	178	18700	一
3/4"	0.788	560	255	26900	—
7/8"	0.919	770	348	36300	一
