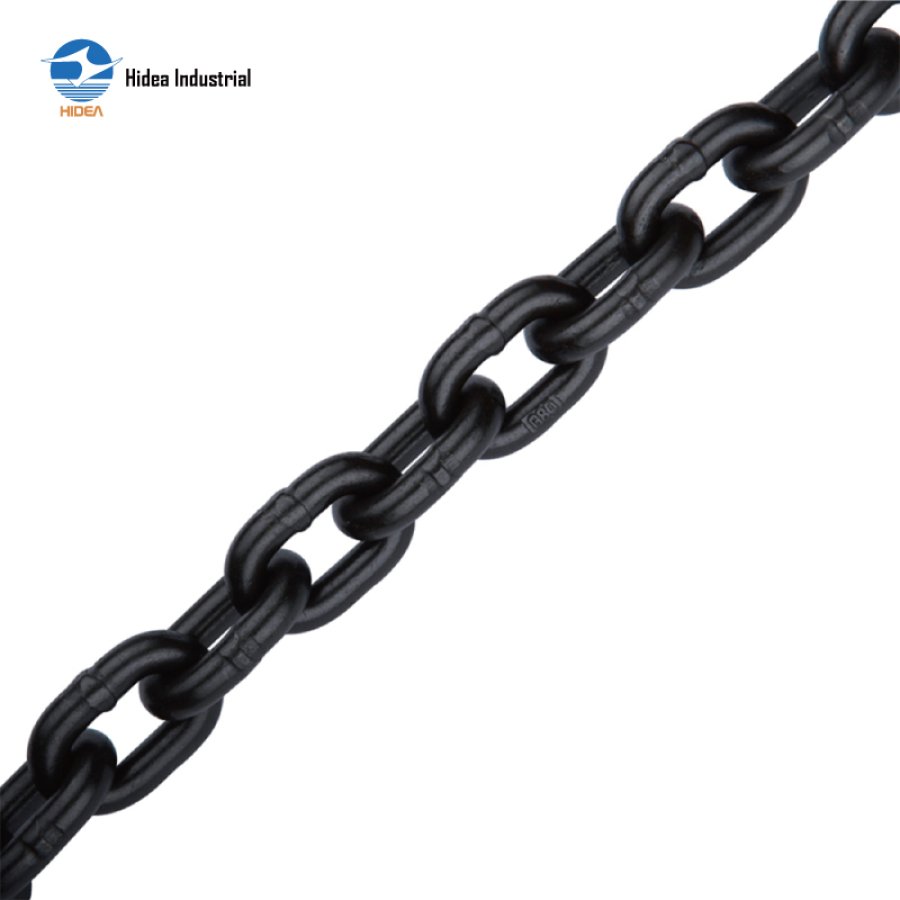

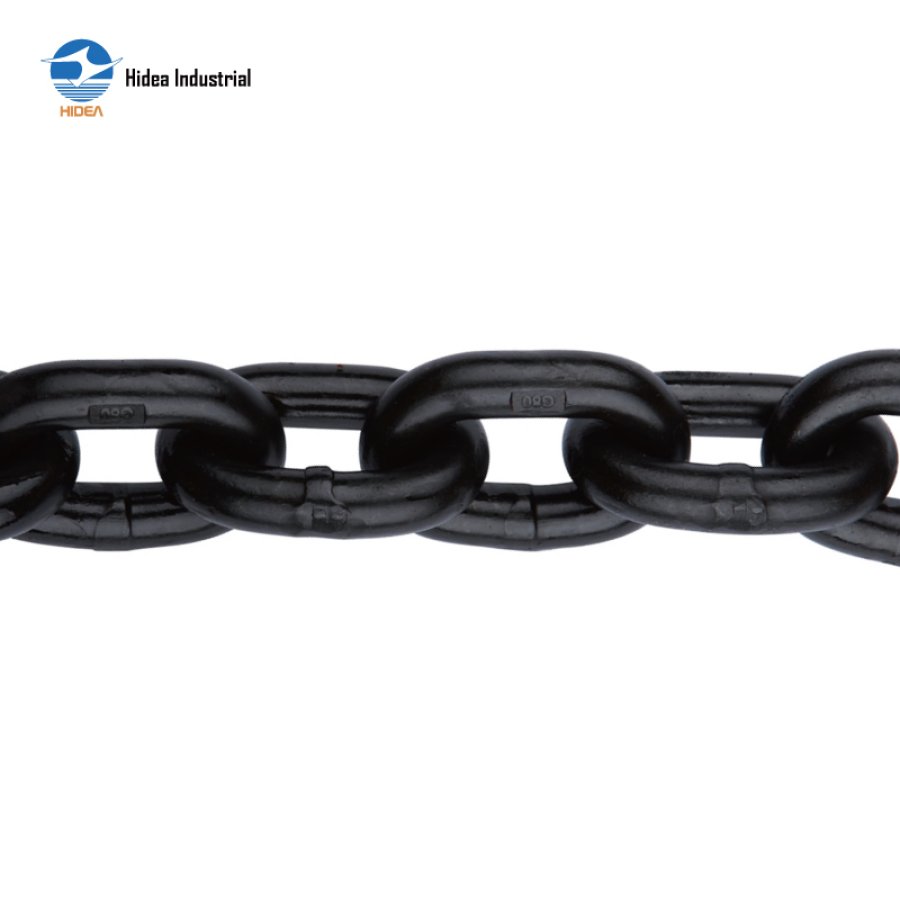

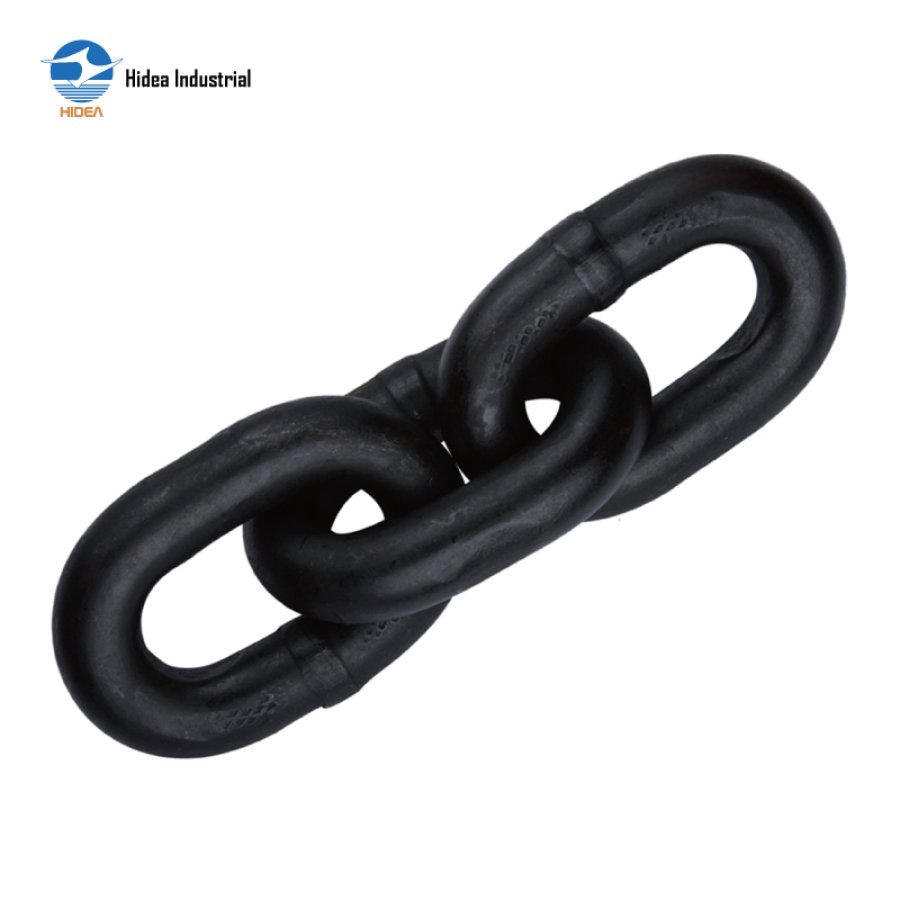

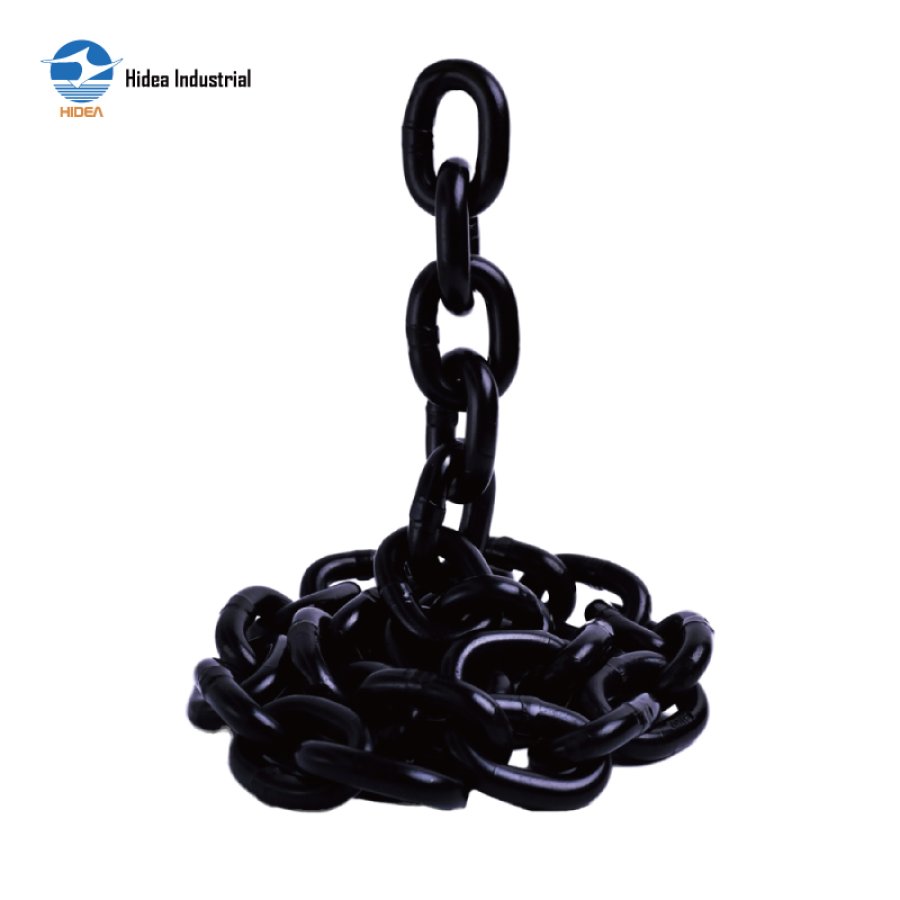

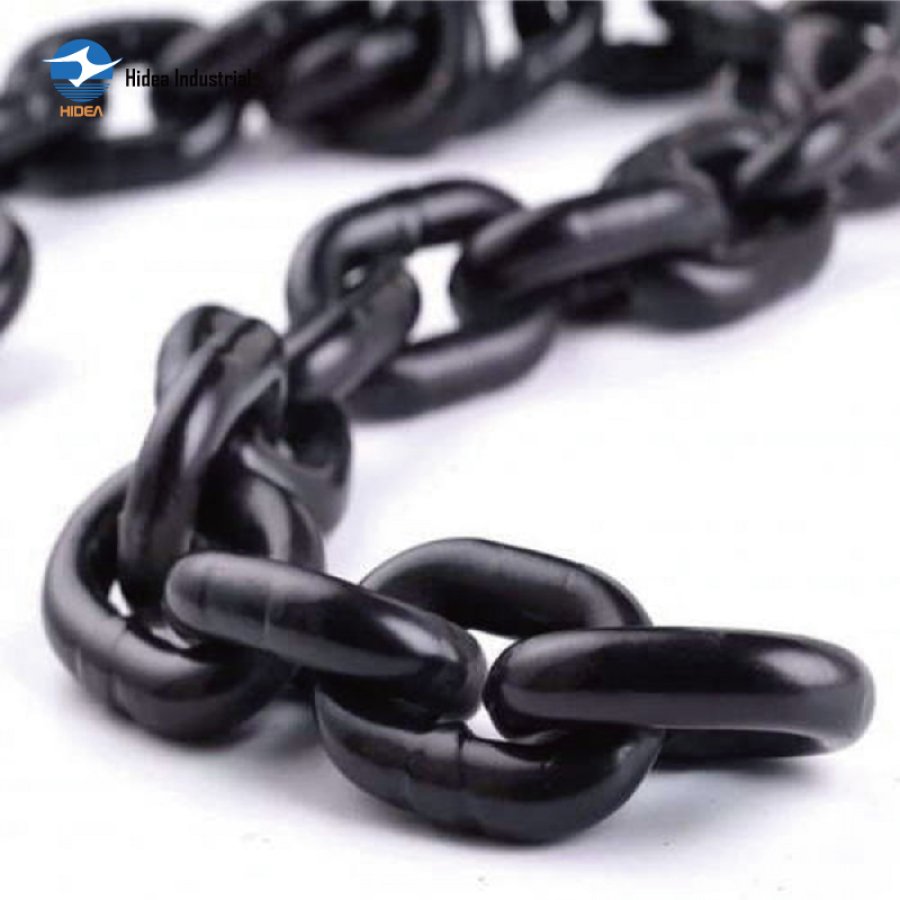

Hidea DIN5687 Alloy Steel Lifting Chain – Trusted for High-Load Lifting Operations

DIN5687-G80 LIFTING CHAIN

Material Super Alloy Steel
DIN5687 Class 8 Grade 80 Liftinmg / Loading Chains
Permanently embossed with G80
Proof Tested at minimum 2.5 times and ultimate load 4 times of working load

Inquire Now

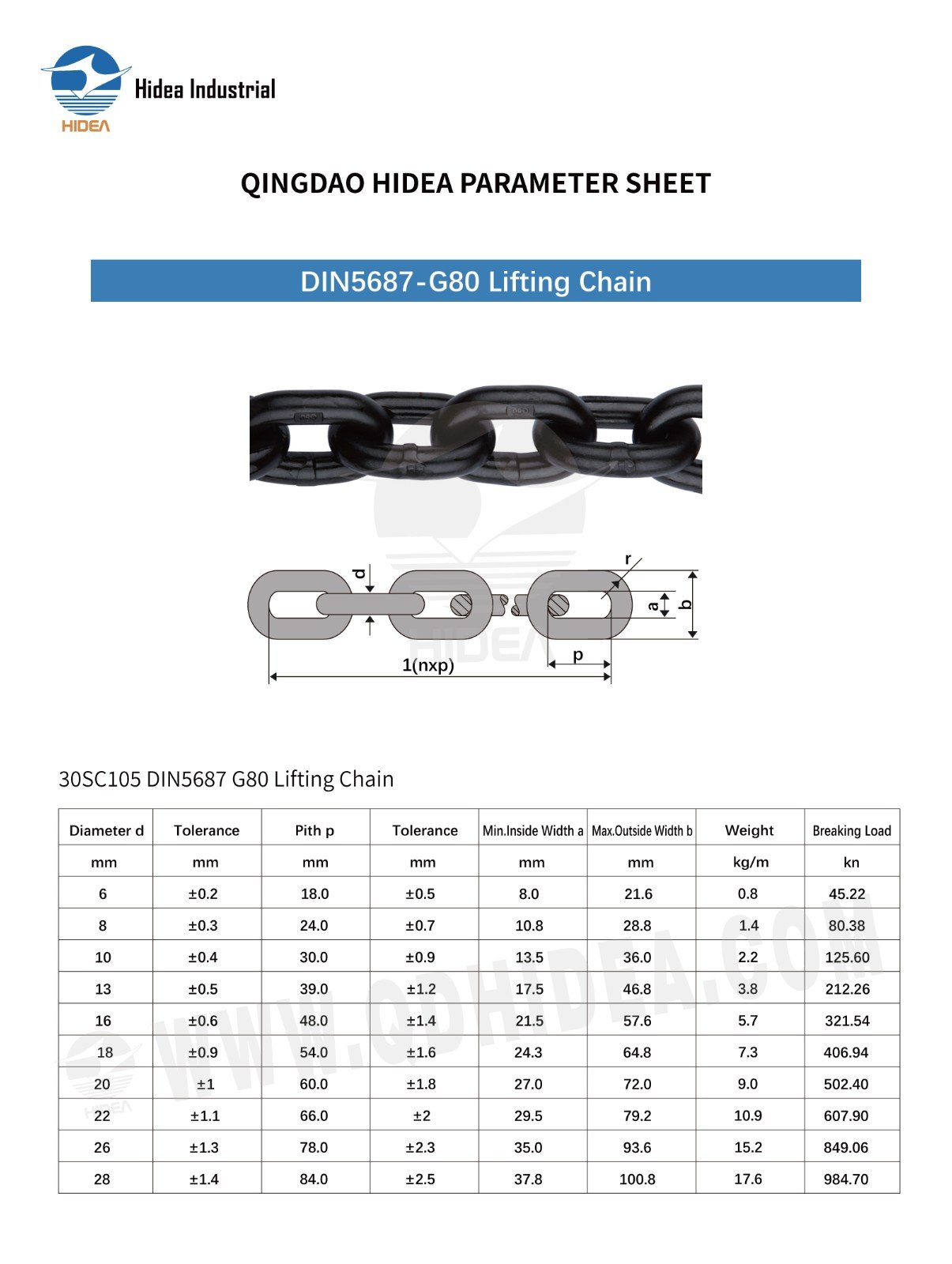

QINGDAO HIDEA PARAMETER SHEET FOR

30SC105 DIN5687G80 Lifting Chain

Diameter d	Tolerance	Pith p	Tolerance	Min.Inside Width a	Max.Outside Width b	Weight	Breaking Load
mm	mm	mm	mm	mm	mm	kg/m	kn
6	±0.2	18.0	±0.5	8.0	21.6	0.8	45.22
8	±0.3	24.0	±0.7	10.8	28.8	1.4	80.38
10	±0.4	30.0	±0.9	13.5	36.0	2.2	125.60
13	±0.5	39.0	±1.2	17.5	46.8	3.8	212.26
16	±0.6	48.0	±1.4	21.5	57.6	5.7	321.54
18	±0.9	54.0	±1.6	24.3	64.8	7.3	406.94
20	±1	60.0	±1.8	27.0	72.0	9.0	502.40
22	±1.1	66.0	±2	29.5	79.2	10.9	607.90
26	±1.3	78.0	±2.3	35.0	93.6	15.2	849.06
28	±1.4	84.0	±2.5	37.8	100.8	17.6	984.70
