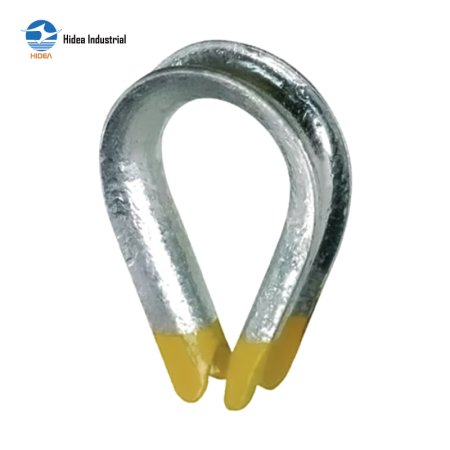

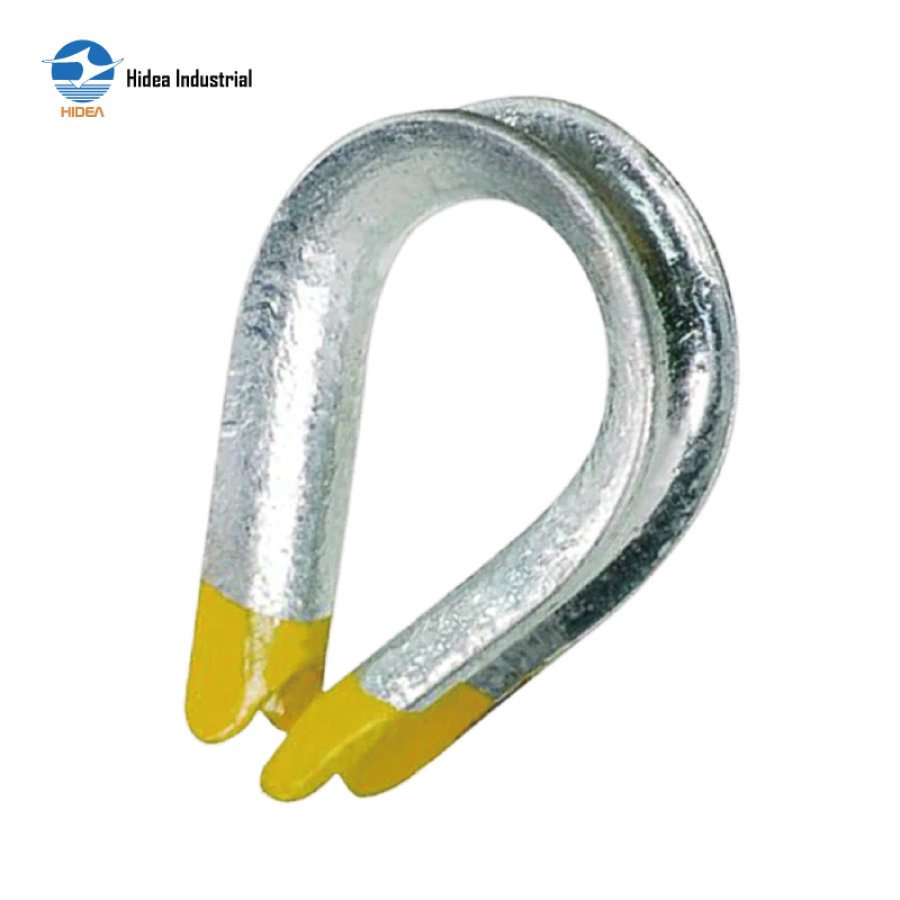

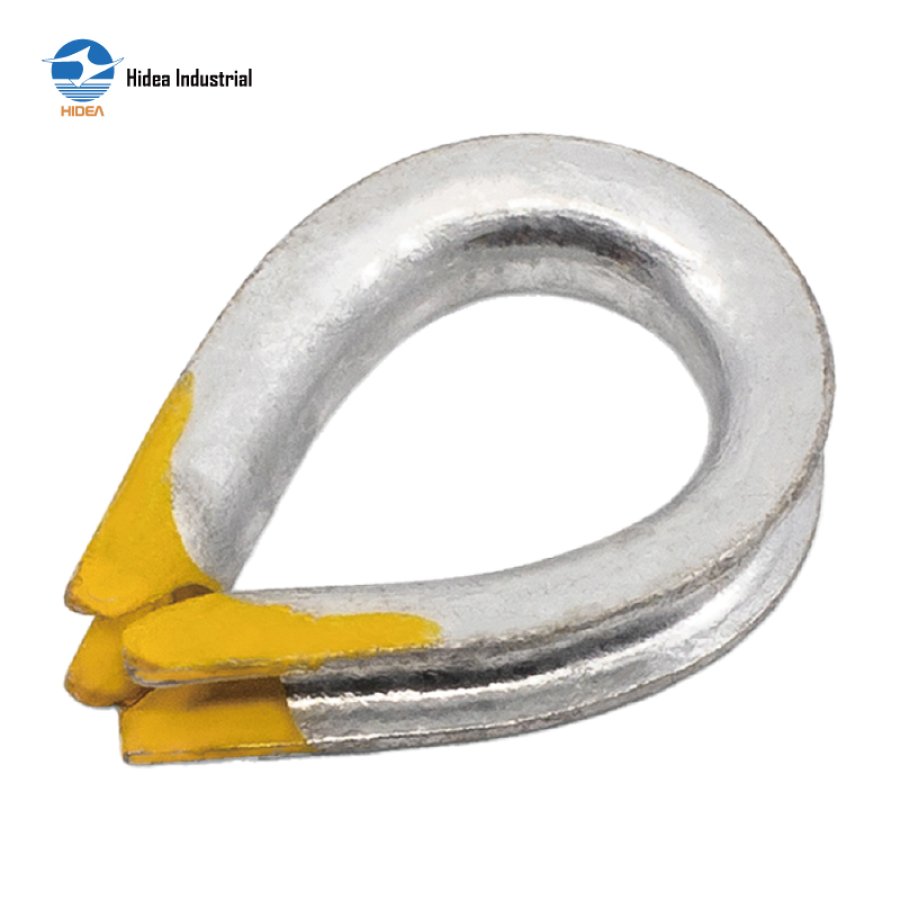

HIDEA AS1138 Galvanized Wire Rope Thimble: Heavy Duty Frame for Extra Strength & Durability

WIRE ROPE THIMBLE AS1138

Material Mild Steel
Stamped & Bent to shape, Machined & polished
Surface Hot Dip Galv., Electro Galv. / zinc plated OR as requested
AS1138 Wire Rope Thimble, Industrial AS1138

Inquire Now

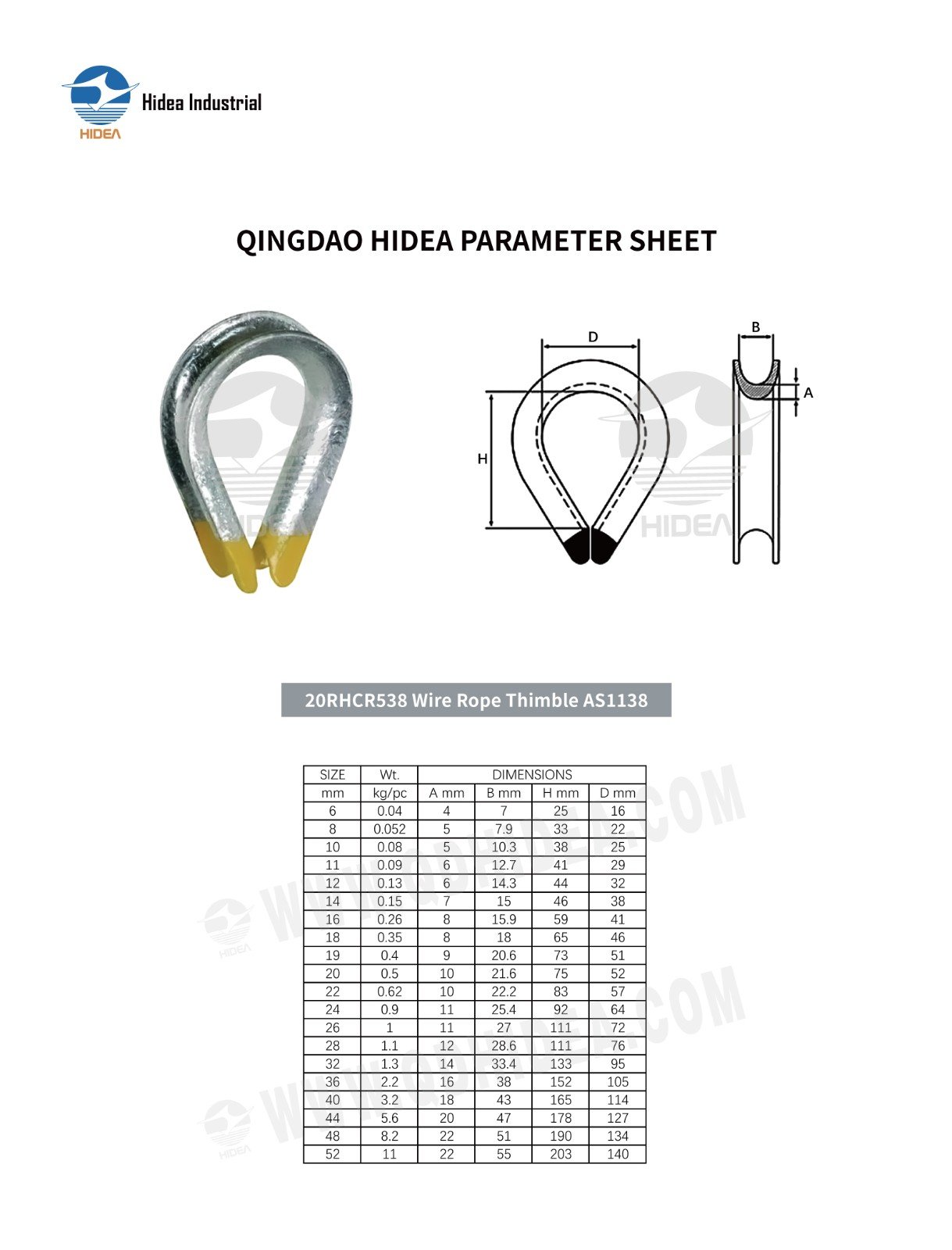

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR538 Wire Rope Thimble AS1138

SIZE	Wt.	DIMENSIONS
mm	kg/pc	A mm	B mm	H mm	D mm
6	0.04	4	7	25	16
8	0.052	5	7.9	33	22
10	0.08	5	10.3	38	25
11	0.09	6	12.7	41	29
12	0.13	6	14.3	44	32
14	0.15	7	15	46	38
16	0.26	8	15.9	59	41
18	0.35	8	18	65	46
19	0.4	9	20.6	73	51
20	0.5	10	21.6	75	52
22	0.62	10	22.2	83	57
24	0.9	11	25.4	92	64
26	1	11	27	111	72
28	1.1	12	28.6	111	76
32	1.3	14	33.4	133	95
36	2.2	16	38	152	105
40	3.2	18	43	165	114
44	5.6	20	47	178	127
48	8.2	22	51	190	134
52	11	22	55	203	140
