Efficient and Reliable Hidea G80 Viking Link

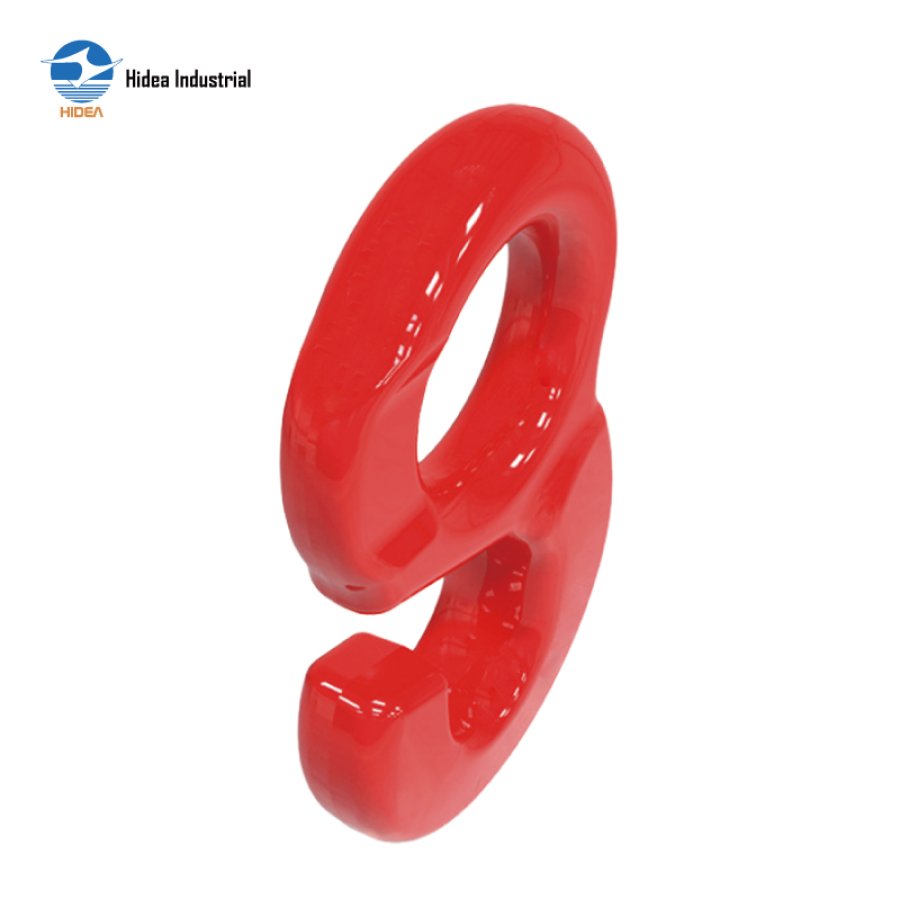

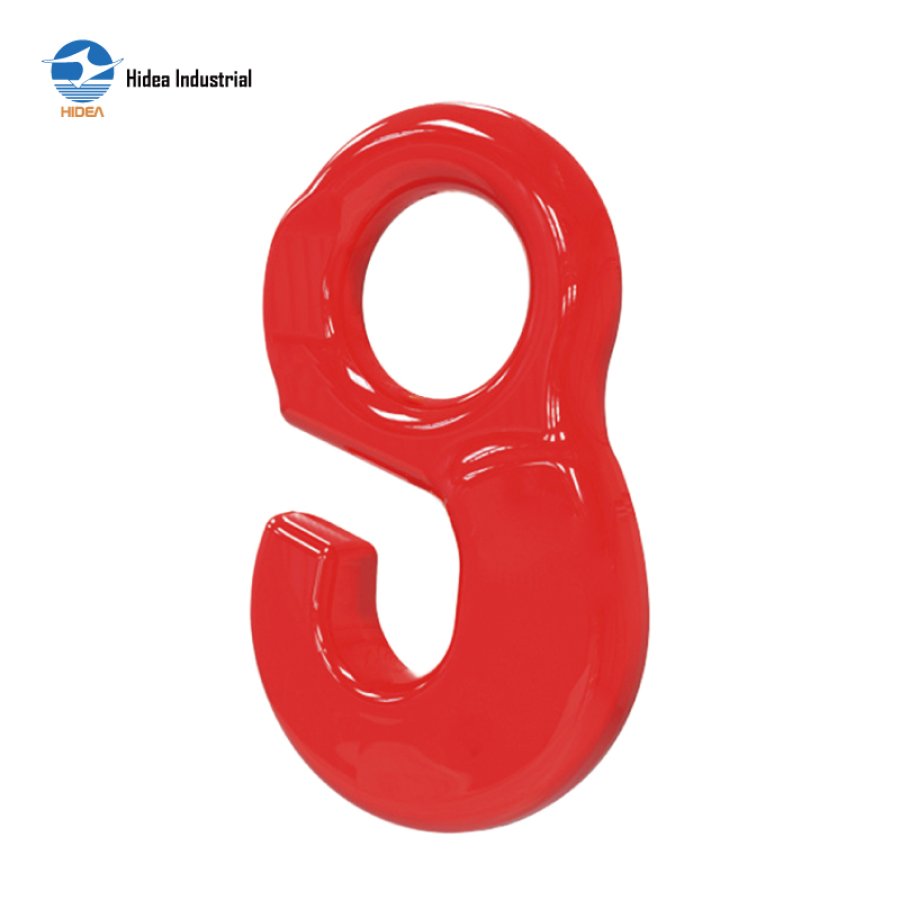

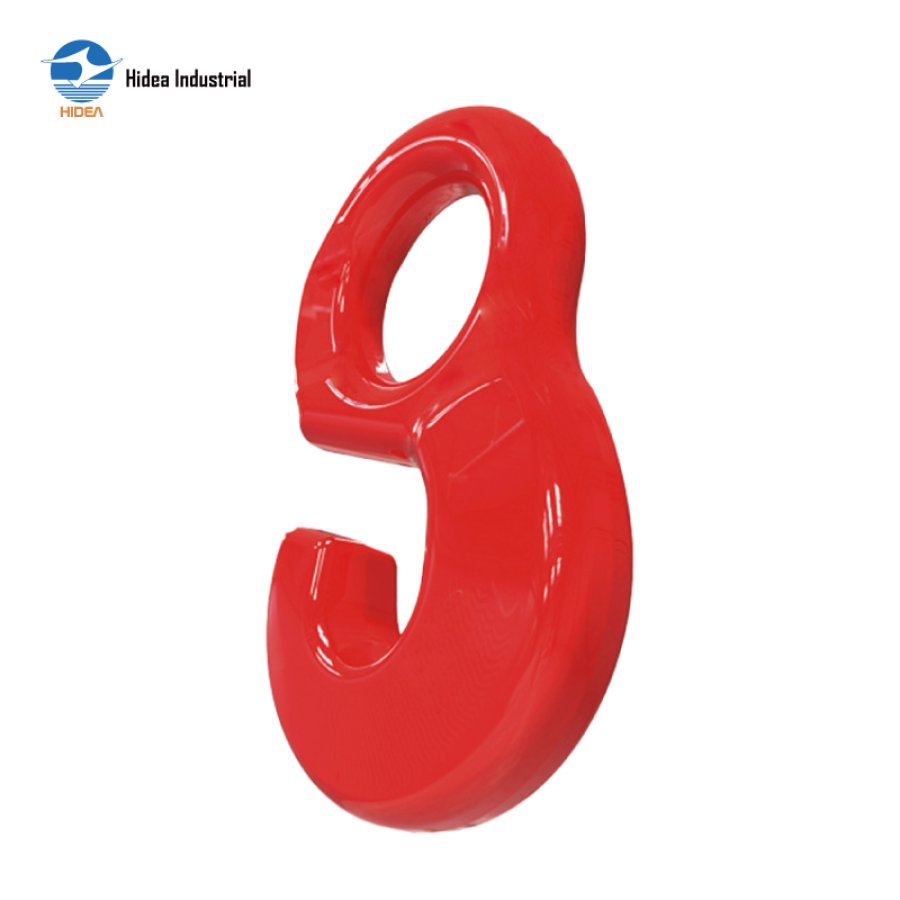

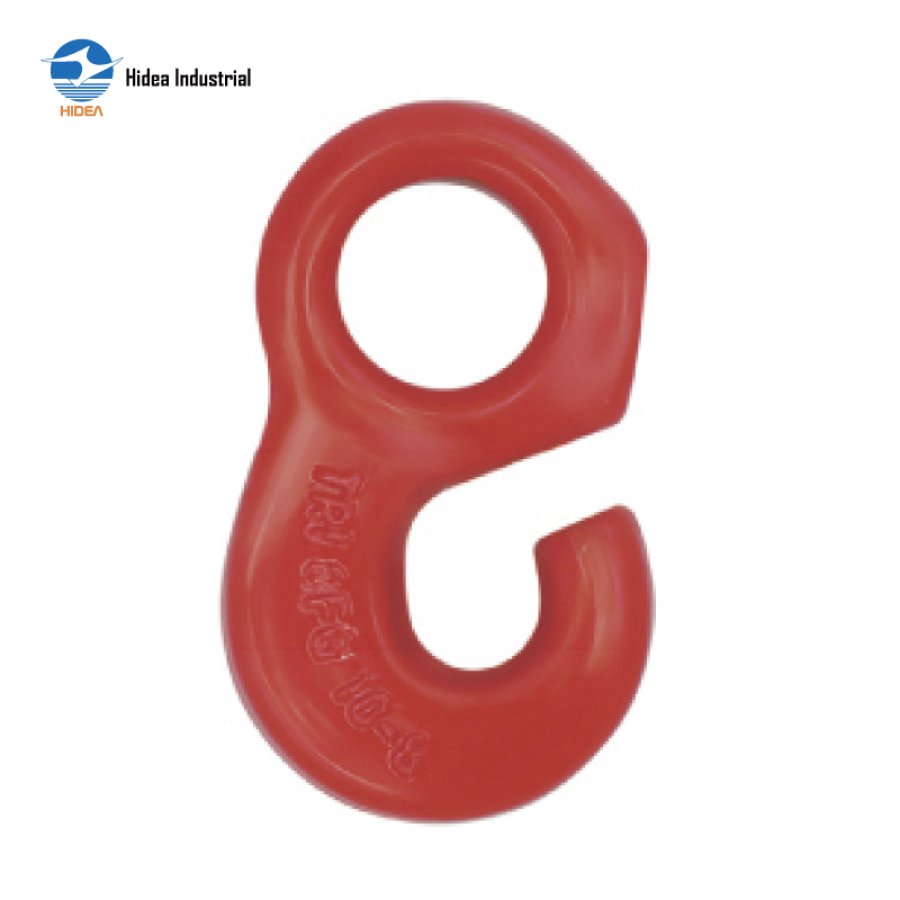

G80 OFG HOOK

Forged super alloy steel-Quenched and Tempered
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection

Inquire Now

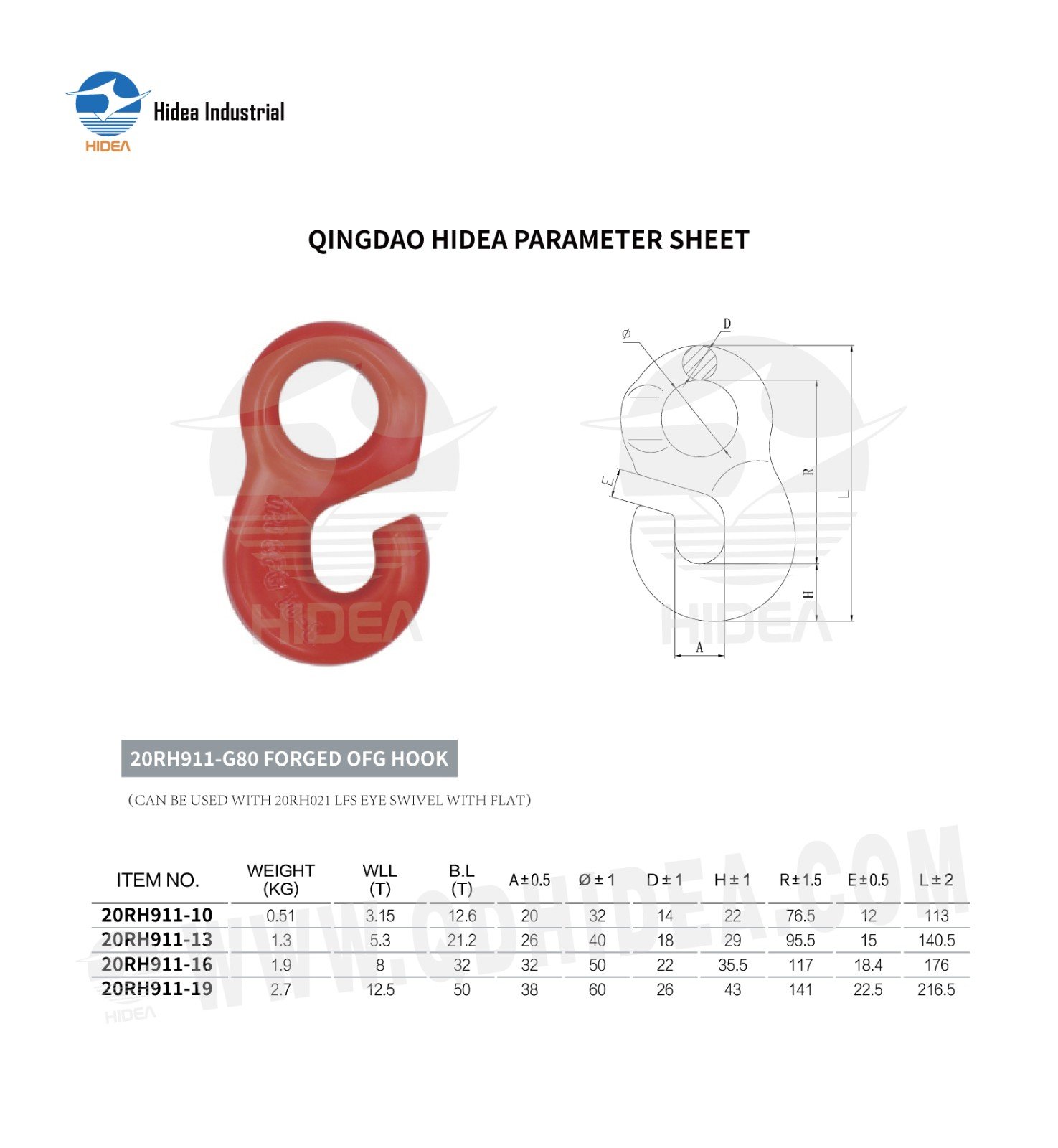

QINGDAO HIDEA PARAMETER SHEET FOR

20RH911-G80 FORGED OFG HOOK

ITEM NO.	WEIGHT (KG)	WLL (T)	B.L (T)	A±0.5	ø±1	D±1	H±1	R±1.5	E±0.5	L±2
20RH911-10	0.51	3.15	12.6	20	32	14	22	76.5	12	113
20RH911-13	1.3	5.3	21.2	26	40	18	29	95.5	15	140.5
20RH911-16	1.9	8	32	32	50	22	35.5	117	18.4	176
20RH911-19	2.7	12.5	50	38	60	26	43	141	22.5	216.5
