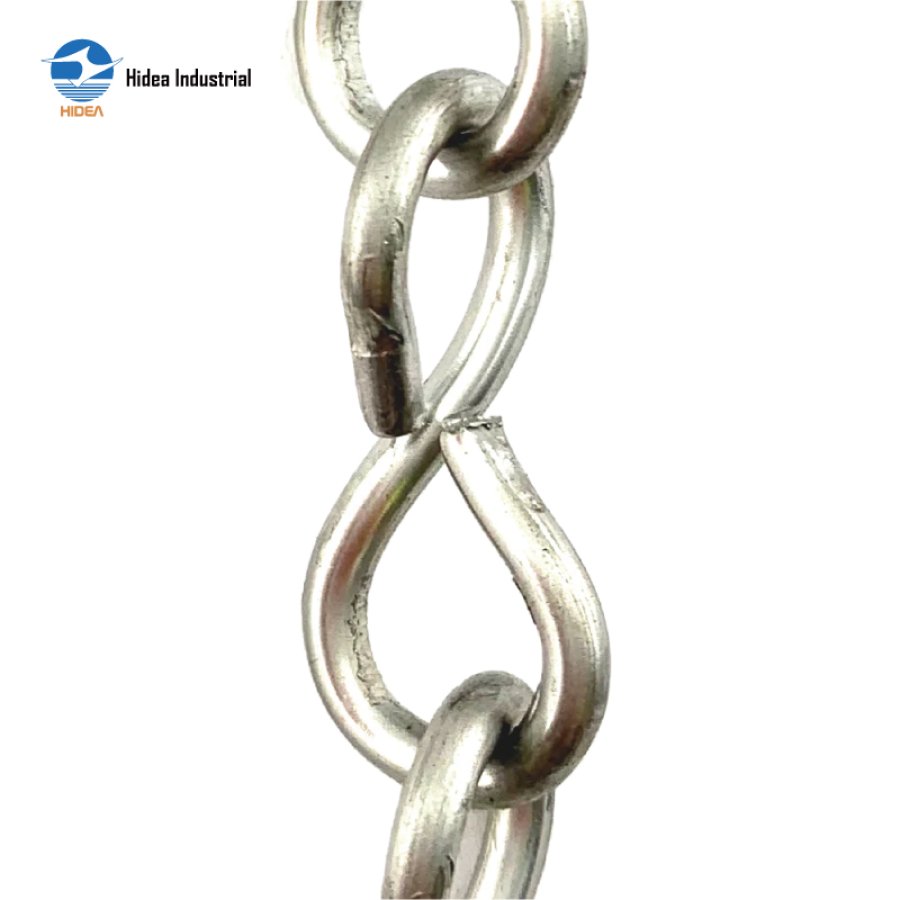

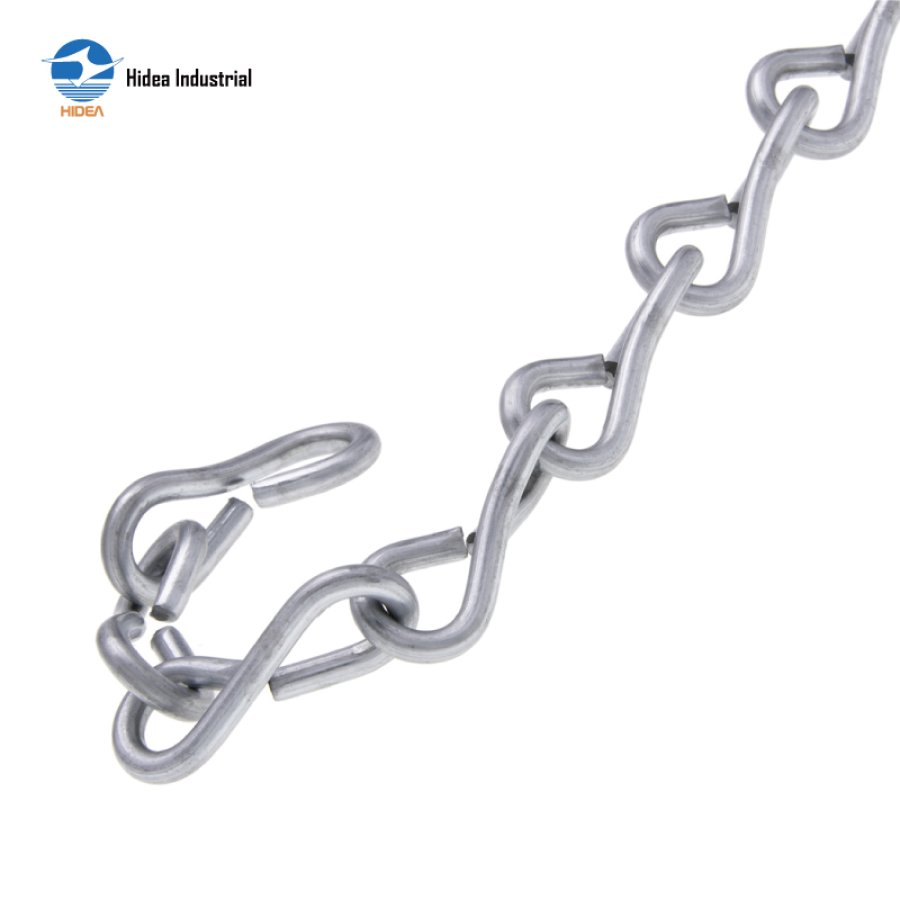

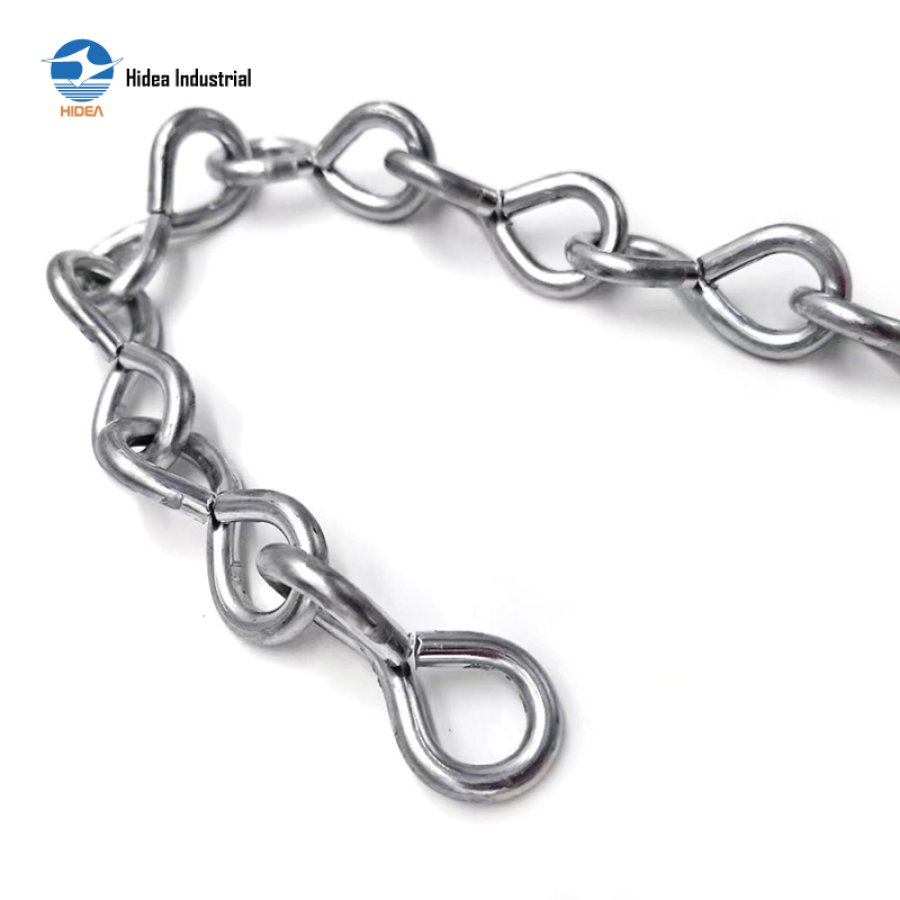

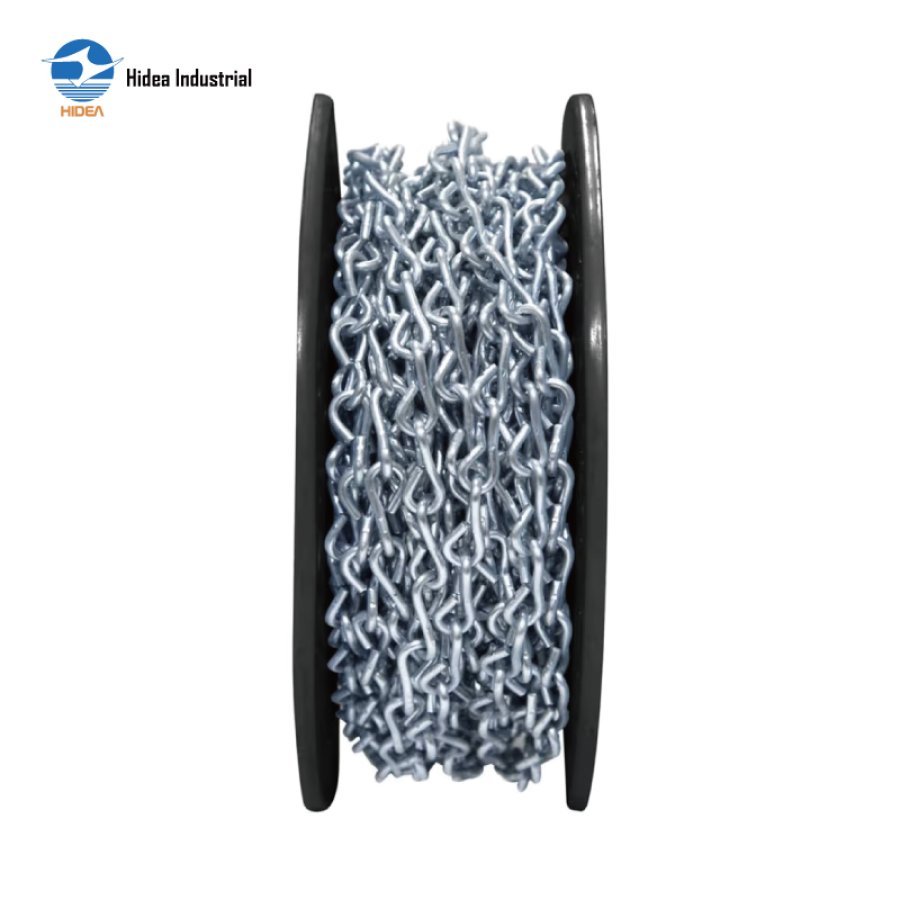

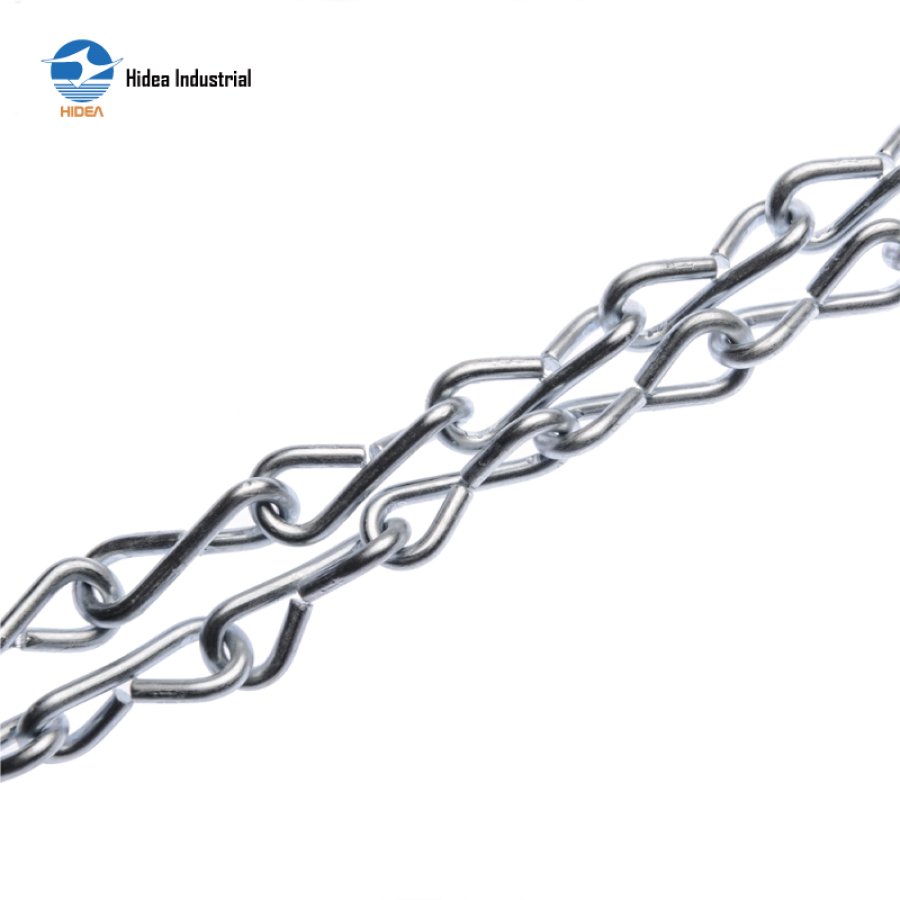

Sturdy and Durable Hidea Weldless Single Jack Chain for Hanging Applications

SINGLE JACK CHAIN

Material: Low Carbon Steel Steel OR Stainless Steel
Surface Treatment: Electro or as requested
Single Jack Chain Weldless Chain
Standard ASTM A466/A466M-98 Class 1.2.5 SJ—Single-jack chain

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

30SC148 Single Jack Chain

Size	Material Dia.		Outside Length		WLL.
Size	mm	inch	mm	inch	Lbs
20	0.9	0.035	10.2	0.40	1
18	1.2	0.047	12.5	0.49	5
18-L	1.2	0.047	16	0.63	5
17	1.4	0.055	20	0.79	7
16	1.6	0.063	15.9	0.63	10
16-L	1.6	0.063	21	0.83	10
14	2	0.079	20	0.79	16
12	2.5	0.098	25	0.98	29
12-L	2.6	0.102	26	1.02	29
11	3	0.118	30	1.18	35
10	3.4	0.134	30.5	1.20	43
10-L	3.4	0.134	34	1.34	43
8	4	0.157	40.6	1.60	60
6	4.8	0.189	53	2.09	88
