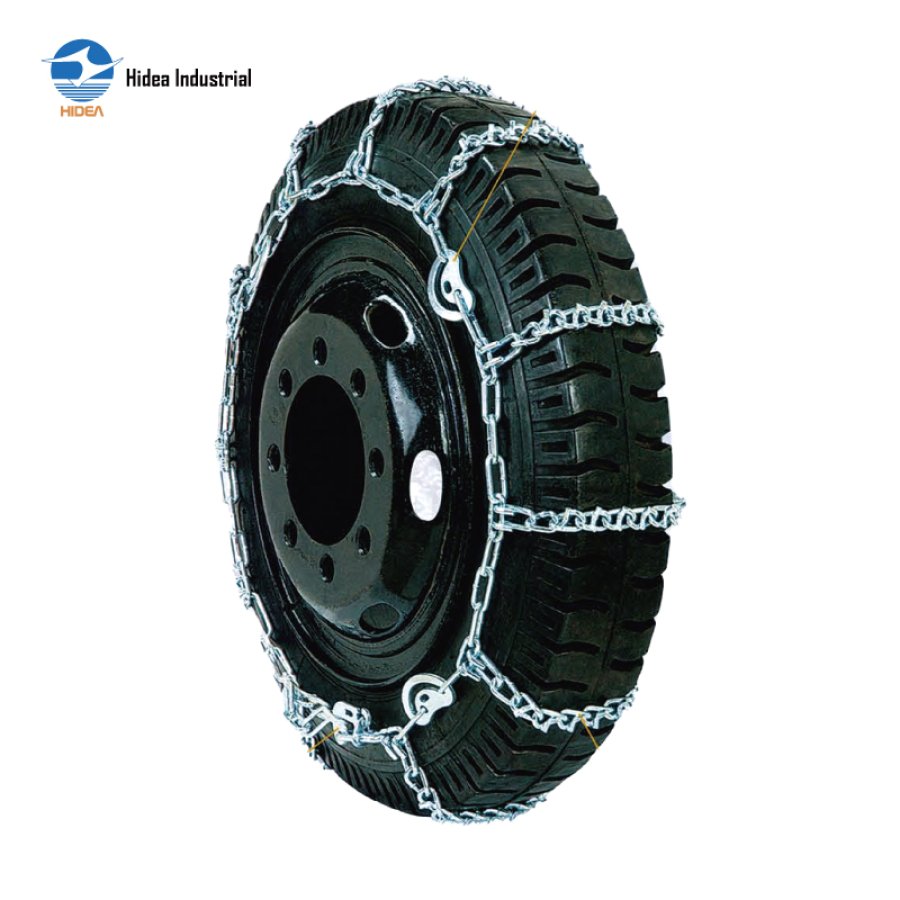

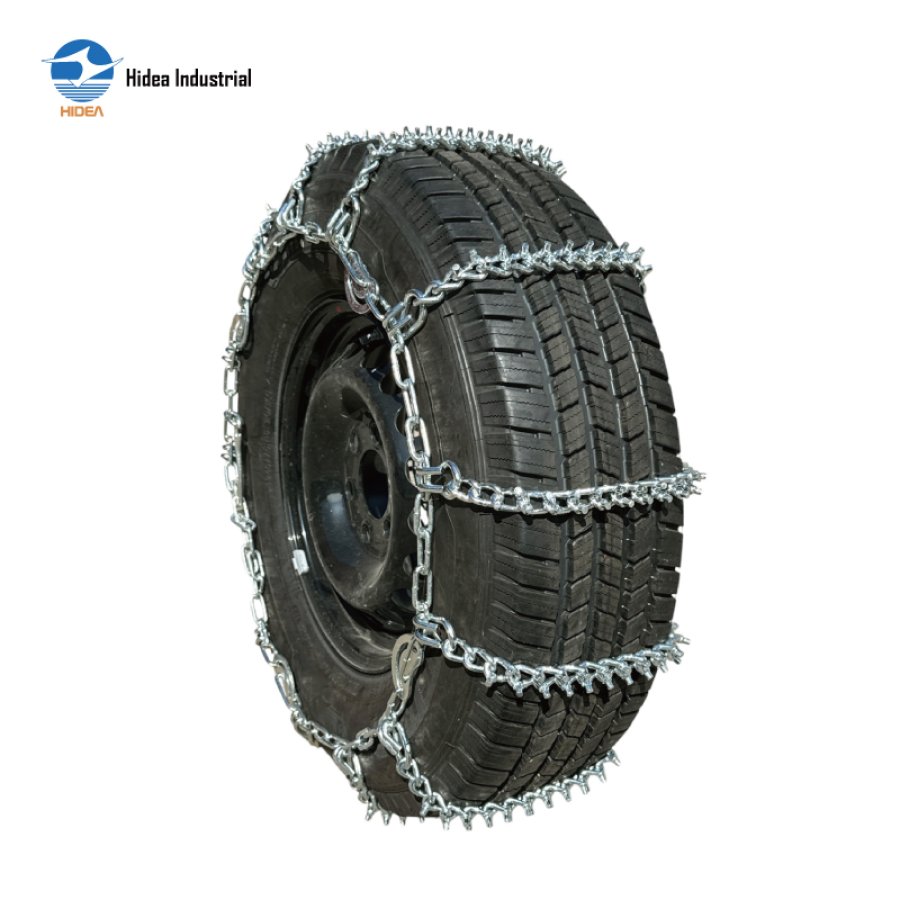

28/48 series single & double wheels snow chains designed specially for trucks with V-Bar for excellent funcationality

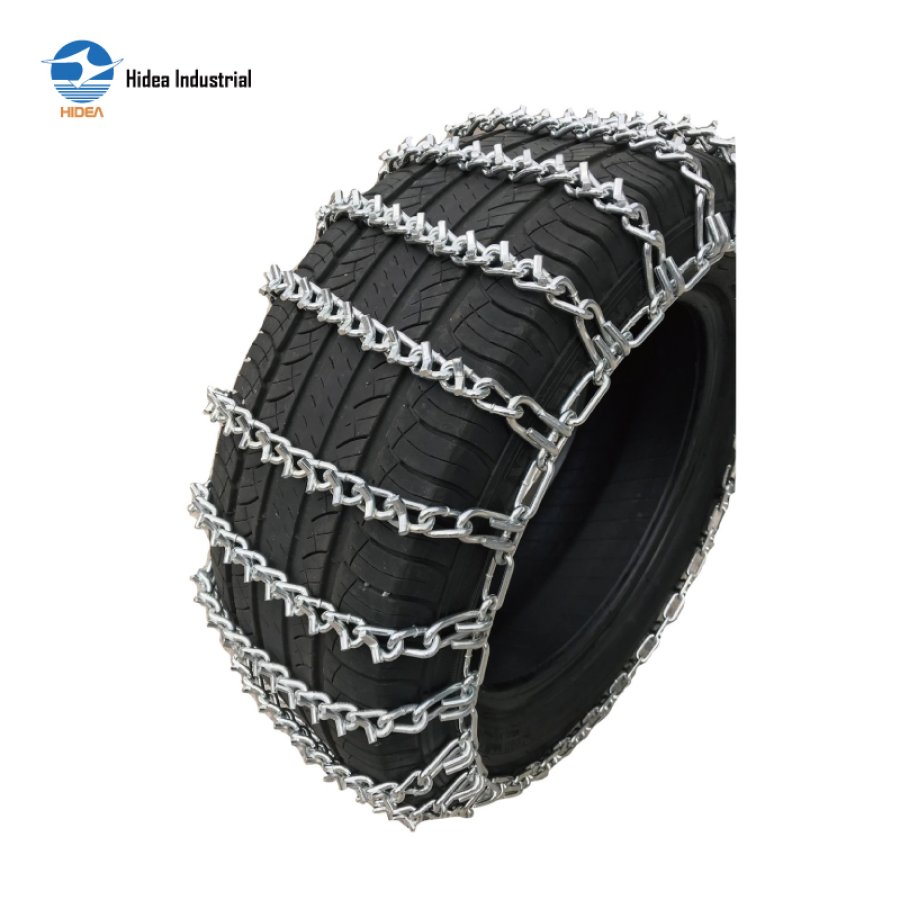

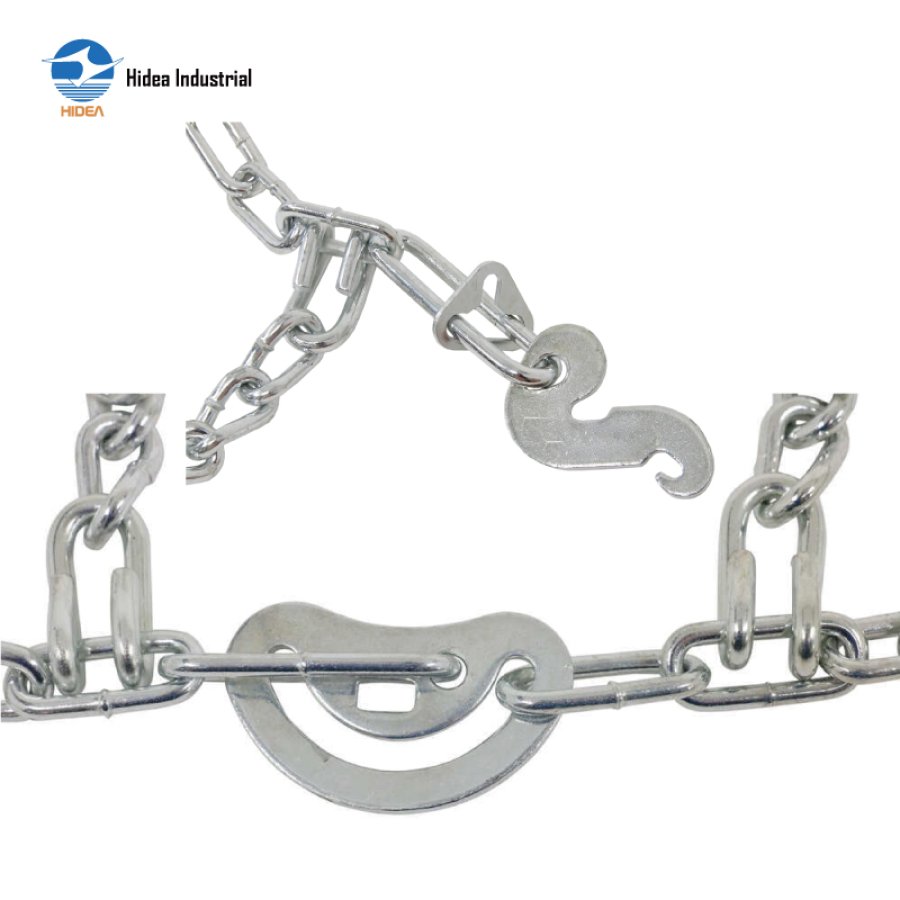

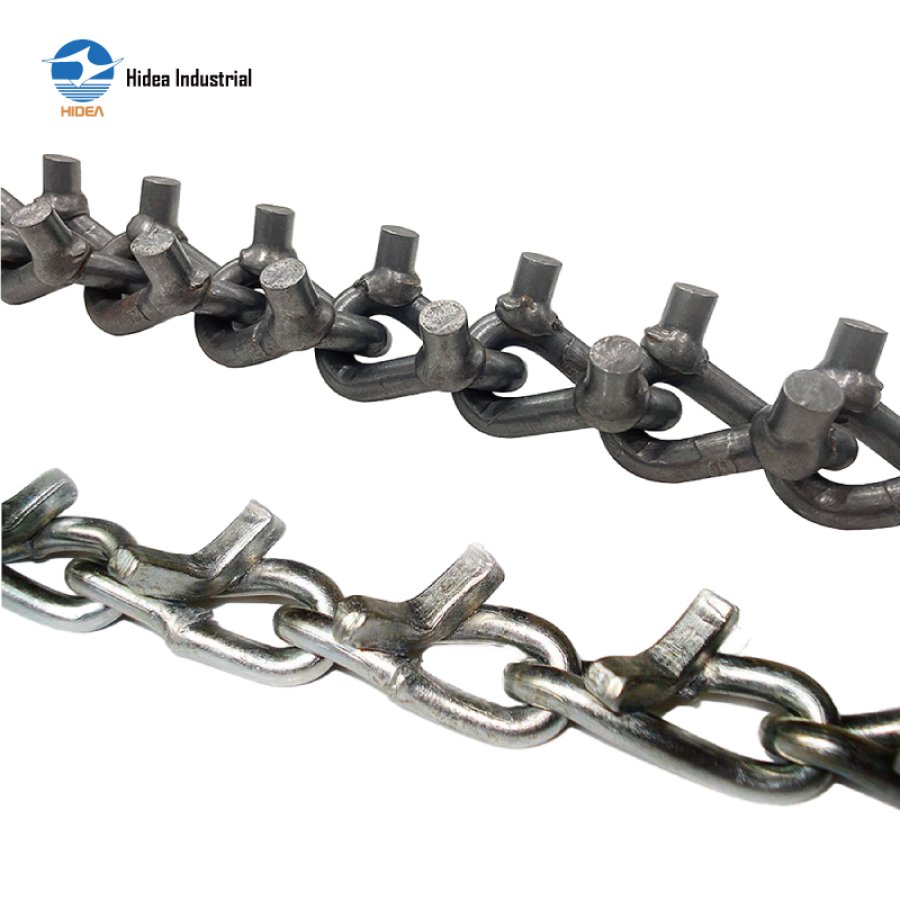

V-Bar designs on twisted chains links to ensure excellent gripping force and the CAM parts make tightening much easier
Intermediate frequency quenched & carburized to ensure hardness and anti-wearing
Working safely at low temperature of minus 40 degrees Celsius
Also AVAILABLE for Net Type & Diamond Type patterns
Meeting and complying with NORMS of US NACM - 92805 (TC), NORMS OF European EN 16662-1, ÖNORM and TÜV

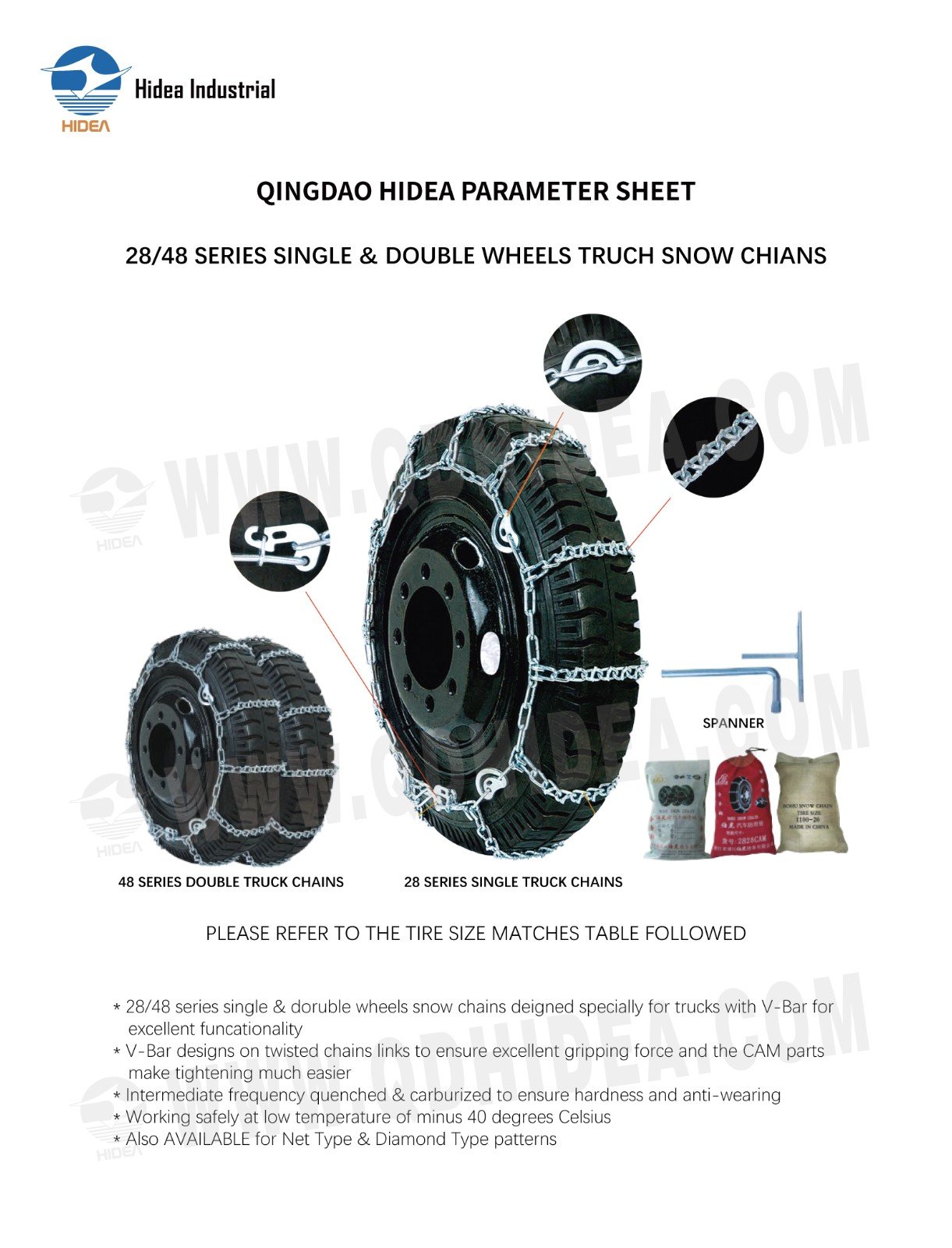

QINGDAO HIDEA PARAMETER SHEET FOR

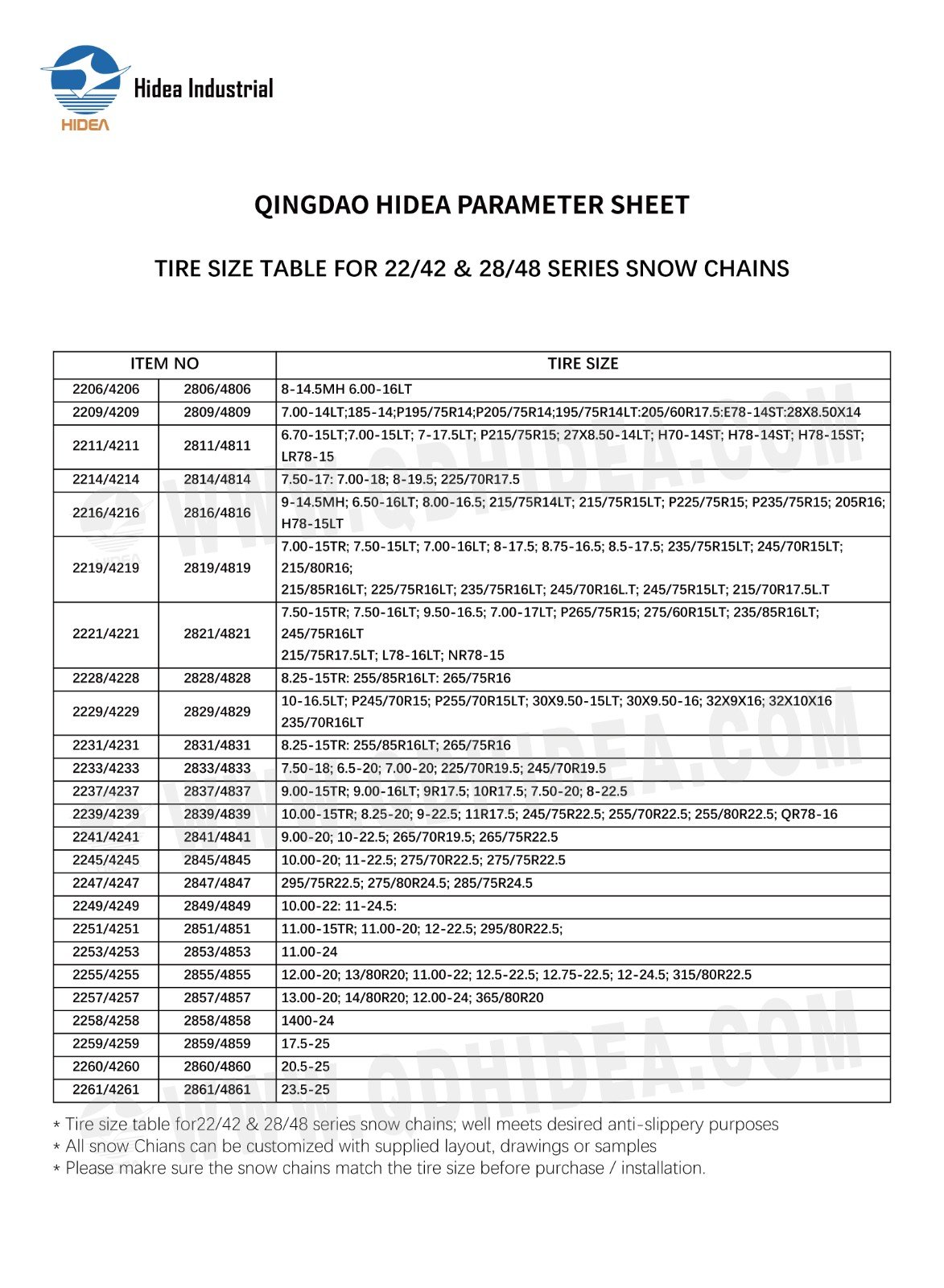

TIRE SIZE TABLE FOR 22/42&28/48 SERIES SNOW CHAINS
| ITEM NO | TIRE SIZE | |
| 2206/4206 | 2806/4806 | 8-14.5MH 6.00-16LT |
| 2209/4209 | 2809/4809 | 7.00-14LT;185-14;P195/75R14;P205/75R14;195/75R14LT:205/60R17.5:E78-14ST:28X8.50X14 |
| 2211/4211 | 2811/4811 | 6.70-15LT;7.00-15LT;7-17.5LT;P215/75R15;27X8.50-14LT;H70-14ST;H78-14ST;H78-15ST; LR78-15 |
| 2214/4214 | 2814/4814 | 7.50-17:7.00-18;8-19.5;225/70R17.5 |
| 2216/4216 | 2816/4816 | 9-14.5MH;6.50-16LT;8.00-16.5;215/75R14LT;215/75R15LT;P225/75R15;P235/75R15;205R16 H78-15LT |
| 2219/4219 | 2819/4819 | 7.00-15TR;7.50-15LT;7.00-16LT;8-17.5;8.75-16.5;8.5-17.5;235/75R15LT;245/70R15LT 215/80R16; 215/85R16LT;225/75R16LT;235/75R16LT;245/70R16L.T;245/75R15LT;215/70R17.5L.T |
| 2221/4221 | 2821/4821 | 7.50-15TR;7.50-16LT;9.50-16.5;7.00-17LT;P265/75R15;275/60R15LT;235/85R16LT; 245/75R16LT 215/75R17.5LT;L78-16LT;NR78-15 |
| 2228/4228 | 2828/4828 | 8.25-15TR:255/85R16LT:265/75R16 |
| 2229/4229 | 2829/4829 | 10-16.5LT;P245/70R15;P255/70R15LT;30X9.50-15LT;30X9.50-16;32X9X16;32X10X16 235/70R16LT |
| 2231/4231 | 2831/4831 | 8.25-15TR:255/85R16LT;265/75R16 |
| 2233/4233 | 2833/4833 | 7.50-18;6.5-20;7.00-20;225/70R19.5;245/70R19.5 |
| 2237/4237 | 2837/4837 | 9.00-15TR;9.00-16LT;9R17.5;10R17.5;7.50-20;8-22.5 |
| 2239/4239 | 2839/4839 | 10.00-15TR;8.25-20;9-22.5;11R17.5;245/75R22.5;255/70R22.5;255/80R22.5;QR78-16 |
| 2241/4241 | 2841/4841 | 9.00-20;10-22.5;265/70R19.5;265/75R22.5 |
| 2245/4245 | 2845/4845 | 10.00-20;11-22.5;275/70R22.5;275/75R22.5 |
| 2247/4247 | 2847/4847 | 295/75R22.5;275/80R24.5;285/75R24.5 |
| 2249/4249 | 2849/4849 | 10.00-22:11-24.5: |
| 2251/4251 | 2851/4851 | 11.00-15TR;11.00-20;12-22.5;295/80R22.5; |
| 2253/4253 | 2853/4853 | 11.00-24 |
| 2255/4255 | 2855/4855 | 12.00-20;13/80R20;11.00-22;12.5-22.5;12.75-22.5;12-24.5;315/80R22.5 |
| 2257/4257 | 2857/4857 | 13.00-20;14/80R20;12.00-24;365/80R20 |
| 2258/4258 | 2858/4858 | 1400-24 |
| 2259/4259 | 2859/4859 | 17.5-25 |
| 2260/4260 | 2860/4860 | 20.5-25 |
| 2261/4261 | 2861/4861 | 23.5-25 |
