Hidea G80 Lifting Clutch: The Ultimate Solution for Concrete Precast Lifting

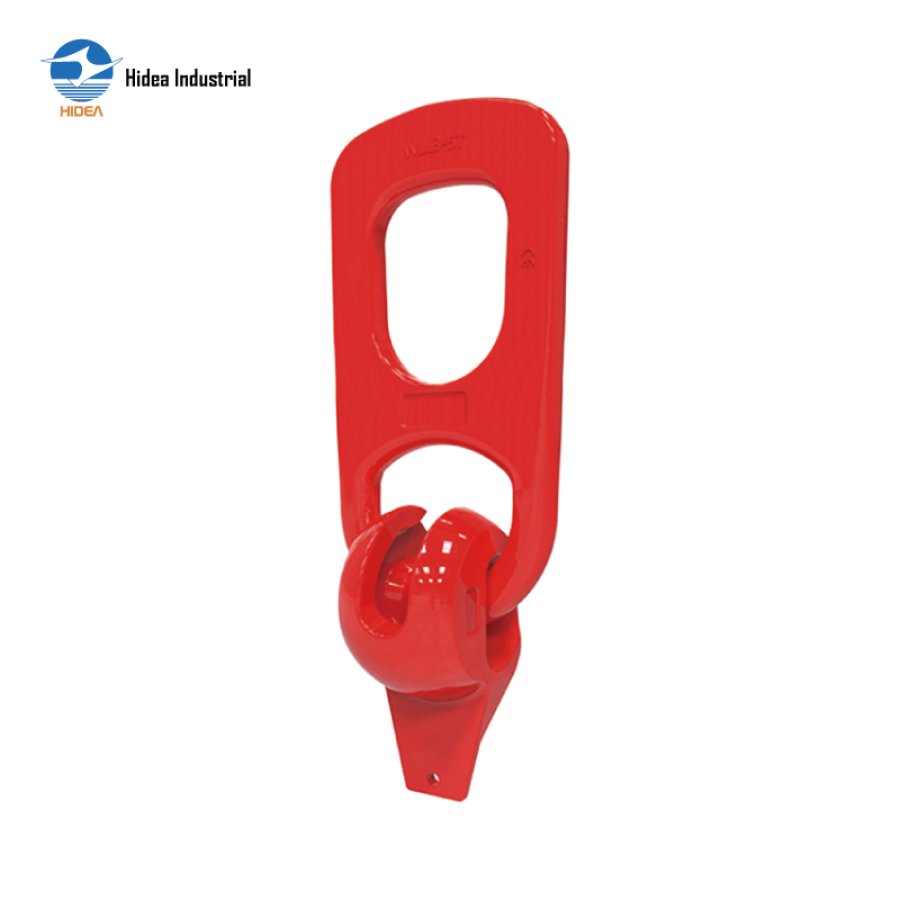

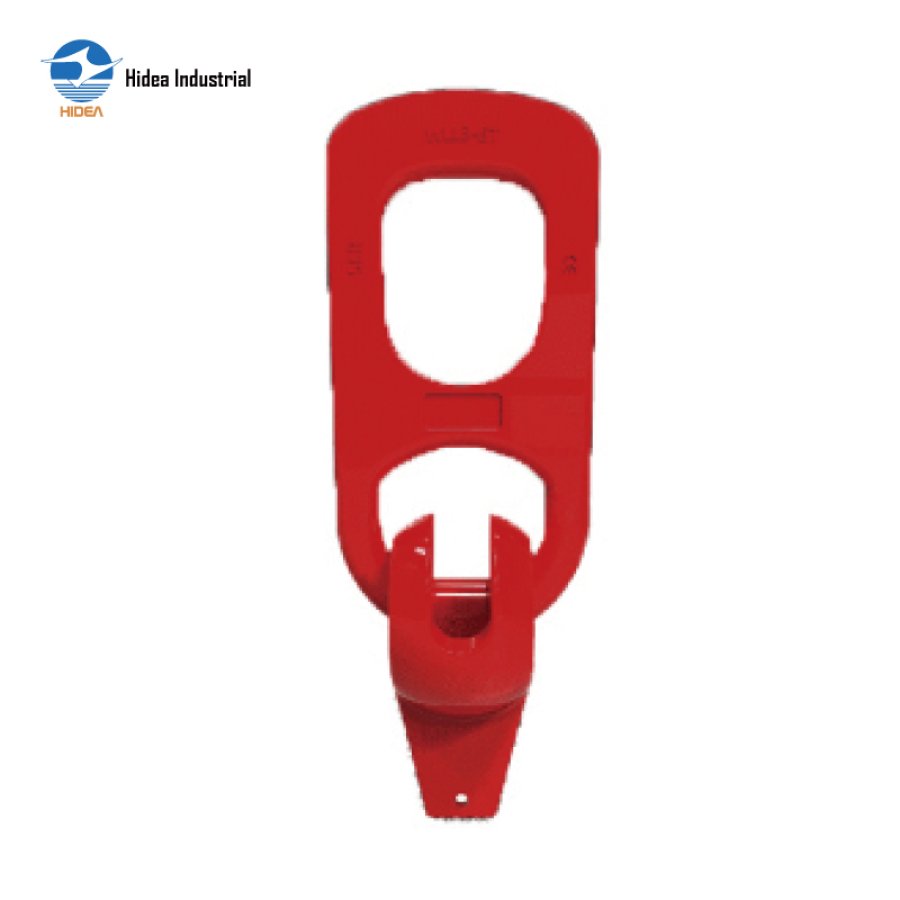

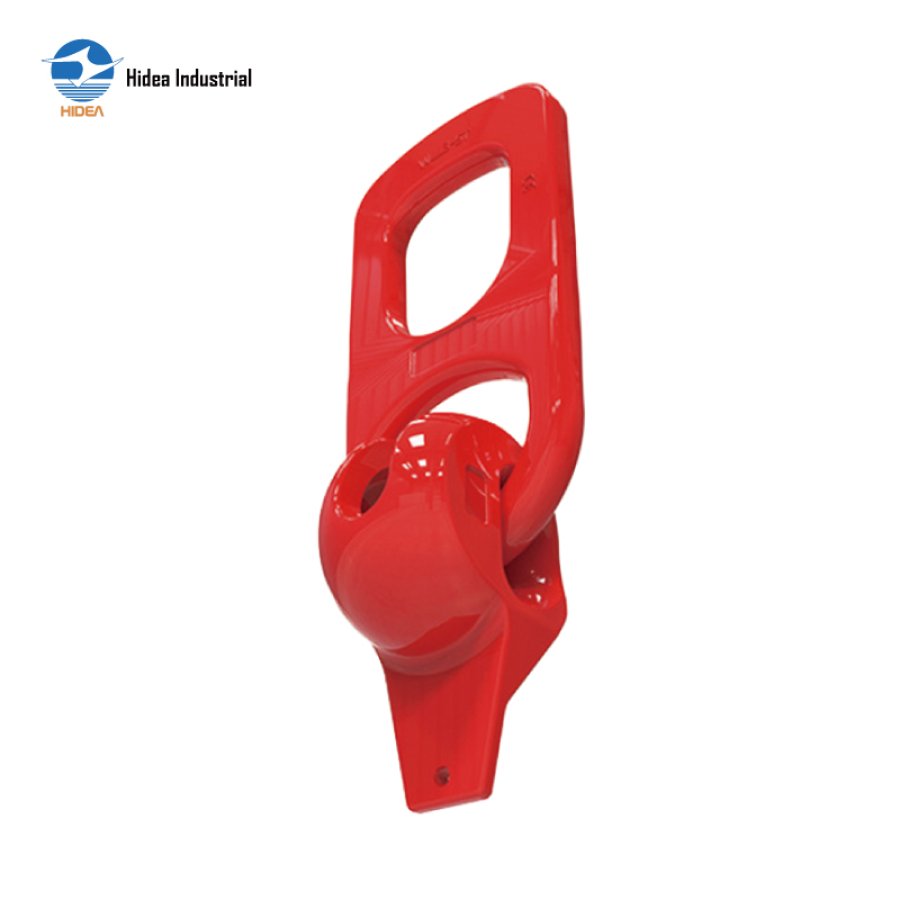

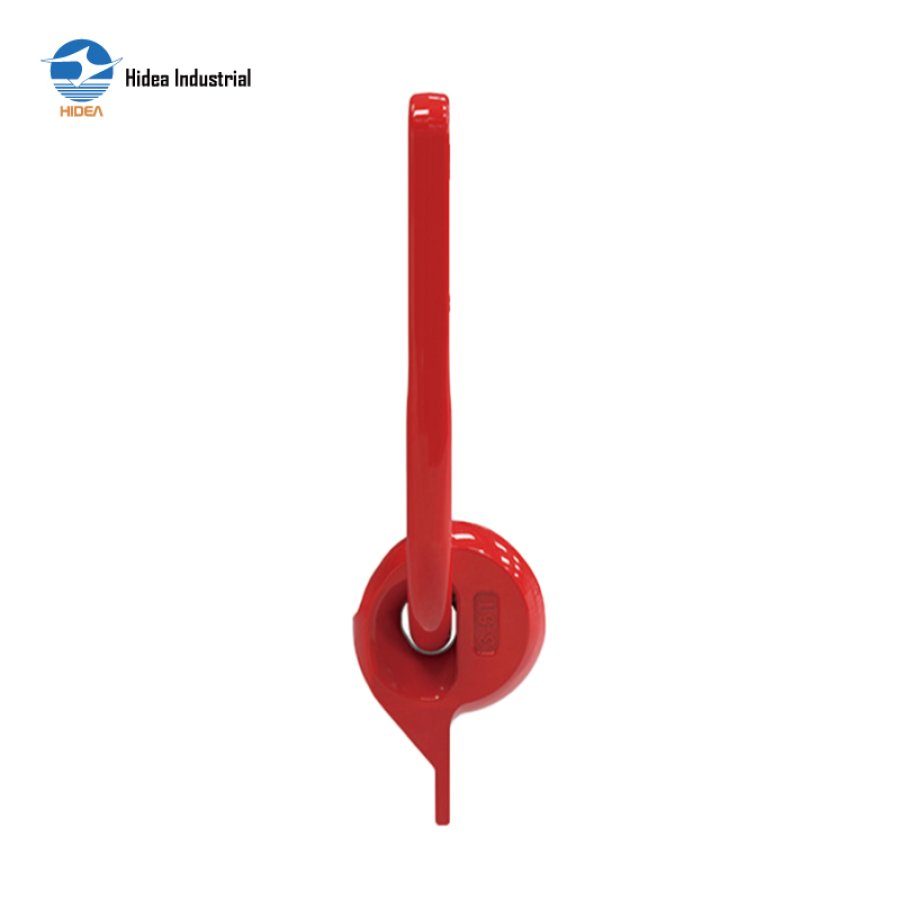

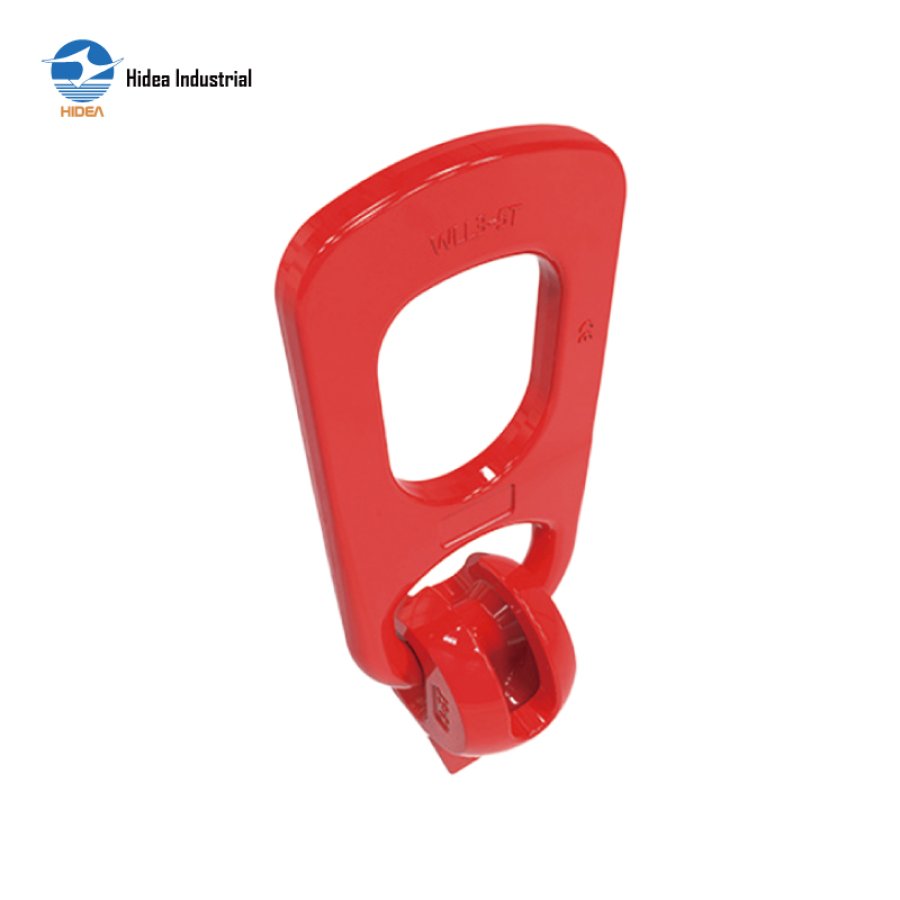

LIFTING CLUTCH FOR CONCRETE PRECAST ELEMENT

Component A: cast super alloy
Component B: Forged alloy steel
100% magnaflux crack detection
Breakage test
Surface finish: Electro-galvanizng/POWDER plastifed
Safety factor: 5:1

Inquire Now

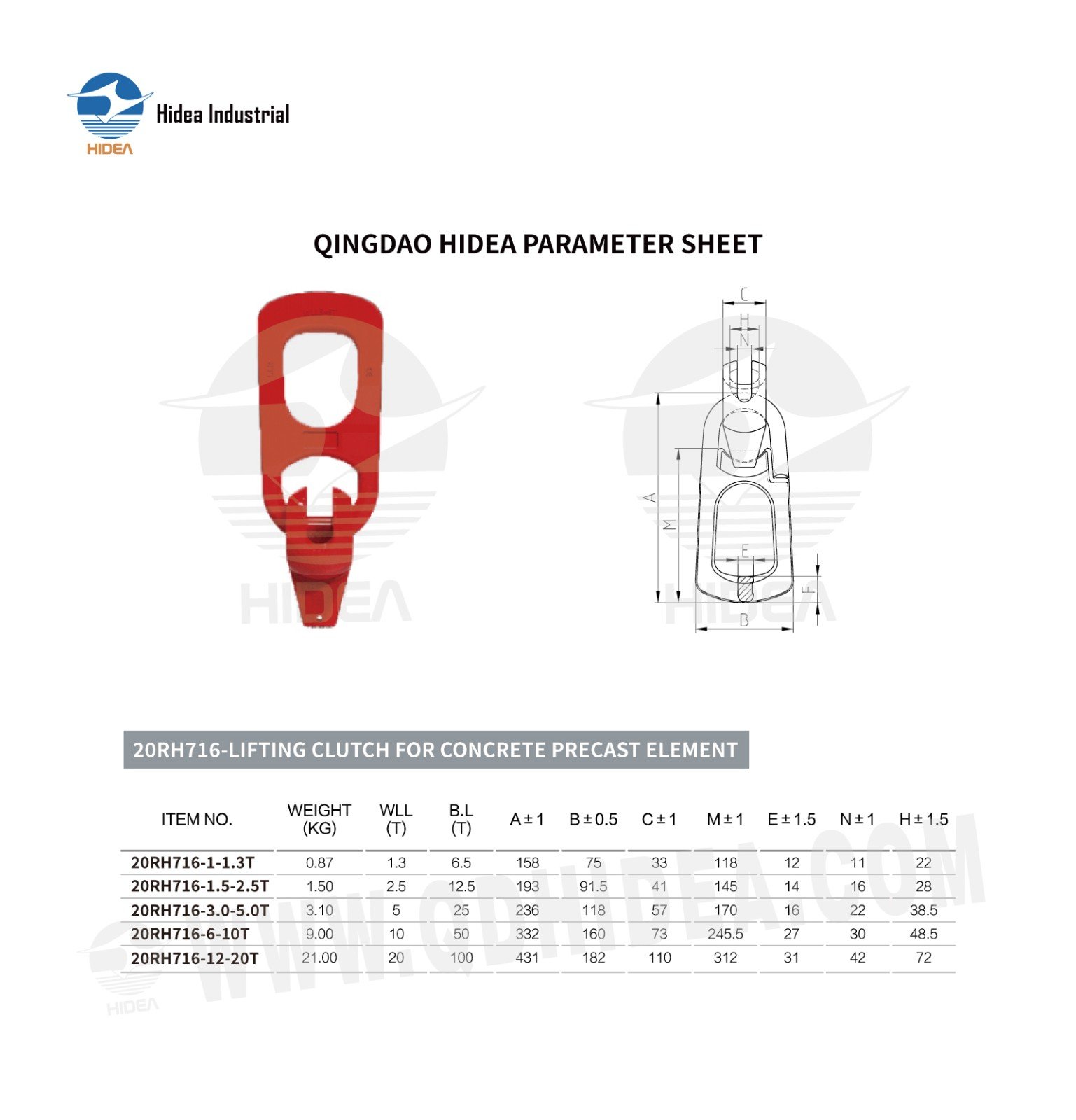

QINGDAO HIDEA PARAMETER SHEET FOR

20RH716-LIFTING CLUTCH FOR CONCRETE PRECAST ELEMENT

ITEM NO.	WEIGHT (KG)	WLL (T)	B.L (T)	A±1	B±0.5	C±1	M±1	E±1.5	N±1	H±1.5
20RH716-1-1.3T	0.87	1.3	6.5	158	75	33	118	12	11	22
20RH716-1.5-2.5T	1.50	2.5	12.5	193	91.5	41	145	14	16	28
20RH716-3.0-5.0T	3.10	5	25	236	118	57	170	16	22	38.5
20RH716-6-10T	9.00	10	50	332	160	73	245.5	27	30	48.5
20RH716-12-20T	21.00	20	100	431	182	110	312	31	42	72
