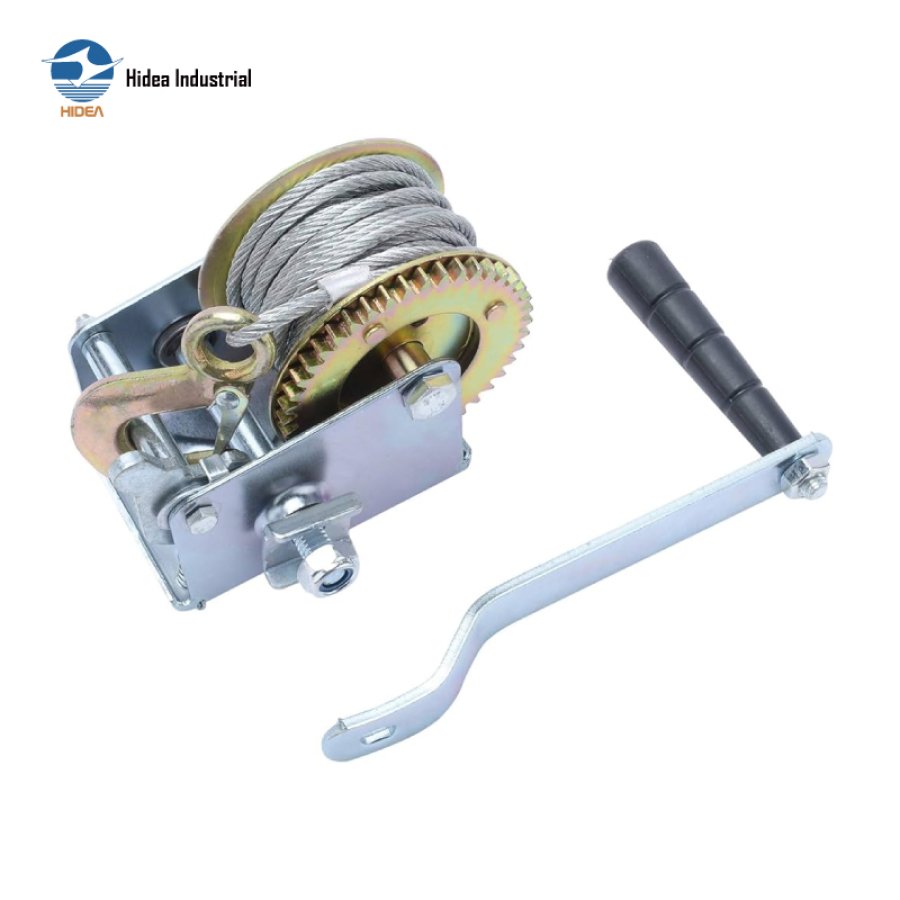

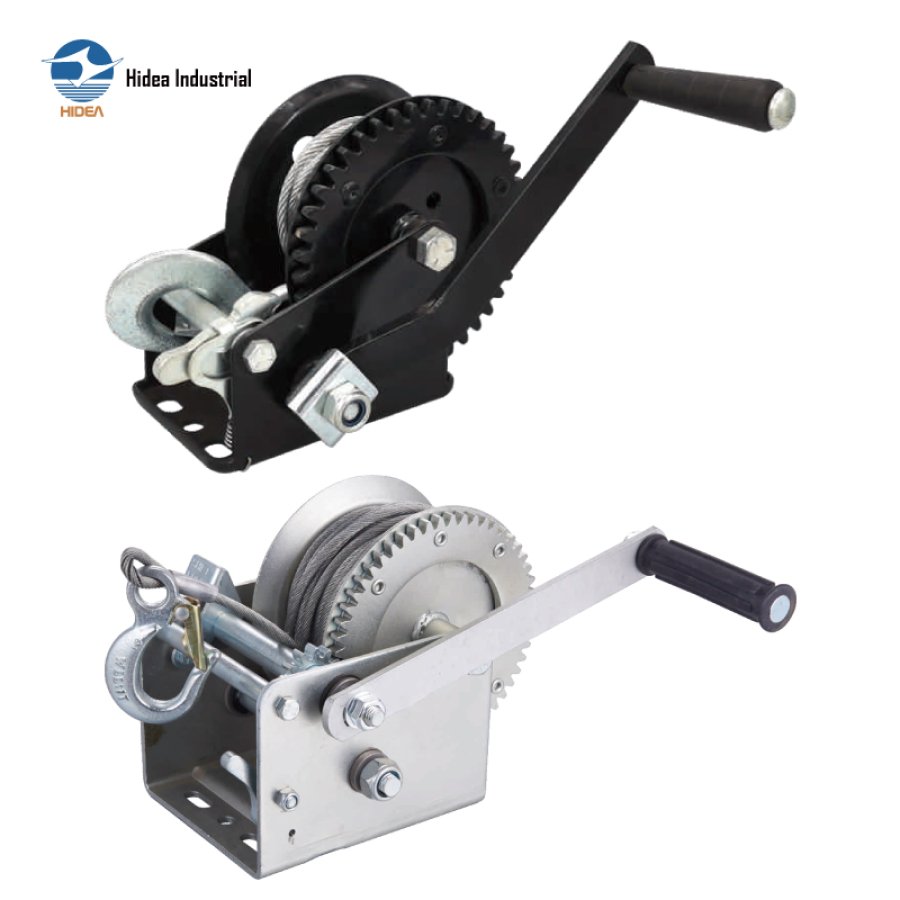

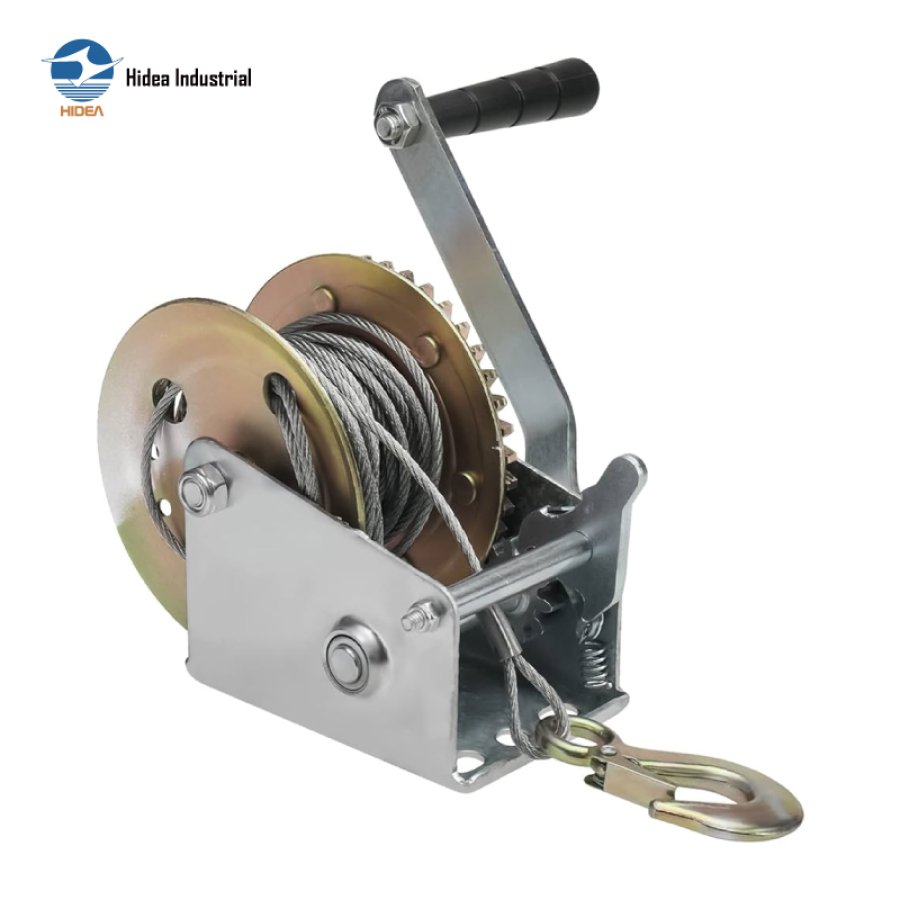

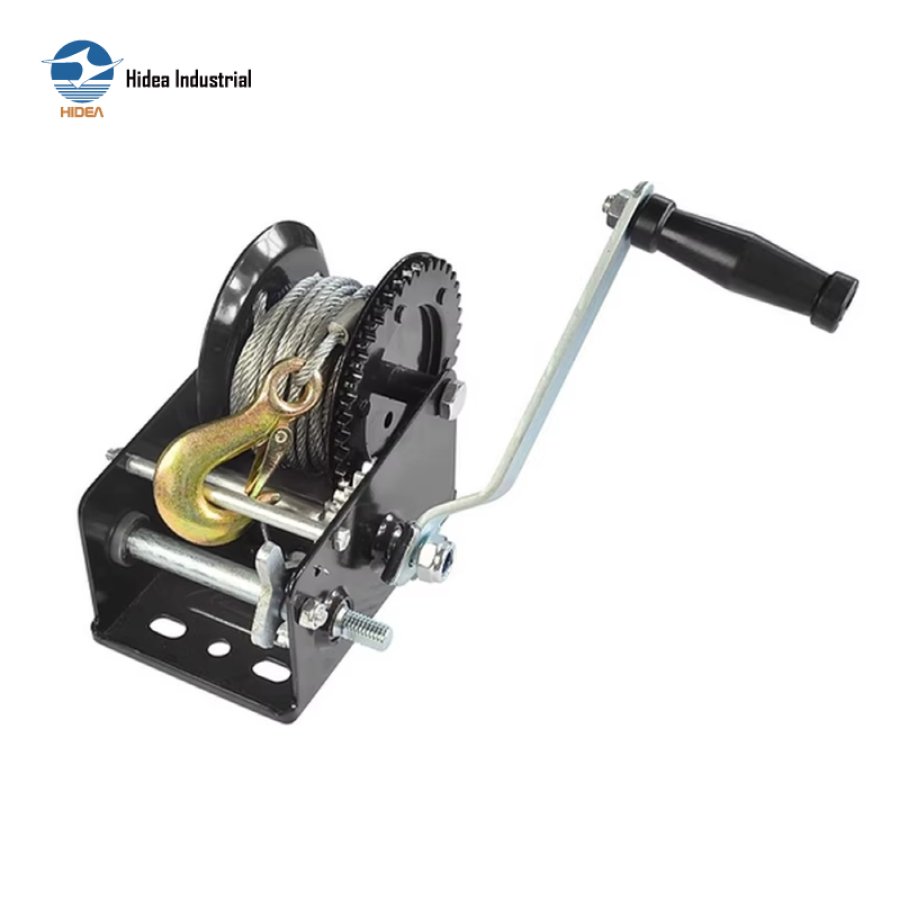

The hand winch with wire rope cable and crank handle, also commonly referred to as a manual winch, is a type of mechanical ratchet device that uses a crank or lever operated by hand to rotate the winch drum and wind the wire rope around it for lifting and pulling applications to move heavy objects, such as boats, vehicles, and machinery

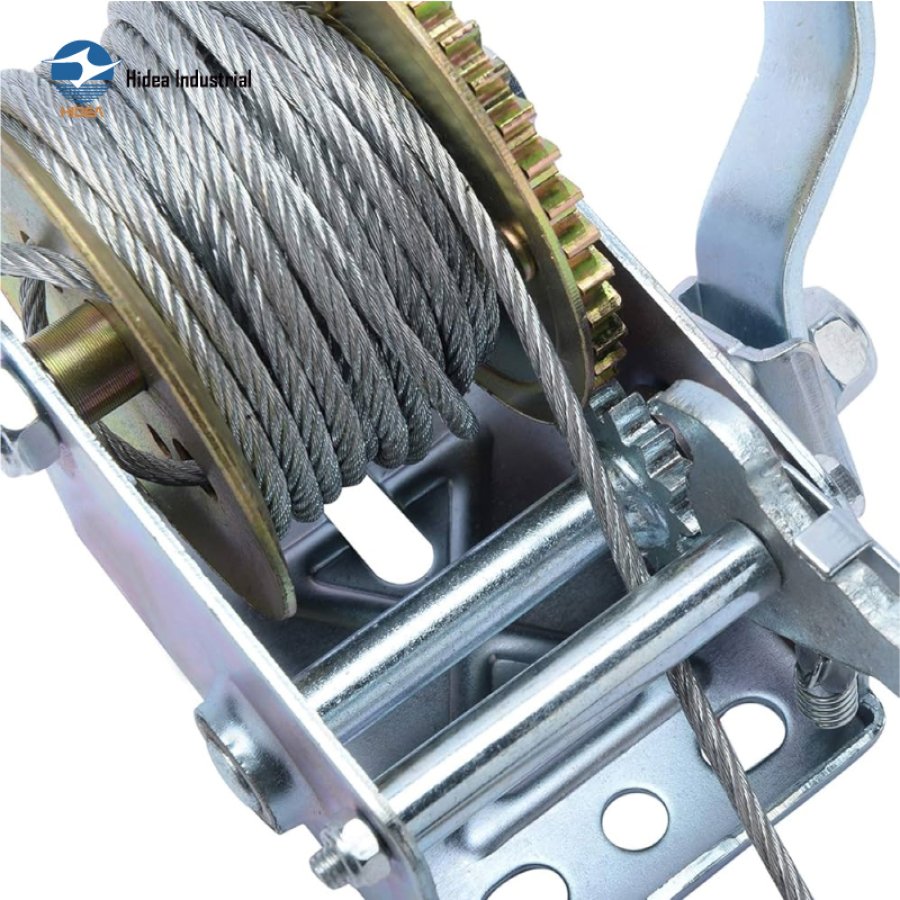

The wire rope winch body & drum are made of high tensile steel and properly heat treated to handle heavy loads and equipped with high quality anti-twist wire rope cables;the winch is portable and easy to operate, making it a popular choice in industries such as construction, manufacturing, transportation and marine activities
The wire rope hand winch both 1 way or 2 ways available for optionally hoisting loads or pulling objects that only require a one-directional or two-directional forces; and 1 speed or 2 speeds of winches both available by adjusting the gear ratio of the device, BS capacity from 400Kgs to 2,500Kgs
The wire rope hand winches meeting standards of and in conformity with ASME B30.7, OSHA regulations & EN 13157
QINGDAO HIDEA PARAMETER SHEET FOR
HAND WICH WITH WIRE ROPE CABLE
| Part No. | Capacity(kg) | B/S(kg) | Gear Ratio | Way/Speed | Cable | N.W. (kg) | |||||
| 60MT-HW600 | 272 | 408 | 3.2:1 | 1way or 2way | 中4mm×8m | 2.5 | |||||
| 60MT-HW800 | 362 | 544 | 3.2:1 | 1way or2way | 中4mm×8m | 2.5 | |||||
| 60MT-HW1000 | 454 | 675 | 4.1:1 | 2way/1 speed | φ4mm×10m | 3.67 | |||||
| 60MT-HW1200 | 544 | 825 | 4.1:1 | 2 way/1 speed | φ4mm×10m | 3.67 | |||||
| 60MT-HW1400 | 640 | 900 | 4:1 | 2 way/1 speed | φ5mm×10m | 4.3 | |||||
| 60MT-HW1600 | 700 | 1080 | 4:1 | 2 way/1 speed | φ5mm×10m | 4.3 | |||||
| 60MT-HW1800 | 800 | 1200 | 4:1/8:1 | 2 way/2 speed | φ5mm×10m | 5.2 | |||||
| 60MT-HW2000 | 900 | 1350 | 4:1/8:1 | 2way/2 speed | φ5mm×10m | 5.3 | |||||
| 60MT-HW2500 | 1100 | 1650 | 4:1/8:1 | 2 way/2 speed | 中5mm×10m | 5.3 | |||||
| 60MT-HW3000 | 1360 | 2040 | 4.4:1/9.3:1 | 2 way/2 speed | φ6mm×10m | 8.7 | |||||
| 60MT-HW3200 | 1455 | 2180 | 4.4:1/9.3:1 | 2way/2 speed | φ6mm×10m | 8.7 | |||||
| 60MT-HW3500 | 1590 | 2385 | 4.4:1/9.3:1 | 2way/2 speed | φ6mm×10m | 8.7 | |||||
