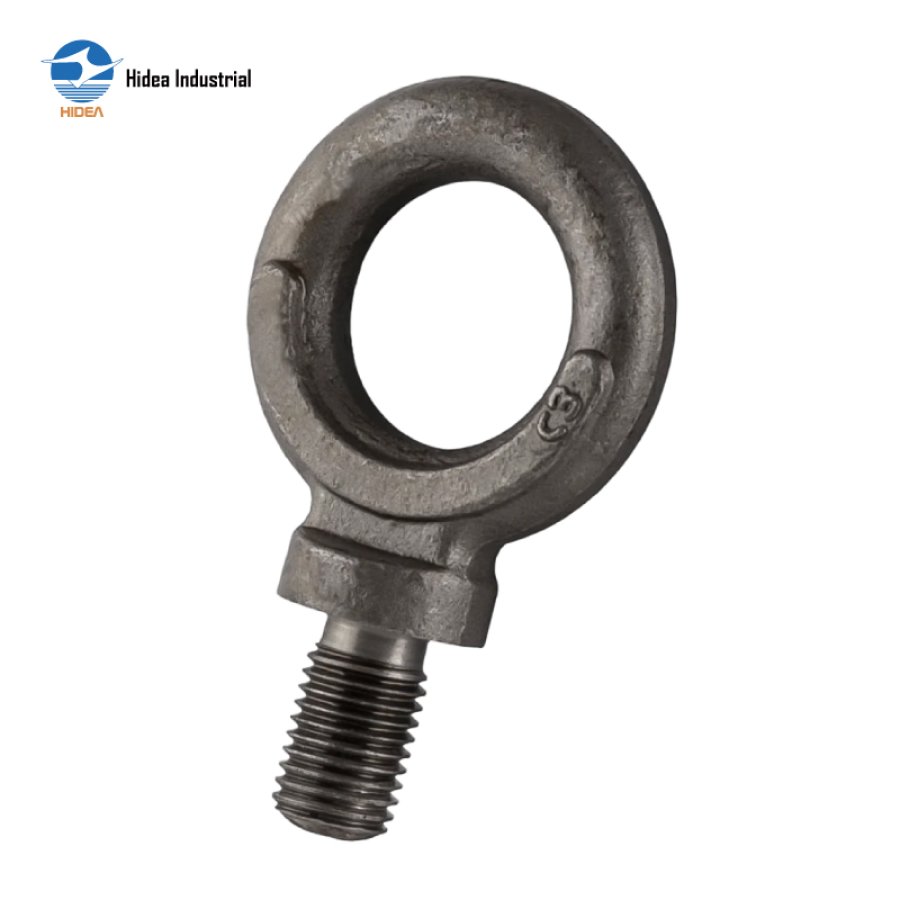

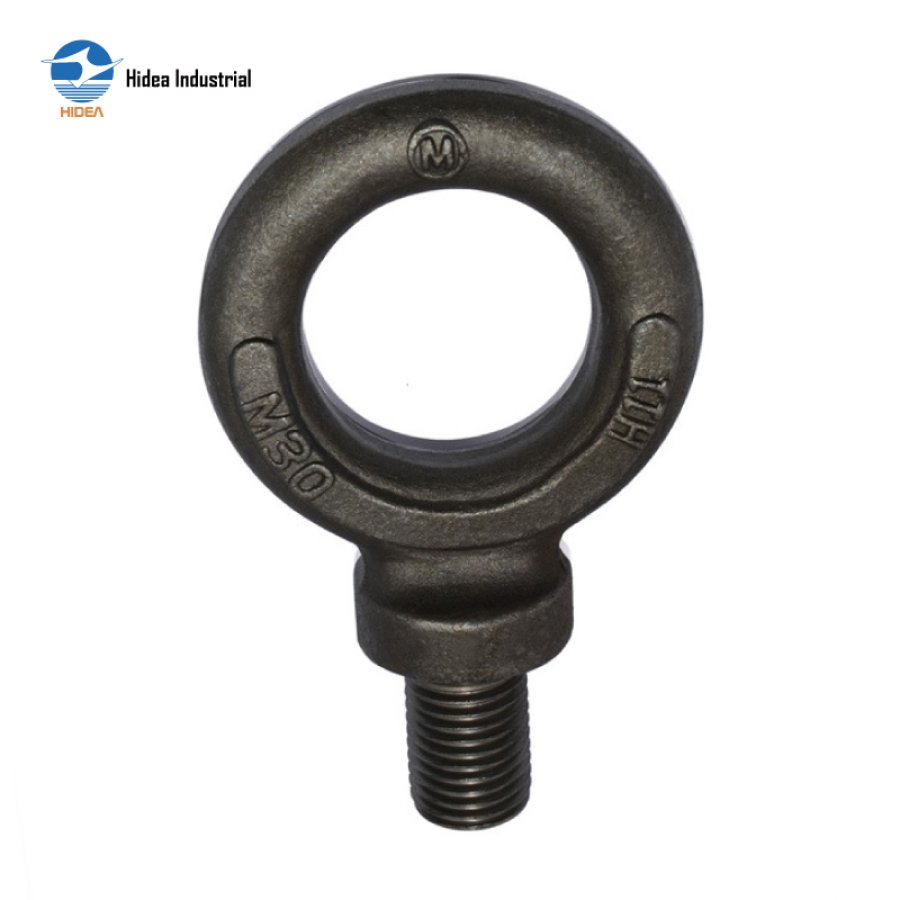

HIDEA Dynamo Eyebolts – High-Tensile Carbon Steel for Maximum Strength and Durability

DYNAMO EYEBOLTS

High tensile carbon steel
Forged, quenched & tempered
Proof tested & certificate available

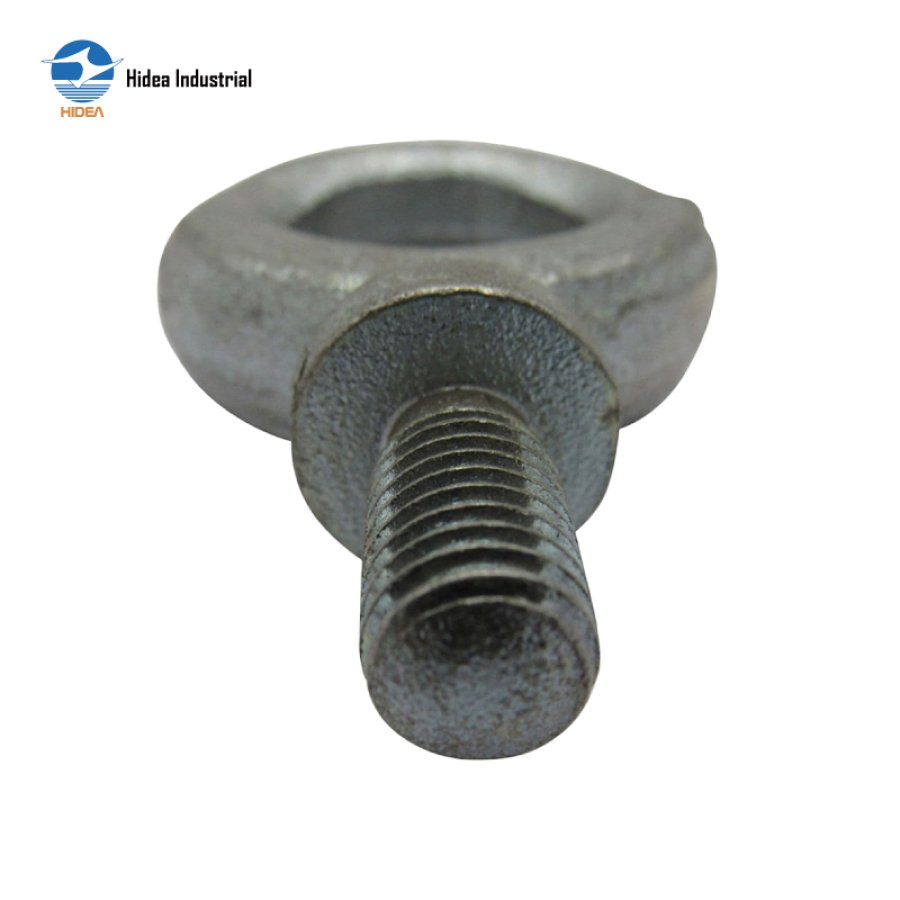

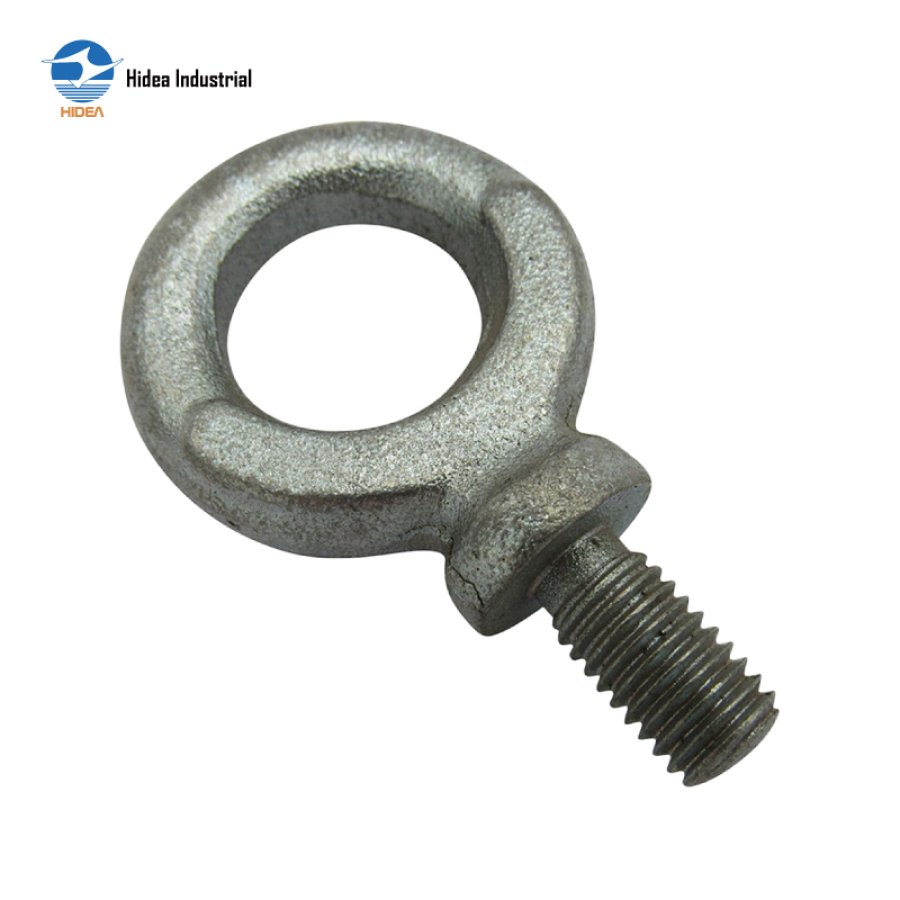

Surface self-colored, Electro Galv. / zinc plated OR as requested
Dynamo Eyebolts to BS4278-3 & BS4278-6

Inquire Now

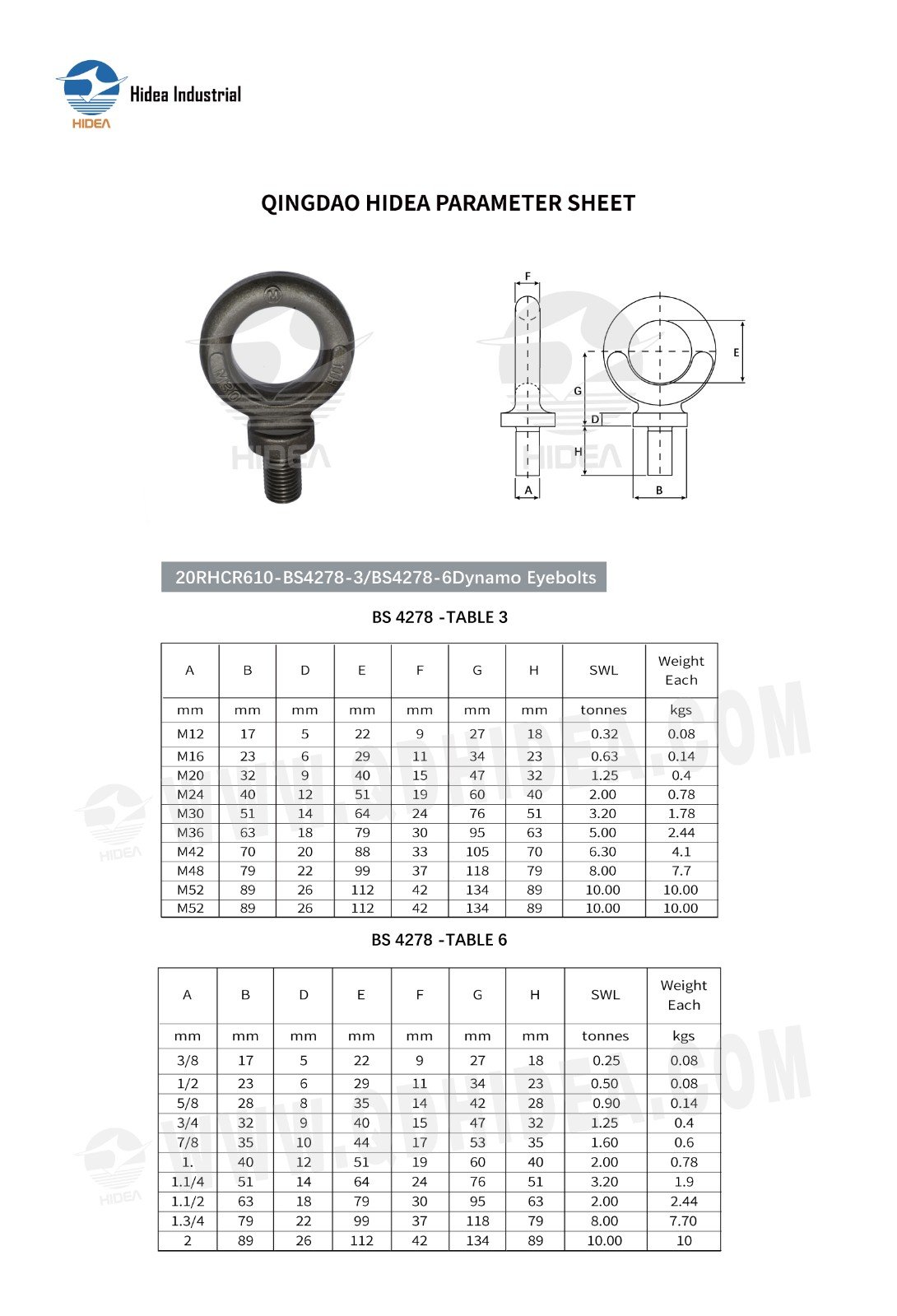

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR610-BS4278-3/BS4278-6Dynamo Eyebolts

BS 4278-TABLE 3

A	B	D	E	F	G	H	SWL	Weight Each
mm	mm	mm	mm	mm	mm	mm	tonnes	kgs
M12	17	5	22	9	27	18	0.32	0.08
M16	23	6	29	11	34	23	0.63	0.14
M20	32	9	40	15	47	32	1.25	0.4
M24	40	12	51	19	60	40	2.00	0.78
M30	51	14	64	24	76	51	3.20	1.78
M36	63	18	79	30	95	63	5.00	2.44
M42	70	20	88	33	105	70	6.30	4.1
M48	79	22	99	37	118	79	8.00	7.7
M52	89	26	112	42	134	89	10.00	10.00
M52	89	26	112	42	134	89	10.00	10.00

BS 4278-TABLE 6

A	B	D	E	F	G	H	SWL	Weight Each
mm	mm	mm	mm	mm	mm	mm	tonnes	kgs
3/8	17	5	22	9	27	18	0.25	0.08
1/2	23	6	29	11	34	23	0.50	0.08
5/8	28	8	35	14	42	28	0.90	0.14
3/4	32	9	40	15	47	32	1.25	0.4
7/8	35	10	44	17	53	35	1.60	0.6
1.	40	12	51	19	60	40	2.00	0.78
1.1/4	51	14	64	24	76	51	3.20	1.9
1.1/2	63	18	79	30	95	63	2.00	2.44
1.3/4	79	22	99	37	118	79	8.00	7.70
2	89	26	112	42	134	89	10.00	10
