Precision-crafted Hidea Hitch Ring with Screw Eye Bolt – Ideal for Secure Anchoring

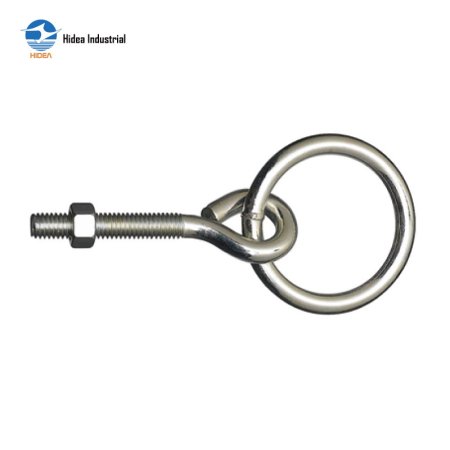

EYE BOLT WITH ROUND RING

Technical Data: Investment Casting/Forged
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Electro Polished/Passivated

Inquire Now

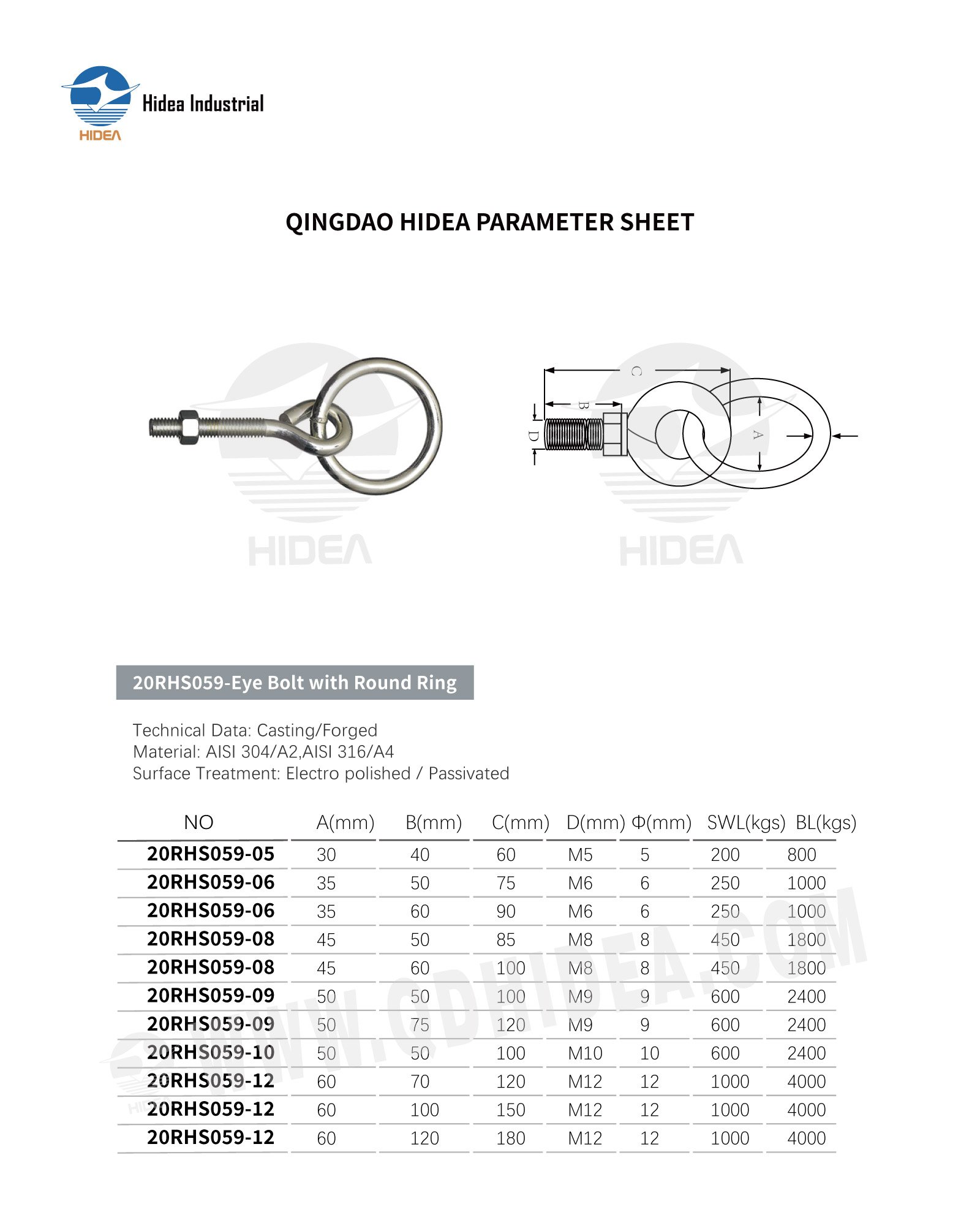

QINGDAO HIDEA PARAMETER SHEET FOR

20RHSO59-Eye Bolt with Round Ring

NO	A(mm)	B(mm)	C(mm)	D(mm)	Φ(mm)	SWL(kgs)	BL(kgs)
20RHS059-05	30	40	60	M5	5	200	800
20RHS059-06	35	50	75	M6	6	250	1000
20RHS059-06	35	60	90	M6	6	250	1000
20RHS059-08	45	50	85	M8	8	450	1800
20RHS059-08	45	60	100	M8	8	450	1800
20RHS059-09	50	50	100	M9	9	600	2400
20RHS059-09	50	75	120	M9	9	600	2400
20RHS059-10	50	50	100	M10	10	600	2400
20RHS059-12	60	70	120	M12	12	1000	4000
20RHS059-12	60	100	150	M12	12	1000	4000
20RHS059-12	60	120	180	M12	12	1000	4000
