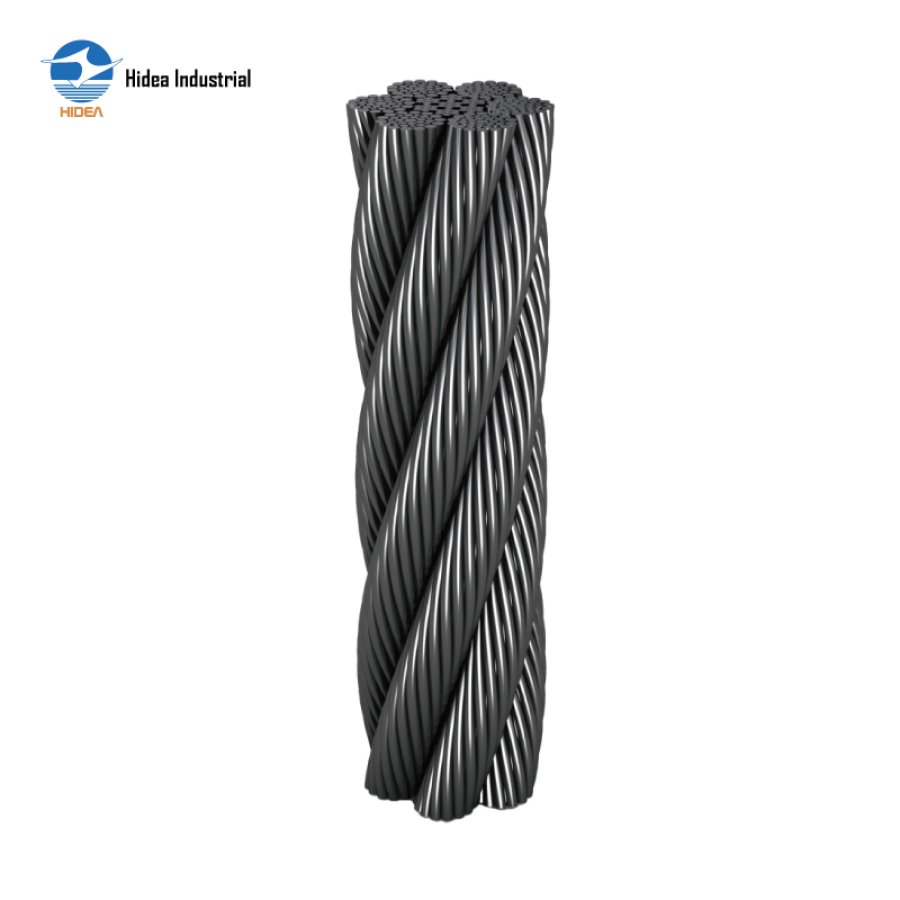

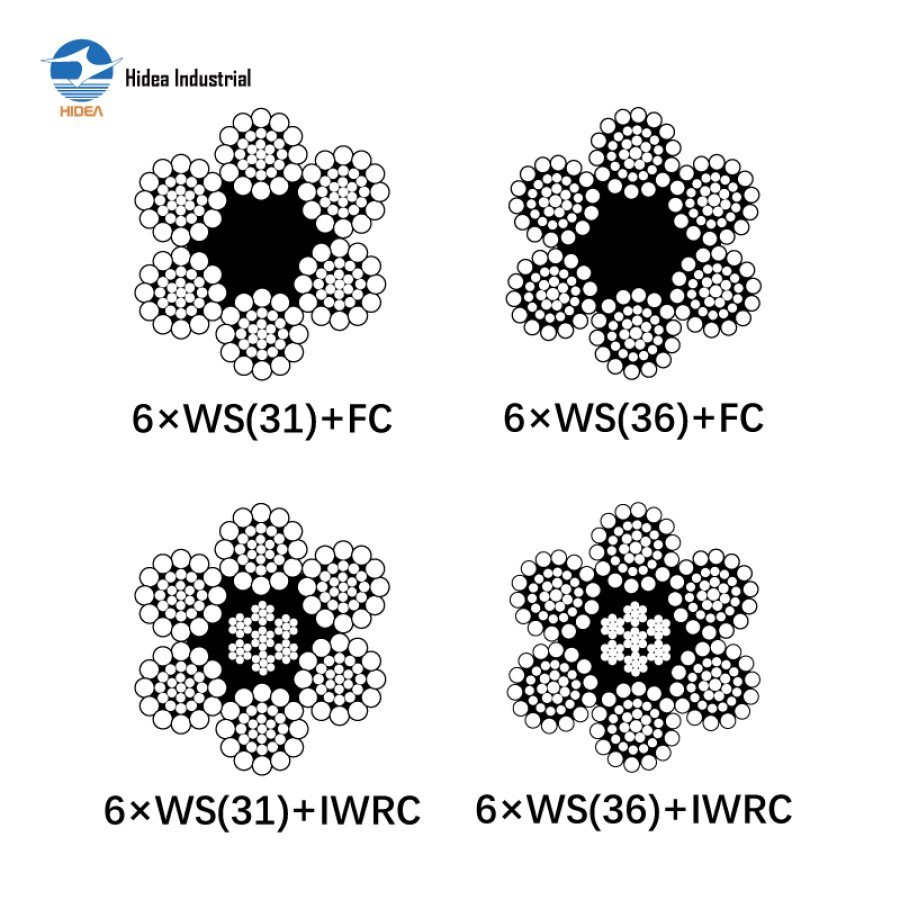

General Purpose Wire Rope 6xWS(31)+ FC / 6xWS(36) + FC; 6xWS(31)+ IWRC / 6xWS(36) + IWRC
Surface Electro Galv. / zinc plated OR as requested
Standard GB/T 20118-2006/GB 8918-2006 / BS EN 12385-4
Application / Usage: Well Drilling, Hoist, General Industry, Crane, Mine Lifting, High-furnace Hoisting, Oil Drilling, Cable Car, Excavator, Marine
QINGDAO HIDEA PARAMETER SHEET FOR
GENERAL PURPOSE WIRE ROPES 6×WS(31)/6×WS(36)
| 6×WS(31)+FC 6×WS(36)+FC | |||||||||
| Diameter mm | GB/T 20118-2006/GB 8918-2006 | EN 12385-4 | |||||||
| Min.Breaking Load(Kg) | Approx Weight (Kg/100m) | Min.Breaking Load(Kg) | Approx. Weight (Kg/100m) | ||||||
| 1670N/Mmm | 1770N/Mmm | 1770N/Mmm | 1960N/Mmm | ||||||
| 8 | 35.30 | 37.40 | 24.30 | 37.40 | 41.40 | 23.50 | |||
| 9 | 44.60 | 47.30 | 30.80 | 47.30 | 52.40 | 29.70 | |||
| 10 | 55.10 | 58.40 | 38.00 | 58.40 | 64.70 | 36.70 | |||
| 11 | 66.70 | 70.70 | 45.60 | 70.70 | 78.30 | 44.40 | |||
| 12 | 79.40 | 84.10 | 54.70 | 84.10 | 93.10 | 52.80 | |||
| 13 | 93.10 | 98.70 | 64.20 | 98.70 | 109.00 | 62.00 | |||
| 14 | 108.00 | 114.00 | 74.50 | 114.00 | 127.00 | 71.90 | |||
| 16 | 141.00 | 150.00 | 97.30 | 150.00 | 166.00 | 94.00 | |||
| 18 | 179.00 | 189.00 | 123.00 | 189.00 | 210.00 | 119.00 | |||
| Usage: | 20 | 220.00 | 234.00 | 152.00 | 234.00 | 259.00 | 147.00 | ||
| Well Drilling,Hoist, | 22 | 267.00 | 283.00 | 184.00 | 283.00 | 313.00 | 178.00 | ||
| General Industry, | 24 | 317.00 | 336.00 | 219.00 | 336.00 | 373.00 | 211.00 | ||
| Crane,Mine Lifting, | 26 | 373.00 | 395.00 | 257.00 | 395.00 | 437.00 | 248.00 | ||
| High-furnace Hoisting, | 28 | 432.00 | 458.00 | 298.00 | 458.00 | 507.00 | 288.00 | ||
| Oil Drilling,Cable Car, | 32 | 564.00 | 598.00 | 389.00 | 598.00 | 662.00 | 376.00 | ||
| Excavator,Marine | |||||||||
| 6×WS(31)+IWRC 6×WS(36)+IWRC | |||||||||
| Diameter mm | GB/T 20118-2006/GB 8918-2006 | EN12385-4 | |||||||
| Min.Breaking Load(Kg) | Approx. Weight (Kg/100m) | Min.Breaking Load(Kg) | Approx. Weight (Kg/100m) | ||||||
| 1670N/Mmm | 1770N/Mmm | 1770N/Mmm | 1960N/Mmm | ||||||
| 8 | 38.00 | 40.30 | 26.80 | 40.30 | 44.70 | 26.20 | |||
| 9 | 48.20 | 51.00 | 33.90 | 51.00 | 56.50 | 33.10 | |||
| 10 | 59.50 | 63.00 | 41.80 | 63.00 | 69.80 | 40.90 | |||
| 11 | 72.00 | 76.20 | 50.60 | 76.20 | 84.40 | 49.50 | |||
| 12 | 85.60 | 90.70 | 60.20 | 90.70 | 100.00 | 58.90 | |||
| 13 | 100.00 | 106.00 | 70.60 | 106.00 | 118.00 | 69.10 | |||
| 14 | 117.00 | 124.00 | 81.90 | 124.00 | 137.00 | 80.20 | |||
| 16 | 152.00 | 161.00 | 107.00 | 161.00 | 179.00 | 105.00 | |||
| 18 | 193.00 | 204.00 | 135.00 | 204.00 | 226.00 | 133.00 | |||
| Usage: | 20 | 238.00 | 252.00 | 167.00 | 252.00 | 279.00 | 164.00 | ||
| Well Drilling ,Hoist, | 22 | 288.00 | 305.00 | 202.00 | 305.00 | 338.00 | 198.00 | ||
| General Industry, | 24 | 342.00 | 363.00 | 241.00 | 363.00 | 402.00 | 236.00 | ||
| Crane,Mine Lifting. | 26 | 402.00 | 426.00 | 283.00 | 426.00 | 472.00 | 276.00 | ||
| High-furnace Hoisting, | |||||||||
| Oil Drilling.Cable Car, | 28 | 466.00 | 494.00 | 328.00 | 494.00 | 547.00 | 321.00 | ||
| Excavator,Marine | 32 | 609.00 | 645.00 | 428.00 | 645.00 | 715.00 | 419.00 | ||
