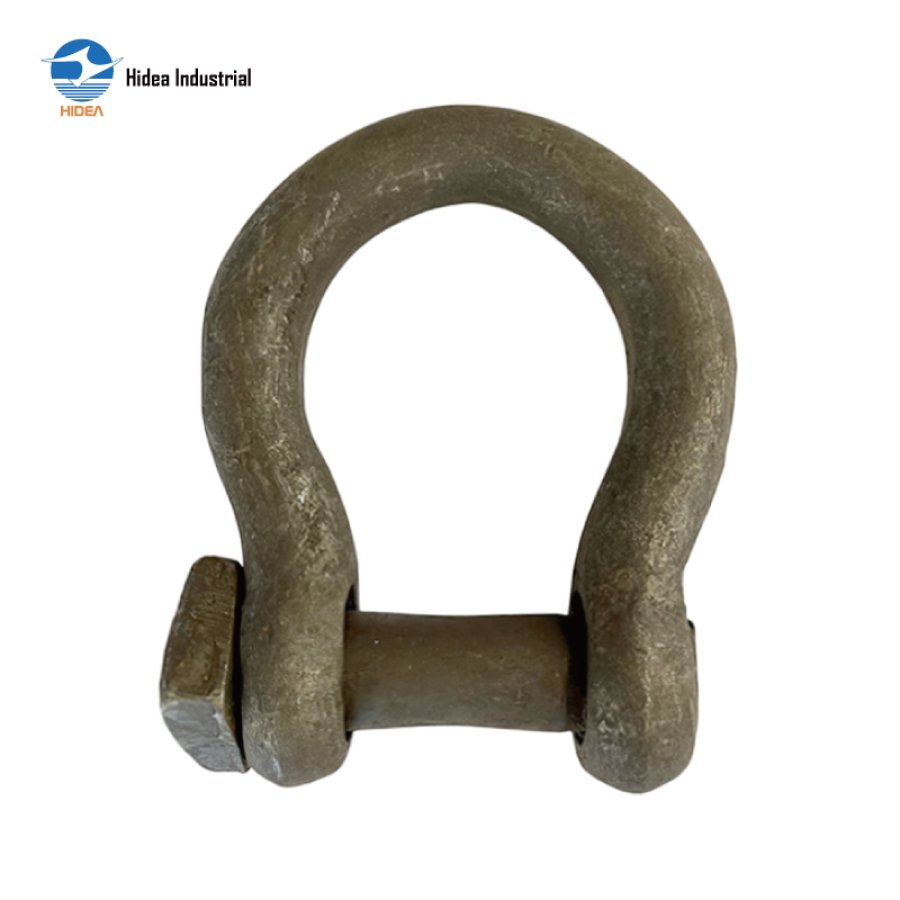

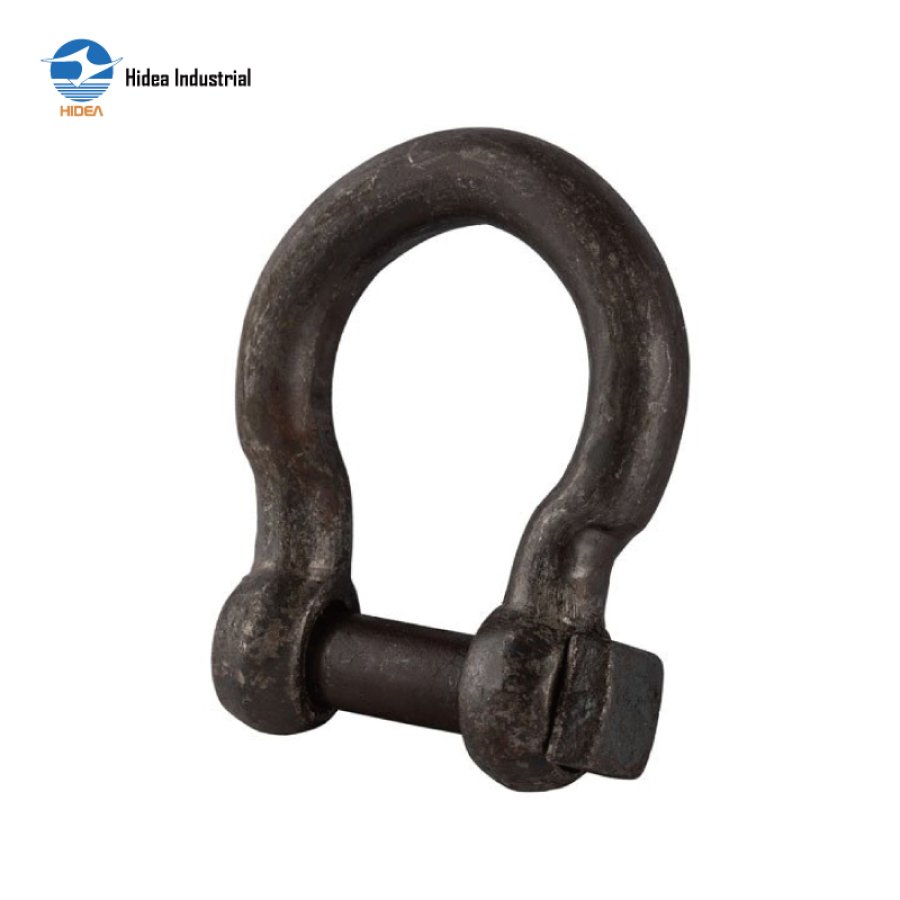

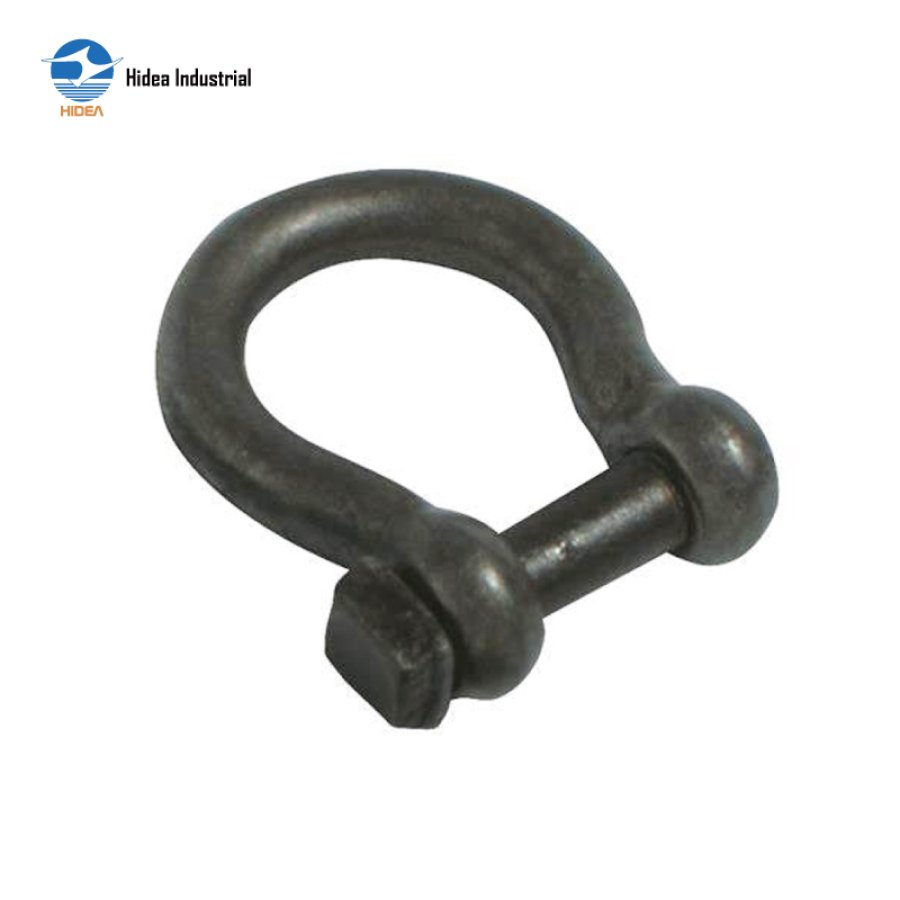

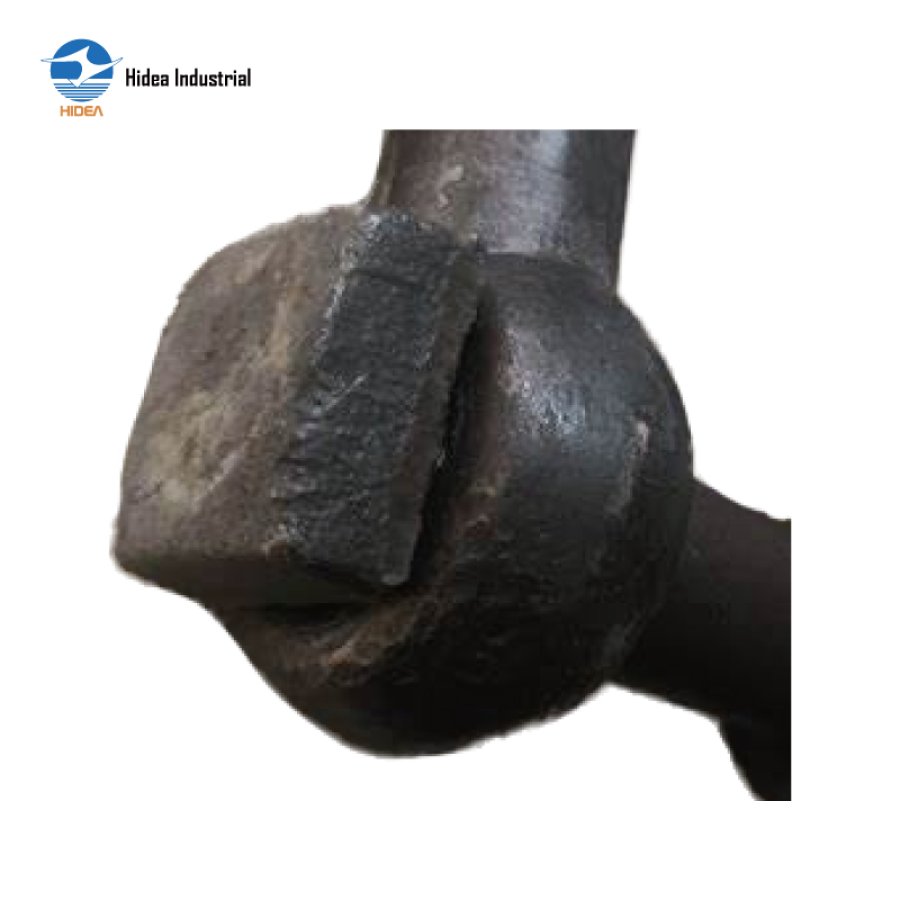

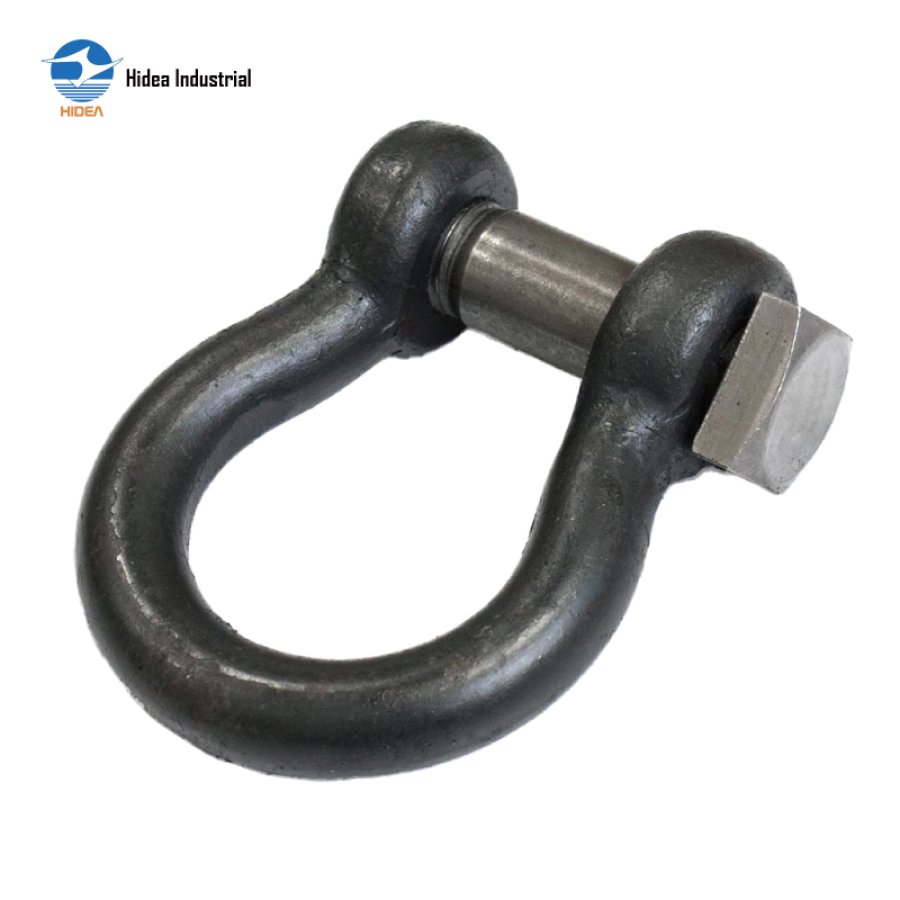

Hidea Trawling Bow Shackle with Square Head Pin: Built for Heavy-Duty Trawling

TRAWLING SHACKLE SQUARE HEAD EQUAL PIN BOW TYPE

Material: body AND pin carbon steel
Drop forged, quenched & tempered
Safety factor 5:1 & certificates available
Surface Electro galvanized (EG), powder coated OR self-colored

Inquire Now

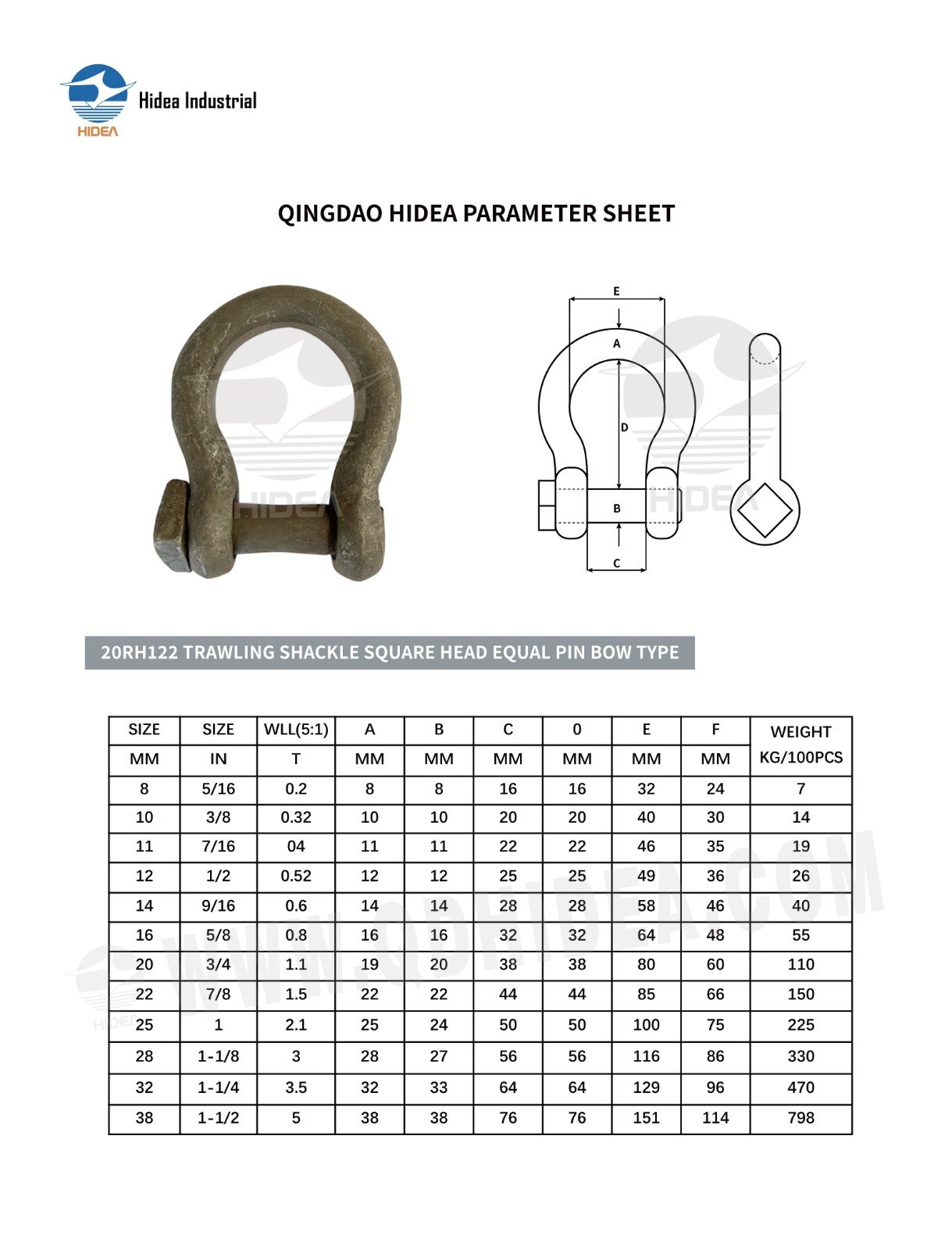

QINGDAO HIDEA PARAMETER SHEET FOR

20RH122 TRAWLING SHACKLE SQUARE HEAD EQUAL PIN BOW TYPE

SIZE	SIZE	WLL(5:1)	A	B	C	0	E	F	WEIGHT KG/100PCS
MM	IN	T	MM	MM	MM	MM	MM	MM	WEIGHT KG/100PCS
8	5/16	0.2	8	8	16	16	32	24	7
10	3/8	0.32	10	10	20	20	40	30	14
11	7/16	04	11	11	22	22	46	35	19
12	1/2	0.52	12	12	25	25	49	36	26
14	9/16	0.6	14	14	28	28	58	46	40
16	5/8	0.8	16	16	32	32	64	48	55
20	3/4	1.1	19	20	38	38	80	60	110
22	7/8	1.5	22	22	44	44	85	66	150
25	1	2.1	25	24	50	50	100	75	225
28	1-1/8	3	28	27	56	56	116	86	330
32	1-1/4	3.5	32	33	64	64	129	96	470
38	1-1/2	5	38	38	76	76	151	114	798
