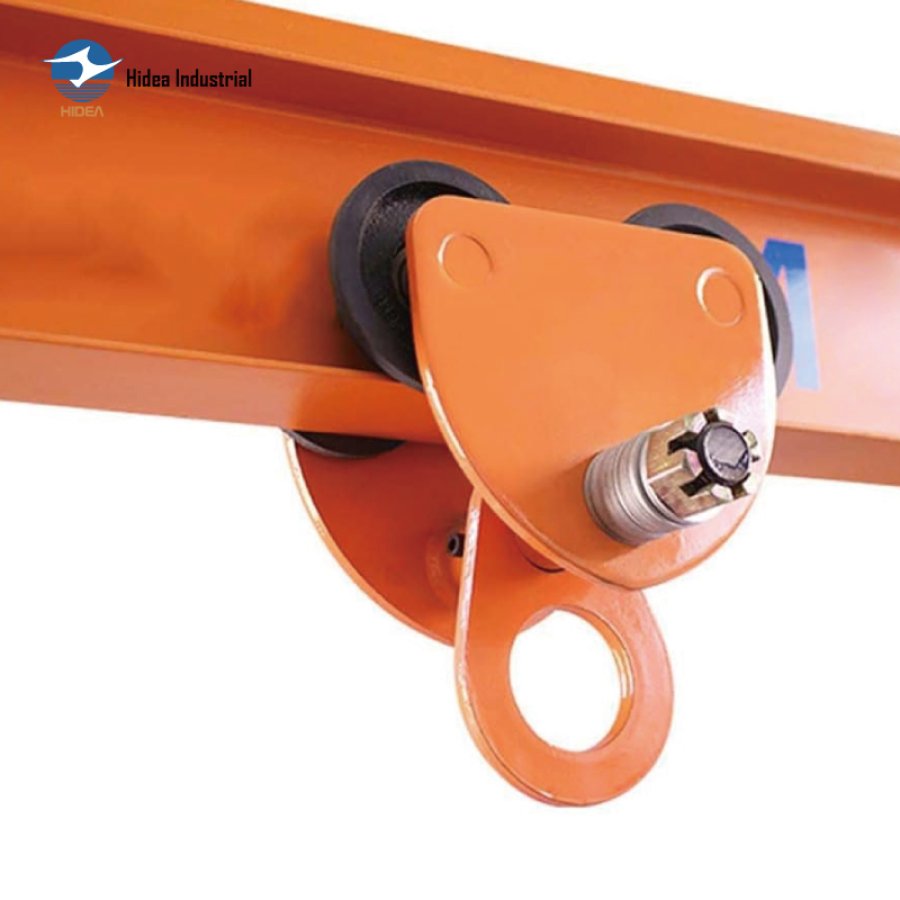

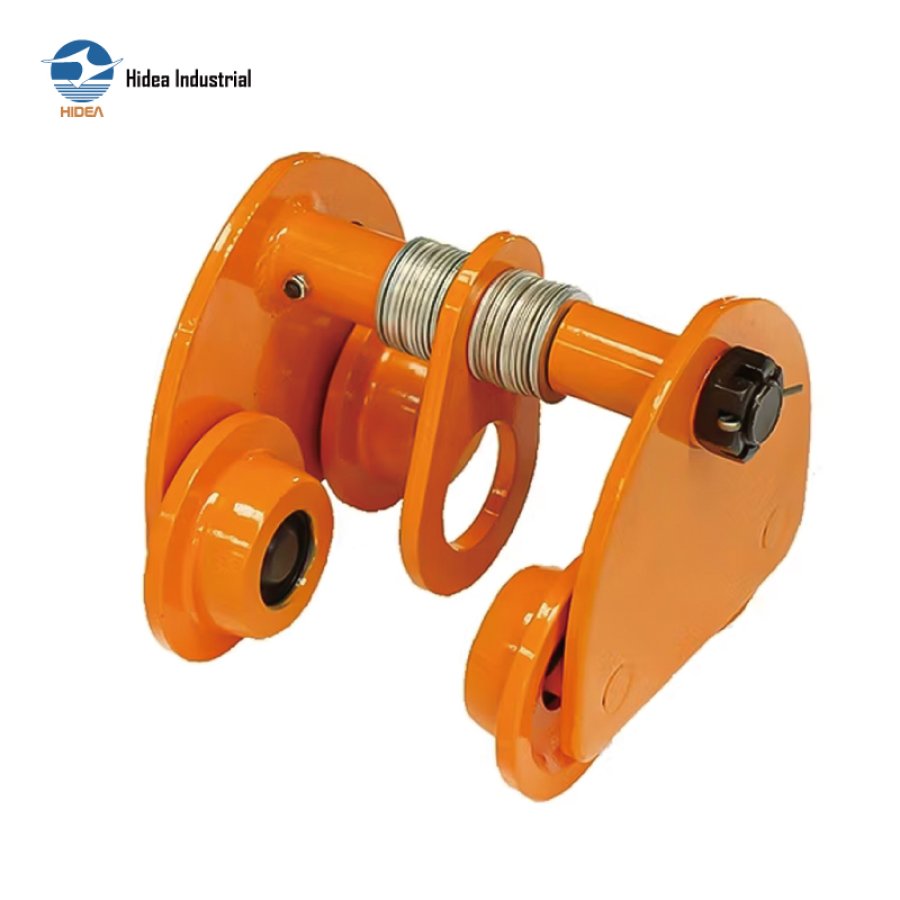

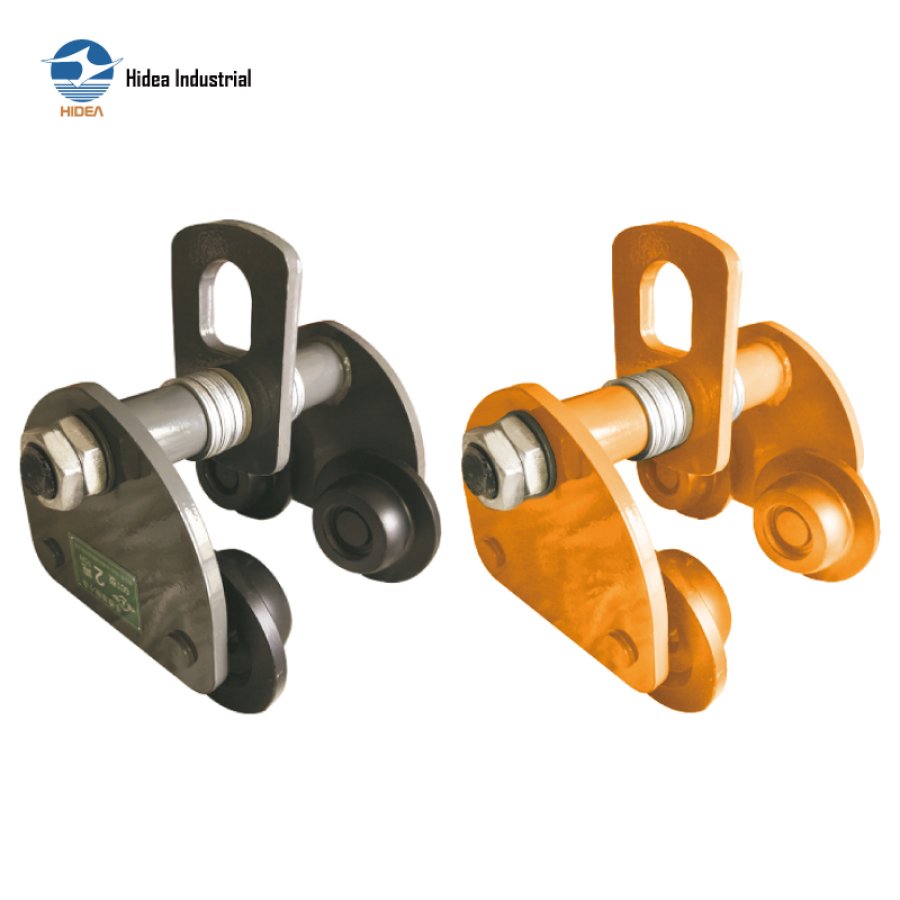

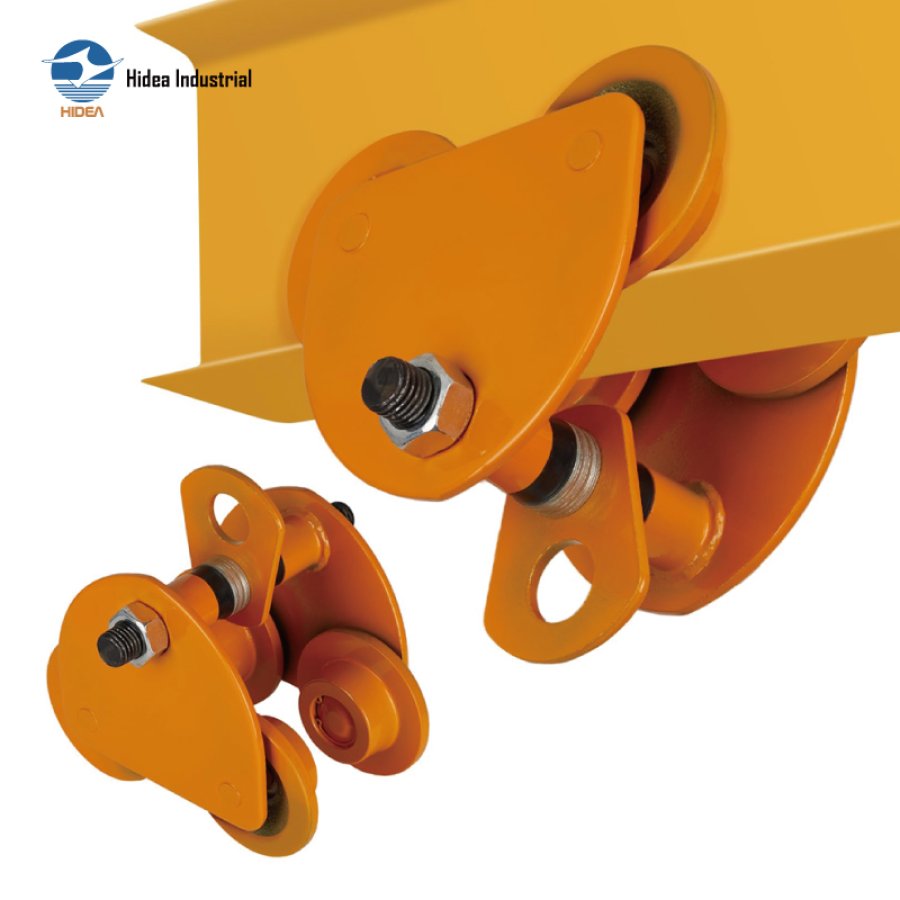

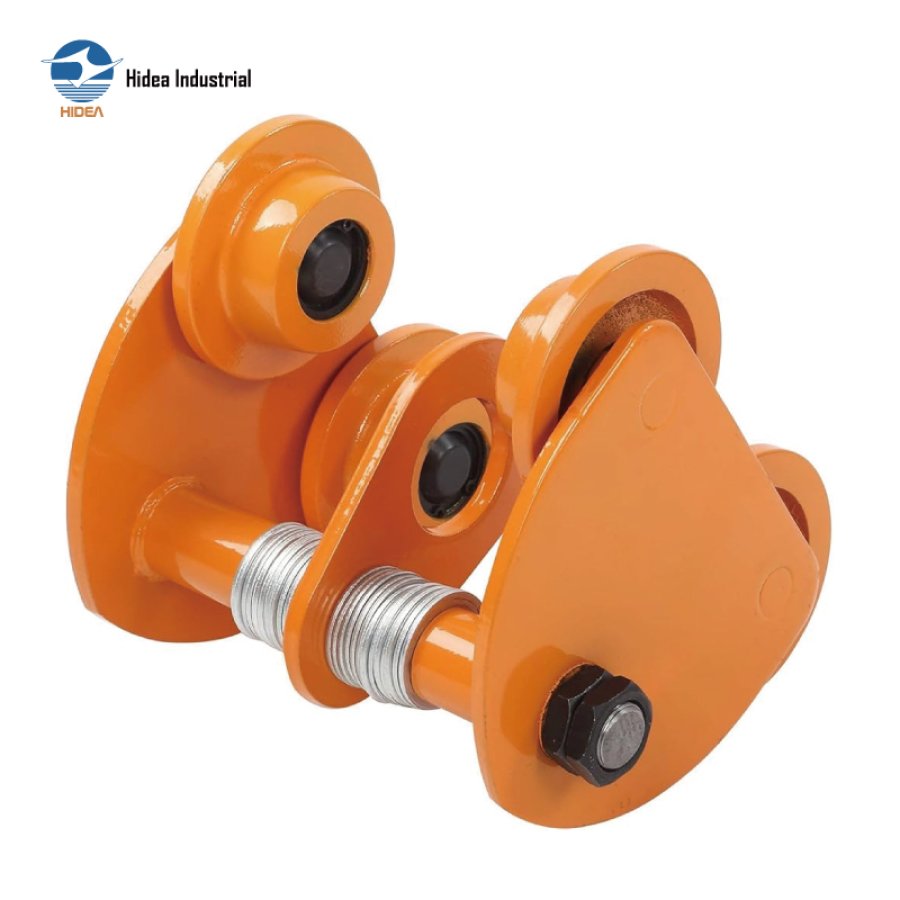

The GCT-A type I beam plain trolleys, featured with the curved Delta baffle plates at both ends, are designed to be used in industrial settings for moving heavy loads horizontally along an I-beam track with hoists equipment
The GCT-A I-beam plain trolleys come in various weight capacities from 0.5T to 10T or more and to fit different beam widths from 75mm to 203mm
The GCT-A I-beam plain trolleys are typically made of high quality steel materials and can be manually operated or powered by electric or pneumatic hoists, and used in a wide range of industries such as manufacturing, construction, and transportation
The GCT-A beam trolleys meeting standards of and in conformity with European Norm (EN) 13155, Machinery Directive 2006/42/EC & ASME B30.20

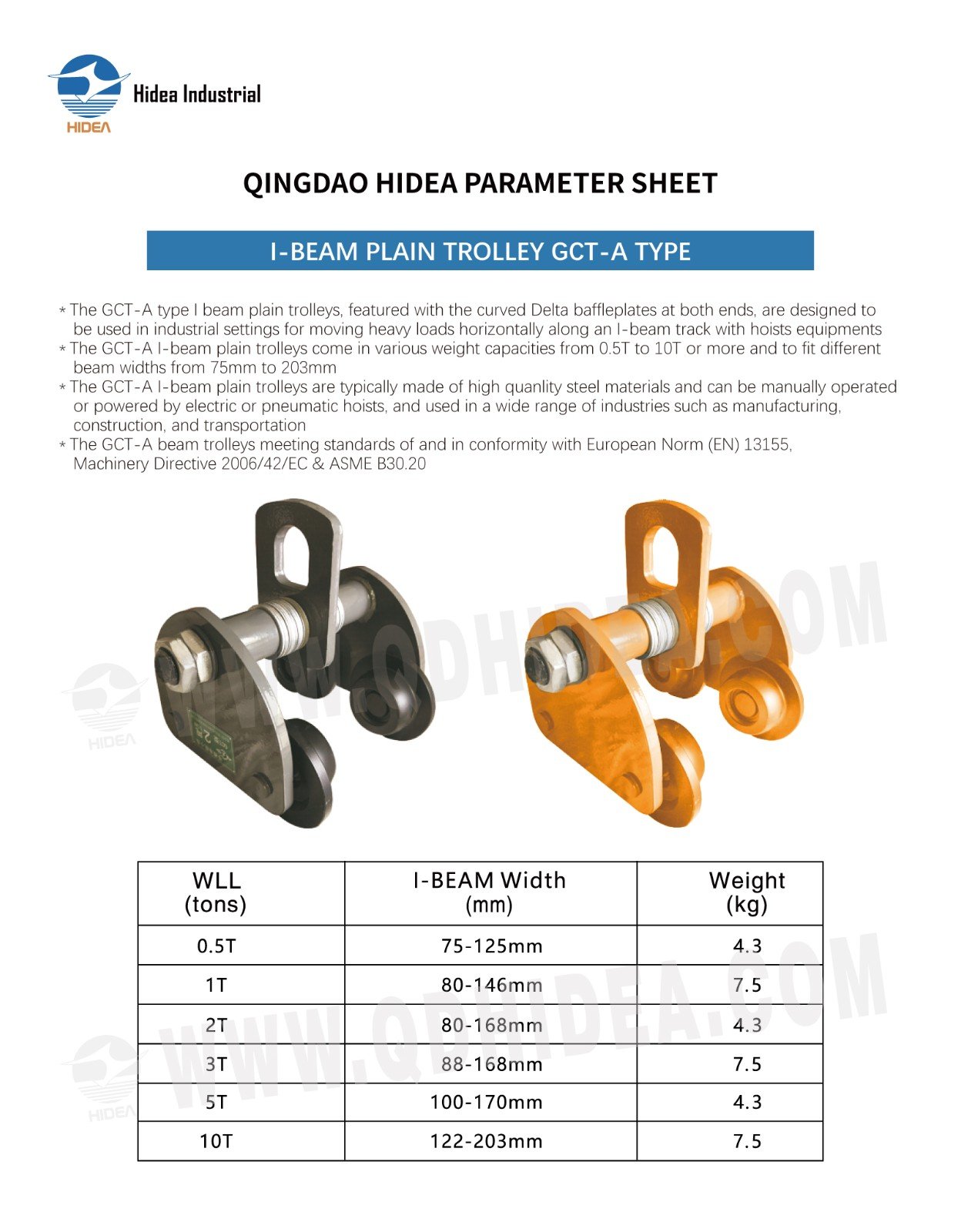

QINGDAO HIDEA PARAMETER SHEET FOR
I-BEAM PLAIN TROLLEY GCT-A TYPE
| WLL (tons) | I-BEAM Width (mm) | Weight (kg) | |||
| 0.5T | 75-125mm | 4.3 | |||
| 1T | 80-146mm | 7.5 | |||
| 2T | 80-168mm | 4.3 | |||
| 3T | 88-168mm | 7.5 | |||
| 5T | 100-170mm | 4.3 | |||
| 10T | 122-203mm | 7.5 |
