Raw Material 100% high tenacity and tensile strength polyester yarns of low elongation for slings

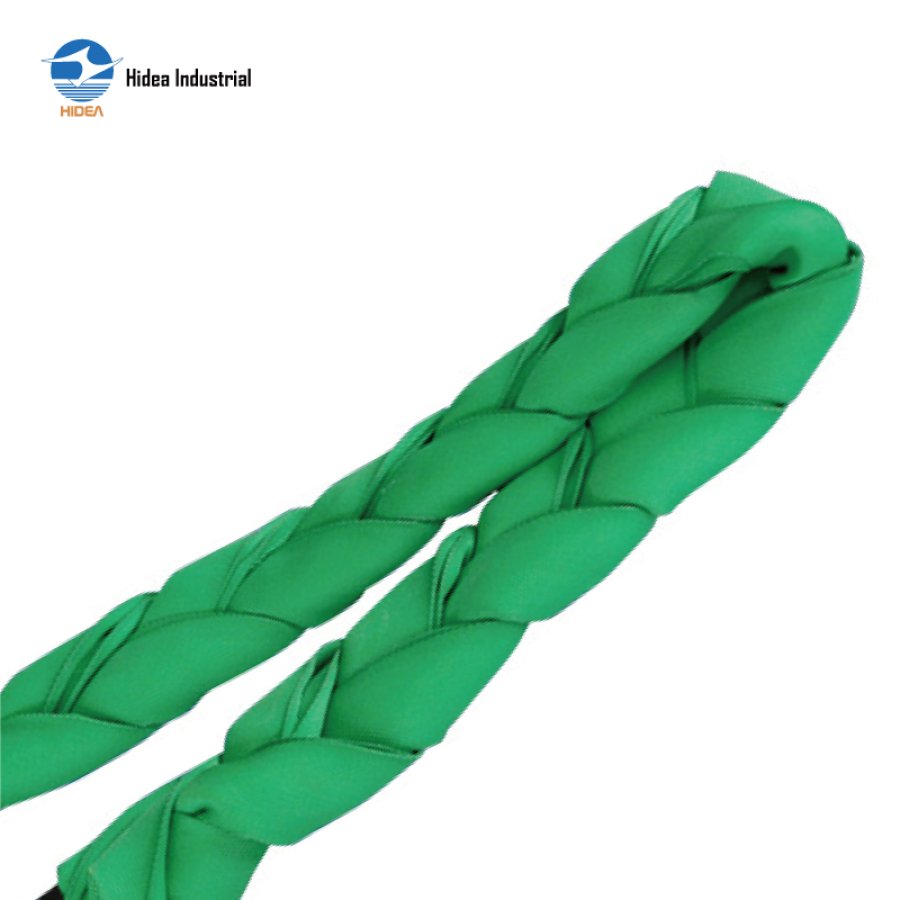

The braids are made from three (6 parts) or four (8 parts) individual slings; should one of these component slings be damaged while in use, the remaining undamaged slings should be able to safely carry the load to place
Braided Round Slings are incredibly flexible, making them ideal for lifting loads with various shapes and sizes, and the soft texture of the sling helps prevent damage to delicate or polished surfaces
Braided round sling can be disassembled into component slings for general purpose lifting, if individual sling is correctly tagged; or returned for inspection and re-tagging as individual sling after disassembly

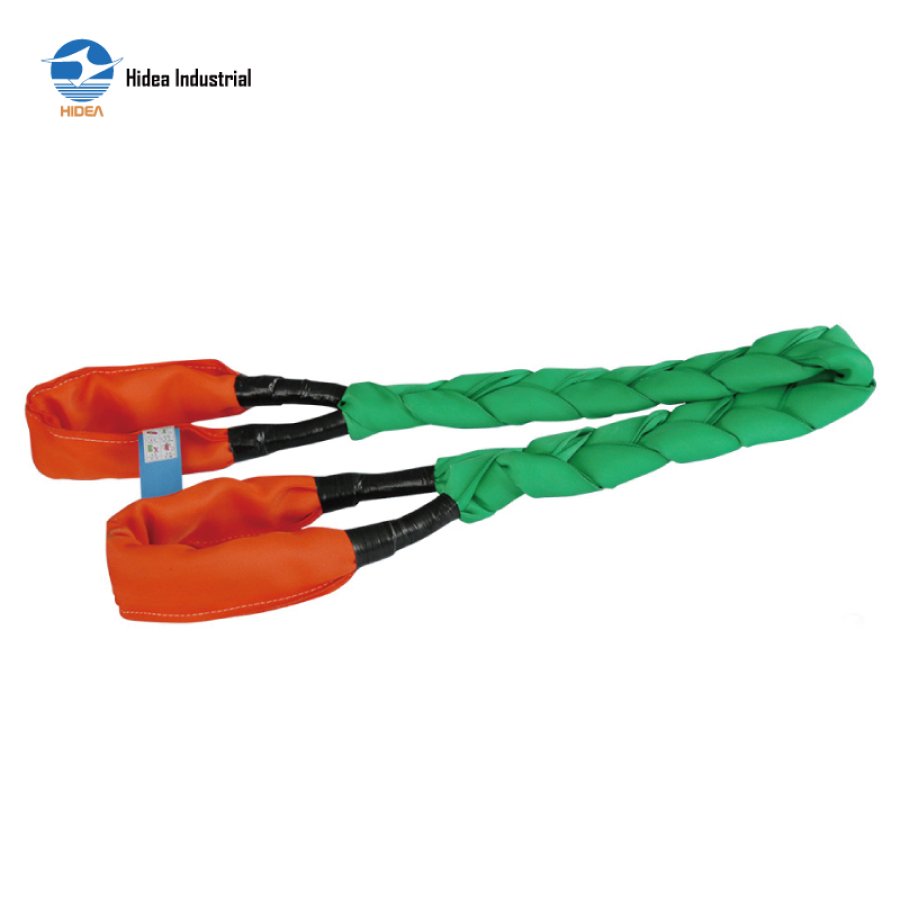

QINGDAO HIDEA PARAMETER SHEET FOR
BRADED EYE-EYE ROUND SLING US TYPE
| Stock Number | Color | Rated Capacity(lbs.)* | Minimum Length (Ft.) | Approximate Measurements | Minimum Hardware Dia.** (in.) | ||||||
| Vertical | Choker | Basket | Standard EyeLength (EL) (in.) | Width at Load (w) (in.) | Thickness at Load (in.) | Eye Dia. (ED)(in.) | |||||
| EE 30 | Purple | 6700 | 5,300 | 13,400 | 41/2 | 15 | 31/4 | 3/4 | 13/4 | 15/8 | |
| EE 60 | Green | 13,500 | 10,800 | 27,000 | 5 | 15 | 33/4 | 11/8 | 2 | 1 | |
| EE 90 | Yellow | 21,400 | 17,100 | 42,800 | 51/2 | 15 | 41/4 | 11/4 | 2 | 11/4 | |
| EE 120 | Tan | 27,000 | 21,600 | 54,000 | 51/2 | 15 | 41/2 | 15/16 | 21/4 | 13/8 | |
| EE 150 | Rad | 33,600 | 26,800 | 67,200 | 61/2 | 20 | 51/4 | 13/4 | 21/2 | 11/2 | |
| EE 180 | White | 42,800 | 34,200 | 85,600 | 7 | 20 | 51/2 | 2 | 23/4 | 13/4 | |
| EE 240 | Blue | 54,000 | 43,200 | 108,000 | 9 | 20 | 65/8 | 21/4 | 31/2 | 13/4 | |
| EE 360 | Grey | 79,000 | 63,200 | 158,000 | 91/2 | 30 | 81/4 | 21/2 | 41/4 | 21/2 | |
| EE 600 | Brown | 135,100 | 108,000 | 270,200 | 101/2 | 30 | 11 | 23/4 | 5 | 3 | |
| EE 800 | Olive | 168,300 | 134,600 | 336,600 | 13 | 30 | 12 | 4 | 51/4 | 31/2 | |
| EE1000 | Black | 229,500 | 183,600 | 459,000 | 141/2 | 31 | 131/2 | 41/2 | 53/4 | 4 | |
