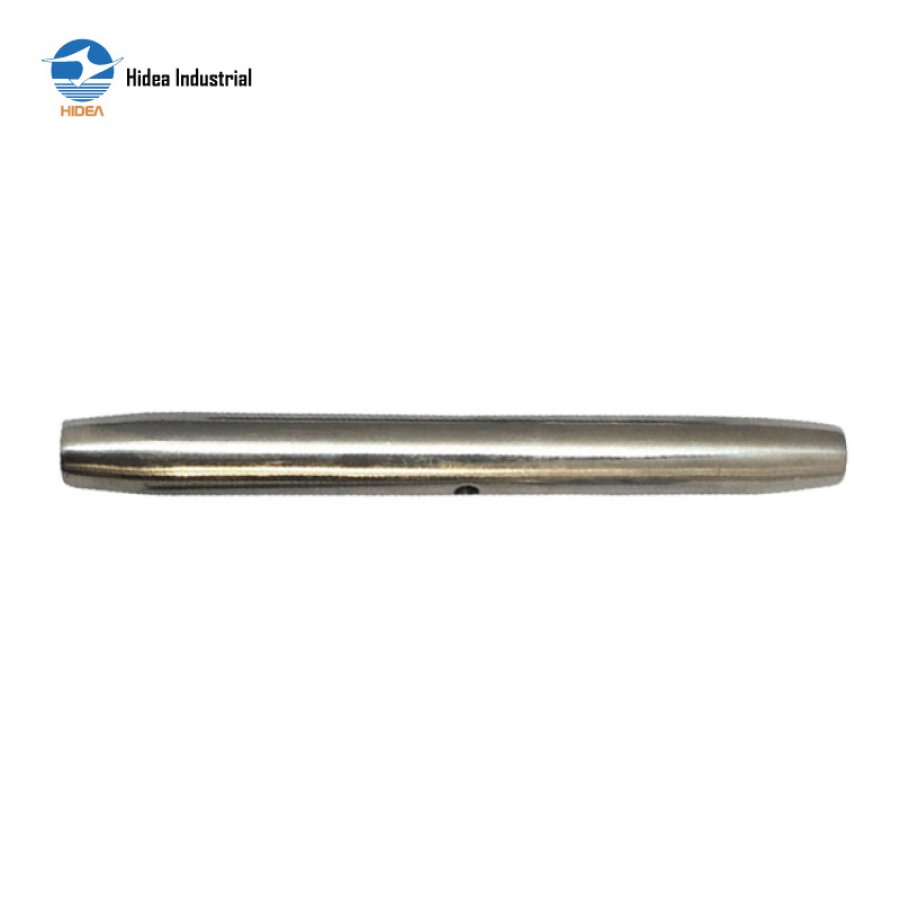

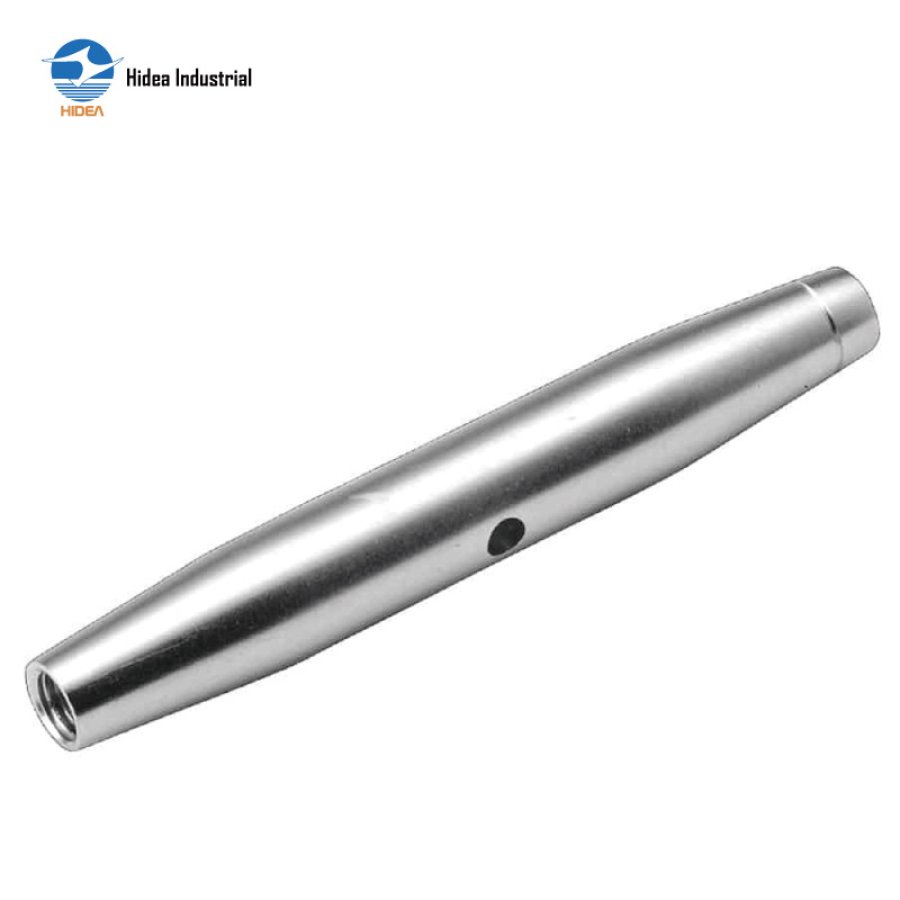

Hidea Stainless Steel Turnbuckle Body Close Type – Ideal for Secure and Adjustable Wire Rope Tensioning

CLOSED BODY TURNBUCKLE

Technical Data: Investment Casting/Forged
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Electro Polished/Passivated

Inquire Now

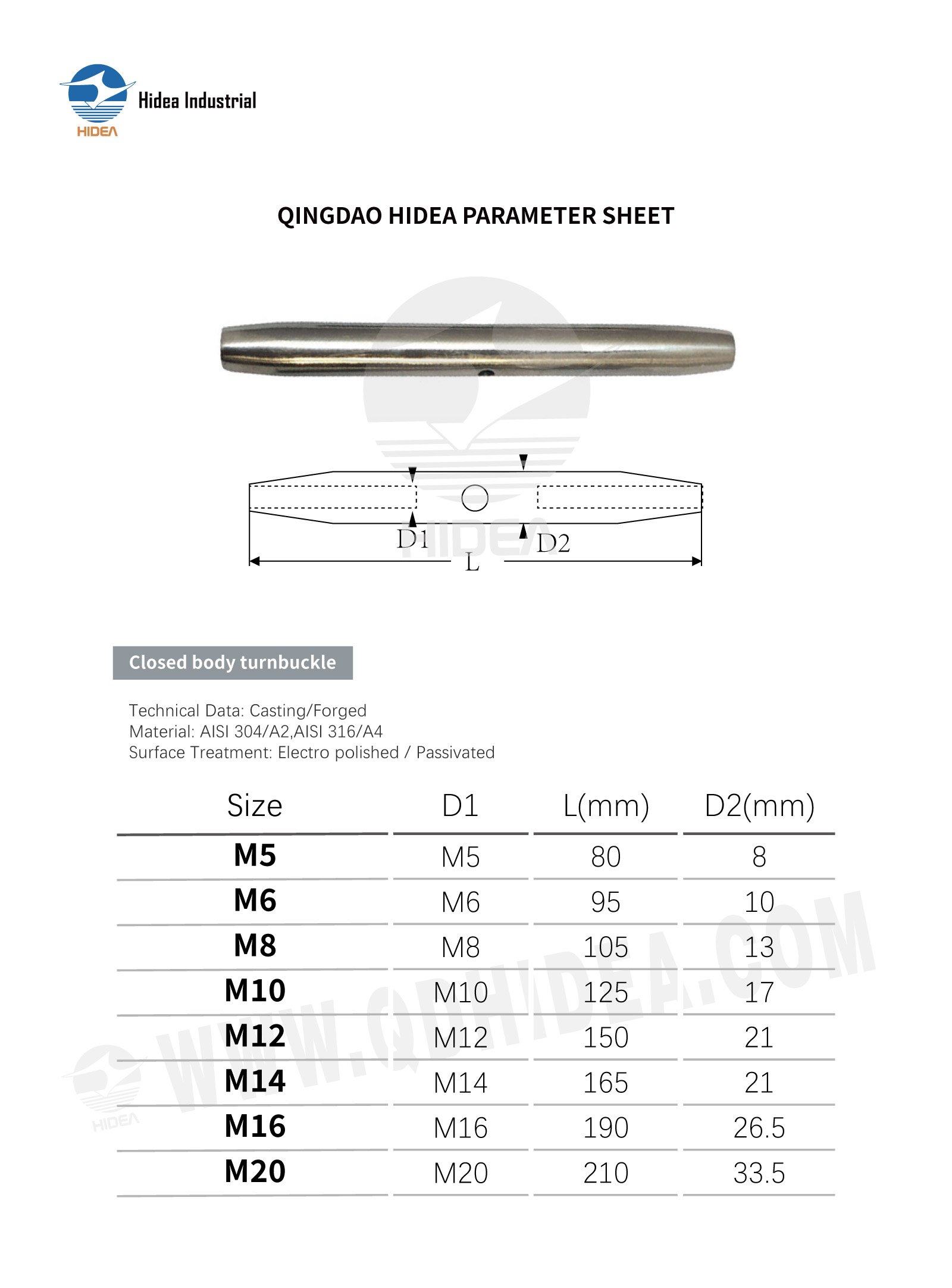

QINGDAO HIDEA PARAMETER SHEET FOR

Closed body turnbuckle

Size	D1	L(mm)	D2(mm)
M5	M5	80	8
M6	M6	95	10
M8	M8	105	13
M10	M10	125	17
M12	M12	150	21
M14	M14	165	21
M16	M16	190	26.5
M20	M20	210	33.5
