Hidea DIN 82101 Shackle: Compliant with Industry Standards for Maximum Safety

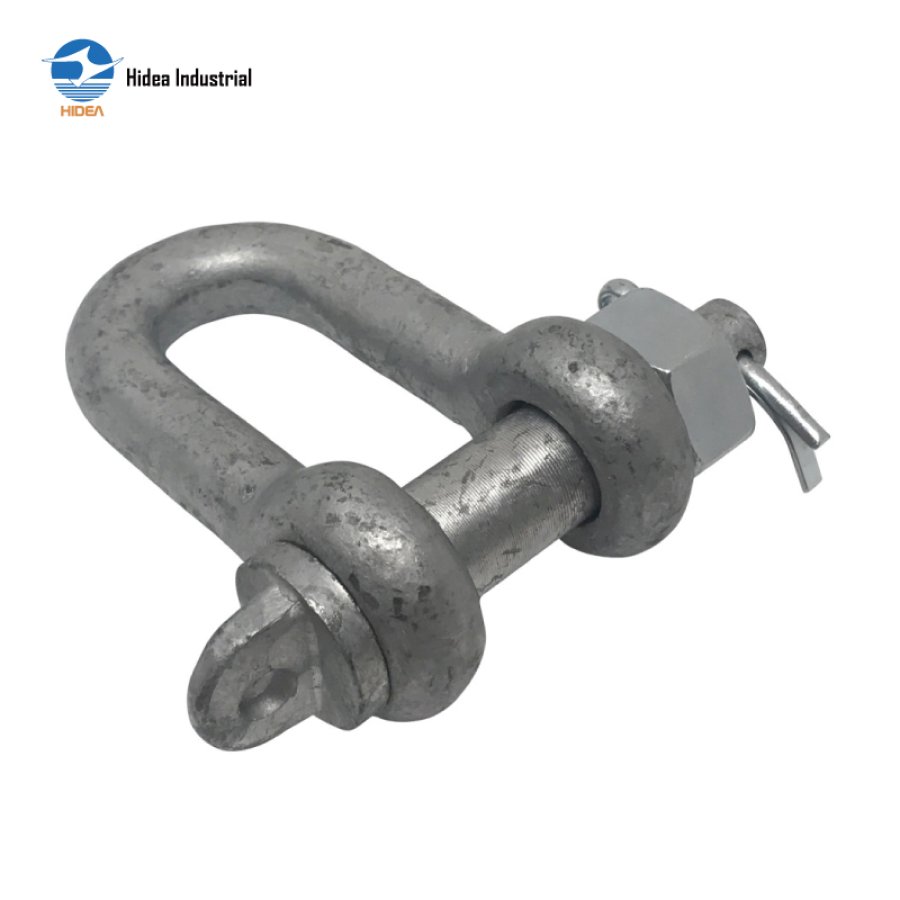

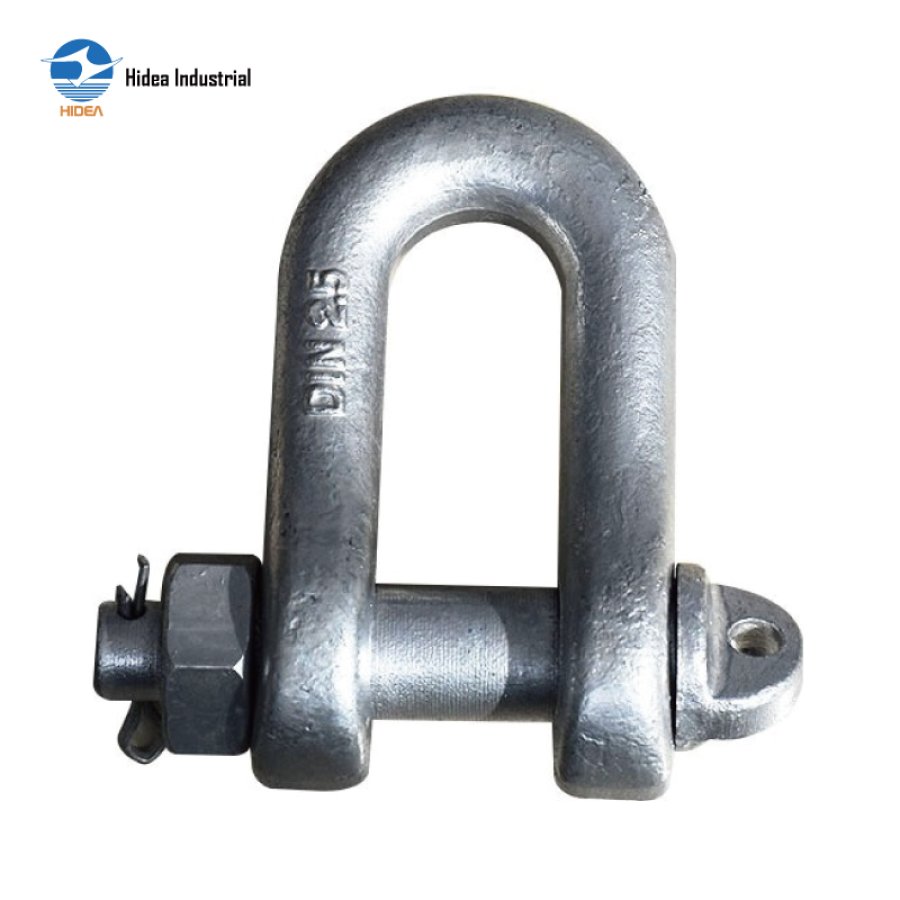

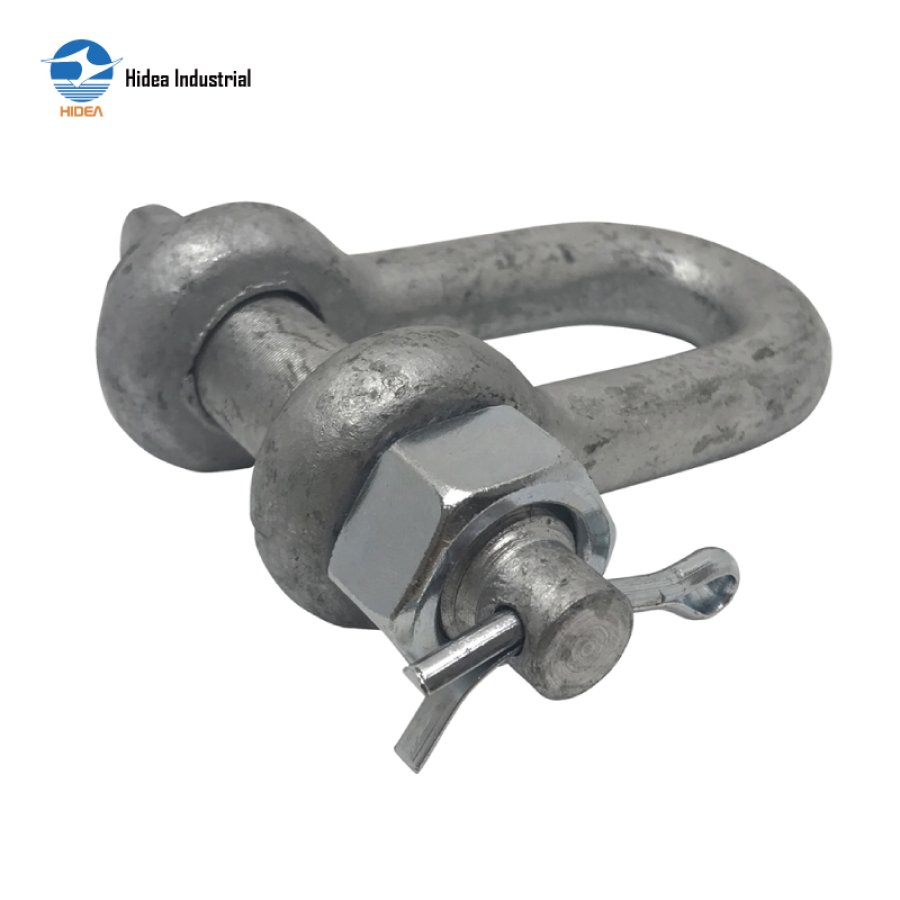

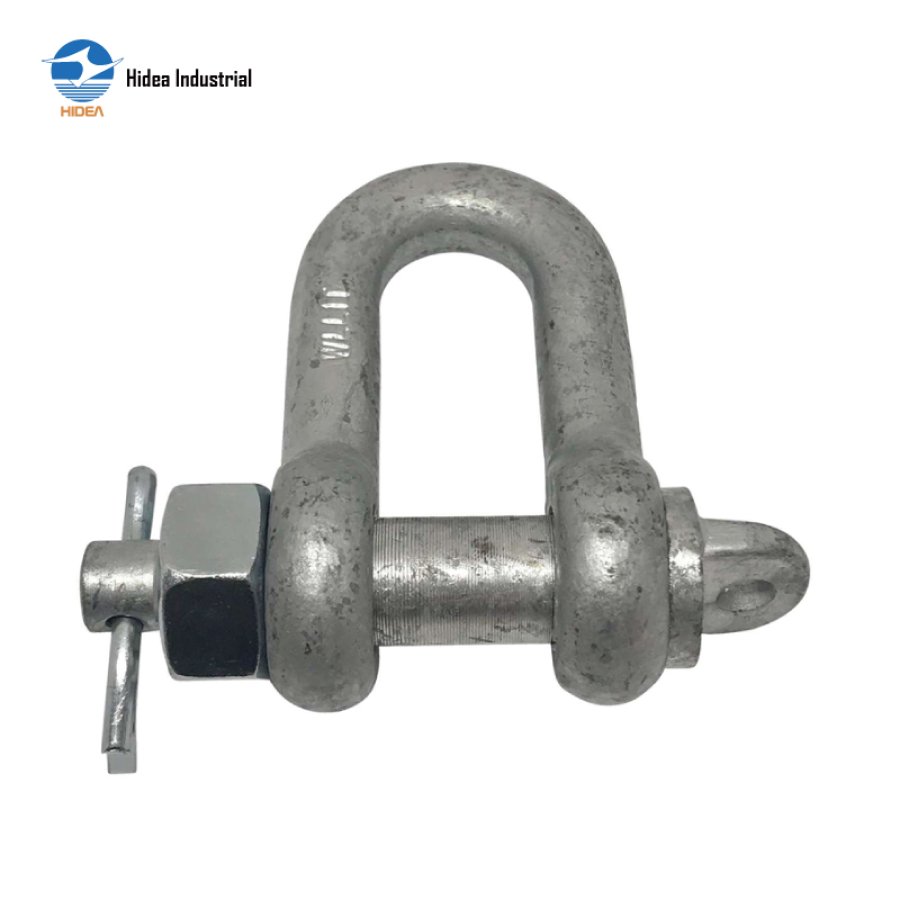

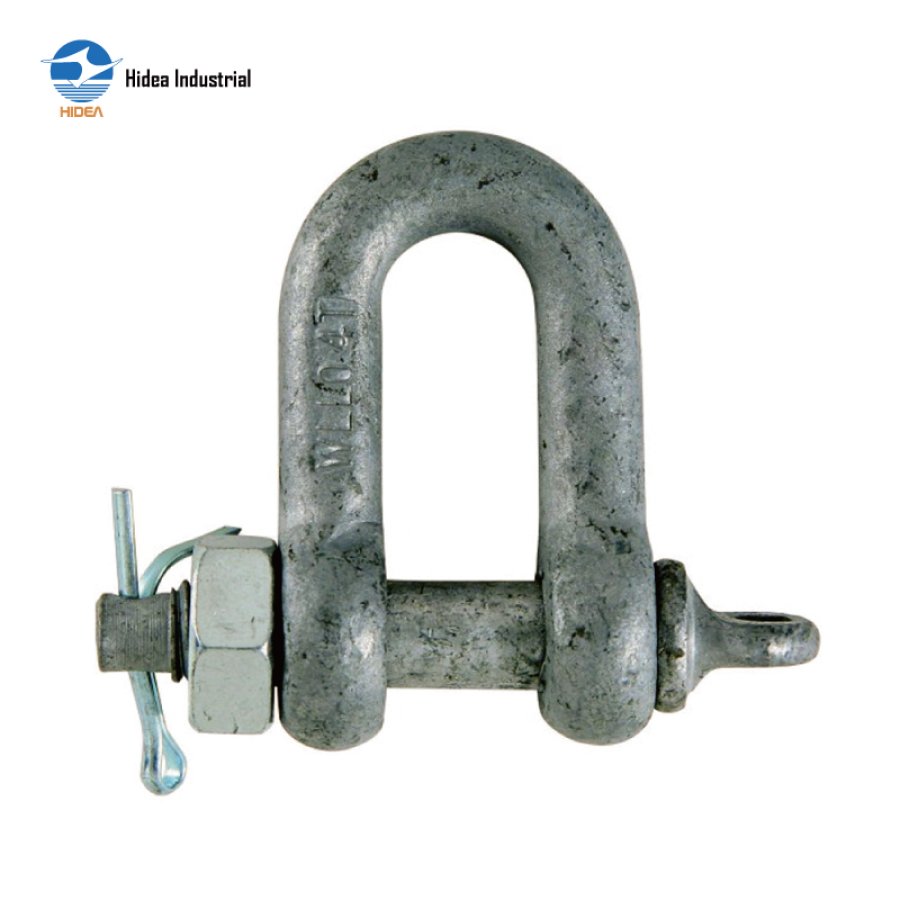

DIN82101 DEE SHACKLE TYPE C

Material: body AND pin carbon steel
Drop forged, quenched & tempered
Safety factor 5:1 & certificates available
Surface hot dip galvanized (H.D.G)
Standard DIN82101 FORM C

Inquire Now

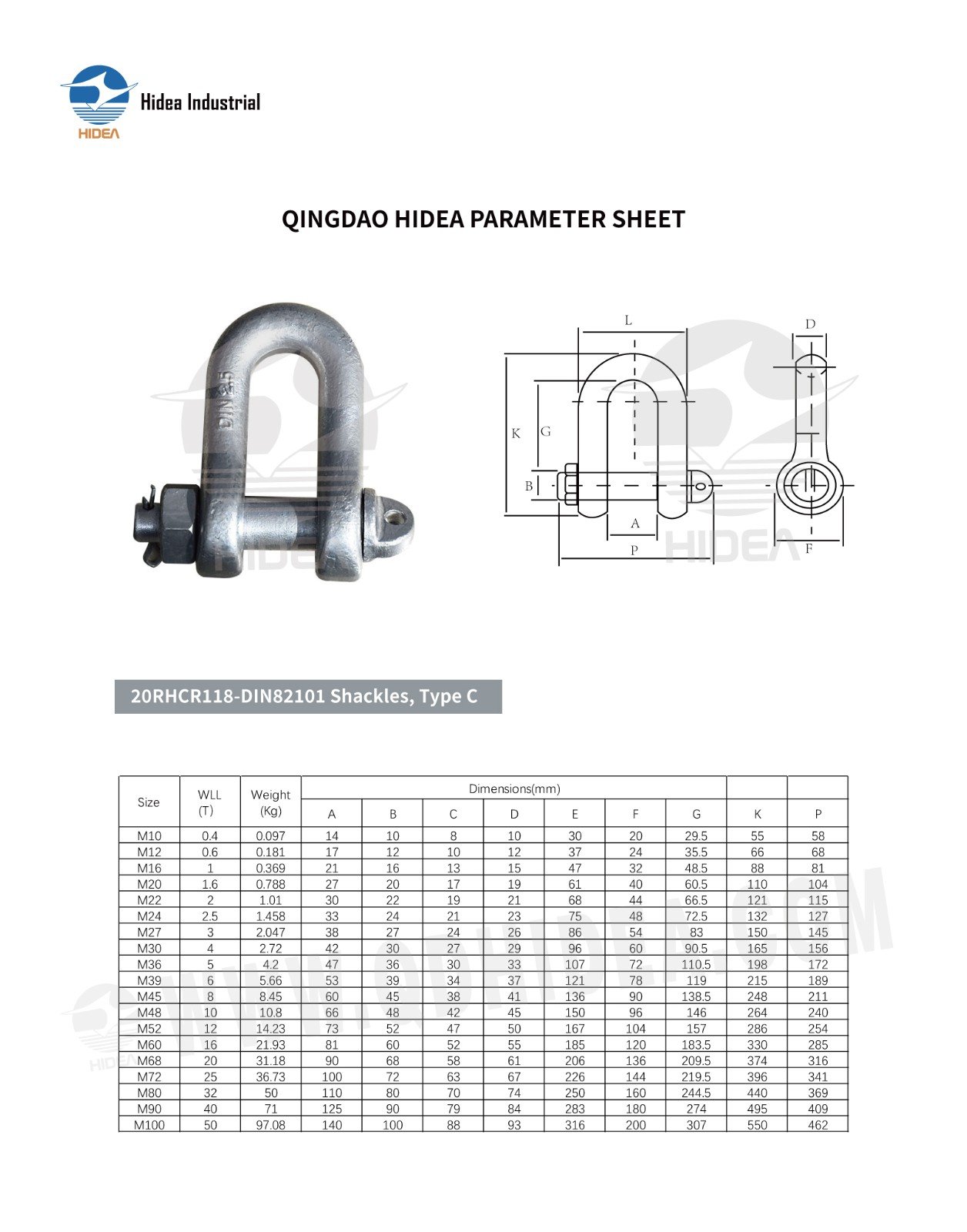

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR118-DIN82101 Shackles,Type C

Size	WLL (T)	Weight (Kg)	Dimensions(mm)
Size	WLL (T)	Weight (Kg)	A	B	C	D	E	F	G	K	P
M10	0.4	0.097	14	10	8	10	30	20	29.5	55	58
M12	0.6	0.181	17	12	10	12	37	24	35.5	66	68
M16	1	0.369	21	16	13	15	47	32	48.5	88	81
M20	1.6	0.788	27	20	17	19	61	40	60.5	110	104
M22	2	1.01	30	22	19	21	68	44	66.5	121	115
M24	2.5	1.458	33	24	21	23	75	48	72.5	132	127
M27	3	2.047	38	27	24	26	86	54	83	150	145
M30	4	2.72	42	30	27	29	96	60	90.5	165	156
M36	5	4.2	47	36	30	33	107	72	110.5	198	172
M39	6	5.66	53	39	34	37	121	78	119	215	189
M45	8	8.45	60	45	38	41	136	90	138.5	248	211
M48	10	10.8	66	48	42	45	150	96	146	264	240
M52	12	14.23	73	52	47	50	167	104	157	286	254
M60	16	21.93	81	60	52	55	185	120	183.5	330	285
M68	20	31.18	90	68	58	61	206	136	209.5	374	316
M72	25	36.73	100	72	63	67	226	144	219.5	396	341
M80	32	50	110	80	70	74	250	160	244.5	440	369
M90	40	71	125	90	79	84	283	180	274	495	409
M100	50	97.08	140	100	88	93	316	200	307	550	462
