HIDEA Diamond Eye Jump Ring: Strong and Corrosion-Resistant for Marine and Industrial Use

banner

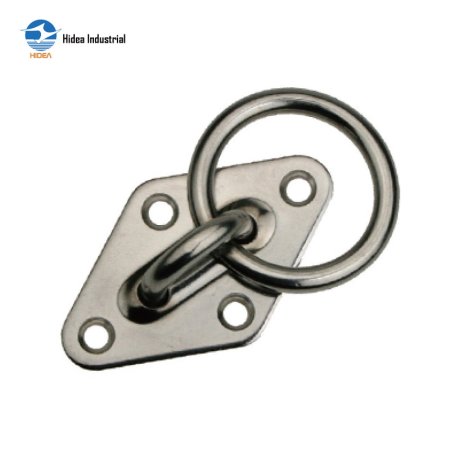

HIDEA Stainless Steel Diamond Eye Plate with Ring

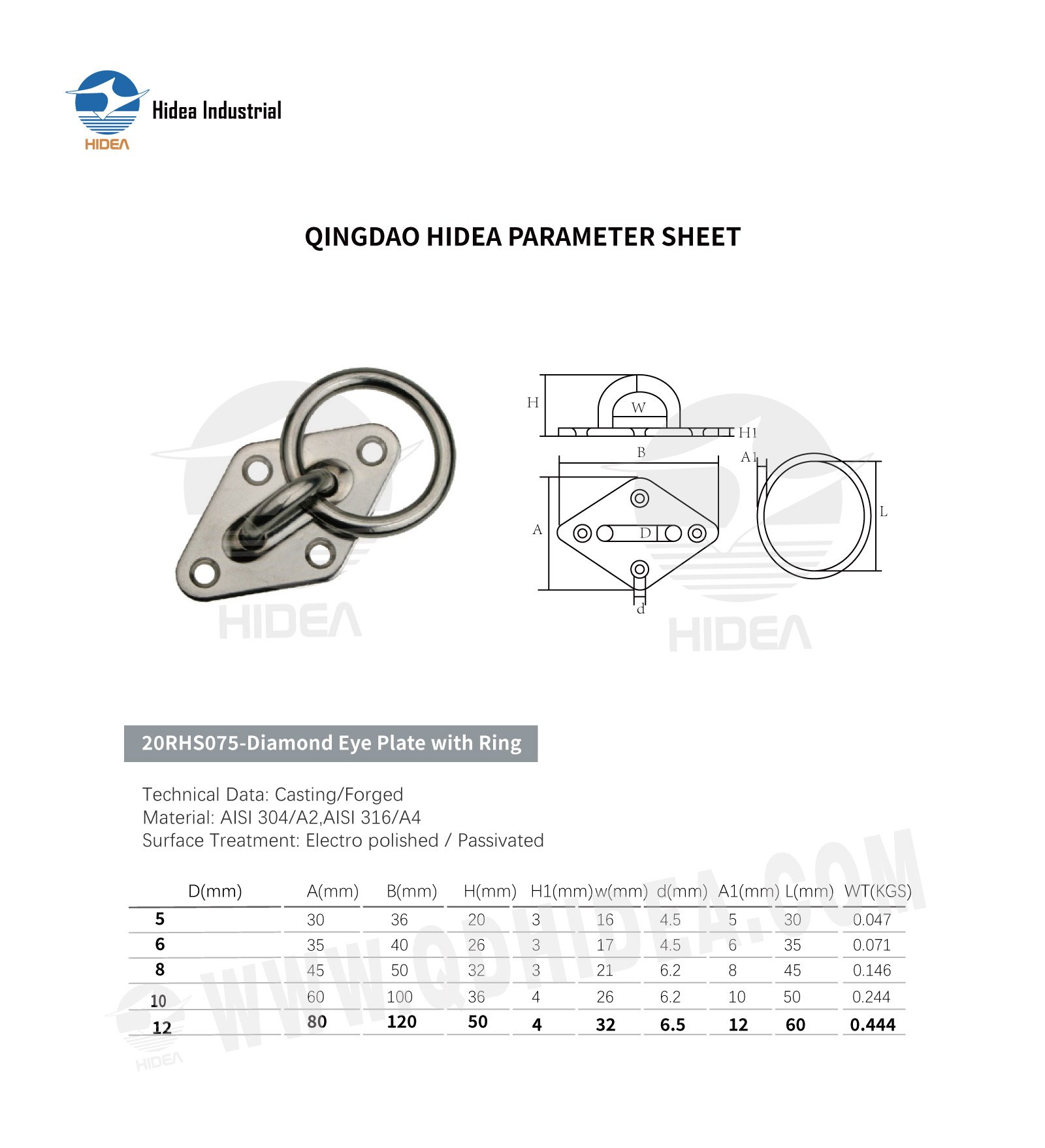

QINGDAO HIDEA PARAMETER SHEET FOR

20RHS075-Diamond Eye Plate with Ring

D(mm)A(mm)B(mm)H(mm)H1(mm)w(mm)d(mm)A1(mm)L(mm)WT(KGS)
30 36 20 16 4.5 30 0.047
35 40 26 17 4.5 35 0.071
45 50 32 21 6.2 45 0.146
10 60 100 36 26 6.2 10 50 0.244
12 80 120 50 32 6.5 12 60 0.444
