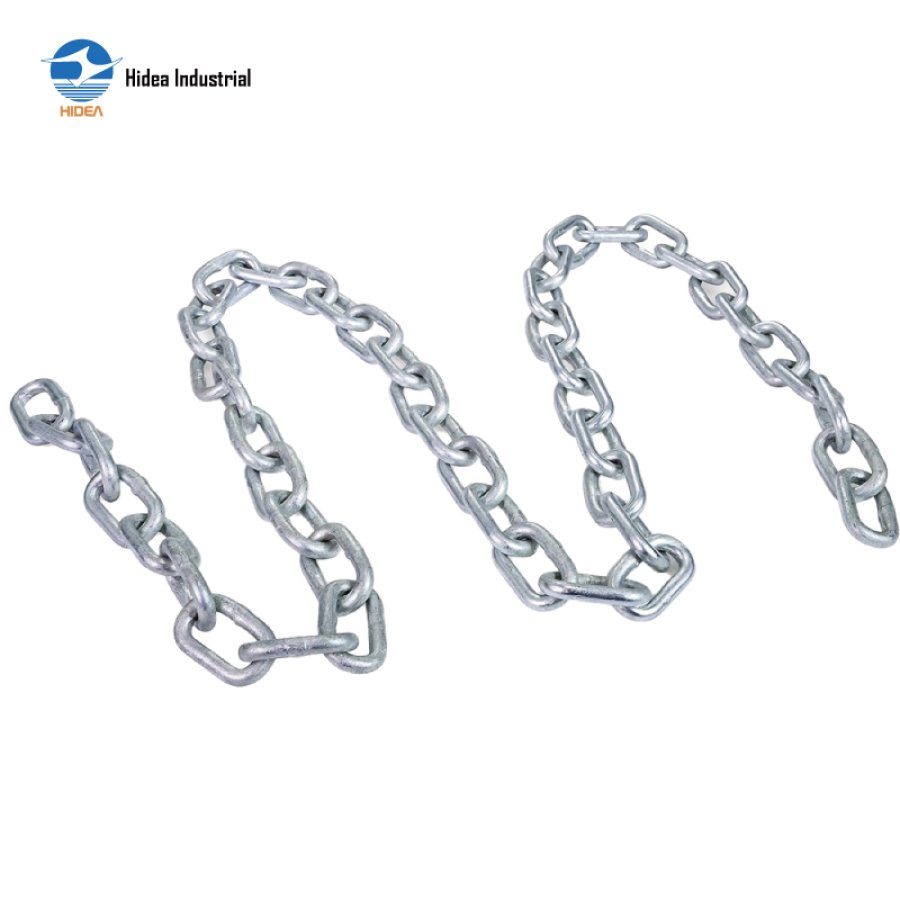

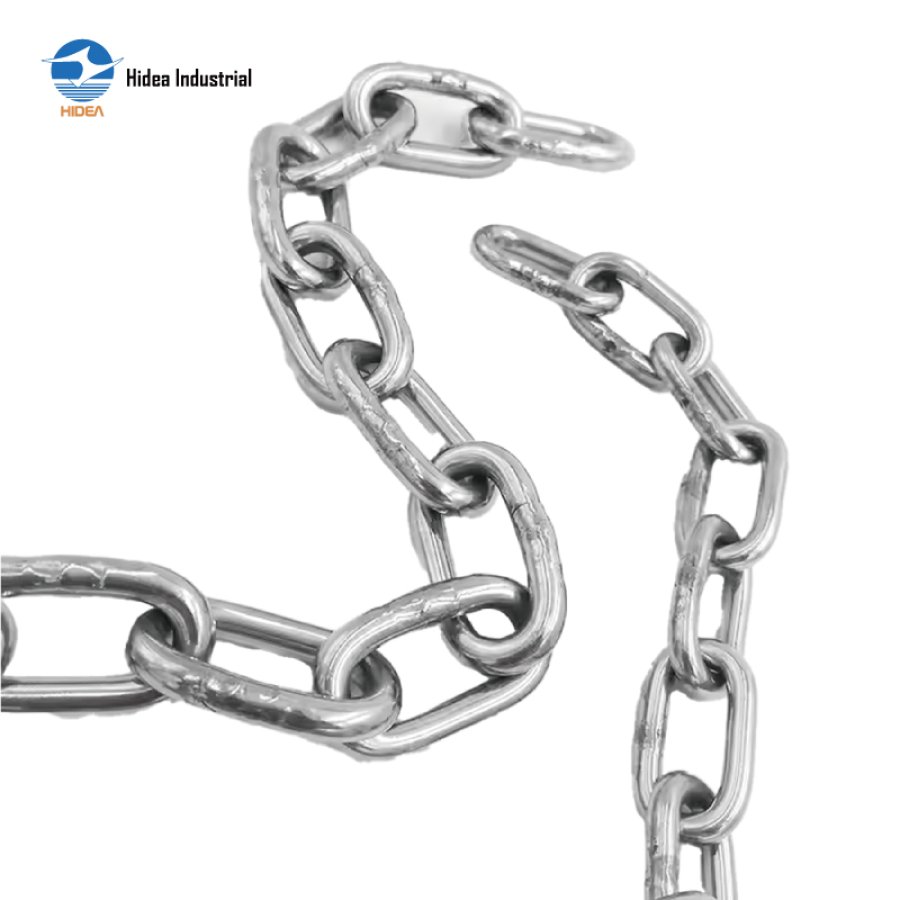

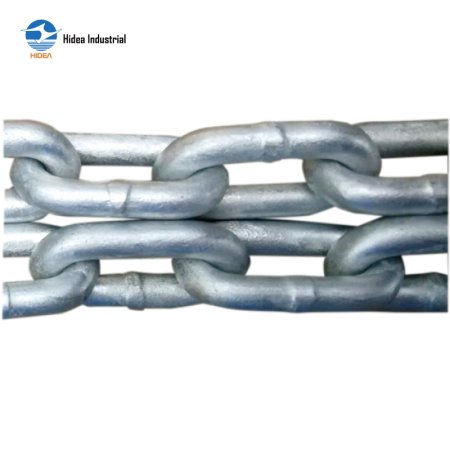

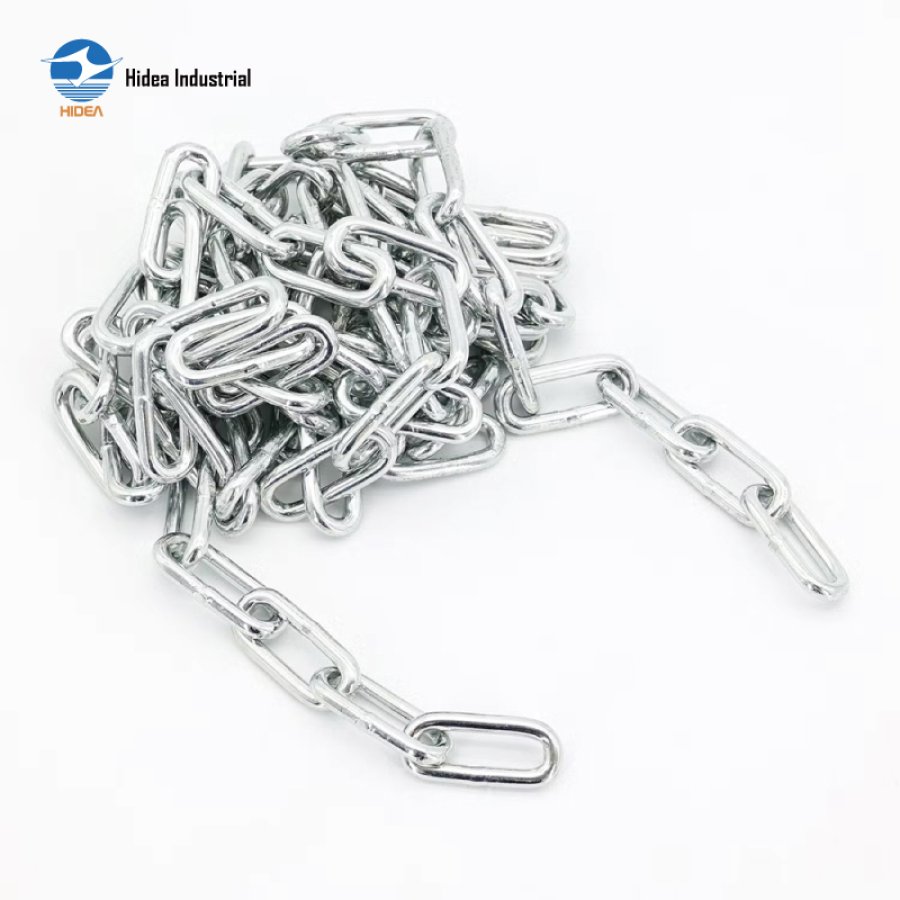

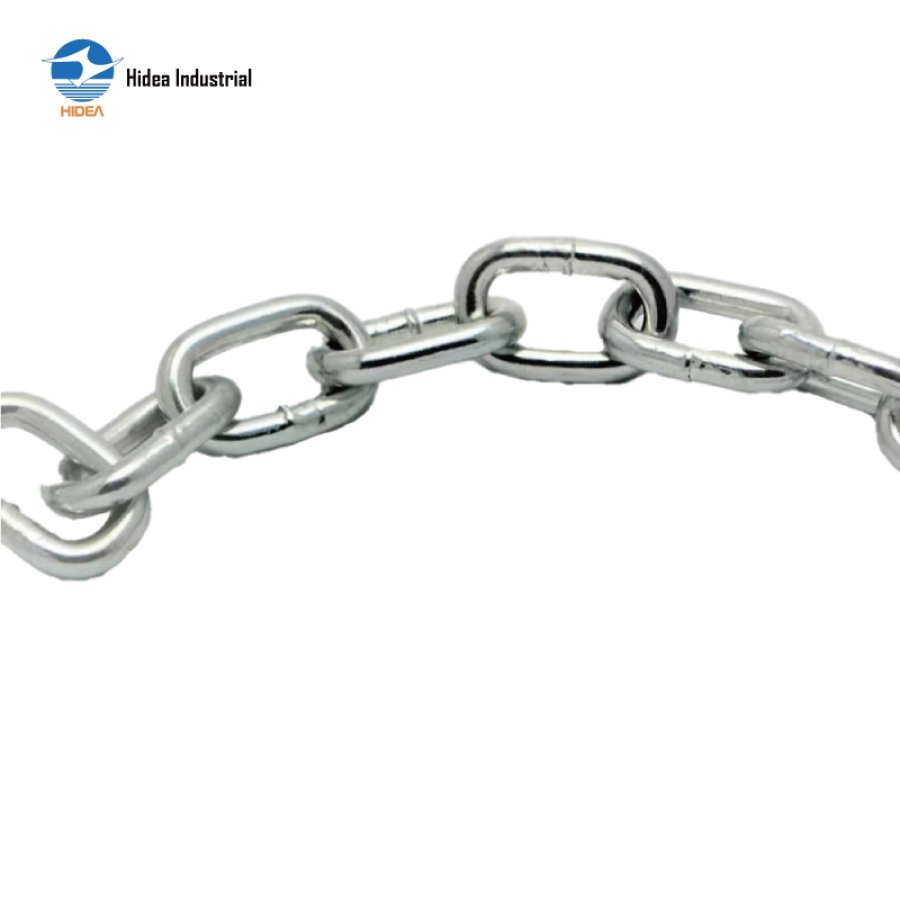

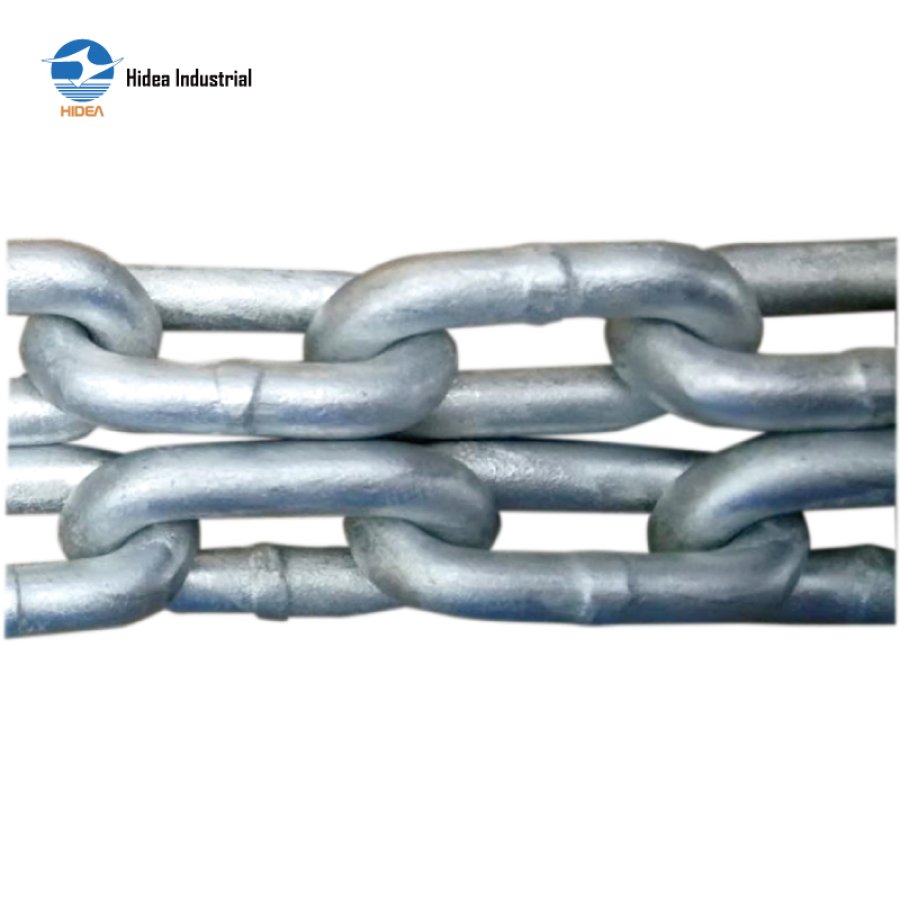

HIDEA G30 Fishing Chain: Japanese Standard Chain for Commercial Fishing

JAPANESE STANDARD FISHING CHAIN G30

Material: Carbon Steel Mild Steel
Surface Treatment: Hot Dip OR Electro galvanized, Blackened or as requested
Japanese Standard Fishing Chain G30

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

30SC134 Japanese Standard Fishing Chain G30

Size	Inside Length	Inside Width	Outside Width	Weight	Proof Test	Breaking Load
mm	mm	mm	mm	kg	kg	kg
2	12	3.5	7.5	0.07	94	188
3	19	5	11	0.16	211	423
4	20	6	14	0.29	376	753
5	20	7	17	0.49	588	1177
5.5	24	10	21	0.6	712	1424
5.5	24	10	21	0.6	712	1424
6	31	9	21	0.65	847	1694
6	24	9	21	0.72	847	1694
7	37	10	24	0.88	1154	2308
7	28	10	24	0.96	1154	2308
8	38	11	27	1.18	1507	3014
8.7	27.9	12.7	30.1	1.63	1750	3500
9	39	13	31	1.55	1907	3814
10	42	15	35	1.95	2355	4710
10.3	31.2	15.7	36.3	2.37	2500	5000
11.9	34.8	19.1	42.9	3.23	3300	6600
12	48	19	43	2.88	3391	6782
12	54	20	44	2.77	3391	6782
14	49	20	49	3.98	4650	9300
16	56	24	56	5.22	6000	12000
